How to set firewall to connect two zones

Some-Dinosaur · April 16, 2025, 10:07pm

I'm finally reaching a point where my setup is "good enough". The last thing I want to figure out is how to cross firewall zones.

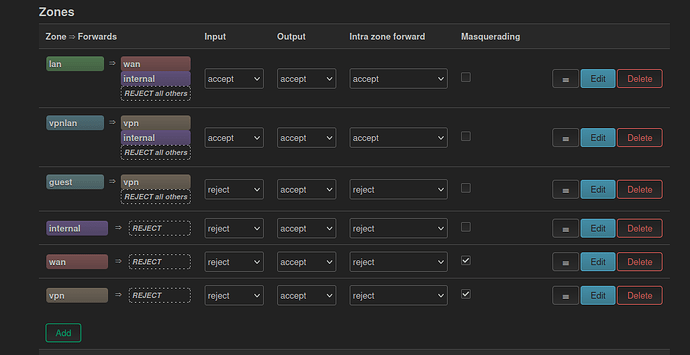

Here's overview of the setup:

There's also a rule for vpnlan that forces everything into vpn - I managed to set it up with help of the forum as well in this post.

config rule
	option in 'vpnlan'
	option lookup '102'

config route
	option interface 'vpn'
	option target '0.0.0.0/0'
	option table '102'

What I want to do now is:

Make internal become reachable from vpnlan - right now my rule makes it impossible. Does it even make sense to put this forward rule in the GUI if I have the rule to redirect it all to vpn?
Allow for lan <=> vpnlan communication - I want to be able to reach devices on vpnlan from lan, and on lan from vpnlan. Only locally so 192.168.0.0/16 restricted - I don't want vpnlan to anyhow be able to go through lan to wan.

How can I do this? Do I have to define rules that are 192.168.0.0/16 specific? Maybe there's some way to do it using interfaces only, like: if it came from lan and is going to vpnlan - let it go?

/etc/config/network

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd95:f13:1605::/48'
	option packet_steering '1'

config interface 'lan'
	option device 'br-vlan.20'
	option proto 'static'
	option ipaddr '192.168.20.1'
	option netmask '255.255.255.0'

config interface 'wan'
	option device 'eth1'
	option proto 'dhcp'
	option peerdns '0'

config interface 'wan6'
	option device 'eth1'
	option proto 'dhcpv6'
	option reqaddress 'try'
	option reqprefix 'auto'
	option norelease '1'
	option peerdns '0'

config interface 'vpn'
	option proto 'wireguard'
	option private_key 'openwrt='
	list addresses '10.2.0.2/32'
	option listen_port '51820'
	list dns '10.2.0.1'
	option mtu '1280'

config wireguard_vpn
	option description 'WG'
	option public_key 'openwrt='
	list allowed_ips '0.0.0.0/0'
	option endpoint_host '09.107.106.103'
	option endpoint_port '51820'
	option persistent_keepalive '25'

config rule
	option in 'vpnlan'
	option lookup '102'

config route
	option interface 'vpn'
	option target '0.0.0.0/0'
	option table '102'

config interface 'vpnlan'
	option proto 'static'
	option ipaddr '192.168.12.1'
	option netmask '255.255.255.0'
	option defaultroute '0'
	option device 'br-vlan.12'

config route
	option interface 'vpn'
	option target '10.2.0.1/24'
	option table '110'

config rule
	option in 'guest'
	option lookup '102'

config rule
	option dest '10.2.0.1/24'
	option lookup '110'
	option in 'loopback'

config interface 'guest'
	option proto 'static'
	option ipaddr '192.168.10.1'
	option netmask '255.255.255.0'
	option device 'br-vlan.10'
	option defaultroute '0'

config interface 'internal'
	option proto 'static'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option device 'br-vlan.1'
	option defaultroute '0'

config device
	option type 'bridge'
	option name 'br-vlan'
	list ports 'eth0'
	list ports 'eth2'
	list ports 'eth3'
	list ports 'eth4'
	list ports 'eth5'

config bridge-vlan
	option device 'br-vlan'
	option vlan '1'
	list ports 'eth2:u*'
	list ports 'eth3:u*'

config bridge-vlan
	option device 'br-vlan'
	option vlan '10'
	list ports 'eth2:t'
	list ports 'eth3:t'

config bridge-vlan
	option device 'br-vlan'
	option vlan '20'
	list ports 'eth0:u*'
	list ports 'eth2:t'
	list ports 'eth3:t'
	list ports 'eth4:u*'
	list ports 'eth5:u*'

config bridge-vlan
	option device 'br-vlan'
	option vlan '12'
	list ports 'eth2:t'
	list ports 'eth3:t'

/etc/config/firewall

config defaults
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'
	option flow_offloading '1'
	option flow_offloading_hw '1'

config zone
	option name 'lan'
	list network 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'

config zone
	option name 'vpnlan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	list network 'vpnlan'
	option family 'ipv4'
	option mtu_fix '1'

config zone
	option name 'guest'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	list network 'guest'

config zone
	option name 'internal'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	list network 'internal'

config zone
	option name 'wan'
	list network 'wan'
	list network 'wan6'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config zone
	option name 'vpn'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	list network 'vpn'
	option family 'ipv4'
	option mtu_fix '1'
	option masq '1'

config forwarding
	option src 'vpnlan'
	option dest 'vpn'

config forwarding
	option src 'guest'
	option dest 'vpn'

config rule
	option name 'Allow-Guest-DHCP-DNS'
	option src 'guest'
	option dest_port '53 67 68'
	option target 'ACCEPT'

config rule
	option name 'Allow-Internal-DHCP-DNS-NGINX'
	option src 'internal'
	option dest_port '53 67 68 80 443'
	option target 'ACCEPT'

config rule
	option name 'Allow-VPNLan-DHCP-DNS-NGINX'
	option src 'vpnlan'
	option dest_port '53 67 68 80 443'
	option target 'ACCEPT'

config forwarding
	option src 'lan'
	option dest 'internal'

config forwarding
	option src 'vpnlan'
	option dest 'internal'

Thank you!

egc · April 17, 2025, 6:20am

/etc/config/firewall:

config forwarding
	option src 'vpnlan'
	option dest 'internal'

But your table 102 must also have a local route for the internal interface:
/etc/config/network:

config route
	option interface 'internal'
	option target '192.168.1.1'
	option table '102'

Allow for lan <=> vpnlan communication for two way communication:
/etc/config/firewall:

config forwarding
	option src 'vpnlan'
	option dest 'lan'

config forwarding
	option src 'lan'
	option dest 'vpnlan'

Note it is very early in the morning and I did not get my coffee yet so no guarantee it is correct, but I hope you have got the idea

Some-Dinosaur · April 17, 2025, 6:58am

I will give it a go, thanks!

egc:

Allow for lan <=> vpnlan communication for two way communication:
/etc/config/firewall:
config forwarding
	option src 'vpnlan'
	option dest 'lan'
config forwarding
	option src 'lan'
	option dest 'vpnlan'

Are we sure this won't allow any traffic from vpnlan to be forwarded to lan and then to wan though?

egc · April 17, 2025, 7:34am

These rules will not give access to the wan, unless you have made a forward rule (or other traffic rule) to forward form vpnlan to wan you should not be able to route via wan from vpnlan zone.

But be sure to test it

Some-Dinosaur · April 17, 2025, 8:19am

Maybe I just don't understand something simple though.

In my imagination once a package is forwarded from zone A to zone B it can still be forwarded as if it came from zone B. Or does it not chain like this? Is a package forwarded only once if it's not a gateway?

egc · April 17, 2025, 8:39am

You can only send it once, if you send it to B it will go to B and not to somewhere else.
(of course it is possible that you redirect packages but that is not something which is automagically happening)

egc · April 17, 2025, 2:15pm

If your problem is solved, please consider marking this topic as [Solved]. See How to mark a topic as [Solved] for a short how-to.
Thanks!

Some-Dinosaur · April 17, 2025, 6:10pm

Everything seems to work! I will be testing it more but I think what we've got here is a great entry point.

Reaching `internal` from routed `vpnlan` (no default gateway)

For the matter of reaching internal from vpnlan - as @egc has suggested I've added config route - but I've added two to handle internal and lan - because lan was blocked as well because I've got default gateway disabled on this interface to make sure it's going through the vpn. Here's what it looks like:

config rule
	option in 'vpnlan'
	option lookup '112'

config route
	option interface 'lan'
	option target '192.168.20.0/24'
	option table '112'

config route
	option interface 'internal'
	option target '192.168.1.0/24'
	option table '112'

config route
	option interface 'vpn'
	option table '112'
	option target '0.0.0.0/0'

Connecting `lan` and `vpnlan`

Here I just allowed forwarding exactly as @egc has suggested, resulting in config like this:

system · April 27, 2025, 6:10pm

This topic was automatically closed 10 days after the last reply. New replies are no longer allowed.
