ZBT Z8103AX-D: upgrading from 21.02 to 23.05

For Developers
1

Hi!

I have Z8103AX-D that has openwrt on it but it is very outdated and it is customized by the seller (the logo says: OpenWRT Wireless Freedom). I want to upgrade to latest version of OpenWrt (23.05) so I can download the plugins/extensions I needed but I don't know how to do it.

ui of openwrt wireless freedom
ui of openwrt wireless freedom1871×906 47.1 KB

Here's the result of cat /etc/openwrt_release


DISTRIB_ID='OpenWrt'
DISTRIB_RELEASE='21.02-SNAPSHOT'
DISTRIB_REVISION='23.0427_012013'
DISTRIB_TARGET='mediatek/mt7981'
DISTRIB_ARCH='aarch64_cortex-a53'
DISTRIB_DESCRIPTION='OpenWrt 21.02-SNAPSHOT unknown'
DISTRIB_TAINTS='no-all busybox'

Help is much appreciated. I'm willing to pay for your coffee. Thank you

1 Like
2

This is now known as filogic according to:
https://downloads.openwrt.org/releases/23.05.0/targets/mediatek/filogic/

Nobody else has this device, so you would have to port actual Openwrt to it, instead of the forked release you are currently running.

1 Like
3

Hi, can you send me some resources on how to do the porting? Thank you

4
1 Like
5

Cudy WR3000 is another MT7981 device, so the architecture exists, but not the specific target.

If @darknblack can ssh into the ZBT, and get dmesg, there may be a chance.

6

Hi! Here's the result of dmesg:

I can also open the router if needed. Let me know what I can do to help

7

I found this thread, which could be a good starting point for us: Adding OpenWrt support for ZBT Z8102AX

Running the cat /sys/kernel/debug/gpio command on the z8103ax-d router will display the following:

root@OpenWrt:~# cat /sys/kernel/debug/gpio
gpiochip0: GPIOs 455-511, parent: platform/11d00000.pinctrl, pinctrl_moore:
 gpio-455 (                    |mesh                ) in  hi IRQ
 gpio-456 (                    |reset               ) in  hi IRQ ACTIVE LOW
 gpio-463 (                    |net                 ) out hi ACTIVE LOW
 gpio-478 (                    |blue                ) out lo ACTIVE LOW
 gpio-479 (                    |green               ) out lo ACTIVE LOW
 gpio-480 (                    |red                 ) out hi
 gpio-494 (                    |reset               ) out hi

Here is the OpenWrt 21.02 firmware (.bin file) that I am currently using on the z8103ax-d router. Perhaps someone can extract important information from it.

Here's the DTB files extracted from the firmware above ^ using this tool:

8

I used the dtc tool to convert the DTB file to DTS.

Here's the outcome:

I wonder what should be the next step :thinking:

9

I hope someone can check if what I wrote here is reasonable before I actually make a build out of it and test it on my router. I'm afraid of bricking my device :sweat_smile:

I'm particulary unsure about the 11_fix_wifi_mac and platform.sh file.

10

Progress: I was able to install Openwrt Snapshot using UART.

image1031×698 18 KB

LAN + WIFI works great.

I can't understand why the MAC address of wan is : though :3

image1113×835 53.8 KB

2 Likes
11

I have just got a Z8103AX-W!! ( that's what the admin page footer says!!)
What could be the default ssh password?
Anyone know of any support channels for this router?

12

try
user: root
pass: admin

13

Thanks for the reply. No luck with the password!
From a config backup dump I could read /etc/passwd and /etc/shadow. Tried to run 'john' with it, but no hashes decoded.
/etc/passwd starts with:

root:x:0:0:root:/root:/bin/false
wintop:$1$Yup7HSfh$1OcxXy1RiULWyHwi91jTq.:0:0:root:/root:/bin/ash
anywifi:x:0:0:root:/root:/bin/ash

/etc/shadow starts with:

root:$1$/upNzzBq$n6dSjhrukZDsXFFm33doL1:18624:0:99999:7:::
anywifi:$1$cIlJAfeI$yOK2PILQg0Qy88F/ZcR4Q/:16577:0:99999:7:::

Hope to get some breakthru from that info.

14

Good news!! I just edited the /etc/passswd file in the backup dump.
Changed the first line to:
root:x:0:0:root:/root:/bin/ash

Then just did
tar -czf ./Backupaclink.tar.gz etc on my mac, upload that Backupaclink.tar.gz to the router's "Backup" page to restore.
Now I can ssh root@192.168.1.1 with my 'admin' password.

ssh root@192.168.1.1
root@192.168.1.1's password:


BusyBox v1.33.2 (2022-10-31 08:39:59 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt 21.02-SNAPSHOT, unknown
 -----------------------------------------------------

:slightly_smiling_face:

3 Likes
15

That's nice! Can you show us the image/picture of your router?

16

Z8103AX Router
Z8103AX Router1062×1067 46.2 KB

1 Like
17

We have the exactly the same "casing". It's prolly the same, maybe the only difference is the "firmware installed".

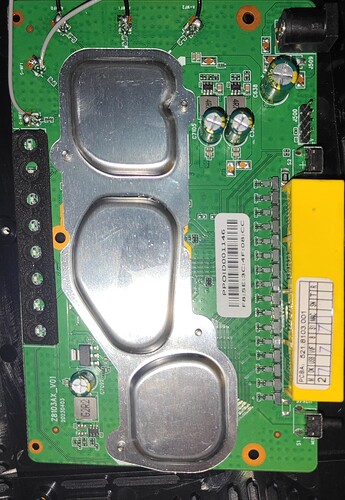

This is what the inside of the router looks like.

IMG_20231024_180538
IMG_20231024_1805381836×2654 471 KB

IMG_20231024_180445
IMG_20231024_1804451920×2560 466 KB

IMG_20231024_180305
IMG_20231024_1803051920×2560 522 KB

1 Like
18

Hi, can someone explain these error/warning logs to me?

Specifically this line:
[ 1.387528] ubi0 warning: ubi_eba_init: cannot reserve enough PEBs for bad PEB handling, reserved 17, need 20

[    0.940399] UBI: auto-attach mtd4
[    0.943722] ubi0: default fastmap pool size: 25
[    0.948268] ubi0: default fastmap WL pool size: 12
[    0.953047] ubi0: attaching mtd4
[    1.374410] ubi0: scanning is finished
[    1.387528] ubi0 warning: ubi_eba_init: cannot reserve enough PEBs for bad PEB handling, reserved 17, need 20
[    1.398003] ubi0: attached mtd4 (name "ubi", size 64 MiB)
[    1.403406] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[    1.410281] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[    1.417061] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[    1.424008] ubi0: good PEBs: 512, bad PEBs: 0, corrupted PEBs: 0
[    1.430004] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128
[    1.437218] ubi0: max/mean erase counter: 2/1, WL threshold: 4096, image sequence number: 1698314449
[    1.446335] ubi0: available PEBs: 0, total reserved PEBs: 512, PEBs reserved for bad PEB handling: 17
[    1.455551] ubi0: background thread "ubi_bgt0d" started, PID 416
[    1.457636] block ubiblock0_1: created from ubi0:1(rootfs)
[    1.467045] ubiblock: device ubiblock0_1 (rootfs) set to be root filesystem

Is this achievable? Can someone guide me on how to convert bl2 to UBI block. Thanks

[47123.246960] mtdblock: MTD device 'bl2' is NAND, please consider using UBI block devices instead.

19

Update: It is now for review & approval :partying_face::tada:

2 Likes
20

@darknblack
How is the progress so far?!
