Wireguard Client on unique SSID - issues with handshake and routing

tf63 · December 9, 2024, 8:34am

Hi there,
I'm fairly new to openwrt, but a pretty advanced user of Fresh Tomato, and the level of abstraction/changes I'm facing is challenging
I'm trying to create the following:

A LAN network consisting of 3 AP handled by openwrt: two normal ones (on 2.4 and 5 Ghz) and one AP named "Away" that would route all the traffic received to internet via a Wireguard tunnel.
The Wireguard tunnel is leading to my home network and would route all the traffic of the internet so the device connected would be able to access some of my servers/services and have my public IP address when browsing the web.

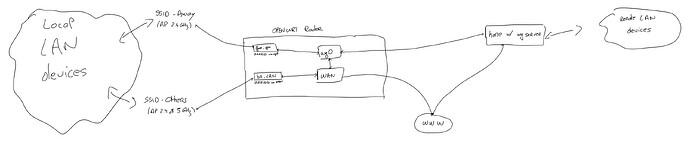

Sometime a handmade diagram is better than words to explain things, so here it is:

The issues I'm facing right now:

Sometimes (like in the current config you'll find below), the handshake for the WG0 interface doesn't work and I'm stuck with no connectivity. There's definitely a problem with my firewalling/routing that I can't pinpoint.
The routing seems problematic as well. When the WG does work, all the traffic of all the interfaces is routed through the VPN. Even though I created a static IPV4 routing policy and a dedicated routing table for the VPN. Which leads to a total loss of connectivity when the Wireguard interface doesn't work.

Please find below the different configuration files of my current configuration:

/etc/config/network

cat /etc/config/network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd5d:2359:e23b::/48'
	option packet_steering '1'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan1'
	list ports 'lan2'
	list ports 'lan3'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.40.1'
	option netmask '255.255.255.0'
	option ip6assign '60'

config interface 'wan'
	option device 'wan'
	option proto 'dhcp'

config interface 'wg0'
	option proto 'wireguard'
	option private_key 'some info here'
	list addresses '10.175.214.7/24'
	option defaultroute '0'

config interface 'iface_vpn'
	option proto 'static'
	option ipaddr '192.168.41.1'
	option netmask '255.255.255.0'

config rule
	option in 'iface_vpn'
	option lookup '100'
	option out 'wg0'

config wireguard_wg0
	option description 'MMA-ROUTER.conf'
	option public_key 'some info here'
	option preshared_key 'some info here'
	option endpoint_host 'some info here'
	option endpoint_port '51820'
	list allowed_ips '0.0.0.0/0'
	option persistent_keepalive '25'

/etc/config/wireless

cat /etc/config/wireless

config wifi-device 'radio0'
	option type 'mac80211'
	option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0'
	option channel 'auto'
	option band '2g'
	option htmode 'HT20'
	option cell_density '0'

config wifi-iface 'default_radio0'
	option device 'radio0'
	option network 'lan'
	option mode 'ap'
	option ssid 'Ma2.4'
	option encryption 'sae-mixed'
	option key 'some info here'

config wifi-device 'radio1'
	option type 'mac80211'
	option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
	option channel 'auto'
	option band '5g'
	option htmode 'VHT80'
	option cell_density '0'

config wifi-iface 'default_radio1'
	option device 'radio1'
	option network 'lan'
	option mode 'ap'
	option ssid 'Ma5.0'
	option encryption 'sae-mixed'
	option key 'some info here'

config wifi-iface 'wifinet2'
	option device 'radio0'
	option mode 'ap'
	option ssid 'Away'
	option encryption 'psk2'
	option key 'some info here'
	option network 'iface_vpn'

/etc/config/firewall

cat /etc/config/firewall

config defaults
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'

config zone
	option name 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	option masq '1'
	list network 'lan'

config zone
	option name 'wan'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'
	list network 'wan'
	list network 'wg0'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

config zone
	option name 'vpn'
	option network 'iface_vpn'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	option masq '1'
	option mtu_fix '1'

config forwarding
	option src 'vpn'
	option dest 'wan'

config rule
	option name 'Allow-WireGuard-Out'
	option src '*'
	option dest 'wan'
	option proto 'udp'
	option dest_port '51820'
	option target 'ACCEPT'

config rule
	option name 'Allow-Administration'
	option src 'wan'
	option dest_port '443 80 22 21'
	option target 'ACCEPT'

/etc/iproute2/rt_tables

cat /etc/iproute2/rt_tables
#
# reserved values
#
128	prelocal
255	local
254	main
253	default
0	unspec
#
# local
#
#1	inr.ruhep
100 iface_vpn
256 pbr_wan
257 pbr_wg0

That should be the entirety of my configuration.
Help would be appreciated !
Thanks,
F

egc · December 9, 2024, 9:13am

I do not see a table 100 made in your network it should be e.g.:

config route
	option interface 'wg0'
	option table '100'
	option target '0.0.0.0/0'

For creating a rule to let your interface use table 100, this should be sufficient so remove option out 'wg0'

tf63 · December 9, 2024, 9:41am

Thanks for your input.
I fixed the two command blocks your mentioned and now my wg0 tunnel is up again (yay!). That's problem number 1 fixed.
Second issue is still present though: the 3 AP networks are routed through the VPN instead of only the one called "Away".

egc · December 9, 2024, 10:13am

Can you show the output of:

ip route show
ip route show table 100
ip rule show

I see a problem with your iface_vpn, it is lacking a device, you have to set it up as a guest wifi:
https://openwrt.org/docs/guide-user/network/wifi/guestwifi/configuration_webinterface

tf63 · December 9, 2024, 10:29am

For the interface lacking a device, I linked the wireless ssid to the interface in the wireless config file. Is it not enough ? The interface page in the GUI shows a pictogram of a wifi station being associated

Output of the command requested:
ip route show

default via 10.0.0.1 dev wan proto static src 10.0.0.110
10.0.0.0/24 dev wan proto kernel scope link src 10.0.0.110
10.175.214.0/24 dev wg0 proto kernel scope link src 10.175.214.7
83.199.148.84 via 10.0.0.1 dev wan proto static
192.168.40.0/24 dev br-lan proto kernel scope link src 192.168.40.1
192.168.41.0/24 dev phy0-ap1 proto kernel scope link src 192.168.41.1

ip route show table 100

default dev wg0 proto static scope link

ip rule show

0:	from all lookup local
1:	from all iif phy0-ap1 lookup iface_vpn
29998:	from all fwmark 0x20000/0xff0000 lookup pbr_wg0
30000:	from all fwmark 0x10000/0xff0000 lookup pbr_wan
32766:	from all lookup main
32767:	from all lookup default

egc · December 9, 2024, 10:48am

Might be but I would just use the regular guest wifi setup with a bridge device otherwise netifd cannot find the right device.

Your default routing is definitely via the WAN but you also seems to use the PBR app, would have helped if you told that beforehand.

What we are doing with the table 100 is also PBR using netifd, do not use both.

Make up your mind what you want to use.
The PBR app is fine but then delete the route and rule for table 100, reboot afterwards and look at the readme of the pbr app how to set it up, you can have a device (as shown by ifconfig) routed via the VPN using the @ prefix e.g. @br-lan

tf63 · December 9, 2024, 12:09pm

Okay,
So, the PBR app was from a previous attempt and was not deleted when I restored from a previous/clean backup. My bad, I removed the package now, so should be fine.
The guest interface using the bridge is in place and works correctly.
Here's an output of my network config file:

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd5d:2359:e23b::/48'
	option packet_steering '1'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan1'
	list ports 'lan2'
	list ports 'lan3'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.40.1'
	option netmask '255.255.255.0'
	option ip6assign '60'

config interface 'wan'
	option device 'wan'
	option proto 'dhcp'

config interface 'wg0'
	option proto 'wireguard'
	option private_key 'APcXI05IHlOOyRhICiD5pT86pasTg3M+24wTNFVi8kw='
	list addresses '10.175.214.7/24'
	option defaultroute '0'

config interface 'iface_vpn'
	option proto 'static'
	option ipaddr '192.168.41.1'
	option netmask '255.255.255.0'
	option device 'br-vpn'

config rule
	option in 'iface_vpn'
	option lookup '100'

config route
	option interface 'wg0'
	option table '100'
	option target '0.0.0.0/0'

config wireguard_wg0
	option description 'MMA-ROUTER.conf'
	option public_key 'JUl0CkvAxz9dFtLYzUTTsP9n5EbIsCeobWHoNI9oGyM='
	option preshared_key 'k1+8PHazpmy6XxE6g9xeFShMVaycENsYBgTKtEdJ3h4='
	option endpoint_host 'pve.fca63.fr'
	option endpoint_port '51820'
	list allowed_ips '0.0.0.0/0'
	option persistent_keepalive '25'

config device
	option type 'bridge'
	option name 'br-vpn'
	option bridge_empty '1'

The issue is still here though. The normal SSID (5ghz) and the Away SSID are still both being routed through the VPN.

The ip route show output changed and is now saying that the VPN is the default route:

default via 192.168.10.87 dev wan  src 192.168.10.191
10.175.214.0/24 dev wg0 scope link  src 10.175.214.7
83.199.148.84 via 192.168.10.87 dev wan
192.168.10.0/24 dev wan scope link  src 192.168.10.191
192.168.40.0/24 dev br-lan scope link  src 192.168.40.1
192.168.41.0/24 dev br-vpn scope link  src 192.168.41.1

And the ip rule show is as follow:

0:	from all lookup local
1:	from all iif br-vpn lookup iface_vpn
32766:	from all lookup main
32767:	from all lookup default

egc · December 9, 2024, 1:32pm

The default route looks to go via the WAN so that is good.

I noticed you did not set a country code on both radio's, so start with setting a country code on both radios and then reboot.

You have three wireless SSIDs.
On radio0 (2.4 Ghz) you have Ma2.4 which should use network lan and thus default route and Away which should use iface_vpn and thus the VPN.
On radio1 (5 Ghz) you have Ma5.0 which should use network lan and thus the default route

Please run a traceroute (or from windows a tracert) to 8.8.8.8 from all three interfaces to see the routing

tf63 · December 9, 2024, 4:58pm

Hey,
Works perfectly now.
I'm shipping the router to its definitive location soon and keep this thread updated in case of any complication.
Thanks a lot,
F

egc · December 9, 2024, 4:59pm

Glad I could be of assistance.

If your problem is solved, please consider marking this topic as [Solved]. See How to mark a topic as [Solved] for a short how-to.
Thanks!
