Wavlink WL-WN570HA1 - new release hardware

Morpheus68 · November 20, 2023, 12:44pm

Hi guys!
I bought a Wavlink WL-WN570HA1 access point...
There was no way to install OpenWrt on it using the method indicated on the description page (via TFTP) - after pressing the reset button, the TFTP client did not take the image from the address 192.168.10.100...
Using Wireshark, I discovered that there is no smell of the TFTP protocol, but some kind of NTML is walking around with might and main!
It turned out that at 192.168.10.1 there was a page with Uboot for uploading the firmware...

However, as it turned out, when flashing images for the WL-WN570HA1, it is only possible to flash the initramfs-kernel. The squashfs-sysupgrade images are not installed - the firmware is installed, but the point does not load, but is constantly overloaded.
After flashing the initramfs-kernel image, you can go to the point at 192.168.1.1, but you can’t install the squashfs-sysupgrade image via the Luci interface - after reboot the point still remains with the initramfs-kernel image.

Morpheus68 · November 20, 2023, 12:46pm

Logs from initramfs-kernel are below...
System logs:

Tue Nov 14 13:38:21 2023 kern.notice kernel: [    0.000000] Linux version 5.15.137 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r23630-842932a63d) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 Tue Nov 14 13:38:11 2023
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Board has DDR2
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Analog PMU set to hw control
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Digital PMU set to hw control
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] SoC Type: MediaTek MT7628AN ver:1 eco:2
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] printk: bootconsole [early0] enabled
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] CPU0 revision is: 00019655 (MIPS 24KEc)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] MIPS: machine is Wavlink WL-WN570HA1
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Initrd not found or empty - disabling initrd
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Zone ranges:
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000]   Normal   [mem 0x0000000000000000-0x0000000003ffffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Movable zone start for each node
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Early memory node ranges
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000]   node   0: [mem 0x0000000000000000-0x0000000003ffffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff]
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    0.000000] pcpu-alloc: [0] 0
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 16240
Tue Nov 14 13:38:21 2023 kern.notice kernel: [    0.000000] Kernel command line: console=ttyS0,57600 rootfstype=squashfs,jffs2
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Writing ErrCtl register=0004ddea
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Readback ErrCtl register=0004ddea
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] Memory: 52820K/65536K available (5962K kernel code, 605K rwdata, 748K rodata, 4452K init, 217K bss, 12716K reserved, 0K cma-reserved)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] NR_IRQS: 256
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] intc: using register map from devicetree
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] CPU Clock: 580MHz
Tue Nov 14 13:38:21 2023 kern.crit kernel: [    0.000000] timer_probe: no matching timers found
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6590553264 ns
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.000002] sched_clock: 32 bits at 290MHz, resolution 3ns, wraps every 7405115902ns
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.015460] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.087645] pid_max: default: 32768 minimum: 301
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.097882] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.112232] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.135919] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.155320] futex hash table entries: 256 (order: -1, 3072 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.168928] pinctrl core: initialized pinctrl subsystem
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.181350] NET: Registered PF_NETLINK/PF_ROUTE protocol family
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.193655] thermal_sys: Registered thermal governor 'step_wise'
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.460978] PCI host bridge to bus 0000:00
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.480825] pci_bus 0000:00: root bus resource [mem 0x20000000-0x2fffffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.494414] pci_bus 0000:00: root bus resource [io  0x10160000-0x1016ffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.508011] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.523708] pci 0000:00:00.0: [14c3:0801] type 01 class 0x060400
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.535538] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.547910] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.560369] pci 0000:00:00.0: supports D1
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.568193] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.581061] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.597068] pci 0000:01:00.0: [14c3:7650] type 00 class 0x028000
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.608883] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.621363] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.633634] pci 0000:01:00.1: [14c3:8650] type 00 class 0x0d1100
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.645453] pci 0000:01:00.1: reg 0x10: [mem 0x00000000-0x000fffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.657927] pci 0000:01:00.1: supports D1
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.665705] pci 0000:01:00.1: PME# supported from D0 D1 D3hot D3cold
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.679709] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.692715] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 01
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.705783] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.718822] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.732583] pci 0000:00:00.0: BAR 8: assigned [mem 0x20000000-0x201fffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.745998] pci 0000:00:00.0: BAR 1: assigned [mem 0x20200000-0x2020ffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.759424] pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.772836] pci 0000:01:00.1: BAR 0: assigned [mem 0x20100000-0x201fffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.786250] pci 0000:00:00.0: PCI bridge to [bus 01]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.796043] pci 0000:00:00.0:   bridge window [mem 0x20000000-0x201fffff]
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.809997] clocksource: Switched to clocksource MIPS
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.821660] NET: Registered PF_INET protocol family
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.831519] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.846879] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.863381] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.878619] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.893763] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.907693] TCP: Hash tables configured (established 1024 bind 1024)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.920426] UDP hash table entries: 256 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.933289] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.947468] NET: Registered PF_UNIX/PF_LOCAL protocol family
Tue Nov 14 13:38:21 2023 kern.info kernel: [    0.958741] PCI: CLS 0 bytes, default 32
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.687298] workingset: timestamp_bits=14 max_order=14 bucket_order=0
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.706813] squashfs: version 4.0 (2009/01/31) Phillip Lougher
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.718299] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.739229] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.756686] mt7621_gpio 10000600.gpio: registering 32 gpios
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.768018] mt7621_gpio 10000600.gpio: registering 32 gpios
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.779341] mt7621_gpio 10000600.gpio: registering 32 gpios
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.790977] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.806645] printk: console [ttyS0] disabled
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.815119] 10000c00.uartlite: ttyS0 at MMIO 0x10000c00 (irq = 28, base_baud = 2500000) is a 16550A
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.832942] printk: console [ttyS0] enabled
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.849432] printk: bootconsole [early0] disabled
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.869847] spi-mt7621 10000b00.spi: sys_freq: 193333333
Tue Nov 14 13:38:21 2023 kern.err kernel: [    1.889914] spi-nor spi0.0: unrecognized JEDEC id bytes: a1 40 17 a1 40 17
Tue Nov 14 13:38:21 2023 kern.warn kernel: [    1.903630] spi-nor: probe of spi0.0 failed with error -2
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.958545] rt3050-esw 10110000.esw: mediatek esw at 0xb0110000, irq 25 initialized
Tue Nov 14 13:38:21 2023 kern.err kernel: [    1.973920] mtk_soc_eth 10100000.ethernet: generated random MAC address c2:4d:18:b7:f0:e8
Tue Nov 14 13:38:21 2023 kern.info kernel: [    1.990911] mtk_soc_eth 10100000.ethernet eth0: mediatek frame engine at 0xb0100000, irq 5
Tue Nov 14 13:38:21 2023 kern.info kernel: [    2.009768] NET: Registered PF_INET6 protocol family
Tue Nov 14 13:38:21 2023 kern.info kernel: [    2.583845] Segment Routing with IPv6
Tue Nov 14 13:38:21 2023 kern.info kernel: [    2.591274] In-situ OAM (IOAM) with IPv6
Tue Nov 14 13:38:21 2023 kern.info kernel: [    2.599164] NET: Registered PF_PACKET protocol family
Tue Nov 14 13:38:21 2023 kern.info kernel: [    2.609278] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
Tue Nov 14 13:38:21 2023 kern.info kernel: [    2.635270] 8021q: 802.1Q VLAN Support v1.8
Tue Nov 14 13:38:21 2023 kern.info kernel: [    6.225537] rt3050-esw 10110000.esw: port 0 link up
Tue Nov 14 13:38:21 2023 kern.info kernel: [    7.856864] Freeing unused kernel image (initmem) memory: 4452K
Tue Nov 14 13:38:21 2023 kern.warn kernel: [    7.868644] This architecture does not have kernel memory protection.
Tue Nov 14 13:38:21 2023 kern.info kernel: [    7.881415] Run /init as init process
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    7.888653]   with arguments:
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    7.888659]     /init
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    7.888665]   with environment:
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    7.888670]     HOME=/
Tue Nov 14 13:38:21 2023 kern.debug kernel: [    7.888676]     TERM=linux
Tue Nov 14 13:38:21 2023 user.info kernel: [    8.606565] init: Console is alive
Tue Nov 14 13:38:21 2023 user.info kernel: [    8.614109] init: - watchdog -
Tue Nov 14 13:38:21 2023 user.info kernel: [    8.647936] kmodloader: loading kernel modules from /etc/modules-boot.d/*
Tue Nov 14 13:38:21 2023 user.info kernel: [    8.677162] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
Tue Nov 14 13:38:21 2023 user.info kernel: [    8.702223] init: - preinit -
Tue Nov 14 13:38:21 2023 kern.notice kernel: [    9.104516] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [    9.233624] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [    9.526381] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.info kernel: [    9.998082] rt3050-esw 10110000.esw: port 0 link down
Tue Nov 14 13:38:21 2023 user.info kernel: [   12.319714] procd: - early -
Tue Nov 14 13:38:21 2023 user.info kernel: [   12.326675] procd: - watchdog -
Tue Nov 14 13:38:21 2023 user.info kernel: [   12.954886] procd: - watchdog -
Tue Nov 14 13:38:21 2023 user.info kernel: [   12.962957] procd: - ubus -
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   12.979797] random: ubusd: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   13.019471] random: ubusd: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   13.032802] random: ubusd: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 user.info kernel: [   13.049675] procd: - init -
Tue Nov 14 13:38:21 2023 user.info kernel: [   13.856987] kmodloader: loading kernel modules from /etc/modules.d/*
Tue Nov 14 13:38:21 2023 kern.info kernel: [   14.247618] rt3050-esw 10110000.esw: port 0 link up
Tue Nov 14 13:38:21 2023 kern.info kernel: [   14.454108] Loading modules backported from Linux version v6.1.24-0-g0102425ac76b
Tue Nov 14 13:38:21 2023 kern.info kernel: [   14.469024] Backport generated by backports.git v5.15.92-1-44-gd6ea70fafd36
Tue Nov 14 13:38:21 2023 kern.info kernel: [   14.649680] mt76_wmac 10300000.wmac: ASIC revision: 76280001
Tue Nov 14 13:38:21 2023 kern.info kernel: [   14.662017] mt76_wmac 10300000.wmac: Invalid MAC address, using random address 56:c9:28:ca:23:b7
Tue Nov 14 13:38:21 2023 kern.info kernel: [   15.741095] mt76_wmac 10300000.wmac: Firmware Version: 20151201
Tue Nov 14 13:38:21 2023 kern.info kernel: [   15.752904] mt76_wmac 10300000.wmac: Build Time: 20151201183641
Tue Nov 14 13:38:21 2023 kern.info kernel: [   15.830027] mt76_wmac 10300000.wmac: firmware init done
Tue Nov 14 13:38:21 2023 kern.debug kernel: [   16.020284] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
Tue Nov 14 13:38:21 2023 kern.info kernel: [   16.257037] PPP generic driver version 2.4.2
Tue Nov 14 13:38:21 2023 kern.info kernel: [   16.300957] NET: Registered PF_PPPOX protocol family
Tue Nov 14 13:38:21 2023 user.info kernel: [   16.391304] kmodloader: done loading kernel modules from /etc/modules.d/*
Tue Nov 14 13:38:21 2023 user.info kernel: [   16.870657] urngd: v1.0.2 started.
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   17.287925] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   17.827572] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   18.748274] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   19.020322] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   20.498274] random: crng init done
Tue Nov 14 13:38:21 2023 kern.notice kernel: [   20.505100] random: 27 urandom warning(s) missed due to ratelimiting
Tue Nov 14 13:38:23 2023 user.notice dnsmasq: DNS rebinding protection is active, will discard upstream RFC1918 responses!
Tue Nov 14 13:38:23 2023 user.notice dnsmasq: Allowing 127.0.0.0/8 responses
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: started, version 2.89 cachesize 1000
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: DNS service limited to local subnets
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: compile time options: IPv6 GNU-getopt no-DBus UBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua TFTP no-conntrack no-ipset no-nftset no-auth no-cryptohash no-DNSSEC no-ID loop-detect inotify dumpfile
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: UBus support enabled: connected to system bus
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for test
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for onion
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for localhost
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for local
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for invalid
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for bind
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: using only locally-known addresses for lan
Tue Nov 14 13:38:23 2023 daemon.warn dnsmasq[1]: no servers found in /tmp/resolv.conf.d/resolv.conf.auto, will retry
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: read /etc/hosts - 12 names
Tue Nov 14 13:38:23 2023 daemon.info dnsmasq[1]: read /tmp/hosts/dhcp.cfg01411c - 0 names
Tue Nov 14 13:38:57 2023 authpriv.info dropbear[1154]: Not backgrounding
Tue Nov 14 13:38:59 2023 daemon.notice wpa_supplicant[1262]: Successfully initialized wpa_supplicant
Tue Nov 14 13:39:00 2023 kern.info kernel: [   62.258076] rt3050-esw 10110000.esw: port 0 link down
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: bonding
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: 8021ad
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: 8021q
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: macvlan
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: veth
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: bridge
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: Network device
Tue Nov 14 13:39:00 2023 user.notice : Added device handler type: tunnel
Tue Nov 14 13:39:04 2023 user.notice ucitrack: Setting up /etc/config/dhcp reload dependency on /etc/config/network
Tue Nov 14 13:39:04 2023 user.notice ucitrack: Setting up /etc/config/network reload dependency on /etc/config/wireless
Tue Nov 14 13:39:04 2023 kern.info kernel: [   66.398560] rt3050-esw 10110000.esw: port 0 link up
Tue Nov 14 13:39:04 2023 user.notice ucitrack: Setting up /etc/config/luci-splash reload dependency on /etc/config/firewall
Tue Nov 14 13:39:04 2023 user.notice ucitrack: Setting up /etc/config/qos reload dependency on /etc/config/firewall
Tue Nov 14 13:39:04 2023 user.notice ucitrack: Setting up /etc/config/miniupnpd reload dependency on /etc/config/firewall
Tue Nov 14 13:39:05 2023 user.notice ucitrack: Setting up /etc/config/odhcpd reload dependency on /etc/config/dhcp
Tue Nov 14 13:39:05 2023 user.notice ucitrack: Setting up non-init /etc/config/fstab reload handler: /sbin/block mount
Tue Nov 14 13:39:05 2023 user.notice ucitrack: Setting up /etc/config/system reload trigger for non-procd /etc/init.d/led
Tue Nov 14 13:39:06 2023 user.notice ucitrack: Setting up /etc/config/luci_statistics reload dependency on /etc/config/system
Tue Nov 14 13:39:06 2023 user.notice ucitrack: Setting up /etc/config/dhcp reload dependency on /etc/config/system
Tue Nov 14 13:39:07 2023 daemon.notice procd: /etc/rc.d/S96led: setting up led wan
Tue Nov 14 13:39:07 2023 daemon.notice procd: /etc/rc.d/S96led: setting up led green:wifi-low
Tue Nov 14 13:39:07 2023 daemon.notice procd: /etc/rc.d/S96led: Skipping trigger 'rssi' for led 'green:wifi-low' due to missing kernel module
Tue Nov 14 13:39:07 2023 daemon.notice procd: /etc/rc.d/S96led: setting up led green:wifi-med
Tue Nov 14 13:39:07 2023 daemon.notice procd: /etc/rc.d/S96led: Skipping trigger 'rssi' for led 'green:wifi-med' due to missing kernel module
Tue Nov 14 13:39:07 2023 daemon.notice procd: /etc/rc.d/S96led: setting up led green:wifi-high
Tue Nov 14 13:39:08 2023 daemon.notice procd: /etc/rc.d/S96led: Skipping trigger 'rssi' for led 'green:wifi-high' due to missing kernel module
Tue Nov 14 13:39:08 2023 daemon.notice procd: /etc/rc.d/S96led: setting up led wifi
Tue Nov 14 13:39:08 2023 kern.info kernel: [   70.888306] br-lan: port 1(eth0.1) entered blocking state
Tue Nov 14 13:39:08 2023 kern.info kernel: [   70.899125] br-lan: port 1(eth0.1) entered disabled state
Tue Nov 14 13:39:08 2023 kern.info kernel: [   70.910238] device eth0.1 entered promiscuous mode
Tue Nov 14 13:39:08 2023 kern.info kernel: [   70.919742] device eth0 entered promiscuous mode
Tue Nov 14 13:39:08 2023 kern.info kernel: [   70.994047] br-lan: port 1(eth0.1) entered blocking state
Tue Nov 14 13:39:08 2023 kern.info kernel: [   71.004840] br-lan: port 1(eth0.1) entered forwarding state
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'lan' is enabled
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'lan' is setting up now
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'lan' is now up
Tue Nov 14 13:39:08 2023 daemon.notice netifd: bridge 'br-lan' link is up
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'lan' has link connectivity
Tue Nov 14 13:39:08 2023 daemon.notice netifd: VLAN 'eth0.1' link is up
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'loopback' is enabled
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'loopback' is setting up now
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'loopback' is now up
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'wan' is enabled
Tue Nov 14 13:39:08 2023 daemon.notice netifd: Interface 'wan6' is enabled
Tue Nov 14 13:39:09 2023 daemon.notice netifd: bridge 'br-lan' link is down
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'lan' has link connectivity loss
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Network device 'eth0' link is up
Tue Nov 14 13:39:09 2023 daemon.notice netifd: VLAN 'eth0.1' link is down
Tue Nov 14 13:39:09 2023 daemon.notice netifd: VLAN 'eth0.1' link is up
Tue Nov 14 13:39:09 2023 daemon.notice netifd: bridge 'br-lan' link is up
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'lan' has link connectivity
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Network device 'lo' link is up
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'loopback' has link connectivity
Tue Nov 14 13:39:09 2023 daemon.notice netifd: VLAN 'eth0.2' link is up
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'wan' has link connectivity
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'wan' is setting up now
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'wan6' has link connectivity
Tue Nov 14 13:39:09 2023 daemon.notice netifd: Interface 'wan6' is setting up now
Tue Nov 14 13:39:09 2023 daemon.notice netifd: wan (1983): udhcpc: started, v1.36.1
Tue Nov 14 13:39:09 2023 kern.info kernel: [   71.920550] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
Tue Nov 14 13:39:09 2023 daemon.err odhcp6c[1984]: Failed to send RS (Address not available)
Tue Nov 14 13:39:10 2023 daemon.notice netifd: wan (1983): udhcpc: broadcasting discover
Tue Nov 14 13:39:11 2023 daemon.info procd: - init complete -
Tue Nov 14 13:39:11 2023 user.notice firewall: Reloading firewall due to ifup of lan (br-lan)
Tue Nov 14 13:39:11 2023 daemon.info urandom_seed[2101]: Seed saved (/etc/urandom.seed)
Tue Nov 14 13:39:13 2023 daemon.notice netifd: wan (1983): udhcpc: broadcasting discover
Tue Nov 14 13:39:16 2023 daemon.notice netifd: wan (1983): udhcpc: broadcasting discover
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: exiting on receipt of SIGTERM
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: started, version 2.89 cachesize 1000
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: DNS service limited to local subnets
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: compile time options: IPv6 GNU-getopt no-DBus UBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua TFTP no-conntrack no-ipset no-nftset no-auth no-cryptohash no-DNSSEC no-ID loop-detect inotify dumpfile
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: UBus support enabled: connected to system bus
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq-dhcp[1]: DHCP, IP range 192.168.1.100 -- 192.168.1.249, lease time 12h
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for test
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for onion
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for localhost
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for local
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for invalid
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for bind
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: using only locally-known addresses for lan
Tue Nov 14 13:39:16 2023 daemon.warn dnsmasq[1]: no servers found in /tmp/resolv.conf.d/resolv.conf.auto, will retry
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: read /etc/hosts - 12 names
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq[1]: read /tmp/hosts/dhcp.cfg01411c - 4 names
Tue Nov 14 13:39:16 2023 daemon.info dnsmasq-dhcp[1]: read /etc/ethers - 0 addresses
Tue Nov 14 13:39:20 2023 daemon.info dnsmasq-dhcp[1]: DHCPREQUEST(br-lan) 192.168.172.1 00:2b:67:4e:a7:8d
Tue Nov 14 13:39:20 2023 daemon.info dnsmasq-dhcp[1]: DHCPNAK(br-lan) 192.168.172.1 00:2b:67:4e:a7:8d wrong network
Tue Nov 14 13:39:23 2023 daemon.info dnsmasq-dhcp[1]: DHCPDISCOVER(br-lan) 00:2b:67:4e:a7:8d
Tue Nov 14 13:39:23 2023 daemon.info dnsmasq-dhcp[1]: DHCPOFFER(br-lan) 192.168.1.108 00:2b:67:4e:a7:8d
Tue Nov 14 13:39:23 2023 daemon.info dnsmasq-dhcp[1]: DHCPREQUEST(br-lan) 192.168.1.108 00:2b:67:4e:a7:8d
Tue Nov 14 13:39:23 2023 daemon.info dnsmasq-dhcp[1]: DHCPACK(br-lan) 192.168.1.108 00:2b:67:4e:a7:8d LENOVO
Tue Nov 14 13:39:35 2023 daemon.err uhttpd[626]: [info] luci: accepted login on /admin/network/wireless for root from 192.168.1.108

frollic · November 20, 2023, 12:49pm

the sysupgrade or uboot log would probably be more interesting than the one of initramfs.

Morpheus68 · November 20, 2023, 12:49pm

Kernel log:

[    0.000000] Linux version 5.15.137 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r23630-842932a63d) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 Tue Nov 14 13:38:11 2023
[    0.000000] Board has DDR2
[    0.000000] Analog PMU set to hw control
[    0.000000] Digital PMU set to hw control
[    0.000000] SoC Type: MediaTek MT7628AN ver:1 eco:2
[    0.000000] printk: bootconsole [early0] enabled
[    0.000000] CPU0 revision is: 00019655 (MIPS 24KEc)
[    0.000000] MIPS: machine is Wavlink WL-WN570HA1
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x0000000000000000-0x0000000003ffffff]
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000000000000-0x0000000003ffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff]
[    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[    0.000000] pcpu-alloc: [0] 0
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 16240
[    0.000000] Kernel command line: console=ttyS0,57600 rootfstype=squashfs,jffs2
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    0.000000] Writing ErrCtl register=0004ddea
[    0.000000] Readback ErrCtl register=0004ddea
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 52820K/65536K available (5962K kernel code, 605K rwdata, 748K rodata, 4452K init, 217K bss, 12716K reserved, 0K cma-reserved)
[    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] NR_IRQS: 256
[    0.000000] intc: using register map from devicetree
[    0.000000] CPU Clock: 580MHz
[    0.000000] timer_probe: no matching timers found
[    0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6590553264 ns
[    0.000002] sched_clock: 32 bits at 290MHz, resolution 3ns, wraps every 7405115902ns
[    0.015460] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
[    0.087645] pid_max: default: 32768 minimum: 301
[    0.097882] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.112232] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.135919] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.155320] futex hash table entries: 256 (order: -1, 3072 bytes, linear)
[    0.168928] pinctrl core: initialized pinctrl subsystem
[    0.181350] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.193655] thermal_sys: Registered thermal governor 'step_wise'
[    0.460978] PCI host bridge to bus 0000:00
[    0.480825] pci_bus 0000:00: root bus resource [mem 0x20000000-0x2fffffff]
[    0.494414] pci_bus 0000:00: root bus resource [io  0x10160000-0x1016ffff]
[    0.508011] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[    0.523708] pci 0000:00:00.0: [14c3:0801] type 01 class 0x060400
[    0.535538] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff]
[    0.547910] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff]
[    0.560369] pci 0000:00:00.0: supports D1
[    0.568193] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[    0.581061] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[    0.597068] pci 0000:01:00.0: [14c3:7650] type 00 class 0x028000
[    0.608883] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff]
[    0.621363] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold
[    0.633634] pci 0000:01:00.1: [14c3:8650] type 00 class 0x0d1100
[    0.645453] pci 0000:01:00.1: reg 0x10: [mem 0x00000000-0x000fffff]
[    0.657927] pci 0000:01:00.1: supports D1
[    0.665705] pci 0000:01:00.1: PME# supported from D0 D1 D3hot D3cold
[    0.679709] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
[    0.692715] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 01
[    0.705783] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000]
[    0.718822] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000]
[    0.732583] pci 0000:00:00.0: BAR 8: assigned [mem 0x20000000-0x201fffff]
[    0.745998] pci 0000:00:00.0: BAR 1: assigned [mem 0x20200000-0x2020ffff]
[    0.759424] pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff]
[    0.772836] pci 0000:01:00.1: BAR 0: assigned [mem 0x20100000-0x201fffff]
[    0.786250] pci 0000:00:00.0: PCI bridge to [bus 01]
[    0.796043] pci 0000:00:00.0:   bridge window [mem 0x20000000-0x201fffff]
[    0.809997] clocksource: Switched to clocksource MIPS
[    0.821660] NET: Registered PF_INET protocol family
[    0.831519] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
[    0.846879] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.863381] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.878619] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.893763] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.907693] TCP: Hash tables configured (established 1024 bind 1024)
[    0.920426] UDP hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.933289] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.947468] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.958741] PCI: CLS 0 bytes, default 32
[    1.687298] workingset: timestamp_bits=14 max_order=14 bucket_order=0
[    1.706813] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.718299] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    1.739229] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[    1.756686] mt7621_gpio 10000600.gpio: registering 32 gpios
[    1.768018] mt7621_gpio 10000600.gpio: registering 32 gpios
[    1.779341] mt7621_gpio 10000600.gpio: registering 32 gpios
[    1.790977] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[    1.806645] printk: console [ttyS0] disabled
[    1.815119] 10000c00.uartlite: ttyS0 at MMIO 0x10000c00 (irq = 28, base_baud = 2500000) is a 16550A
[    1.832942] printk: console [ttyS0] enabled
[    1.849432] printk: bootconsole [early0] disabled
[    1.869847] spi-mt7621 10000b00.spi: sys_freq: 193333333
[    1.889914] spi-nor spi0.0: unrecognized JEDEC id bytes: a1 40 17 a1 40 17
[    1.903630] spi-nor: probe of spi0.0 failed with error -2
[    1.958545] rt3050-esw 10110000.esw: mediatek esw at 0xb0110000, irq 25 initialized
[    1.973920] mtk_soc_eth 10100000.ethernet: generated random MAC address c2:4d:18:b7:f0:e8
[    1.990911] mtk_soc_eth 10100000.ethernet eth0: mediatek frame engine at 0xb0100000, irq 5
[    2.009768] NET: Registered PF_INET6 protocol family
[    2.583845] Segment Routing with IPv6
[    2.591274] In-situ OAM (IOAM) with IPv6
[    2.599164] NET: Registered PF_PACKET protocol family
[    2.609278] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[    2.635270] 8021q: 802.1Q VLAN Support v1.8
[    6.225537] rt3050-esw 10110000.esw: port 0 link up
[    7.856864] Freeing unused kernel image (initmem) memory: 4452K
[    7.868644] This architecture does not have kernel memory protection.
[    7.881415] Run /init as init process
[    7.888653]   with arguments:
[    7.888659]     /init
[    7.888665]   with environment:
[    7.888670]     HOME=/
[    7.888676]     TERM=linux
[    8.606565] init: Console is alive
[    8.614109] init: - watchdog -
[    8.647936] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[    8.677162] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[    8.702223] init: - preinit -
[    9.104516] random: jshn: uninitialized urandom read (4 bytes read)
[    9.233624] random: jshn: uninitialized urandom read (4 bytes read)
[    9.526381] random: jshn: uninitialized urandom read (4 bytes read)
[    9.998082] rt3050-esw 10110000.esw: port 0 link down
[   12.319714] procd: - early -
[   12.326675] procd: - watchdog -
[   12.954886] procd: - watchdog -
[   12.962957] procd: - ubus -
[   12.979797] random: ubusd: uninitialized urandom read (4 bytes read)
[   13.019471] random: ubusd: uninitialized urandom read (4 bytes read)
[   13.032802] random: ubusd: uninitialized urandom read (4 bytes read)
[   13.049675] procd: - init -
[   13.856987] kmodloader: loading kernel modules from /etc/modules.d/*
[   14.247618] rt3050-esw 10110000.esw: port 0 link up
[   14.454108] Loading modules backported from Linux version v6.1.24-0-g0102425ac76b
[   14.469024] Backport generated by backports.git v5.15.92-1-44-gd6ea70fafd36
[   14.649680] mt76_wmac 10300000.wmac: ASIC revision: 76280001
[   14.662017] mt76_wmac 10300000.wmac: Invalid MAC address, using random address 56:c9:28:ca:23:b7
[   15.741095] mt76_wmac 10300000.wmac: Firmware Version: 20151201
[   15.752904] mt76_wmac 10300000.wmac: Build Time: 20151201183641
[   15.830027] mt76_wmac 10300000.wmac: firmware init done
[   16.020284] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[   16.257037] PPP generic driver version 2.4.2
[   16.300957] NET: Registered PF_PPPOX protocol family
[   16.391304] kmodloader: done loading kernel modules from /etc/modules.d/*
[   16.870657] urngd: v1.0.2 started.
[   17.287925] random: jshn: uninitialized urandom read (4 bytes read)
[   17.827572] random: jshn: uninitialized urandom read (4 bytes read)
[   18.748274] random: jshn: uninitialized urandom read (4 bytes read)
[   19.020322] random: jshn: uninitialized urandom read (4 bytes read)
[   20.498274] random: crng init done
[   20.505100] random: 27 urandom warning(s) missed due to ratelimiting
[   62.258076] rt3050-esw 10110000.esw: port 0 link down
[   66.398560] rt3050-esw 10110000.esw: port 0 link up
[   70.888306] br-lan: port 1(eth0.1) entered blocking state
[   70.899125] br-lan: port 1(eth0.1) entered disabled state
[   70.910238] device eth0.1 entered promiscuous mode
[   70.919742] device eth0 entered promiscuous mode
[   70.994047] br-lan: port 1(eth0.1) entered blocking state
[   71.004840] br-lan: port 1(eth0.1) entered forwarding state
[   71.920550] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready

Morpheus68 · November 20, 2023, 12:50pm

[quote="frollic, post:3, topic:178148"]
he sysupgrade or uboot log would probably be more interesting than the one of initramfs.
[/quote]how to get it?

frollic · November 20, 2023, 12:52pm

serial, since sysupgrade ran from cli probably won't catch the whole process.

Morpheus68 · November 21, 2023, 7:57am

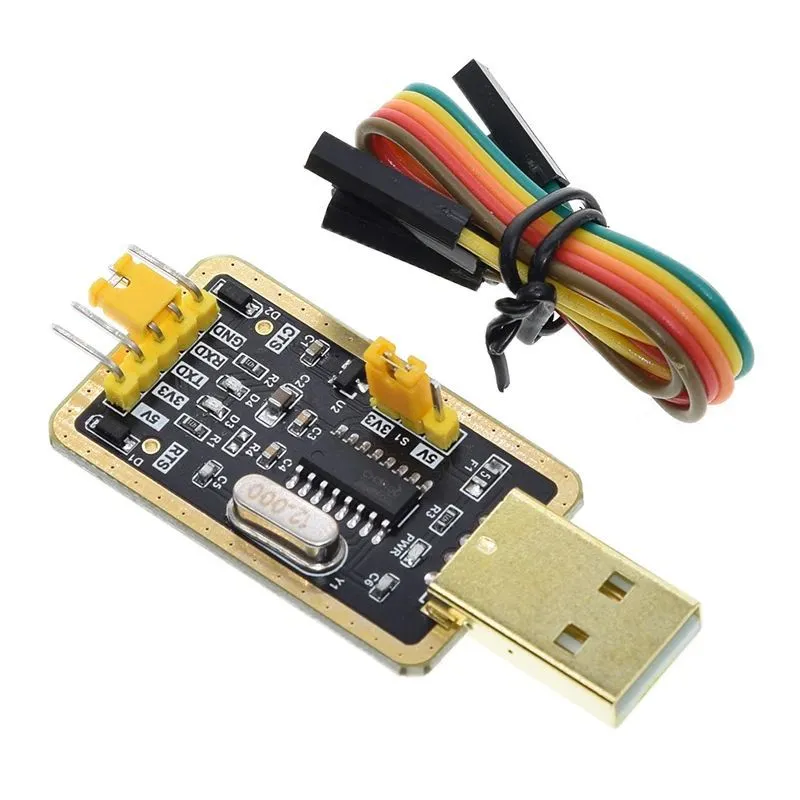

I don't have a serial converter.
Is this one suitable? Chip CH340

Morpheus68 · November 21, 2023, 8:01am

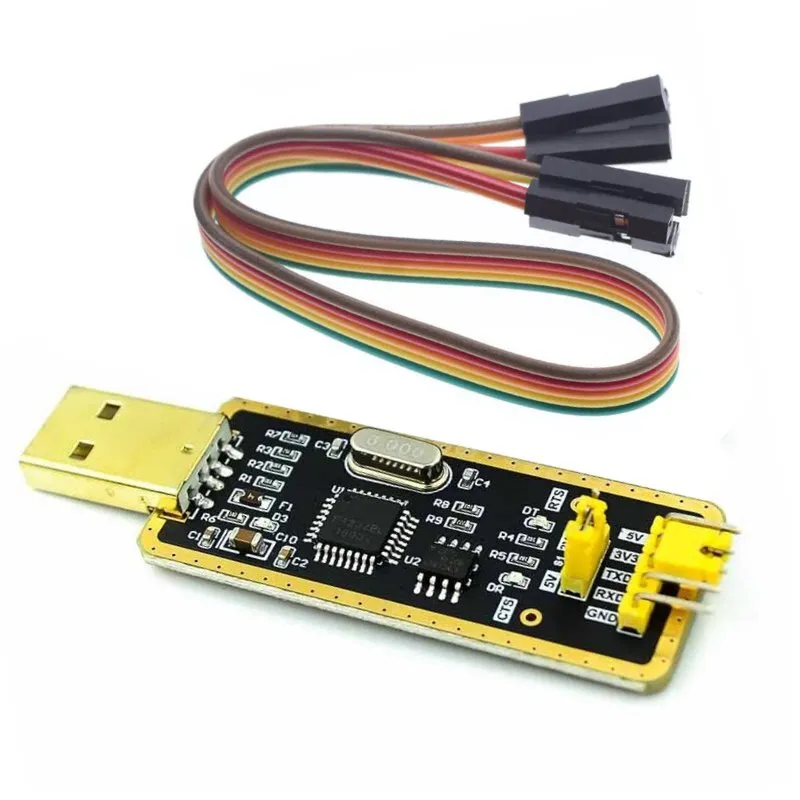

or this?
Chip FT232

frollic · November 21, 2023, 8:14am

doesn't really matter, but I'd get a CP21xx based serial converter, unless there's a huge price diff.
better ones also support 1.8v, it's nice to have, even if you probably don't need it for this.

Morpheus68 · November 21, 2023, 9:17am

connect here?

frollic · November 21, 2023, 9:17am

yes, skipping the VCC pin.

Morpheus68 · November 21, 2023, 10:06am

who can post a photo of the board on the device page? I do not have rights...

Morpheus68 · November 21, 2023, 10:07am

Morpheus68 · November 21, 2023, 10:07am

Morpheus68 · November 26, 2023, 11:41am

Hi!
I bought a converter for CP2102 and received the following logs:

loading only the OpenWrt kernel
attempt to upgrade from the kernel to full OpenWrt from kernel
kernel only firmware via Uboot
flashing full OpenWrt firmware via Uboot
flashing factory firmware via Uboot
loading factory firmware
When flashing full-fledged OpenWrt firmware via Uboot, you can see that the firmware start fine and starts loading, but then crashes with a kernel error:

[    1.394403] /dev/root: Can't open blockdev
[    1.402558] VFS: Cannot open root device "(null)" or unknown-block(0,0): error -6
[    1.417445] Please append a correct "root=" boot option; here are the available partitions:
[    1.433991] Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(0,0)

Which log should I attach for a detailed analysis?

frollic · November 26, 2023, 12:03pm

start by posting the output of the printenv command in uboot.

Morpheus68 · November 26, 2023, 12:10pm

Log flashing full OpenWrt firmware via Uboot:

[0408090F][04080A0F][7B6F0000][18162D29][0018163A]
DU Setting Cal Done
U-Boot 1.1.3 (Oct 19 2022 - 18:25:00)W
Board: Ralink APSoC DRAM:  64 MB
relocate_code Pointer at: 83f98000
flash manufacture id: a1, device id 40 17
find flash: FM25Q64
*** Warning - bad CRC, using default environment
===========================================
Ralink UBoot Version: 5.0.0.0
--------------------------------------------
ASIC 7628_MP (Port5<->None)
DRAM component: 512 Mbits DDR, width 16
DRAM bus: 16 bit
Total memory: 64 MBytes
Flash component: SPI Flash
Date:Oct 19 2022  Time:18:25:00
============================================
icache: sets:512, ways:4, linesz:32 ,total:65536
dcache: sets:256, ways:4, linesz:32 ,total:32768
 ##### The CPU freq = 580 MHZ ####
 estimate memory size =64 Mbytes
RESET MT7628 PHY!!!!!!set LAN/WAN LLLLW
570HA1
gpio38 pushed
gpio38 pushed
gpio38 pushed
gpio38 pushed
gpio38 pushed
HTTP server is starting for update...
 NetTxPacket = 0x83FE6900
 NetRxPackets[0] = 0x83FE6F00
 NetRxPackets[1] = 0x83FE7500
 NetRxPackets[2] = 0x83FE7B00
 NetRxPackets[3] = 0x83FE8100
 NetRxPackets[4] = 0x83FE8700
 NetRxPackets[5] = 0x83FE8D00
 NetRxPackets[6] = 0x83FE9300
 NetRxPackets[7] = 0x83FE9900
 NetRxPackets[8] = 0x83FE9F00
 NetRxPackets[9] = 0x83FEA500
 NetRxPackets[10] = 0x83FEAB00
 NetRxPackets[11] = 0x83FEB100
 NetRxPackets[12] = 0x83FEB700
 NetRxPackets[13] = 0x83FEBD00
 NetRxPackets[14] = 0x83FEC300
 NetRxPackets[15] = 0x83FEC900
 NetRxPackets[16] = 0x83FECF00
 NetRxPackets[17] = 0x83FED500
 NetRxPackets[18] = 0x83FEDB00
 NetRxPackets[19] = 0x83FEE100
 NetRxPackets[20] = 0x83FEE700
 NetRxPackets[21] = 0x83FEED00
 NetRxPackets[22] = 0x83FEF300
 NetRxPackets[23] = 0x83FEF900
 KSEG1ADDR(NetTxPacket) = 0xA3FE6900
 NetLoopHttpd,call eth_halt !
Trying Eth0 (10/100-M)
 Waitting for RX_DMA_BUSY status Start... done
 ETH_STATE_ACTIVE!!
HTTP server is starting at IP: 192.168.10.1
HTTP server is ready!
Request for: /
Request for: /style.css
Request for: /favicon.ico
## Error: file not found /favicon.ico!
Data will be downloaded at 0x81000000 in RAM
Upgrade type: firmware
Upload file size: 6095660 bytes
Loading: #######################################
         #######
HTTP upload is done! Upgrading...
****************************
*    FIRMWARE UPGRADING    *
* DO NOT POWER OFF DEVICE! *
********81000000,bc050000,bc000000,6095660********************
.............................................................................................
Done!
HTTP ugrade is done! Rebooting...
[04080D0C][04080C0B][898E0000][27253B48][0027253A]
DU Setting Cal Done
U-Boot 1.1.3 (Oct 19 2022 - 18:25:00)W
Board: Ralink APSoC DRAM:  64 MB
relocate_code Pointer at: 83f98000
******************************
Software System Reset Occurred
******************************
flash manufacture id: a1, device id 40 17
find flash: FM25Q64
*** Warning - bad CRC, using default environment
============================================
Ralink UBoot Version: 5.0.0.0
--------------------------------------------
ASIC 7628_MP (Port5<->None)
DRAM component: 512 Mbits DDR, width 16
DRAM bus: 16 bit
Total memory: 64 MBytes
Flash component: SPI Flash
Date:Oct 19 2022  Time:18:25:00
============================================
icache: sets:512, ways:4, linesz:32 ,total:65536
dcache: sets:256, ways:4, linesz:32 ,total:32768
 ##### The CPU freq = 580 MHZ ####
 estimate memory size =64 Mbytes
RESET MT7628 PHY!!!!!!set LAN/WAN LLLLW
570HA1
Please choose the operation:
   1: Load system code to SDRAM via TFTP.
   2: Load system code then write to Flash via TFTP.
   3: Boot system code via Flash (default).
   4: Enter boot command line interface.
   7: Load Boot Loader code then write to Flash via Serial.
   9: Load Boot Loader code then write to Flash via TFTP.
default: 3
 4  3  2  1  0
3: System Boot system code via Flash.
## Booting image at bc050000 ...
   Image Name:   MIPS OpenWrt Linux-5.15.139
   Image Type:   MIPS Linux Kernel Image (lzma compressed)
   Data Size:    2468095 Bytes =  2.4 MB
   Load Address: 80000000
   Entry Point:  80000000
   Verifying Checksum ... OK
   Uncompressing Kernel Image ... OK
No initrd
## Transferring control to Linux (at address 80000000) ...
## Giving linux memsize in MB, 64
Starting kernel ...
[    0.000000] Linux version 5.15.139 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r24455-df167450a5) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 Thu Nov 23 21:55:55 2023
[    0.000000] Board has DDR2
[    0.000000] Analog PMU set to hw control
[    0.000000] Digital PMU set to hw control
[    0.000000] SoC Type: MediaTek MT7628AN ver:1 eco:2
[    0.000000] printk: bootconsole [early0] enabled
[    0.000000] CPU0 revision is: 00019655 (MIPS 24KEc)
[    0.000000] MIPS: machine is Wavlink WL-WN570HA1
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x0000000000000000-0x0000000003ffffff]
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000000000000-0x0000000003ffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff]
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 16240
[    0.000000] Kernel command line: console=ttyS0,57600 rootfstype=squashfs,jffs2
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    0.000000] Writing ErrCtl register=0004dde8
[    0.000000] Readback ErrCtl register=0004dde8
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 55444K/65536K available (6004K kernel code, 604K rwdata, 1300K rodata, 1236K init, 217K bss, 10092K reserved, 0K cma-reserved)
[    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] NR_IRQS: 256
[    0.000000] intc: using register map from devicetree
[    0.000000] CPU Clock: 580MHz
[    0.000000] timer_probe: no matching timers found
[    0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6590553264 ns
[    0.000002] sched_clock: 32 bits at 290MHz, resolution 3ns, wraps every 7405115902ns
[    0.015471] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
[    0.087644] pid_max: default: 32768 minimum: 301
[    0.097899] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.112248] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.136036] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.155439] futex hash table entries: 256 (order: -1, 3072 bytes, linear)
[    0.169056] pinctrl core: initialized pinctrl subsystem
[    0.181518] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.193962] thermal_sys: Registered thermal governor 'step_wise'
[    0.464872] PCI host bridge to bus 0000:00
[    0.484719] pci_bus 0000:00: root bus resource [mem 0x20000000-0x2fffffff]
[    0.498306] pci_bus 0000:00: root bus resource [io  0x10160000-0x1016ffff]
[    0.511894] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[    0.527601] pci 0000:00:00.0: [14c3:0801] type 01 class 0x060400
[    0.539434] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff]
[    0.551804] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff]
[    0.564265] pci 0000:00:00.0: supports D1
[    0.572087] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[    0.584911] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[    0.600924] pci 0000:01:00.0: [14c3:7650] type 00 class 0x028000
[    0.612739] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff]
[    0.625215] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold
[    0.637502] pci 0000:01:00.1: [14c3:8650] type 00 class 0x0d1100
[    0.649321] pci 0000:01:00.1: reg 0x10: [mem 0x00000000-0x000fffff]
[    0.661789] pci 0000:01:00.1: supports D1
[    0.669566] pci 0000:01:00.1: PME# supported from D0 D1 D3hot D3cold
[    0.683472] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
[    0.696461] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 01
[    0.709598] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000]
[    0.722586] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000]
[    0.736337] pci 0000:00:00.0: BAR 8: assigned [mem 0x20000000-0x201fffff]
[    0.749754] pci 0000:00:00.0: BAR 1: assigned [mem 0x20200000-0x2020ffff]
[    0.763182] pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff]
[    0.776593] pci 0000:01:00.1: BAR 0: assigned [mem 0x20100000-0x201fffff]
[    0.790006] pci 0000:00:00.0: PCI bridge to [bus 01]
[    0.799799] pci 0000:00:00.0:   bridge window [mem 0x20000000-0x201fffff]
[    0.813760] clocksource: Switched to clocksource MIPS
[    0.825506] NET: Registered PF_INET protocol family
[    0.835359] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
[    0.850766] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.867273] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.882500] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.897650] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.911580] TCP: Hash tables configured (established 1024 bind 1024)
[    0.924334] UDP hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.937205] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.951399] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.962673] PCI: CLS 0 bytes, default 32
[    0.975160] workingset: timestamp_bits=14 max_order=14 bucket_order=0
[    0.994779] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.006251] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    1.027241] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[    1.044796] mt7621_gpio 10000600.gpio: registering 32 gpios
[    1.056221] mt7621_gpio 10000600.gpio: registering 32 gpios
[    1.067479] mt7621_gpio 10000600.gpio: registering 32 gpios
[    1.079132] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[    1.095047] printk: console [ttyS0] disabled
[    1.103456] 10000c00.uart0: ttyS0 at MMIO 0x10000c00 (irq = 28, base_baud = 2500000) is a 16550A
[    1.120846] printk: console [ttyS0] enabled
[    1.120846] printk: console [ttyS0] enabled
[    1.137280] printk: bootconsole [early0] disabled
[    1.137280] printk: bootconsole [early0] disabled
[    1.157569] spi-mt7621 10000b00.spi: sys_freq: 193333333
[    1.190871] spi-nor spi0.0: unrecognized JEDEC id bytes: a1 40 17 a1 40 17
[    1.204608] spi-nor: probe of spi0.0 failed with error -2
[    1.261906] rt3050-esw 10110000.esw: mediatek esw at 0xb0110000, irq 25 initialized
[    1.277255] mtk_soc_eth 10100000.ethernet: generated random MAC address d2:f9:e6:81:5a:78
[    1.294316] mtk_soc_eth 10100000.ethernet eth0: mediatek frame engine at 0xb0100000, irq 5
[    1.312969] NET: Registered PF_INET6 protocol family
[    1.329307] Segment Routing with IPv6
[    1.336745] In-situ OAM (IOAM) with IPv6
[    1.344690] NET: Registered PF_PACKET protocol family
[    1.354809] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[    1.380857] 8021q: 802.1Q VLAN Support v1.8
[    1.394403] /dev/root: Can't open blockdev
[    1.402558] VFS: Cannot open root device "(null)" or unknown-block(0,0): error -6
[    1.417445] Please append a correct "root=" boot option; here are the available partitions:
[    1.433991] Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(0,0)
[    1.450356] Rebooting in 1 seconds..

frollic · November 26, 2023, 12:10pm

not what you were asked to post.

Morpheus68 · November 26, 2023, 1:44pm

like this?

4: System Enter Boot Command Line Interface.
U-Boot 1.1.3 (Oct 19 2022 - 18:25:00)W
MT7628 # printenv
bootcmd=tftp
bootdelay=5
baudrate=57600
ethaddr="00:AA:BB:CC:DD:10"
ipaddr=192.168.10.1
serverip=192.168.10.100
bootfile=firmware.bin
stdin=serial
stdout=serial
stderr=serial
BootType=3
Environment size: 186/4092 bytes
MT7628 #

123serge123 · November 26, 2023, 3:06pm

IIUC unsupported flash
