I am just trying to see if I could set up a router. My test set up is as follows:
RPi4
ZyXel Switch with 8 ports.
Vodafone broadband
Zyxel has been configured as vlans:
port 6 for RPi 4
Port 7 for LAN
Port 8 for WAN
No other ports in use.
So I am trying to setup RPi 4 connected to Zyxel and creating two ports. It works for as DHCP but it is not working as pppoe. Can somebody please look at this code and let me know what am I doing wrong.
I probably has missed other key information but pls let me know and I can add them here.
For reference this is /etc/config/network from my RPi4 that was in a setup with a managed swtich/VLANs. The RPi was making use of a USB dongle NIC for its 2nd adapter.
/etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd1a:184b:b879::/48'
option packet_steering '1'
config device
option name 'eth0'
option ipv6 '0'
config device
option name 'eth1'
option ipv6 '0'
config device
option name 'wg0'
option ipv6 '0'
config device
option name 'eth0.3'
option type '8021q'
option ifname 'eth0'
option vid '3'
option ipv6 '0'
config device
option name 'eth0.4'
option type '8021q'
option ifname 'eth0'
option vid '4'
option ipv6 '0'
config device
option name 'eth0.5'
option type '8021q'
option ifname 'eth0'
option vid '5'
option ipv6 '0'
config device
option name 'eth0.10'
option type '8021q'
option ifname 'eth0'
option vid '10'
option ipv6 '0'
config device
option type 'bridge'
option name 'lxcbr0'
option ipv6 '0'
option bridge_empty '1'
config interface 'wan'
option device 'eth1'
option proto 'dhcp'
option peerdns '0'
option delegate '0'
list dns '10.0.4.250'
config interface 'lxc'
option device 'lxcbr0'
option proto 'static'
option ipaddr '10.0.4.1'
option netmask '255.255.255.0'
config interface 'guest'
option device 'eth0.3'
option proto 'static'
option ipaddr '10.9.7.1'
option netmask '255.255.255.0'
config interface 'office'
option device 'eth0.4'
option proto 'static'
option ipaddr '10.9.6.1'
option netmask '255.255.255.0'
list dns '1.1.1.1'
list dns '1.0.0.1'
config interface 'iot'
option device 'eth0.5'
option proto 'static'
option ipaddr '10.9.5.1'
option netmask '255.255.255.0'
config interface 'lan'
option device 'eth0.10'
option proto 'static'
option ipaddr '10.9.8.1'
option netmask '255.255.255.0'
config interface 'wg0'
option proto 'wireguard'
option listen_port '51820'
list addresses '10.200.200.200/24'
...
You are correct that you can only have one (or zero) untagged networks on a port, but the OP and @trendy were not discussing multiple untagged networks. In fact, all of the configs in this thread have both VLANs tagged.
BTW, the reason it wasn't working was probably twofold... one you have a typo in the bridge-vlan for VLAN 911 (you used etho:t instead of eth0:t) and you also lines that attempted to connect the wan interface to two bridges -- one of them using the correct option device but the wrong device itself, and the other using the incorrect option ifname (this syntax has been deprecated) with the correct device name. But all of that said, the changes I made will make your config simpler and cleaner, and will work if implemented properly.
If this doesn't work, please post the updated config.

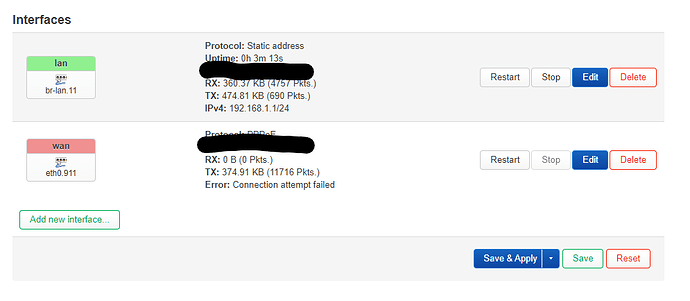

That didn't work. I will attach the latest network code further down. Question I have is:
I have a ZyXel Managed switch. (sorry, I can't do the screensot at the moment)
Port 6 is for Pi itself
Port 7 is LAN (Tagged as 11)
Port 8 is WAN (Tagged as 99)
How does it relate to our network code? (Sorry, I know basics but not too much)
As @trendy points out, you don't mention VLAN 911 on the managed switch.
Please check your ISP for the correct VLAN to use, and then your managed switch to ensure that it is tagged on both the modem connection as well as the port for the Pi.
In the managed switch you need:
Two VLANs 1 and 911. The number you use for LAN is arbitrary but it has to be the same throughout your network, and not used for any other VLAN. Number 911 has to match what the ISP device requires.
A cheap managed switch cannot rewrite VLAN numbers (and it's really rare to want to do it on an expensive switch which can, because it would make the network very confusing). In other words the packets going to the modem must keep the same VLAN number on the other port that is connected to the Pi.
Port 6 (the Pi) tagged in both VLANs. If you have to set a PVID you can use either 1 or 911, the PVID only controls what happens to untagged packets that might come in the port, of which there should not be any.
Port 7 (the LAN) untagged in 1, PVID of 1.
Port 8 (the ISP) tagged in 999, off in 1, PVID of 911 if you have to set a PVID.
