Unable to forward traffic between vlans

Installing and Using OpenWrt
1

Hello OpenWrt community,

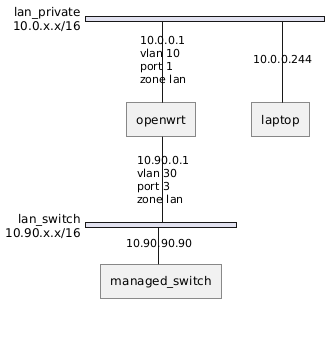

I am new to OpenWrt and have some issues implementing what I think should be a simple setup (see attached image).

image331×346 5.62 KB

I started from a vanilla installation and did very few configuration (as far a I can tell)
I think I got the vlans correctly setup. All networks are currently in the same firewall zone to simplify things.

I want to be able to reach the switch (in network 10.90) from the laptop (in network 10.0). But, currently from the laptop I cannot ping anything on the 10.90.x.x network (I tried 10.90.0.1 and 10.90.90.90).
From ssh on the openwrt router, I can ping both the switch and the laptop.

I am wondering if it is possible to do this, and what configuration am I missing.

Thanks in advance for your help

uci export network

package network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd57:3052:3b0e::/48'
        option packet_steering '1'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        list ports 'lan4'
        list ports 'lan5'

config interface 'wan'
        option device 'eth1'
        option proto 'dhcp'

config interface 'wan6'
        option device 'eth1'
        option proto 'dhcpv6'

config bridge-vlan
        option device 'br-lan'
        option vlan '10'
        list ports 'lan1:u*'

config bridge-vlan
        option device 'br-lan'
        option vlan '20'
        list ports 'lan2:u*'

config bridge-vlan
        option device 'br-lan'
        option vlan '30'
        list ports 'lan3:u*'

config bridge-vlan
        option device 'br-lan'
        option vlan '40'
        list ports 'lan4:u*'

config bridge-vlan
        option device 'br-lan'
        option vlan '50'
        list ports 'lan5:u*'

config interface 'lan_private'
        option proto 'static'
        option device 'br-lan.10'
        option ipaddr '10.0.0.1'
        option netmask '255.255.0.0'

config interface 'lan_switch'
        option proto 'static'
        option device 'br-lan.30'
        option ipaddr '10.90.0.1'
        option netmask '255.255.0.0'

uci export dhcp

package dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'
        option filter_aaaa '0'
        option filter_a '0'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

config dhcp 'lan_private'
        option interface 'lan_private'
        option start '100'
        option limit '150'
        option leasetime '12h'

config dhcp 'lan_switch'
        option interface 'lan_switch'
        option start '100'
        option limit '150'
        option leasetime '12h'

uci export firewall

package firewall

config defaults
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option synflood_protect '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan_private'
        list network 'lan_switch'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'
2

What about the routing table in the testing laptop. Is the default route pointing to 10.0.0.1 ?

3

The only issue i see is not a technical problem, but rather just bad practice - there is no reason to use a /16 when likely a /24 will do. But that won’t have any technical implications on your network.

So 90.90.90 is the switch and you said that works. That should prove that inter-subnet routing is working. Can you give examples of the other specific tests?

4

The laptop get its IP address through dhcp from the openwrt router. So I am guessing that a default gateway is also sent by the router. Or do I need to configure something explicitly on the router ? On the laptop ?

Ping to 10.90.90.90 works only when I am connected on the router through ssh. From the laptop, I cannot ping 10.90.x.x

5

@mattimat was right, the default route of the laptop was not going through 10.0.0.1 (because of the wifi network).
Disabled the wifi and everything is working perfectly.

Thank you for your help

1 Like
6

If your problem is solved, please consider marking this topic as [Solved]. See How to mark a topic as [Solved] for a short how-to.
Thanks! :slight_smile:
