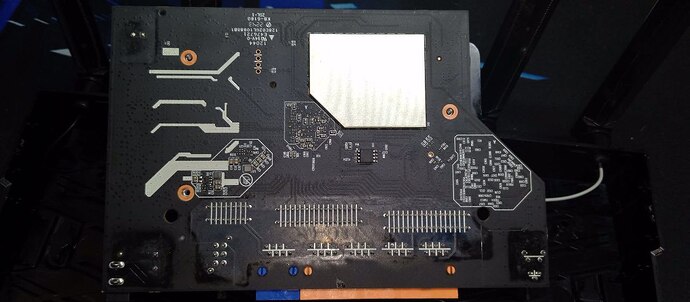

Annexing photos and bootlog of tp-link ax10
BTRM
V1.1
CACH
CODE
ZBSS
MAIN
OTP?
OTPP
USBT
SNOR
IMG?
IMGL
UHD?
UHDP
RLO?
RLOP
UBI?
UBIP
PASS
----
HELO
CPU0
L1CD
MMUI
ZBBS
MAIN
5.0207p1-1.0.38-163.243
SEND
Boot Strap Register: 0x7fffffff
NVRAM memcfg 0x20000327
MCB chksum 0x86e6dff2, config 0x20000327
MemsysInit lpf0fc_generic 3.3.7.100 20180907
DDR3
84217BD4 80180000 801A0000 00000000 00000000 00605997
MCB rev=0x00060301 Ref ID=0x05997 Sub Bld=0x006
Dram Timing 11-11-11
start of memsys_begin
mc_cfg_init(): Initialize the default values on mc_cfg
init_memc_dram_profile(): Initializing MEMC DRAM profile
---------------------------------------------------------------
MEMC DRAM profile (memc_dram_profile_struct) values:
dram_type = DDR3
====================================================
PART values:
part_speed_grade = 1600 CL11
part_size_Mbits = 2048 (DRAM size in MegaBits)
part_row_bits = 14 (number of row bits)
part_col_bits = 10 (number of column bits)
part_ba_bits = 3 (number of bank bits)
part_width_bits = 16 (DRAM width in bits)
NUMER OF PARTS:
part_num = 1 (Number of parts)
TOTAL values:
total_size_Mbits = 2048 (DRAM size in MegaBits)
total_cs_bits = 0 (number of cs bits, for dual_rank mode)
total_width_bits = 16 (DRAM width in bits)
total_burst_bytes = 16 (Number of bytes per DRAM access)
total_max_byte_addr = 0xfffffff (Maximum/last DRAM byte address)
(Number of bits in total_max_byte_addr is 28)
(i.e. total_max_byte_addr goes from bit 0 to bit 27)
ddr_2T_mode = 1
ddr_hdp_mode = 0
large_page = 1
ddr_dual_rank = 0
cs_mode = 0
MEMC timing (memc_dram_timing_cfg_struct) values:
====================================================
MC_CHN_TIM_TIM1_0 register fields:
tCwl = 8
tRP = 11
tCL = 11
tRCD = 11
MC_CHN_TIM_TIM1_1 register fields:
tCCD_L = 4
tCCD = 4
tRRD_L = 6
tRRD = 6
MC_CHN_TIM_TIM1_2 register fields:
tFAW = 32
tRTP = 6
tRCr = 39
MC_CHN_TIM_TIM1_3 register fields:
tWTR_L = 6
tWTR = 6
tWR_L = 12
tWR = 12
MC_CHN_TIM_TIM2 register fields:
tR2R = 0
tR2W = 2
tW2R = 2
tW2W = 0
tAL = 0
tRFC = 128
====================================================
Poll PHY Status register
PHY Status= 1
Disable Auto-Refresh
[0x80180200] = 0x00000305
End of memsys_begin
Add/Ctl Alignment
no adjustment
ZQ Cal LP PHY
R in Ohm
P: Finger=0x2D0 Term=0x78 Drv=0x41
N: Finger=0x2D0 Term=0x78 Drv=0x41
PLL Ref(Hz)=0x02FAF080 UI STEPS=0x03A
DDR CLK(MHz)=0x30B WL CLK dly(ps)=0x0C8 bitT(ps)=0x281 VDLsize(fs)=0x2B2B CLK_VDL=0x01A
start of memc_init
[0x80180004] = 0x0110061f
[0x80180234] = 0x00000501
Enable Auto-Refresh
[0x80180110] = 0x11100f0e
[0x80180114] = 0x15141312
[0x80180118] = 0x19181716
[0x8018011c] = 0x00001b1a
[0x80180124] = 0x04000000
[0x80180128] = 0x08070605
[0x8018012c] = 0x00000a09
[0x80180134] = 0x000d0c0b
Writing to MC_CHN_CFG_CNFG reg; data=0x00000000
[0x80180100] = 0x00000000
cfg_memc_timing_ctrl() Called
[0x80180214] = 0x080b0b0b
[0x80180218] = 0x04040606
[0x8018021c] = 0x20000627
[0x80180220] = 0x06060c0c
[0x80180224] = 0x12000080
End of memc_init
start of pre_shmoo
[0x80180004] = 0xc110071f
end of pre_shmoo
SHMOO 28nm
801A0000 80180800 00000000 00020000 00000000
Shmoo WL
One UI Steps : 0x45
auto-clk result = 010 (filter=0C steps)
initial CLK shift = 01A
final CLK shift = 010
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 S------------X-------------------------------------------------------
01 S----------X---------------------------------------------------------
Shmoo RD En
DQSN DRIVE PAD CONTROL (from) (to)
B0 0003196B 0007996B
B1 0003196B 0007996B
B0 RISE UI=1 VDL=19 PICK UI=2 VDL=19
B1 RISE UI=1 VDL=20 PICK UI=2 VDL=20
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 --S----------------------X+++++++++++++++----------------------------
01 --S-----------------------------X+++++++++++++++---------------------
Shmoo RD DQ NP
DQS :
B0 VDL=3A ok
B1 VDL=3B ok
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 --++++++++++++++++++++++++X+++++++++++++++++++++++++-----------------
01 -----+++++++++++++++++++++++X++++++++++++++++++++++++----------------
02 ----+++++++++++++++++++++++X+++++++++++++++++++++++------------------
03 ------+++++++++++++++++++++++X++++++++++++++++++++++++---------------
04 -------+++++++++++++++++++++++X+++++++++++++++++++++++---------------
05 -------+++++++++++++++++++++++++X++++++++++++++++++++++++++----------
06 ------++++++++++++++++++++++++X++++++++++++++++++++++++--------------
07 ---++++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
08 -----++++++++++++++++++++++++++X++++++++++++++++++++++++++-----------
09 ---++++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
10 ---------+++++++++++++++++++++++X++++++++++++++++++++++++------------
11 -+++++++++++++++++++++++++X+++++++++++++++++++++++++-----------------
12 --------+++++++++++++++++++++++++X+++++++++++++++++++++++++----------
13 ---++++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
14 ----------++++++++++++++++++++++++X++++++++++++++++++++++++----------
15 ---+++++++++++++++++++++++++X++++++++++++++++++++++++++--------------
Shmoo RD DQ P
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 -++++++++++++++++++++++++++X++++++++++++++++++++++++++---------------
01 -----++++++++++++++++++++++++X++++++++++++++++++++++++---------------
02 --+++++++++++++++++++++++++X++++++++++++++++++++++++++---------------
03 -----++++++++++++++++++++++++++X++++++++++++++++++++++++++-----------
04 -----+++++++++++++++++++++++++X+++++++++++++++++++++++++-------------
05 ------++++++++++++++++++++++++++X+++++++++++++++++++++++++++---------
06 ---++++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
07 ---++++++++++++++++++++++++++X+++++++++++++++++++++++++++------------
08 --+++++++++++++++++++++++++++X++++++++++++++++++++++++++++-----------
09 +++++++++++++++++++++++++++X++++++++++++++++++++++++++++-------------
10 -----+++++++++++++++++++++++++X++++++++++++++++++++++++++------------
11 ++++++++++++++++++++++++++X++++++++++++++++++++++++++----------------
12 -----++++++++++++++++++++++++++X+++++++++++++++++++++++++++----------
13 +++++++++++++++++++++++++++X++++++++++++++++++++++++++++-------------
14 -----++++++++++++++++++++++++++X++++++++++++++++++++++++++-----------
15 +++++++++++++++++++++++++++X++++++++++++++++++++++++++++-------------
Shmoo RD DQ N
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 --++++++++++++++++++++++++X+++++++++++++++++++++++++-----------------
01 ------+++++++++++++++++++++++X+++++++++++++++++++++++----------------
02 ---++++++++++++++++++++++++X++++++++++++++++++++++++-----------------
03 ------++++++++++++++++++++++++X++++++++++++++++++++++++--------------
04 -------+++++++++++++++++++++++X+++++++++++++++++++++++---------------
05 -------+++++++++++++++++++++++++X++++++++++++++++++++++++++----------
06 ------++++++++++++++++++++++++X++++++++++++++++++++++++--------------
07 ----+++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
08 ------+++++++++++++++++++++++++X++++++++++++++++++++++++++-----------
09 ---++++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
10 ---------++++++++++++++++++++++++X++++++++++++++++++++++++-----------
11 -+++++++++++++++++++++++++X+++++++++++++++++++++++++-----------------
12 --------+++++++++++++++++++++++++X++++++++++++++++++++++++++---------
13 ---++++++++++++++++++++++++++X++++++++++++++++++++++++++-------------
14 ----------++++++++++++++++++++++++X+++++++++++++++++++++++++---------
15 ----+++++++++++++++++++++++++X+++++++++++++++++++++++++--------------
RD DQS adjustments :
BL0: Start: 0x3A Final: 0x3A
BL1: Start: 0x3A Final: 0x3B
Shmoo WR DQ
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 --------++++++++++++++++++++++++X+++++++++++++++++++++++++-----------
01 ---------++++++++++++++++++++++++X++++++++++++++++++++++++-----------
02 ---------++++++++++++++++++++++++X++++++++++++++++++++++++-----------
03 ----------++++++++++++++++++++++++X+++++++++++++++++++++++++---------
04 ----------+++++++++++++++++++++++X++++++++++++++++++++++++-----------
05 ------------+++++++++++++++++++++++++X++++++++++++++++++++++++++-----
06 ----------+++++++++++++++++++++++X++++++++++++++++++++++++-----------
07 ---------+++++++++++++++++++++++++X+++++++++++++++++++++++++---------
08 ------++++++++++++++++++++++++++X++++++++++++++++++++++++++----------
09 -------++++++++++++++++++++++++++X++++++++++++++++++++++++++---------
10 ----------++++++++++++++++++++++++X+++++++++++++++++++++++++---------
11 --++++++++++++++++++++++++++X+++++++++++++++++++++++++++-------------
12 ---------++++++++++++++++++++++++++X++++++++++++++++++++++++++-------
13 -----+++++++++++++++++++++++++X+++++++++++++++++++++++++-------------
14 -----------++++++++++++++++++++++++X+++++++++++++++++++++++++--------
15 ------+++++++++++++++++++++++++X+++++++++++++++++++++++++------------
Shmoo WR DM
WR DM
000000000011111111112222222222333333333344444444445555555555666666666
012345678901234567890123456789012345678901234567890123456789012345678
00 -----------++++++++++++++++++++++++++X++++++++++++++++++++++++++-----
01 ------+++++++++++++++++++++++++X++++++++++++++++++++++++++-----------
start of memsys_end
[0x80180004] = 0x8110071f
[0x80180010] = 0x00000008
end of memsys_end
DDR test done successfully
Booting Cferam...
Base: 5.2_07p1
CFE version 1.0.38-163.243 for BCM963178 (32bit,SP,LE)
Build Date: Mon Aug 15 11:09:49 CST 2022 (jenkins@sohoicilinux4)
Copyright (C) 2000-2015 Broadcom Corporation.
SEND
Boot Strap Register: 0x7fffffff
Chip ID: BCM6750_A2, ARM Cortex A7 Triple Core: 1500MHz
Total Memory: 268435456 bytes (256MB)
HS Serial flash device: ID_W25X128, id 0x0000ef18 sector 64KB size 16384KB
Flash split 80 : AuxFS[262144]
Take PMC out of reset
waiting for PMC finish booting
PMC rev: 3.0.8.223958 running
pmc_init:PMC using DQM mode
Reading Partition Table from NVRAM ... OK
Parsing Partition Table ... OK
[Error]sysmgr_proinfo_buildStruct():00707 @ unknown id(device_name), skip it.
[Error]sysmgr_proinfo_buildStruct():00707 @ unknown id(country), skip it.
TP firmware getProductinfo hw_ver 3, product_id 15000002
close avs with [island 0] margin_mv slow 85 fast 60 [max_mv 0 min_mv 0 (0 means using firmware default)] succeeded
factory boot check integer ok.
Board IP address : 192.168.0.1:ffffff00
Host IP address : 192.168.0.100
Gateway IP address :
Run from flash/host/tftp (f/h/c) : f
Default host run file name : vmlinux
Default host flash file name : bcm963xx_fs_kernel
Boot delay (0-9 seconds) : 1
Default host ramdisk file name :
Default ramdisk store address :
Default DTB file name :
Board Id : TP6750_AX1500V1
Number of MAC Addresses (1-64) : 11
Base MAC Address : 02:10:18:01:00:01
PSI Size (1-512) KBytes : 48
Enable Backup PSI [0|1] : 0
System Log Size (0-256) KBytes : 0
Auxillary FS Size(uint 4KB) : 80
WLan Feature : 0x00
