SQM QoS Problem on bridge port

[kasav81]

Hello everyone,

i got a problem with SQM on my Belkin RT3200 running the latest Snapshot Release.
My ISP forces me to use their own router which happens to be a Fritzbox (not the worst option, even though I would have preferred to use my OpenWRT device directly connected to the gpon, which, on a side note works when configuring the right VLAN on the WAN-Interface but apparently the ISP detects that the Fritzbox got replaced and completely disables IPv6 and it took me several weeks and countless phone calls until someone was able to re-enable it).
Unfortunately the Fritzbox doesn't offer any options to address bufferbloat and according to the waveform.com test it's pretty bad, so I thought I could simply use an OpenWRT device as a bridge between the Fritzbox and the rest of my network configuring SQM on the port attached to the Fritzbox, so:

GPON <--> FB <--> OWRT whith sqm enabled on port to fb / some other port on the switch <--> my network

I tried this with an old TP-Link WDR3600, i removed all interfaces, bridged all ports, connected WAN to the Fritzbox and one of the LAN ports to the rest of my network and enabled sqm on WAN, which worked.
Now I wanted to do the same with my RT3200 which also works as an access point. Bridging all ports together is no problem, in luci i configured SQM on the WAN interface but it had no effect whatsoever, bufferbloat stays the same with and without SQM enabled.
Is this a problem with this specific device or has it something to do with the DSA config of the switch which doesn't have a separate ethernet device for the wan port or has it something to do with the SQM scripts?
Maybe someone has an idea how to solve this issue or can offer an explanation?
Thanks

[brada4]

SQM will not work with DSA member interfaces , check ip link for something like lan@eth0. You need to set it on parent interface.

[moeller0]

@kasav81

Unfortunately the Fritzbox doesn't offer any options to address bufferbloat

Mmmh, have you tried ingress shaping? Recent enough actually can be configured to use cake for ingress....

Also have you tried to clone the Fritzbox' MAC address? Well possible that the ISP uses less obvious features (as part of a TR-069/369 client) to identify the router, but for some users MAC cloning seems to work.

@kasav81

Unfortunately the Fritzbox doesn't offer any options to address bufferbloat and according to the waveform.com test it's pretty bad,

Maybe post it here (also true for any tests with OpenWrt)?

@kasav81

Now I wanted to do the same with my RT3200 which also works as an access point. Bridging all ports together is no problem, in luci i configured SQM on the WAN interface but it had no effect whatsoever, bufferbloat stays the same with and without SQM enabled.

Please post the output of tc -s qdisc

[kasav81]

ip link shows wan@eth0 and lan[1-4]@eth0
So eth0 is the parent interface an in this case SQM would not be possible at all on such a router?

[brada4]

Anything without bandwidth limit will be fine. Like default fq_codel

can you show

tc -s qdisc

And post a link to your waveform result?

[kasav81]

Thank you, indeed there are 3 profiles for my provider on the Fritzbox (A1, A1 GPON and A1 Ethernet WAN), the GPON one seems to be the default and doesn't offer any options for traffic shaping but the 3d and 1st one show some config option for speed where I can set upstream and downstream speeds, i will try this later.

@moeller0

Also have you tried to clone the Fritzbox' MAC address? Well possible that the ISP uses less obvious features (as part of a TR-069/369 client) to identify the router, but for some users MAC cloning seems to work.

Maybe I'll try that when I'm feeling adventurous, contacts with their "help"-line are somewhat of an unpleasant experience ...

@moeller0

Please post the output of tc -s qdisc

the output of tc -s qdisc from the Belkin RT3200 but with only the lan attached

qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev eth0 root
 Sent 33691 bytes 292 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev eth0 parent :10 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :f limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :e limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :d limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :c limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :b limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :a limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :9 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :8 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :7 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 32049 bytes 277 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :6 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :5 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :4 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 1642 bytes 15 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :3 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :2 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :1 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev lan1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan2 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan3 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan4 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc htb 1: dev wan root refcnt 2 r2q 10 default 0x10 direct_packets_stat 0 direct_qlen 1000
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 110: dev wan parent 1:10 limit 1001p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc ingress ffff: dev wan parent ffff:fff1 ----------------
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan.1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan.10 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc htb 1: dev ifb4wan root refcnt 2 r2q 10 default 0x10 direct_packets_stat 0 direct_qlen 32
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 110: dev ifb4wan parent 1:10 limit 1001p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev wl1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl0-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)

tc -s qdisc from the device I've got connected currently which has two ethernet interfaces with a working sqm configuration:

qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8009: dev eth0 root refcnt 9 bandwidth 100Mbit besteffort triple-isolate nonat nowash no-ack-filter split-gso rtt 100ms raw overhead 0
 Sent 370707426 bytes 574730 pkt (dropped 1479, overlimits 756027 requeues 3)
 backlog 0b 0p requeues 3
 memory used: 535296b of 5000000b
 capacity estimate: 100Mbit
 min/max network layer size:           42 /    1514
 min/max overhead-adjusted size:       42 /    1514
 average network hdr offset:           14

                  Tin 0
  thresh        100Mbit
  target            5ms
  interval        100ms
  pk_delay         11us
  av_delay          6us
  sp_delay          1us
  backlog            0b
  pkts           576209
  bytes       372828312
  way_inds           57
  way_miss         1018
  way_cols            0
  drops            1479
  marks               0
  ack_drop            0
  sp_flows            4
  bk_flows            1
  un_flows            0
  max_len          1514
  quantum          1514

qdisc ingress ffff: dev eth0 parent ffff:fff1 ----------------
 Sent 859969803 bytes 734812 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev eth1 root
 Sent 159393379962 bytes 151374171 pkt (dropped 6, overlimits 0 requeues 14240)
 backlog 0b 0p requeues 14240
qdisc fq_codel 0: dev eth1 parent :8 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 14247008908 bytes 20200544 pkt (dropped 0, overlimits 0 requeues 1099)
 backlog 0b 0p requeues 1099
  maxpacket 1522 drop_overlimit 0 new_flow_count 1031 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :7 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 31715545547 bytes 23624850 pkt (dropped 0, overlimits 0 requeues 652)
 backlog 0b 0p requeues 652
  maxpacket 7610 drop_overlimit 0 new_flow_count 575 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :6 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 14897976714 bytes 13524166 pkt (dropped 0, overlimits 0 requeues 703)
 backlog 0b 0p requeues 703
  maxpacket 1522 drop_overlimit 0 new_flow_count 564 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :5 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 61175050700 bytes 44074855 pkt (dropped 0, overlimits 0 requeues 9033)
 backlog 0b 0p requeues 9033
  maxpacket 1522 drop_overlimit 0 new_flow_count 6223 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :4 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 11486586823 bytes 11113302 pkt (dropped 0, overlimits 0 requeues 652)
 backlog 0b 0p requeues 652
  maxpacket 13698 drop_overlimit 0 new_flow_count 527 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :3 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 6283127852 bytes 12298177 pkt (dropped 6, overlimits 0 requeues 634)
 backlog 0b 0p requeues 634
  maxpacket 1522 drop_overlimit 0 new_flow_count 957 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :2 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 10892730667 bytes 13517465 pkt (dropped 0, overlimits 0 requeues 715)
 backlog 0b 0p requeues 715
  maxpacket 13698 drop_overlimit 0 new_flow_count 578 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth1 parent :1 limit 10240p flows 1024 quantum 1522 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 8695352751 bytes 13020812 pkt (dropped 0, overlimits 0 requeues 752)
 backlog 0b 0p requeues 752
  maxpacket 13698 drop_overlimit 0 new_flow_count 692 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev lan1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan2 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan3 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan4 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev sqmbridge root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev sqmbridge.33 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev sqmbridge.1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev sqmbridge.10 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wlan0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev wlan1 root
 Sent 51214056 bytes 448459 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev wlan1 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 108 bytes 2 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wlan1 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wlan1 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 51213948 bytes 448457 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wlan1 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev wlan1-1 root
 Sent 24237845 bytes 61895 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev wlan1-1 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 552147 bytes 9812 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wlan1-1 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wlan1-1 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 23685698 bytes 52083 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wlan1-1 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc cake 800a: dev ifb4eth0 root refcnt 2 bandwidth 250Mbit besteffort triple-isolate nonat wash no-ack-filter split-gso rtt 100ms raw overhead 0
 Sent 867022025 bytes 732555 pkt (dropped 2257, overlimits 1124537 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 2635Kb of 12500000b
 capacity estimate: 250Mbit
 min/max network layer size:           60 /    1514
 min/max overhead-adjusted size:       60 /    1514
 average network hdr offset:           14

                  Tin 0
  thresh        250Mbit
  target            5ms
  interval        100ms
  pk_delay         96us
  av_delay         10us
  sp_delay          4us
  backlog            0b
  pkts           734812
  bytes       870257291
  way_inds           40
  way_miss          921
  way_cols            0
  drops            2257
  marks               0
  ack_drop            0
  sp_flows            2
  bk_flows            1
  un_flows            0
  max_len          3486
  quantum          1514

@moeller0

Maybe post it here (also true for any tests with OpenWrt)?

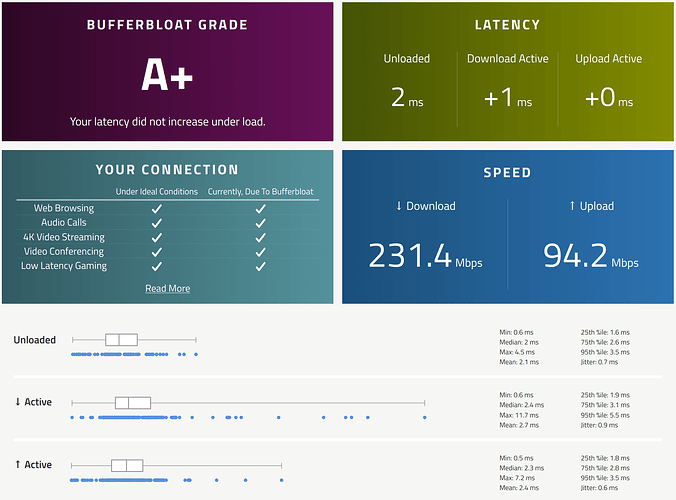

This was worse a few days ago when I last tested with upload latency up to 0.5s

with sqm:

[kasav81]

Ok, I changed the device to eth0, output of tc -s qdisc below. Would this not impair the speed on the whole bridge limiting the bandwith within the lan as well?

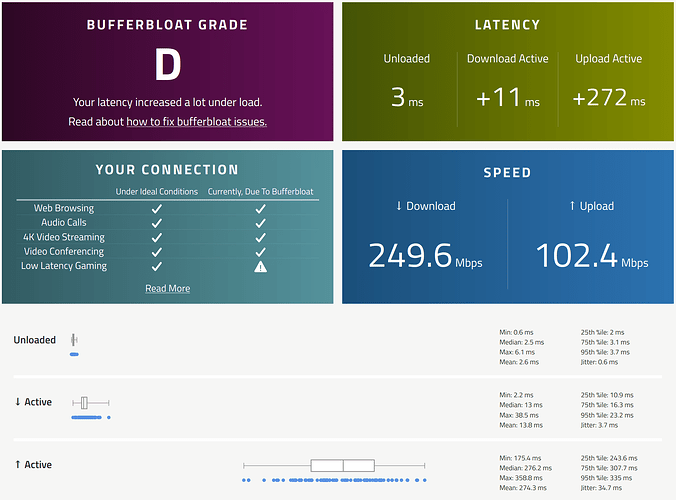

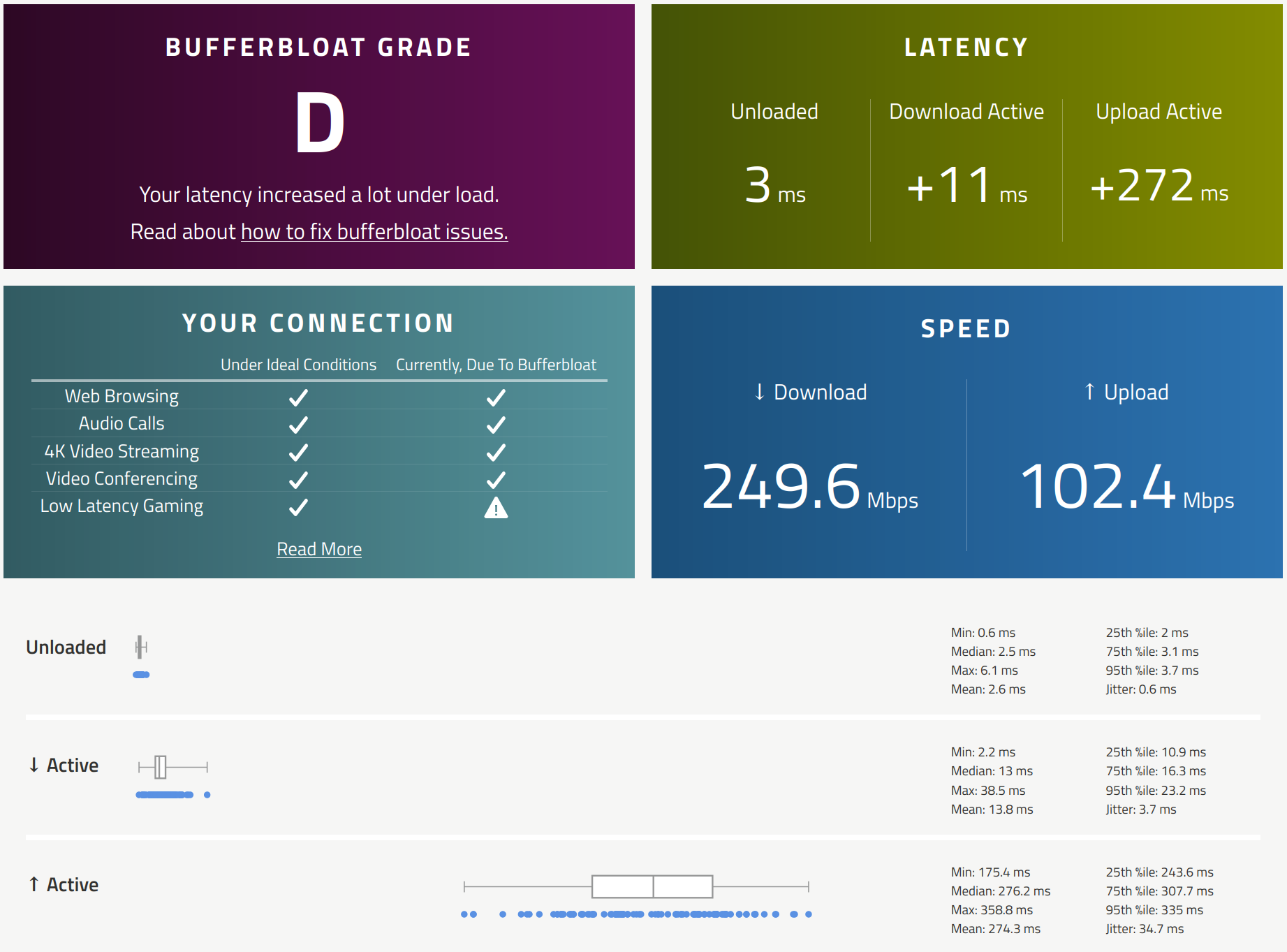

As for the bufferbloat results, I have posted two screenshots in reply to @moeller0

qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev eth0 root
 Sent 33691 bytes 292 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev eth0 parent :10 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :f limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :e limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :d limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :c limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :b limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :a limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :9 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :8 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :7 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 32049 bytes 277 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :6 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :5 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :4 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 1642 bytes 15 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :3 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :2 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev eth0 parent :1 limit 10240p flows 1024 quantum 1518 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev lan1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan2 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan3 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan4 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc htb 1: dev wan root refcnt 2 r2q 10 default 0x10 direct_packets_stat 0 direct_qlen 1000
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 110: dev wan parent 1:10 limit 1001p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc ingress ffff: dev wan parent ffff:fff1 ----------------
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan.1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan.10 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc htb 1: dev ifb4wan root refcnt 2 r2q 10 default 0x10 direct_packets_stat 0 direct_qlen 32
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 110: dev ifb4wan parent 1:10 limit 1001p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev wl1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl0-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
root@OpenWRTServerAP:~# tc -s qdisc
qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 800b: dev eth0 root refcnt 17 bandwidth 5Mbit diffserv3 triple-isolate nonat nowash no-ack-filter split-gso rtt 100ms raw overhead 0
 Sent 48173 bytes 118 pkt (dropped 1, overlimits 109 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 14064b of 4Mb
 capacity estimate: 5Mbit
 min/max network layer size:           64 /    1518
 min/max overhead-adjusted size:       64 /    1518
 average network hdr offset:            7

                   Bulk  Best Effort        Voice
  thresh      312496bit        5Mbit     1250Kbit
  target         58.3ms          5ms       14.6ms
  interval        153ms        100ms        110ms
  pk_delay          0us       5.77ms          2us
  av_delay          0us        326us          0us
  sp_delay          0us         11us          0us
  backlog            0b           0b           0b
  pkts                0          117            2
  bytes               0        49563          128
  way_inds            0            0            0
  way_miss            0            5            1
  way_cols            0            0            0
  drops               0            1            0
  marks               0            0            0
  ack_drop            0            0            0
  sp_flows            0            1            0
  bk_flows            0            1            0
  un_flows            0            0            0
  max_len             0         7590           64
  quantum           300          300          300

qdisc ingress ffff: dev eth0 parent ffff:fff1 ----------------
 Sent 857189 bytes 6712 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan2 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan3 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev lan4 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan.1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev br-lan.10 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev wl0-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 800c: dev ifb4eth0 root refcnt 2 bandwidth 5Mbit besteffort triple-isolate nonat wash no-ack-filter split-gso rtt 100ms raw overhead 0
 Sent 950399 bytes 6707 pkt (dropped 5, overlimits 11648 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 456960b of 4Mb
 capacity estimate: 5Mbit
 min/max network layer size:           56 /    1518
 min/max overhead-adjusted size:       56 /    1518
 average network hdr offset:           14

                  Tin 0
  thresh          5Mbit
  target            5ms
  interval        100ms
  pk_delay       14.3ms
  av_delay       8.34ms
  sp_delay          6us
  backlog            0b
  pkts             6712
  bytes          951157
  way_inds            0
  way_miss           53
  way_cols            0
  drops               5
  marks               0
  ack_drop            0
  sp_flows            1
  bk_flows            1
  un_flows            0
  max_len          1518
  quantum           300

[brada4]

You need to post stats after bufferbloat test.

[moeller0]

@kasav81

Now I wanted to do the same with my RT3200 which also works as an access point. Bridging all ports together is no problem, in luci i configured SQM on the WAN interface but it had no effect whatsoever, bufferbloat stays the same with and without SQM enabled.

I think the issue might be that wan is just another switch port, so it really depends how you add that to the bridge... (you need a software bridge between wan and br-lan, if you just add the wan port to br-lan, the kernel will not really see traffic on the wan port at all*)

*) Personally I consider it undesirable for a router to rededicate as switch port as wan, but for some router models that is unavoidable...

[Hudra]

Maybe I missed something, but why don't you use OpenWrt in the default configuration with a WAN interface and LAN bridge? Then you can simply apply SQM to your WAN port.

[kasav81]

The idea was not to change anything on the current network configuration, so I wanted the Fritzbox to act as dhcp server and avoid double-NAT while still having sqm for the whole network.

[Hudra]

If your primary goal is to avoid double NAT, you can simply set a static route to your OpenWrt network on your Fritzbox and then disable masquerading on your OpenWrt WAN firewall zone.

Or just enable bridge mode if your Fritzbox has this option.

[moeller0]

I think AVM got rid of true bridge mode... they might still allow PPPoE passthrough (if you do not configure the FB's PPPoE credentials but enable passthrough that occasionally does work; I guess the issue is that AVM wants not be seen as a mere provider of low level hardware, but wants to control the full stack)

[Hudra]

@moeller0

I think AVM got rid of true bridge mode

Yea, I can confirm that. I had a similar setup some time ago, and with the Fritzbox provided by my ISP, I also couldn't enable Bridge Mode. However, you could fortunately create static routes, which is a feature often missing from ISP routers due to their stripped-down user interfaces.

[Lynx]

I wrestled with that myself - see here:

Double Nat Issue (LTE modem + OpenWrt router)

Continuing the discussion from Preventing double NAT: Does the above well-written guide from @mk24 apply to the situation I now have: 192.168.0.1 (OpenWrt Zyxel NR7101 LTE router) 192.168.1.1 (main OpenWrt router) ethernet cable connecting from LAN port of NR7101 to WAN port of OpenWrt router. I want to emulate a poor man's bridge mode like as described here: Assuming @mk24's guide applies to my situation then I can follow it all but can't seem to get it to work properly. When cr…

The static route and disable masquerading option enabled me to use an OpenWrt router behind a further router with modem whilst avoiding double NAT. Maybe that thread could be helpful for any readers wanting to go that route.

[moeller0]

@Lynx if I understand that correctly, this requires the ability to set routes in the upstream-OpenWrt router, here in the Fritzbox. This looks like the right place to look for fritzos:

Statische IP-Route in FRITZ!Box einrichten | FRITZ!Box 7590

I wonder whether for IPv6 this would be needed at all or whether fritzos implements prefix delegation so openwrt does the right thing out of the box anyway...

The result is elegant in that it solves the issue properly (it is a routing issue in the first place, or at least it can be seen and addressed as one). Another option might be to configure the OpenWrt router to operate as dhcp relay... but that will have implications on which services the OpenWrt router will be able to perform IIUC.

[kasav81]

I tried a different profile within the connection settings of the Fritzbox that lets me set up- and downstream speeds and this seems to work, so it's kind of "solved", thanks for pointing this option out!

[moeller0]

So, while FritzOS offers cake for ingress shaping, I am not 100% convinced that AVM has this properly optimised, but hey, if that works for you it certainly beats no ingress shaping and might well be already 'good enough'.

[kasav81]

You are right, the results with openwrt were a bit better but I think it is good enough for now...
