i have done it via rc.local instead of directly via the module load
I can't find any wed dts definitions though... however the 5.4 kernel has!
echo "Y" > /sys/module/mt7996e/parameters/wed_enable
/sbin/smp-mt76.sh
been investigating the be200 / intel not been able to find the banana radio2 wifi7 and noticed if I scan the network I get
Country: US Environment: bogus
this is very odd ... as I would be expecting Environment: Indoor/Outdoor
I forced the mac80211.sh script to pass country3=0x20 and still shows bogus!
the radio1 (5g) shows environment indoor/outdoor as it should
1 Like
Idk if it helps, but here are my findings.
I noticed low speeds and disconnects on my earlier configuration tries. Changed 5 & 6 ghz to WPA3 (now sae, was mixed sae before). And after that at least wifi 6 is working, and get up to my max internet speed via wifi (900mbps up&down).
My current issue is: I do see a 6ghz band in the wifi scanner op my phone, but the wifi connection is not marked as 5G/6G in Android. Also when connected on my phone and laptop (which should both support at least 6E) they both show only 5Ghz band and just Wifi 6.
When I separate SSID on the different radio's i noticed my laptop doesnt see the 6ghz one (i guess it must be BE200). And Android still doesnt show me 6 ghz or 6E.
It looks to me something is off with 6ghz. I am on the mda-bananapi4-openwrt 6.6.50 10 / LuCI Master 24.258.18373~e592652 build right now.
Ps: ipv6 also doesnt work right now (worked before using snapshot), could also be my lack of knowledge with ipv6. Would love also to get some suggestions here
I usually run script:
if ! grep -q wed_enable /etc/modules.conf ; then echo "options mt7996e wed_enable=Y" >> /etc/modules.conf; fi
after reboot I have Y in /sys/module/mt7996e/parameters/wed_enable , but the wireless network does not work.
If it works on your side, it means that I need to check it once again
@gvisser5 why don't you include /etc/config/wireless config file here? It is hard to say what can be an issue.
It was mentioned here already: it is better right now to put HE160 instead of EHT320, because EHT320 requires to change the country to e.g. JP and the speeds for HE got better results
I did notice that changing the country code to JP and back didn't change a thing.
I am not sure if this is correct, I am looking for WiFi 6E / WiFi 7 support. The 'be' option is available on all radio's,but it only seems to work on radio4. I have configured:
- radio0 as 'n'
- radio1 as 'ax'
- radio4 as 'be'
I tried to follow your post and tried to copy the configuration from it. However I reverted back to just 802.11r Fast Transition for all WiFi interfaces because I was using that already for everything at home. See [Banana BPI-R4] Wifi7 status - #142 by danpawlik
My current config is:
config wifi-device 'radio0'
option type 'mac80211'
option path 'soc/11300000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
option country 'NL'
option cell_density '0'
option htmode 'HT40'
option band '2g'
option channel '8'
config wifi-device 'radio1'
option type 'mac80211'
option path 'soc/11300000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0+1'
option htmode 'HE160'
option country 'NL'
option cell_density '0'
option band '5g'
option channel '120'
config wifi-device 'radio4'
option type 'mac80211'
option path 'soc/11300000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0+2'
option htmode 'EHT160'
option country 'NL'
option cell_density '0'
option band '6g'
option channel '1'
config wifi-iface 'wifinet0'
option device 'radio0'
option mode 'ap'
option ssid 'Michiel de Router'
option encryption 'sae-mixed'
option key 'mysecretpassword'
option ocv '0'
option network 'lan'
option ieee80211r '1'
option ft_over_ds '0'
config wifi-iface 'wifinet1'
option device 'radio1'
option mode 'ap'
option ssid 'Michiel de Router'
option encryption 'sae'
option key 'mysecretpassword'
option ieee80211r '1'
option ft_over_ds '0'
option ocv '0'
option network 'lan'
config wifi-iface 'wifinet2'
option device 'radio4'
option mode 'ap'
option ssid 'Michiel de Router'
option encryption 'sae'
option key 'mysecretpassword'
option ocv '0'
option network 'lan'
option ieee80211r '1'
option ft_over_ds '0'
Edit: my laptop adapter is not Intel be200, its MediaTek Wi-Fi 6E MT7922 (RZ616) 160MHz PCIe Adapter
You are onto something, that's probably what prevents the BE200 from connecting to the 6Ghz access point. I wonder where the environment setting is defined.
1 Like
i will need to check "iw" as maybe hasn't been upgraded to support 11be but yes it is weird
1 Like
The 6Ghz band isn't visible on the BE200 using AX mode either unfortunately.
Snapshots from OpenWRT now contains updated Hostapd (2024-09-15), as of right now the Banana pi R4 has not been updated to the latest snapshot but that will probably happen in a day or 2.
1 Like
I spotted an issue, but for 6GHz, when 320MHz was set, that if something has been connected to 5GHz network, I was not able to connect to 6GHz (but I was able to see that network).
Could you set (base on that):
uci set wireless.default_radio1.log_level=1
uci set wireless.default_radio2.log_level=1
uci commit wireless
wifi up
# or reboot router after commit
and paste the logs here.
That's what I already reported here
Created a build that includes @rmandrad patch (special thanks to @rmandrad for doing that!) for Luci (and related projects to that).
Build with my main_router packages is here
I triggered version with modemmanager,fail2ban etc. Should be available soon.
@rmandrad so far, I can say you have done good job. There are few things missing, but I think here is not a place for such discussion - it should be done directly in the PR
5 Likes
thx @danpawlik
I opened a separate pull https://github.com/openwrt/luci/pull/7279 for luci noting the dependencies on rpcd and iwinfo. Also, found the pull you mentioned had a few more bugs/issues.
I can't see anyone looking after rpcd ...
2 Likes
so been hunting this "bogus" environment reported by iw dev scan on radio2 and can see is set by iw to "bogus" when country_env_str(data[2]) hasn't been set.
Even if I set the country3 third octet to 0x20 (indoor/outdoor) on hostpad (dot11CountryString) it still shows "bogus".
So it needs to be something on the mt76 / mt7996 code.
this maybe a red herring @nbd would you know ? the radio2 for the mt7996 when set to 6ghz / 11be shows bogus when doing a iw dev scan ... would this be a reason for intel be200 not finding radio2 ? I can connect if using mt7925
2 Likes
Is BE320 still limitting bandwith ? Seem like maximum I can get is below 200Mbit, AX is using whole available.
yes about the same here .. with 320mhz width
2 Likes
I think u need to add kmod usb serial to let ur system detect modems for modem manager
its interesting looking to hear the news
Will you release a new PR?
Added CONFIG_PACKAGE_kmod-usb-serial-wwan=y + triggered build.
Should be available soon.
Edit. build is available now
BTW, if someone want to check the wireless network speed, it is better to use iperf3 or librespeed-go (I also put screen from nperf, which was not showing current results). The last one gives nice output via web browser.

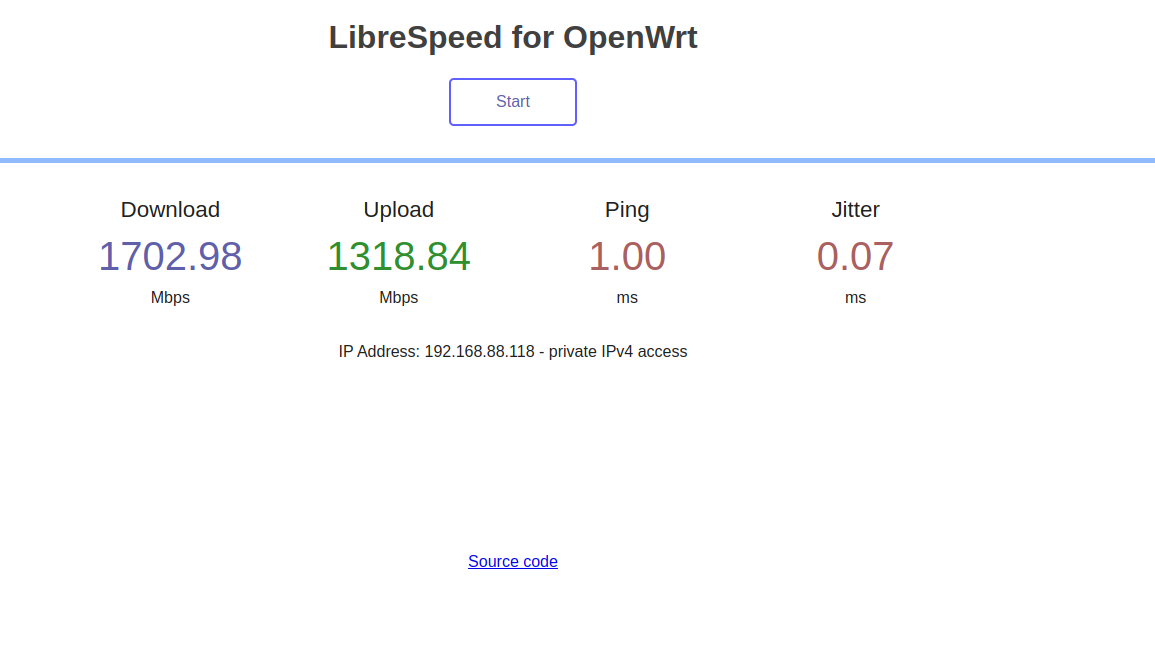

Example result - 5GHz, 160MHz, 1 wall, AX:
