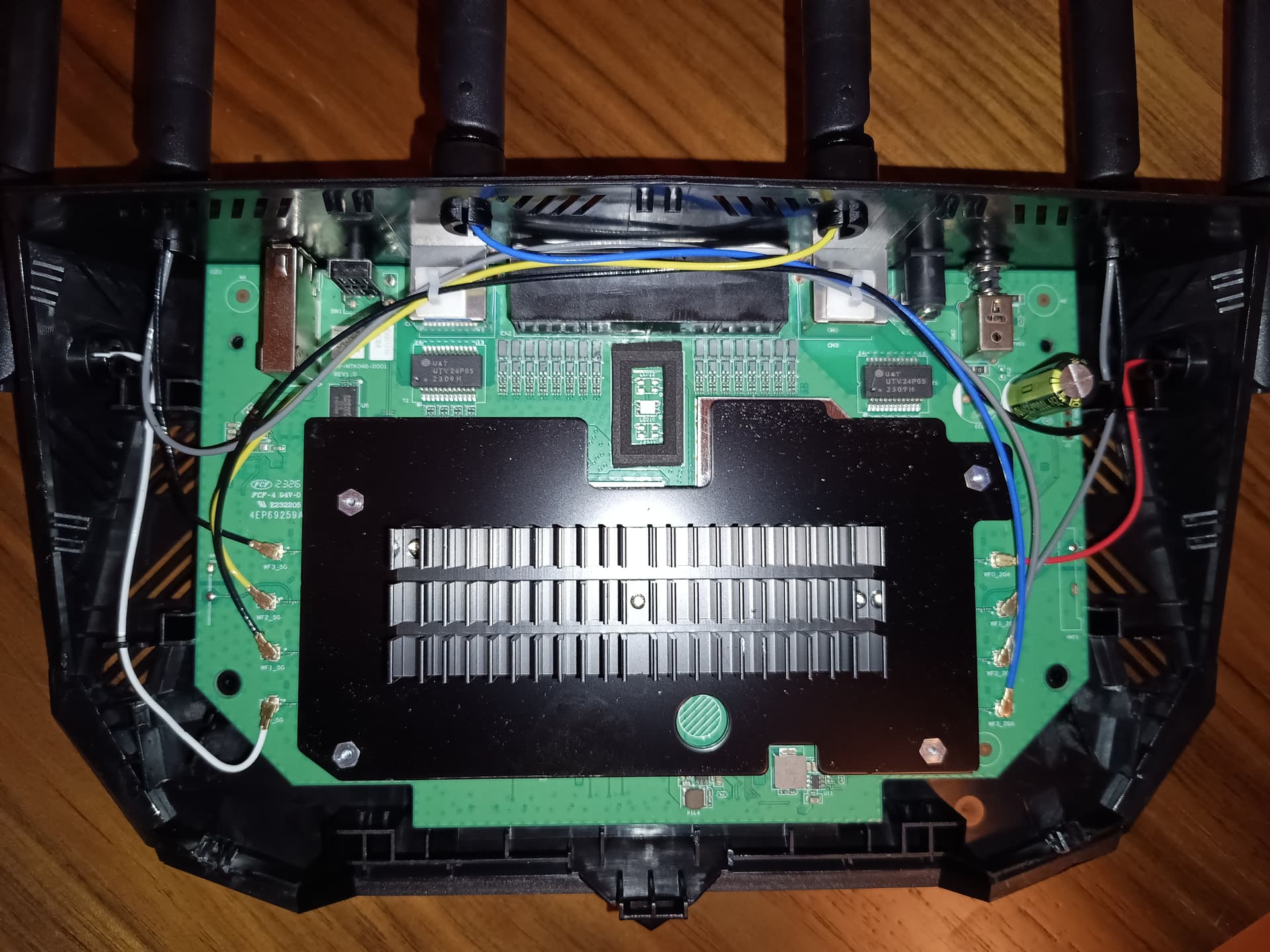

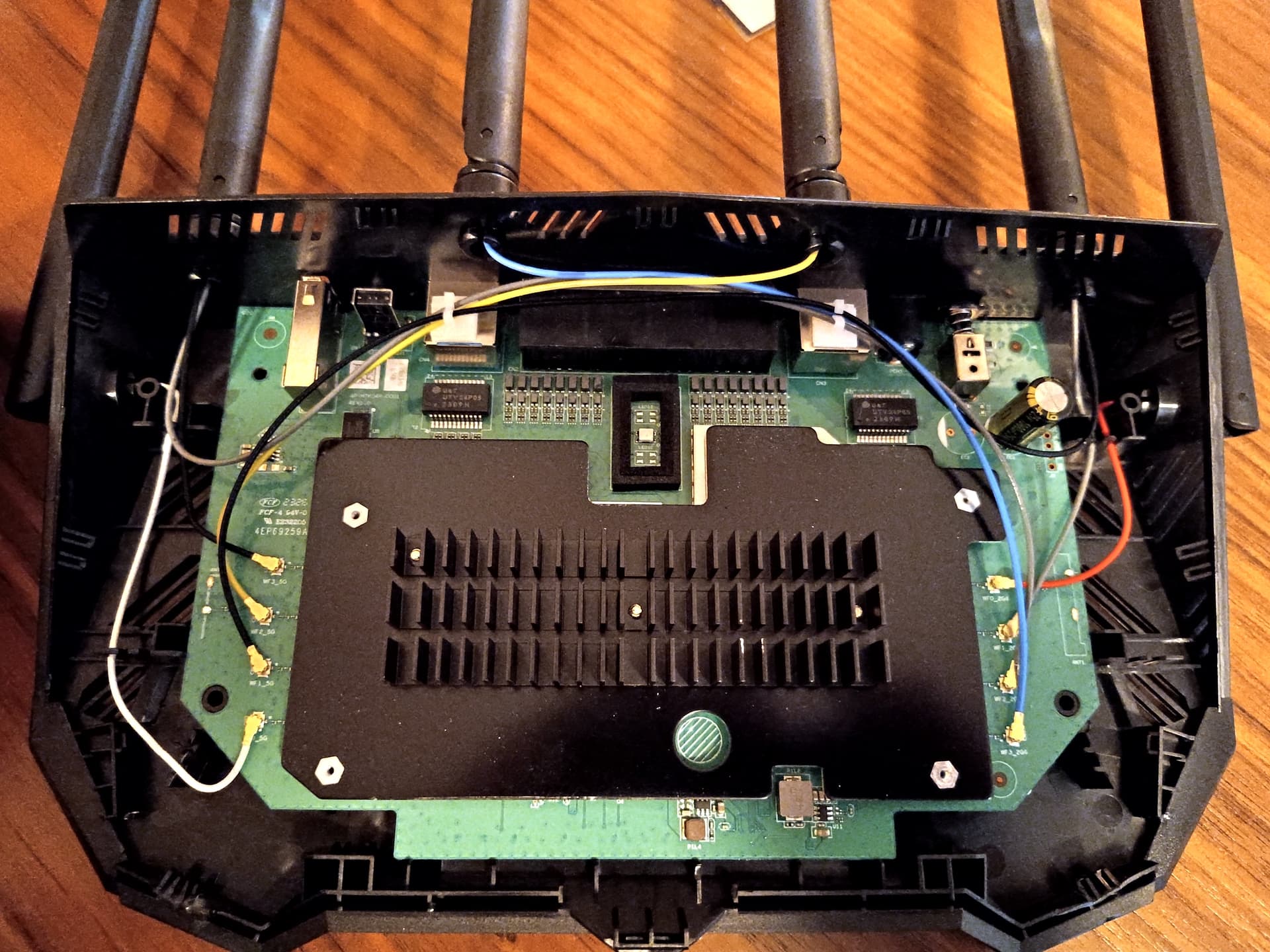

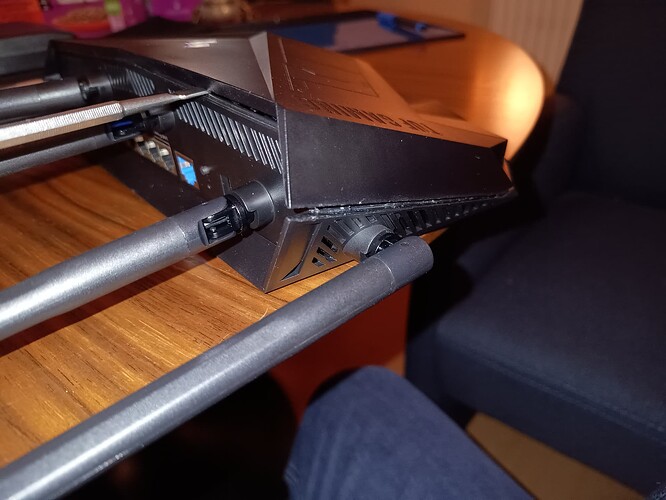

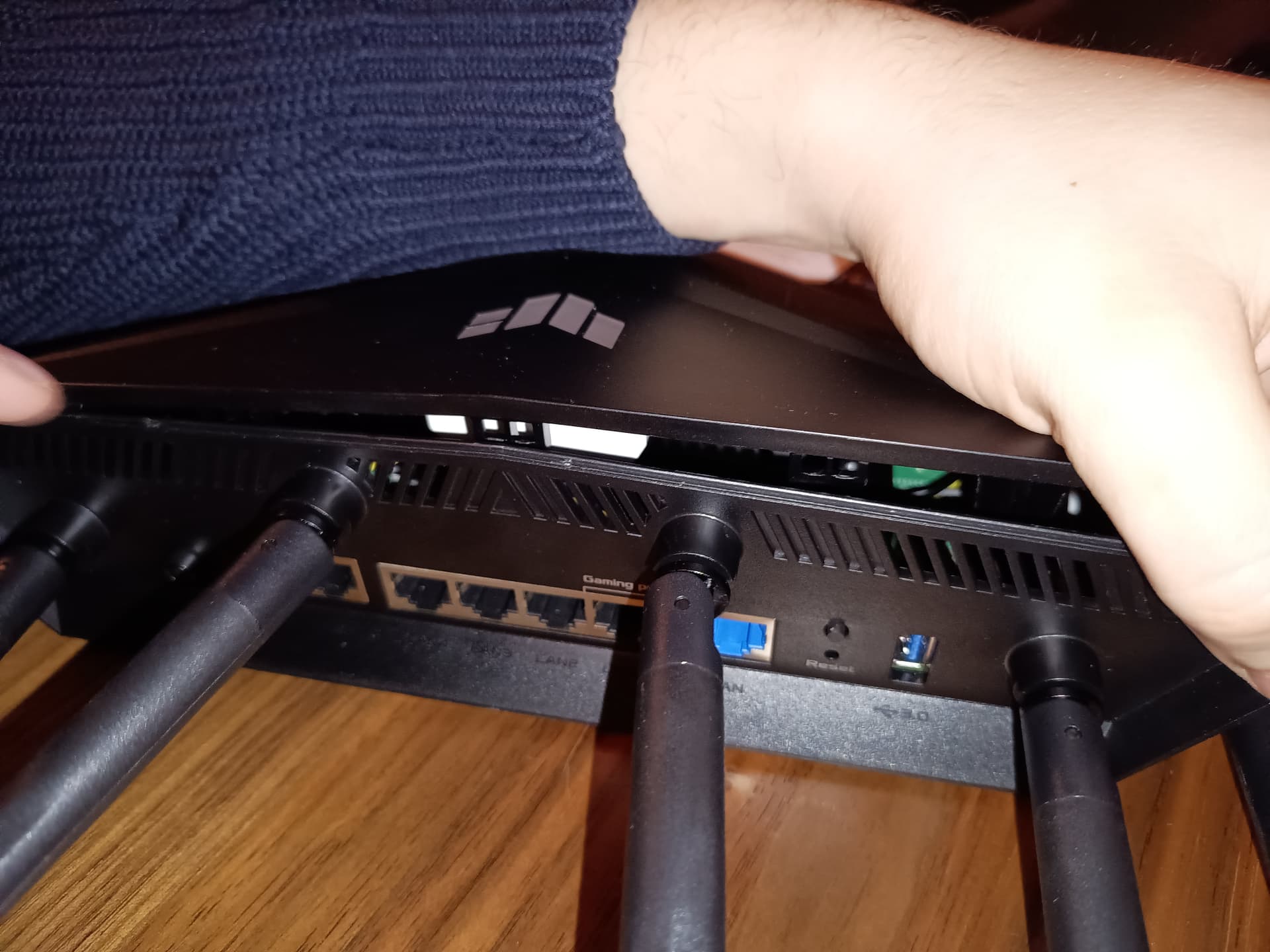

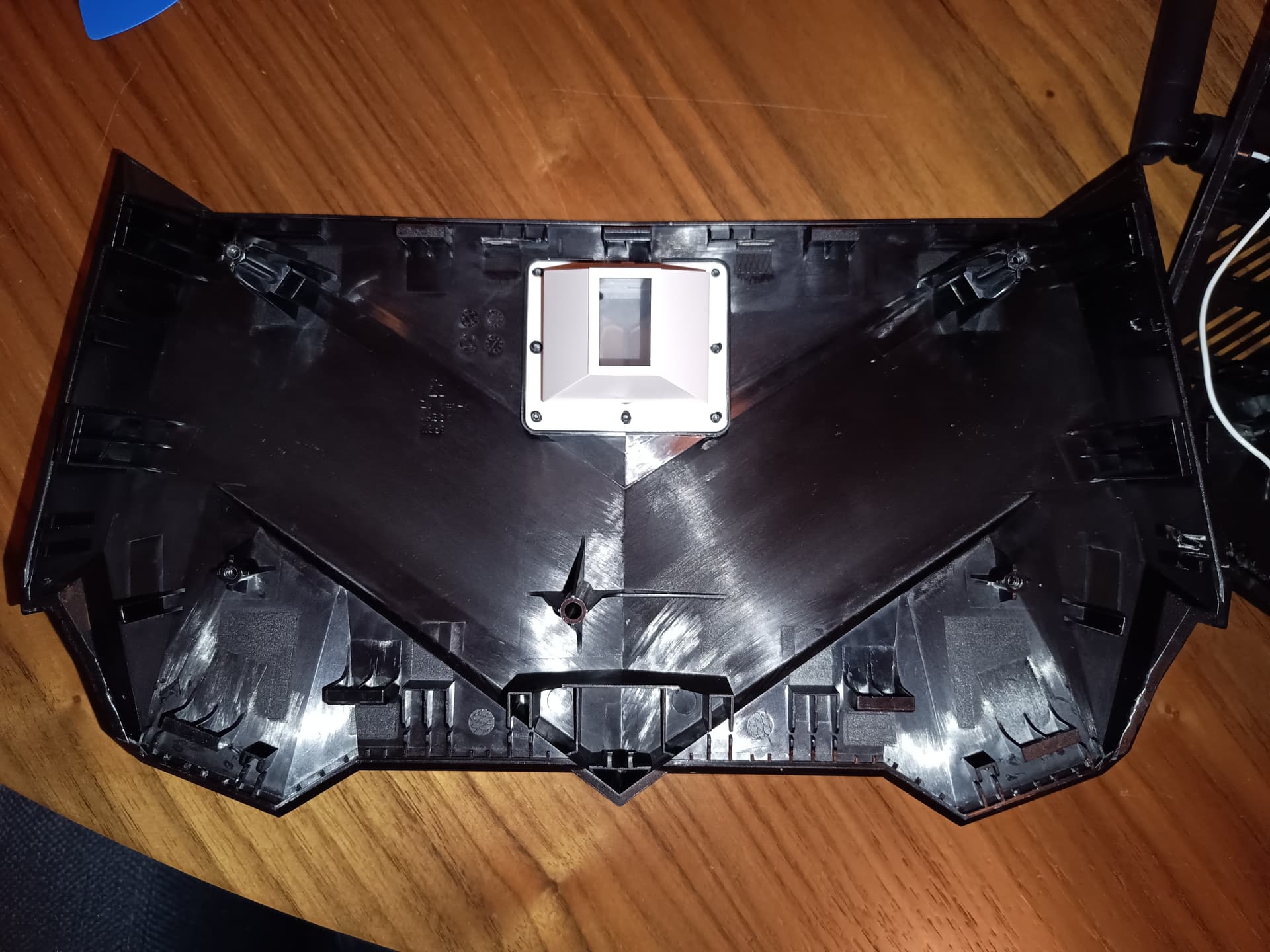

Damn. I got it open. Don't ask me how. I got a iFixit Pro Tech Toolkit. I started from the side then the back. Then the other side. Then the front. Only one tap broke. So I'm happy. See some initial photos below. Feel free to upload them on the wiki!

IMG_20240222_205701525
IMG_20240222_2057015251920×1440 147 KB

IMG_20240222_205834637
IMG_20240222_2058346371920×1440 161 KB

IMG_20240222_211609498
IMG_20240222_2116094981920×1440 318 KB

IMG_20240222_211643775
IMG_20240222_2116437751920×1440 264 KB

IMG_20240222_211703259
IMG_20240222_2117032591920×1440 220 KB

Close up:

IMG_20240222_212046949_HDR
IMG_20240222_212046949_HDR1920×1440 226 KB

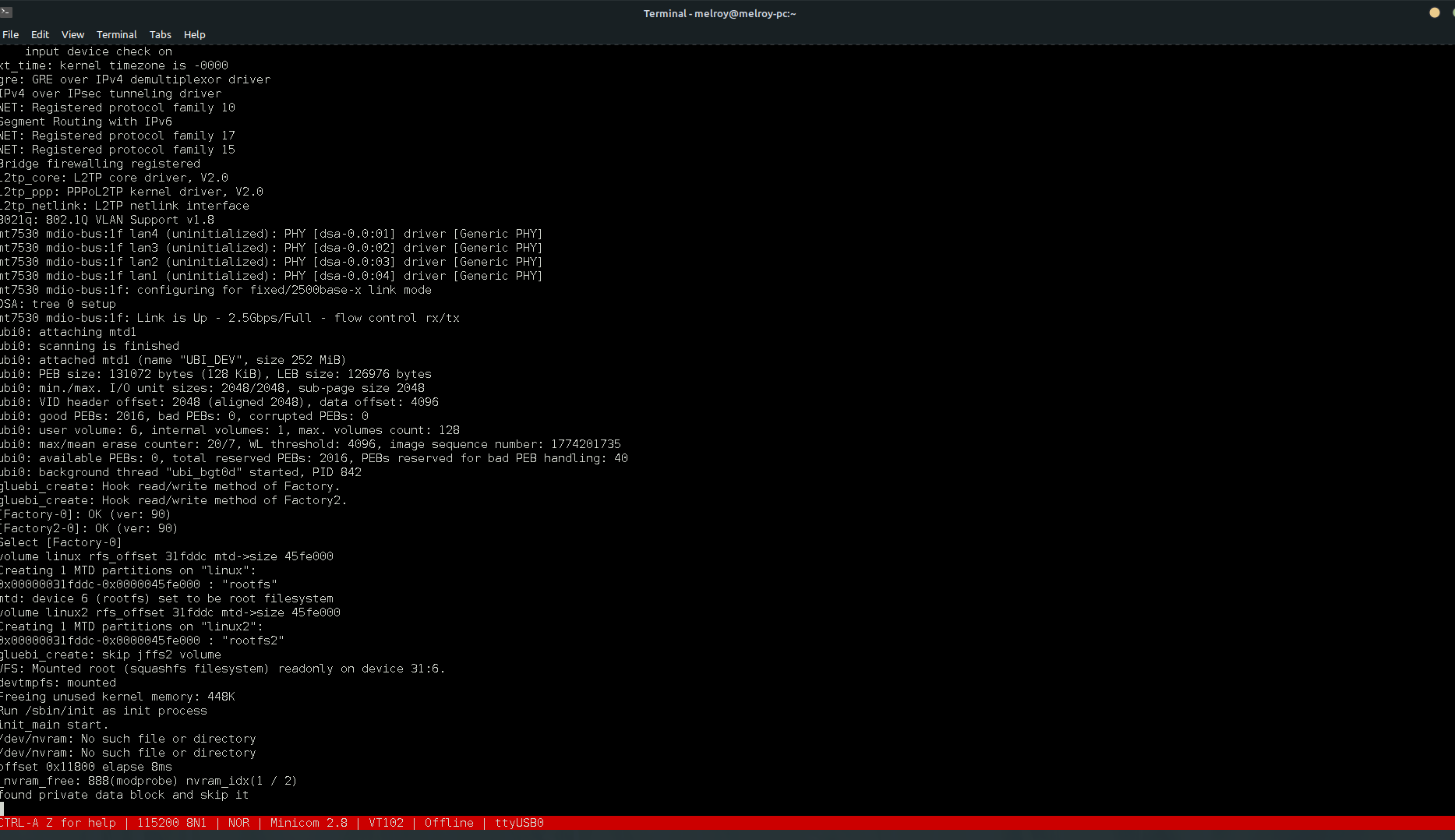

Boot sequence output from console via serial port (RX, TX and GRD), using minicom:

serial_output
serial_output1867×1078 50.5 KB

Login is the stock image via console possible with the same login credentials as the web interface.

Full raw serial dump of boot process with original Asus firmware:

1 Like
599

Good information, but please note all forum members that there is not any reason but for which we want to open the router case. You have privileges on wiki so you can upload images by yourself.

1 Like
600

Please supply dmesg. I use build with kernel 6.1 and wifi looks ok. Even more stable for me. :slight_smile:

601

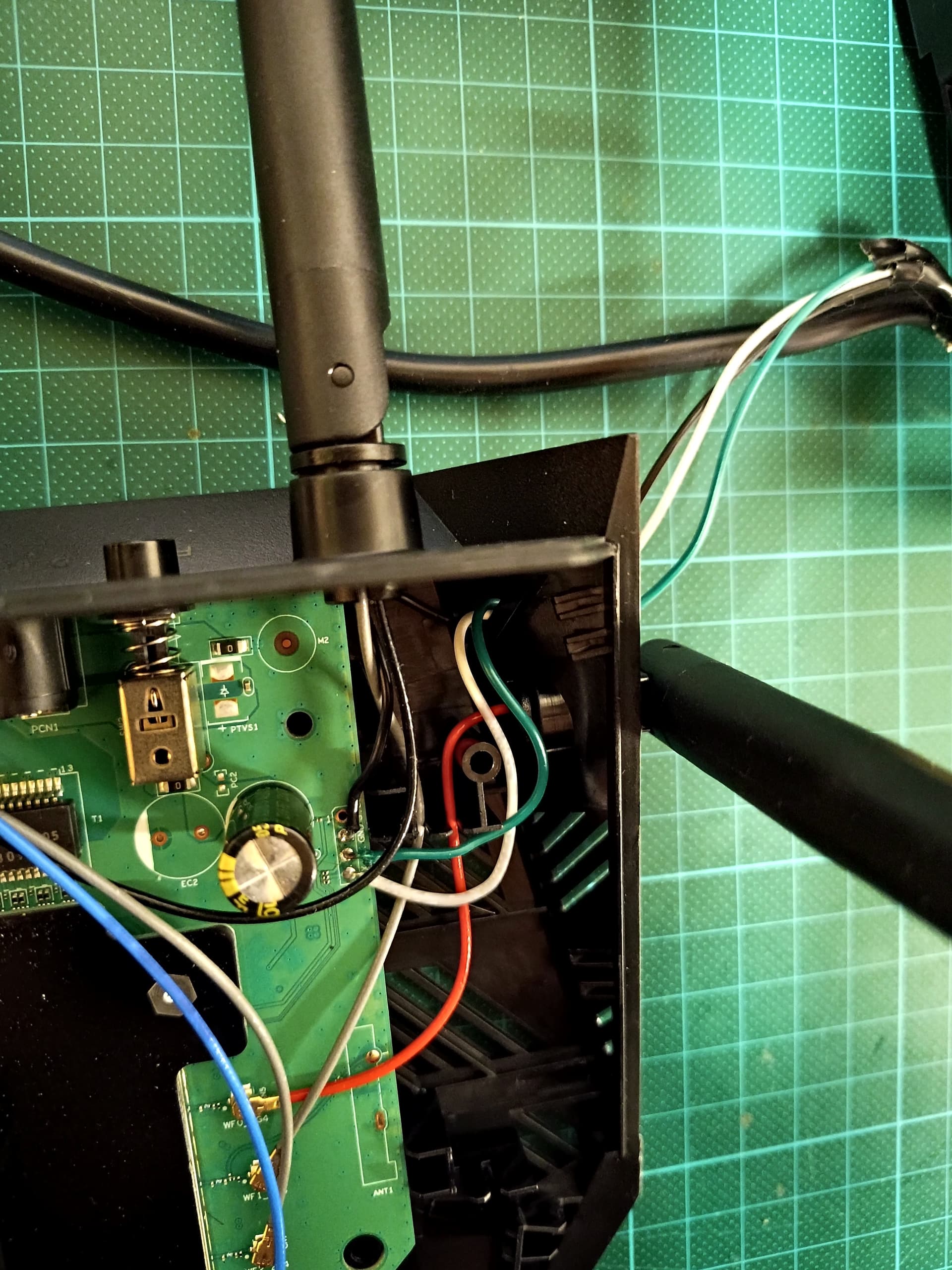

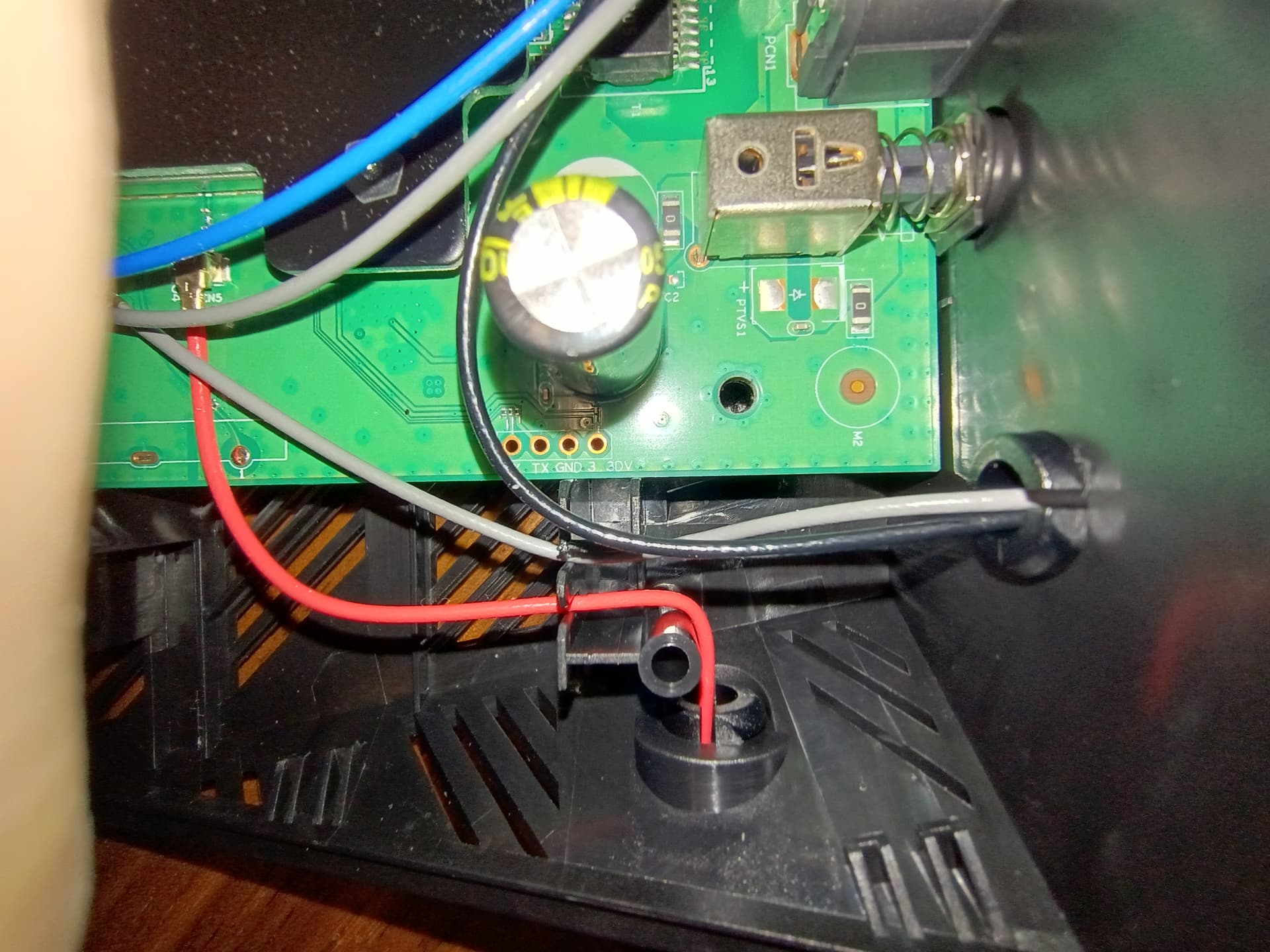

Then I soldered only rx, tx and ground.

IMG_20240222_222041308
IMG_20240222_2220413081920×2560 448 KB

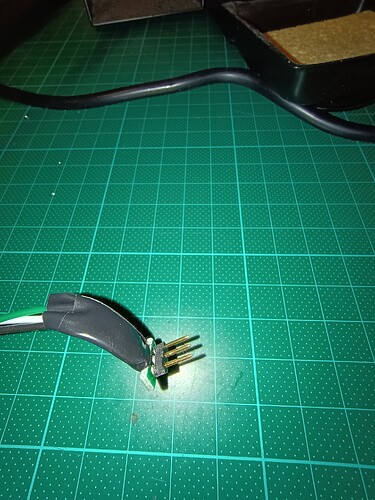

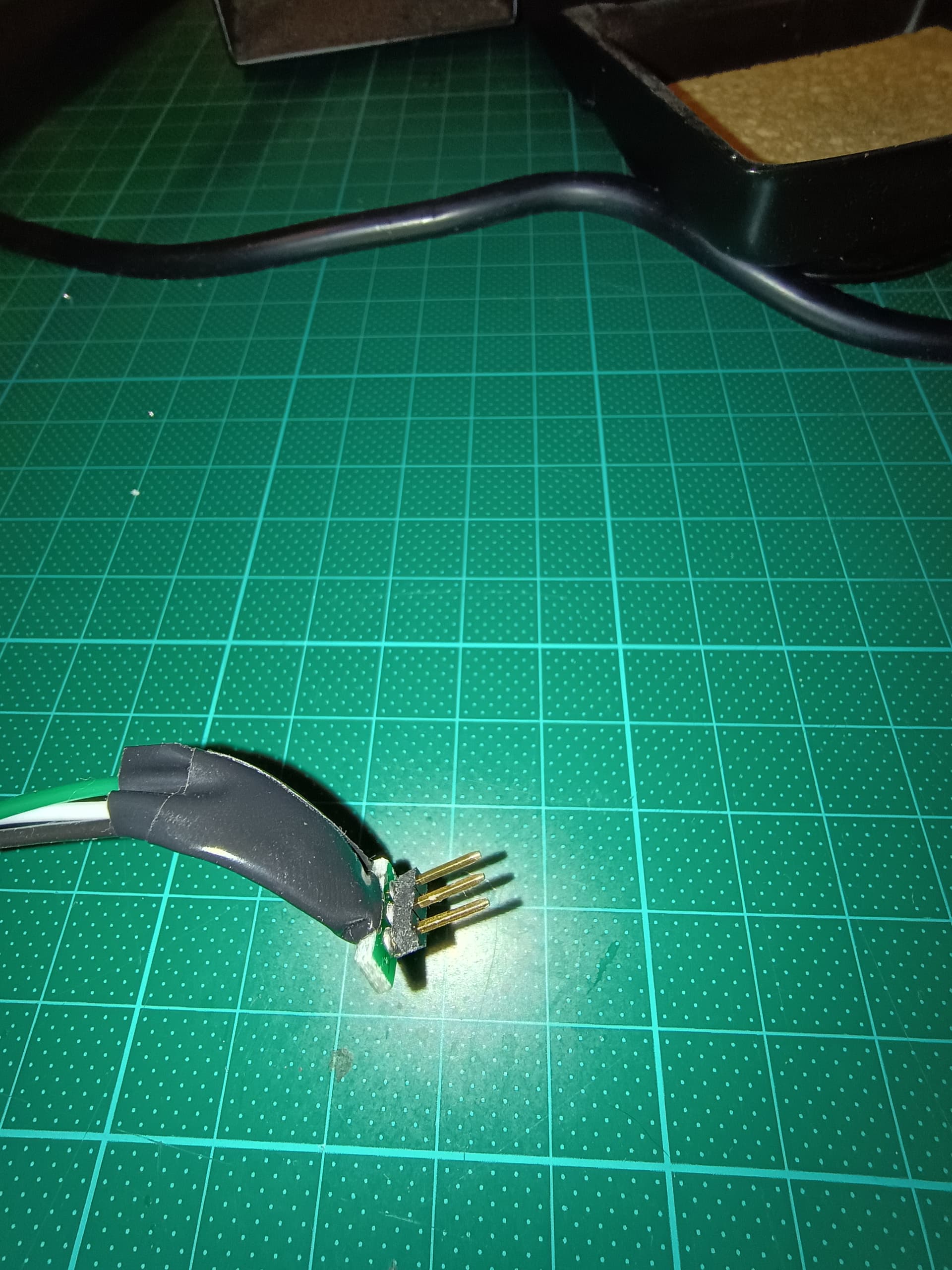

With on the other end my home made connector. For easy access now and in the future.

IMG_20240222_222258154_HDR
IMG_20240222_222258154_HDR1920×2560 392 KB

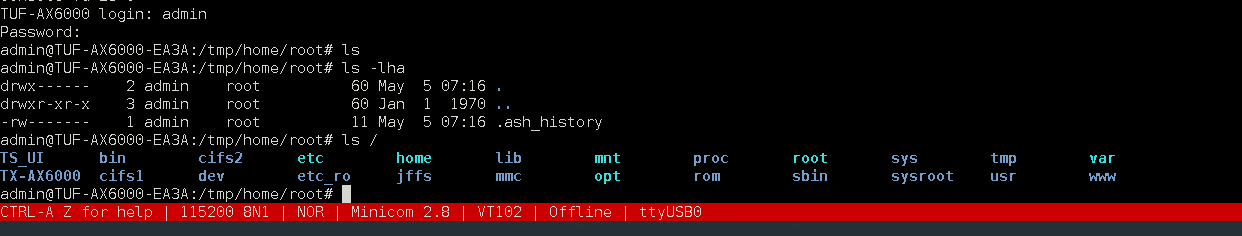

I connected to serial port in the stock Asus rom via minicom. Which also gave me access to the console/terminal.

console_terminal_asus_tuf_ax6000
console_terminal_asus_tuf_ax60001242×236 6.24 KB

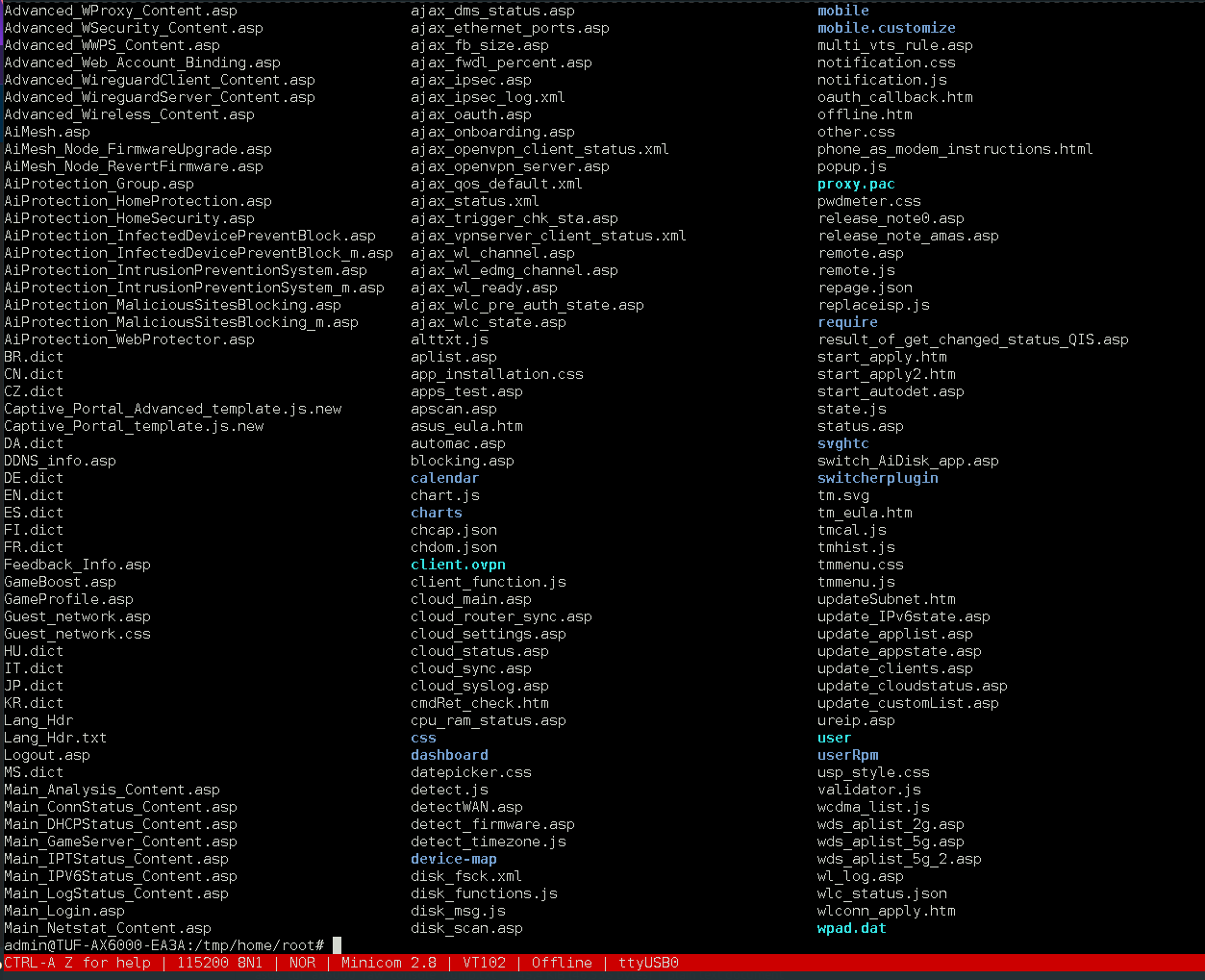

/www folder:

www_folder
www_folder1253×1019 26.1 KB

602

I don't.. yes I can edit text, but if I want to use the media manager to upload an image it says:

Sorry, you don't have enough rights to upload files.

Could you help me?

603

Linux version 5.15.137:

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 5.15.137 (user@debian) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r23630-842932a63d) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Tue Nov 14 13:38:11 2023
[ 0.000000] Machine model: ASUS TUF-AX6000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff]
[ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff]
[ 0.000000] node 0: [mem 0x0000000043030000-0x000000004fbfffff]
[ 0.000000] node 0: [mem 0x000000004fc00000-0x000000004ffbffff]
[ 0.000000] node 0: [mem 0x000000004ffc0000-0x000000005fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.2
[ 0.000000] percpu: Embedded 17 pages/cpu s30040 r8192 d31400 u69632
[ 0.000000] pcpu-alloc: s30040 r8192 d31400 u69632 alloc=17*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register
CPU interface
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129024
[ 0.000000] Kernel command line: ubi.mtd=UBI_DEV
[ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 498088K/524288K available (8384K kernel code, 912K rwdata, 1472K rodata, 448K init, 303K bss, 26200K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 640 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] GICv3: Distributor has no Range Selector support
[ 0.000000] Root IRQ handler: 0xffffffc008422e34
[ 0.000000] GICv3: 16 PPIs implemented
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.000113] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000)
[ 0.000121] pid_max: default: 32768 minimum: 301
[ 0.000324] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.000331] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.001354] rcu: Hierarchical SRCU implementation.
[ 0.001620] smp: Bringing up secondary CPUs ...
[ 0.001879] Detected VIPT I-cache on CPU1
[ 0.001902] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.001929] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.002186] Detected VIPT I-cache on CPU2
[ 0.002199] GICv3: CPU2: found redistributor 2 region 0:0x000000000c0c0000
[ 0.002210] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[ 0.002446] Detected VIPT I-cache on CPU3
[ 0.002457] GICv3: CPU3: found redistributor 3 region 0:0x000000000c0e0000
[ 0.002466] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[ 0.002493] smp: Brought up 1 node, 4 CPUs
[ 0.002507] SMP: Total of 4 processors activated.
[ 0.002511] CPU features: detected: 32-bit EL0 Support
[ 0.002514] CPU features: detected: CRC32 instructions
[ 0.002536] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.002591] CPU: All CPU(s) started at EL2
[ 0.002601] alternatives: patching kernel code
[ 0.005043] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.005066] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.005219] pinctrl core: initialized pinctrl subsystem
[ 0.005845] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.006084] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[ 0.006105] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.006122] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.006376] thermal_sys: Registered thermal governor 'fair_share'
[ 0.006379] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.006382] thermal_sys: Registered thermal governor 'step_wise'
[ 0.006385] thermal_sys: Registered thermal governor 'user_space'
[ 0.006548] ASID allocator initialised with 65536 entries
[ 0.006870] pstore: Registered ramoops as persistent store backend
[ 0.006874] ramoops: using 0x10000@0x42ff0000, ecc: 0
[ 0.014700] cryptd: max_cpu_qlen set to 1000
[ 0.016469] SCSI subsystem initialized
[ 0.016545] libata version 3.00 loaded.
[ 0.017344] clocksource: Switched to clocksource arch_sys_counter
[ 0.017779] NET: Registered PF_INET protocol family
[ 0.017858] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.018214] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.018226] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.018232] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.018254] TCP bind hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.018296] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.018351] UDP hash table entries: 256 (order: 1, 8192
bytes, linear)
[ 0.018363] UDP-Lite hash table entries: 256 (order: 1,
8192 bytes, linear)
[ 0.018475] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.018494] PCI: CLS 0 bytes, default 64
[ 0.020365] workingset: timestamp_bits=46 max_order=17 bucket_order=0
[ 0.023076] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.023090] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.044988] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
[ 0.048530] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.049862] printk: console [ttyS0] disabled
[ 0.070004] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 121, base_baud = 2500000) is a ST16650V2
[ 0.708187] printk: console [ttyS0] enabled
[ 0.713004] mtk_rng 1020f000.rng: registered RNG driver
[ 0.713062] hwrng: no data available
[ 0.718457] cacheinfo: Unable to detect cache hierarchy
for CPU 0
[ 0.729965] loop: module loaded
[ 0.733114] Loading iSCSI transport class v2.0-870.
[ 0.739302] spi spi0.0: setup: ignoring unsupported mode bits a00
[ 0.745614] spi-nand spi0.0: Winbond SPI NAND was found.[ 0.750951] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[ 0.759291] 2 fixed-partitions partitions found on MTD device spi0.0
[ 0.765628] Creating 2 MTD partitions on "spi0.0":
[ 0.770410] 0x000000000000-0x000000400000 : "Bootloader"[ 0.780127] 0x000000400000-0x000010000000 : "UBI_DEV"
[ 1.178527] mtk_soc_eth 15100000.ethernet: generated random MAC address aa:6d:45:ca:93:b9
[ 1.186755] mtk_soc_eth 15100000.ethernet: generated random MAC address 66:9e:ff:21:39:48
[ 1.298313] Maxlinear Ethernet GPY211C mdio-bus:05: Firmware Version: 0x886F (release)
[ 1.307405] Maxlinear Ethernet GPY211C mdio-bus:06: Firmware Version: 0x886F (release)
[ 1.317144] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc009580000, irq 129
[ 1.326903] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc009580000, irq 129
[ 1.336401] i2c_dev: i2c /dev entries driver
[ 1.341666] mtk-wdt 1001c000.watchdog: Watchdog enabled
(timeout=31 sec, nowayout=0)
[ 1.350122] NET: Registered PF_INET6 protocol family
[ 1.355674] Segment Routing with IPv6
[ 1.359363] In-situ OAM (IOAM) with IPv6
[ 1.363306] NET: Registered PF_PACKET protocol family
[ 1.368383] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 1.381405] 8021q: 802.1Q VLAN Support v1.8
[ 1.386364] pstore: Using crash dump compression: deflate
[ 1.429450] mt7530-mdio mdio-bus:1f: no interrupt support
[ 1.440999] mt7530-mdio mdio-bus:1f: configuring for fixed/2500base-x link mode
[ 1.450127] mt7530-mdio mdio-bus:1f: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 1.459070] MediaTek MT7531 PHY mt7530-0:01: Configure LED registers (num=14)
[ 1.473593] mt7530-mdio mdio-bus:1f lan4 (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.493625] MediaTek MT7531 PHY mt7530-0:02: Configure LED registers (num=14)
[ 1.508162] mt7530-mdio mdio-bus:1f lan3 (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.527927] MediaTek MT7531 PHY mt7530-0:03: Configure LED registers (num=14)
[ 1.542456] mt7530-mdio mdio-bus:1f lan2 (uninitialized): PHY [mt7530-0:03] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.562180] MediaTek MT7531 PHY mt7530-0:04: Configure LED registers (num=14)
[ 1.576713] mt7530-mdio mdio-bus:1f lan1 (uninitialized): PHY [mt7530-0:04] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.587910] mt7530-mdio mdio-bus:1f lan5 (uninitialized): PHY [mdio-bus:05] driver [Maxlinear Ethernet GPY211C] (irq=POLL)
[ 1.599252] DSA: tree 0 setup
[ 1.602519] ubi0: default fastmap pool size: 100
[ 1.607127] ubi0: default fastmap WL pool size: 50
[ 1.611911] ubi0: attaching mtd1
[ 4.067342] random: crng init done
[ 5.737002] ubi0: scanning is finished
[ 5.764689] ubi0: attached mtd1 (name "UBI_DEV", size 252 MiB)
[ 5.770531] ubi0: PEB size: 131072 bytes (128 KiB), LEB
size: 126976 bytes
[ 5.777388] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 5.784154] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 5.791096] ubi0: good PEBs: 2016, bad PEBs: 0, corrupted PEBs: 0
[ 5.797168] ubi0: user volume: 8, internal volumes: 1, max. volumes count: 128
[ 5.804372] ubi0: max/mean erase counter: 13/8, WL threshold: 4096, image sequence number: 1367689613
[ 5.813568] ubi0: available PEBs: 0, total reserved PEBs: 2016, PEBs reserved for bad PEB handling: 40
[ 5.822855] ubi0: background thread "ubi_bgt0d" started, PID 479
[ 5.832491] block ubiblock0_6: created from ubi0:6(rootfs)
[ 5.837978] ubiblock: device ubiblock0_6 (rootfs) set to be root filesystem
[ 5.859653] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
[ 5.866933] Freeing unused kernel memory: 448K
[ 5.937372] Run /sbin/init as init process
[ 5.941453] with arguments:
[ 5.944403] /sbin/init
[ 5.947094] with environment:
[ 5.950223] HOME=/
[ 5.952567] TERM=linux
[ 6.308294] init: Console is alive
[ 6.311780] init: - watchdog -
[ 7.702205] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 7.766533] usbcore: registered new interface driver usbfs
[ 7.772065] usbcore: registered new interface driver hub[ 7.777397] usbcore: registered new device driver usb
[ 7.783483] raid6: skip pq benchmark and using algorithm neonx8
[ 7.789423] raid6: using neon recovery algorithm
[ 7.794559] xor: measuring software checksum speed
[ 7.801848] 8regs : 3951 MB/sec
[ 7.808295] 32regs : 4677 MB/sec
[ 7.815100] arm64_neon : 3986 MB/sec
[ 7.819442] xor: using function: 32regs (4677 MB/sec)
[ 7.990718] Btrfs loaded, crc32c=crc32c-generic, zoned=no, fsverity=no
[ 8.004748] xhci-mtk 11200000.usb: xHCI Host Controller
[ 8.010002] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 1
[ 8.020450] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000210010
[ 8.029602] xhci-mtk 11200000.usb: irq 123, io mem 0x11200000
[ 8.035425] xhci-mtk 11200000.usb: xHCI Host Controller
[ 8.040642] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 2
[ 8.048023] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed
[ 8.055377] hub 1-0:1.0: USB hub found
[ 8.059141] hub 1-0:1.0: 2 ports detected
[ 8.063386] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 8.071751] hub 2-0:1.0: USB hub found
[ 8.075506] hub 2-0:1.0: 1 port detected
[ 8.083014] usbcore: registered new interface driver usb-storage
[ 8.089262] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 8.106547] init: - preinit -
[ 8.642176] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 8.650611] mtk_soc_eth 15100000.ethernet eth0: Link is
Up - 2.5Gbps/Full - flow control rx/tx
[ 8.690394] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 8.702214] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 8.709994] IPv6: ADDRCONF(NETDEV_CHANGE): lan1: link becomes ready
[ 10.779005] mount_root: loading kmods from internal overlay
[ 10.791515] kmodloader: loading kernel modules from //etc/modules-boot.d/*
[ 10.804092] kmodloader: done loading kernel modules from //etc/modules-boot.d/*
[ 11.540326] UBIFS (ubi0:7): Mounting in unauthenticated
mode
[ 11.546049] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 640
[ 11.673237] UBIFS (ubi0:7): recovery needed
[ 12.031805] UBIFS (ubi0:7): recovery completed
[ 12.036296] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "rootfs_data"
[ 12.044115] UBIFS (ubi0:7): LEB size: 126976 bytes (124
KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 12.054010] UBIFS (ubi0:7): FS size: 136626176 bytes (130 MiB, 1076 LEBs), max 1087 LEBs, journal size 6856704 bytes (6 MiB, 54 LEBs)
[ 12.065984] UBIFS (ubi0:7): reserved for root: 4952683 bytes (4836 KiB)
[ 12.072582] UBIFS (ubi0:7): media format: w5/r0 (latest
is w5/r0), UUID 8B966C24-7BD6-4974-87B4-86946309FB3C, small LPT model
[ 12.089188] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 12.115687] block: extroot: not configured
[ 12.119859] UBIFS (ubi0:7): un-mount UBI device 0
[ 12.124557] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" stops
[ 12.136793] UBIFS (ubi0:7): Mounting in unauthenticated
mode
[ 12.142540] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 643
[ 12.373398] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "rootfs_data"
[ 12.381219] UBIFS (ubi0:7): LEB size: 126976 bytes (124
KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 12.391109] UBIFS (ubi0:7): FS size: 136626176 bytes (130 MiB, 1076 LEBs), max 1087 LEBs, journal size 6856704 bytes (6 MiB, 54 LEBs)
[ 12.403081] UBIFS (ubi0:7): reserved for root: 4952683 bytes (4836 KiB)
[ 12.409676] UBIFS (ubi0:7): media format: w5/r0 (latest
is w5/r0), UUID 8B966C24-7BD6-4974-87B4-86946309FB3C, small LPT model
[ 12.434435] mount_root: loading kmods from internal overlay
[ 12.451388] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*
[ 12.465070] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*
[ 13.000751] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 13.020210] block: extroot: not configured
[ 13.028812] mount_root: switching to ubifs overlay
[ 13.055306] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 13.094210] urandom-seed: Seeding with /etc/urandom.seed[ 13.677325] mtdblock: MTD device 'Bootloader' is NAND, please consider using UBI block devices instead.
[ 14.129963] mtdblock: MTD device 'UBI_DEV' is NAND, please consider using UBI block devices instead.
[ 14.426382] mt7530-mdio mdio-bus:1f lan1: Link is Down
[ 14.434266] procd: - early -
[ 14.437187] procd: - watchdog -
[ 15.020973] procd: - watchdog -
[ 15.035473] procd: - ubus -
[ 15.161557] procd: - init -
[ 16.284892] kmodloader: loading kernel modules from /etc/modules.d/*
[ 16.296451] NET: Registered PF_ALG protocol family
[ 16.305654] Key type dns_resolver registered
[ 16.315421] Key type cifs.idmap registered
[ 16.323390] ntfs: driver 2.1.32 [Flags: R/O MODULE].
[ 16.329880] tun: Universal TUN/TAP device driver, 1.6
[ 16.339962] l2tp_core: L2TP core driver, V2.0
[ 16.341877] urngd: v1.0.2 started.
[ 16.347877] l2tp_netlink: L2TP netlink interface
[ 16.353343] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[ 16.360989] gre: GRE over IPv4 demultiplexor driver
[ 16.366589] ip_gre: GRE over IPv4 tunneling driver
[ 16.373383] ip6_gre: GRE over IPv6 tunneling driver
[ 16.380261] GACT probability on
[ 16.383946] Mirror/redirect action on
[ 16.390912] u32 classifier
[ 16.393621] input device check on
[ 16.397266] Actions configured
[ 16.404704] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0
[ 16.419983] Bridge firewalling registered
[ 16.424589] Loading modules backported from Linux version v6.1.24-0-g0102425ac76b
[ 16.432098] Backport generated by backports.git v5.15.92-1-44-gd6ea70fafd36
[ 16.449268] usbcore: registered new interface driver usblp
[ 16.463151] xt_time: kernel timezone is -0000
[ 16.817664] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20221012174648a
[ 16.817664]
[ 17.173753] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20221012174725
[ 17.341974] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20221012174937
[ 17.488391] mt798x-wmac 18000000.wifi: eeprom load fail, use default bin
[ 21.348443] PPP generic driver version 2.4.2
[ 21.353426] PPP MPPE Compression module registered
[ 21.358986] NET: Registered PF_PPPOX protocol family
[ 21.364598] PPTP driver version 0.8.5
[ 21.369757] wireguard: WireGuard 1.0.0 loaded. See www.wireguard.com for information.
[ 21.377620] wireguard: Copyright (C) 2015-2019 Jason A.
Donenfeld <Jason@zx2c4.com>. All Rights Reserved.
[ 21.389417] batman_adv: B.A.T.M.A.N. advanced 2023.1-openwrt-4 (compatibility version 15) loaded
[ 21.399327] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 21.406684] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 27.663774] mtk_soc_eth 15100000.ethernet eth0: Link is
Down
[ 27.674950] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 27.683414] mtk_soc_eth 15100000.ethernet eth0: Link is
Up - 2.5Gbps/Full - flow control rx/tx
[ 27.687501] device eth0 entered promiscuous mode
[ 27.697051] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 27.705528] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 27.712050] br-lan: port 1(lan1) entered blocking state
[ 27.717282] br-lan: port 1(lan1) entered disabled state
[ 27.724133] device lan1 entered promiscuous mode
[ 27.739099] mt7530-mdio mdio-bus:1f lan2: configuring for phy/gmii link mode
[ 27.748987] br-lan: port 2(lan2) entered blocking state
[ 27.754210] br-lan: port 2(lan2) entered disabled state
[ 27.761283] device lan2 entered promiscuous mode
[ 27.772671] mt7530-mdio mdio-bus:1f lan3: configuring for phy/gmii link mode
[ 27.782622] br-lan: port 3(lan3) entered blocking state
[ 27.787904] br-lan: port 3(lan3) entered disabled state
[ 27.795035] device lan3 entered promiscuous mode
[ 27.807863] mt7530-mdio mdio-bus:1f lan4: configuring for phy/gmii link mode
[ 27.817808] br-lan: port 4(lan4) entered blocking state
[ 27.823062] br-lan: port 4(lan4) entered disabled state
[ 27.830541] device lan4 entered promiscuous mode
[ 27.839751] mt7530-mdio mdio-bus:1f lan5: configuring for phy/2500base-x link mode
[ 27.849171] br-lan: port 5(lan5) entered blocking state
[ 27.854390] br-lan: port 5(lan5) entered disabled state
[ 27.861936] device lan5 entered promiscuous mode
[ 27.871542] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:06] driver [Maxlinear Ethernet GPY211C] (irq=POLL)
[ 27.881753] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/2500base-x link mode
[ 29.851975] mt7530-mdio mdio-bus:1f lan2: Link is Up - 100Mbps/Full - flow control off
[ 30.227812] br-lan: port 2(lan2) entered blocking state
[ 30.233051] br-lan: port 2(lan2) entered forwarding state
[ 30.239954] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link
becomes ready
[ 30.247442] br-lan: port 6(phy0-ap0) entered blocking state
[ 30.253026] br-lan: port 6(phy0-ap0) entered disabled state
[ 30.258808] device phy0-ap0 entered promiscuous mode
[ 30.747908] br-lan: port 7(phy1-ap0) entered blocking state
[ 30.753484] br-lan: port 7(phy1-ap0) entered disabled state
[ 30.759310] device phy1-ap0 entered promiscuous mode
[ 30.764389] br-lan: port 7(phy1-ap0) entered blocking state
[ 30.770014] br-lan: port 7(phy1-ap0) entered forwarding state
[ 30.810686] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 30.818499] br-lan: port 1(lan1) entered blocking state
[ 30.823728] br-lan: port 1(lan1) entered forwarding state
[ 31.237405] br-lan: port 7(phy1-ap0) entered disabled state
[ 44.038053] IPv6: ADDRCONF(NETDEV_CHANGE): phy0-ap0: link becomes ready
[ 44.044782] br-lan: port 6(phy0-ap0) entered blocking state
[ 44.050355] br-lan: port 6(phy0-ap0) entered forwarding state
[ 44.129390] br-guest: port 1(phy0-ap1) entered blocking state
[ 44.135148] br-guest: port 1(phy0-ap1) entered disabled state
[ 44.141212] device phy0-ap1 entered promiscuous mode
[ 44.147817] br-guest: port 1(phy0-ap1) entered blocking state
[ 44.153569] br-guest: port 1(phy0-ap1) entered forwarding state
[ 44.159694] IPv6: ADDRCONF(NETDEV_CHANGE): br-guest: link becomes ready
[ 44.166826] device phy0-ap1 left promiscuous mode
[ 44.171606] br-guest: port 1(phy0-ap1) entered disabled state
[ 44.218434] br-guest: port 1(phy0-ap1) entered blocking state
[ 44.224175] br-guest: port 1(phy0-ap1) entered disabled state
[ 44.230118] device phy0-ap1 entered promiscuous mode
[ 44.235215] br-guest: port 1(phy0-ap1) entered blocking state
[ 44.240973] br-guest: port 1(phy0-ap1) entered forwarding state
[ 44.248374] IPv6: ADDRCONF(NETDEV_CHANGE): phy0-ap1: link becomes ready
[ 116.462310] IPv6: ADDRCONF(NETDEV_CHANGE): phy1-ap0: link becomes ready
[ 116.469068] br-lan: port 7(phy1-ap0) entered blocking state
[ 116.474644] br-lan: port 7(phy1-ap0) entered forwarding state
[ 116.515944] br-guest: port 2(phy1-ap1) entered blocking state
[ 116.521702] br-guest: port 2(phy1-ap1) entered disabled state
[ 116.527780] device phy1-ap1 entered promiscuous mode
[ 116.535392] br-guest: port 2(phy1-ap1) entered blocking state
[ 116.541149] br-guest: port 2(phy1-ap1) entered forwarding state
[ 116.547675] device phy1-ap1 left promiscuous mode
[ 116.552438] br-guest: port 2(phy1-ap1) entered disabled state
[ 116.615229] br-guest: port 2(phy1-ap1) entered blocking state
[ 116.620971] br-guest: port 2(phy1-ap1) entered disabled state
[ 116.626926] device phy1-ap1 entered promiscuous mode
[ 116.631961] br-guest: port 2(phy1-ap1) entered blocking state
[ 116.637706] br-guest: port 2(phy1-ap1) entered forwarding state
[ 116.645238] IPv6: ADDRCONF(NETDEV_CHANGE): phy1-ap1: link becomes ready
[ 1082.305299] br-lan: port 2(lan2) entered disabled state
[ 1082.305787] mt7530-mdio mdio-bus:1f lan2: Link is Down
[ 1091.655805] mt7530-mdio mdio-bus:1f lan2: Link is Up - 100Mbps/Full - flow control off
[ 1091.663750] br-lan: port 2(lan2) entered blocking state
[ 1091.668962] br-lan: port 2(lan2) entered forwarding state
604

Linux version 6.1.78:

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 6.1.78 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r25251-afca1236f3) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Mon Feb 19 19:52:06 2024
[ 0.000000] Machine model: ASUS TUF-AX6000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff]
[ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff]
[ 0.000000] node 0: [mem 0x0000000043030000-0x000000004fbfffff]
[ 0.000000] node 0: [mem 0x000000004fc00000-0x000000004ffbffff]
[ 0.000000] node 0: [mem 0x000000004ffc0000-0x000000005fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.2
[ 0.000000] percpu: Embedded 17 pages/cpu s30824 r8192 d30616 u69632
[ 0.000000] pcpu-alloc: s30824 r8192 d30616 u69632 alloc=17*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register
CPU interface
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129024
[ 0.000000] Kernel command line: ubi.mtd=UBI_DEV
[ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 496928K/524288K available (8576K kernel code, 902K rwdata, 2492K rodata, 448K init, 304K bss, 27360K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 640 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.000125] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000)
[ 0.000132] pid_max: default: 32768 minimum: 301
[ 0.000336] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.000343] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.001013] cacheinfo: Unable to detect cache hierarchy
for CPU 0
[ 0.001310] cblist_init_generic: Setting adjustable number of callback queues.
[ 0.001313] cblist_init_generic: Setting shift to 2 and
lim to 1.
[ 0.001402] rcu: Hierarchical SRCU implementation.
[ 0.001403] rcu: Max phase no-delay instances is 1000.
[ 0.001693] smp: Bringing up secondary CPUs ...
[ 0.001955] Detected VIPT I-cache on CPU1
[ 0.001997] cacheinfo: Unable to detect cache hierarchy
for CPU 1
[ 0.002005] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.002030] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.002293] Detected VIPT I-cache on CPU2
[ 0.002323] cacheinfo: Unable to detect cache hierarchy
for CPU 2
[ 0.002327] GICv3: CPU2: found redistributor 2 region 0:0x000000000c0c0000
[ 0.002338] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[ 0.002586] Detected VIPT I-cache on CPU3
[ 0.002616] cacheinfo: Unable to detect cache hierarchy
for CPU 3
[ 0.002620] GICv3: CPU3: found redistributor 3 region 0:0x000000000c0e0000
[ 0.002629] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[ 0.002654] smp: Brought up 1 node, 4 CPUs
[ 0.002658] SMP: Total of 4 processors activated.
[ 0.002661] CPU features: detected: 32-bit EL0 Support
[ 0.002663] CPU features: detected: CRC32 instructions
[ 0.002685] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.002689] CPU: All CPU(s) started at EL2
[ 0.002690] alternatives: applying system-wide alternatives
[ 0.005224] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.005240] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.005382] pinctrl core: initialized pinctrl subsystem
[ 0.006018] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.006261] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[ 0.006282] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.006297] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.006633] thermal_sys: Registered thermal governor 'fair_share'
[ 0.006636] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.006638] thermal_sys: Registered thermal governor 'step_wise'
[ 0.006640] thermal_sys: Registered thermal governor 'user_space'
[ 0.006682] ASID allocator initialised with 65536 entries
[ 0.007003] pstore: Registered ramoops as persistent store backend
[ 0.007005] ramoops: using 0x10000@0x42ff0000, ecc: 0
[ 0.014532] cryptd: max_cpu_qlen set to 1000
[ 0.015416] SCSI subsystem initialized
[ 0.015485] libata version 3.00 loaded.
[ 0.016368] clocksource: Switched to clocksource arch_sys_counter
[ 0.016899] NET: Registered PF_INET protocol family
[ 0.016978] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.017430] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.017441] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.017447] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.017472] TCP bind hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.017560] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.017616] UDP hash table entries: 256 (order: 1, 8192
bytes, linear)
[ 0.017632] UDP-Lite hash table entries: 256 (order: 1,
8192 bytes, linear)
[ 0.017723] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.017742] PCI: CLS 0 bytes, default 64
[ 0.018665] workingset: timestamp_bits=46 max_order=17 bucket_order=0
[ 0.021505] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.021513] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.043189] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
[ 0.046865] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.048691] printk: console [ttyS0] disabled
[ 0.068843] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 116, base_baud = 2500000) is a ST16650V2
[ 0.757657] printk: console [ttyS0] enabled
[ 0.762492] mtk_rng 1020f000.rng: registered RNG driver
[ 0.767933] cacheinfo: Unable to detect cache hierarchy
for CPU 0
[ 0.776293] loop: module loaded
[ 0.779457] Loading iSCSI transport class v2.0-870.
[ 0.785729] spi spi0.0: setup: ignoring unsupported mode bits a00
[ 0.792071] spi-nand spi0.0: Winbond SPI NAND was found.[ 0.797390] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[ 0.805735] 2 fixed-partitions partitions found on MTD device spi0.0
[ 0.812083] Creating 2 MTD partitions on "spi0.0":
[ 0.816862] 0x000000000000-0x000000400000 : "Bootloader"[ 0.826701] 0x000000400000-0x000010000000 : "UBI_DEV"
[ 1.227597] mtk_soc_eth 15100000.ethernet: generated random MAC address 65:74:68:25:64:00
[ 1.235777] mtk_soc_eth 15100000.ethernet: generated random MAC address 65:74:68:25:64:00
[ 1.347416] Maxlinear Ethernet GPY211C mdio-bus:05: Firmware Version: 8.111 (0x886F)
[ 1.356392] Maxlinear Ethernet GPY211C mdio-bus:06: Firmware Version: 8.111 (0x886F)
[ 1.366029] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc009480000, irq 120
[ 1.375838] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc009480000, irq 120
[ 1.385365] i2c_dev: i2c /dev entries driver
[ 1.390852] mtk-wdt 1001c000.watchdog: Watchdog enabled
(timeout=31 sec, nowayout=0)
[ 1.399391] NET: Registered PF_INET6 protocol family
[ 1.405012] Segment Routing with IPv6
[ 1.408710] In-situ OAM (IOAM) with IPv6
[ 1.412653] NET: Registered PF_PACKET protocol family
[ 1.417715] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 1.430742] 8021q: 802.1Q VLAN Support v1.8
[ 1.435938] pstore: Using crash dump compression: deflate
[ 1.481823] mt7530-mdio mdio-bus:1f: no interrupt support
[ 1.493350] mt7530-mdio mdio-bus:1f: configuring for fixed/2500base-x link mode
[ 1.502315] mt7530-mdio mdio-bus:1f: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 1.511536] MediaTek MT7531 PHY mt7530-0:01: Configure LED registers (num=14)
[ 1.526065] mt7530-mdio mdio-bus:1f lan4 (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.546137] MediaTek MT7531 PHY mt7530-0:02: Configure LED registers (num=14)
[ 1.560683] mt7530-mdio mdio-bus:1f lan3 (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.580452] MediaTek MT7531 PHY mt7530-0:03: Configure LED registers (num=14)
[ 1.594984] mt7530-mdio mdio-bus:1f lan2 (uninitialized): PHY [mt7530-0:03] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.614719] MediaTek MT7531 PHY mt7530-0:04: Configure LED registers (num=14)
[ 1.629258] mt7530-mdio mdio-bus:1f lan1 (uninitialized): PHY [mt7530-0:04] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.640479] mt7530-mdio mdio-bus:1f lan5 (uninitialized): PHY [mdio-bus:05] driver [Maxlinear Ethernet GPY211C] (irq=POLL)
[ 1.651913] device eth0 entered promiscuous mode
[ 1.656552] DSA: tree 0 setup
[ 1.659729] ubi0: default fastmap pool size: 100
[ 1.664332] ubi0: default fastmap WL pool size: 50
[ 1.669116] ubi0: attaching mtd1
[ 4.116363] random: crng init done
[ 5.799249] ubi0: scanning is finished
[ 5.827029] ubi0: attached mtd1 (name "UBI_DEV", size 252 MiB)
[ 5.832858] ubi0: PEB size: 131072 bytes (128 KiB), LEB
size: 126976 bytes
[ 5.839720] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 5.846490] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 5.853429] ubi0: good PEBs: 2016, bad PEBs: 0, corrupted PEBs: 0
[ 5.859507] ubi0: user volume: 8, internal volumes: 1, max. volumes count: 128
[ 5.866708] ubi0: max/mean erase counter: 13/8, WL threshold: 4096, image sequence number: 1367689613
[ 5.875901] ubi0: available PEBs: 0, total reserved PEBs: 2016, PEBs reserved for bad PEB handling: 40
[ 5.885188] ubi0: background thread "ubi_bgt0d" started, PID 465
[ 5.888882] block ubiblock0_6: created from ubi0:6(rootfs)
[ 5.896669] ubiblock: device ubiblock0_6 (rootfs) set to be root filesystem
[ 5.919548] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
[ 5.926865] Freeing unused kernel memory: 448K
[ 5.966405] Run /sbin/init as init process
[ 5.970485] with arguments:
[ 5.973436] /sbin/init
[ 5.976127] with environment:
[ 5.979257] HOME=/
[ 5.981603] TERM=linux
[ 6.334885] init: Console is alive
[ 6.338425] init: - watchdog -
[ 7.061935] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 7.104418] usbcore: registered new interface driver usbfs
[ 7.109950] usbcore: registered new interface driver hub[ 7.115281] usbcore: registered new device driver usb
[ 7.125434] xhci-mtk 11200000.usb: xHCI Host Controller
[ 7.130680] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 1
[ 7.141130] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000210010
[ 7.150296] xhci-mtk 11200000.usb: irq 124, io mem 0x11200000
[ 7.156100] xhci-mtk 11200000.usb: xHCI Host Controller
[ 7.161318] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 2
[ 7.168701] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed
[ 7.176099] hub 1-0:1.0: USB hub found
[ 7.179870] hub 1-0:1.0: 2 ports detected
[ 7.184123] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 7.192444] hub 2-0:1.0: USB hub found
[ 7.196193] hub 2-0:1.0: 1 port detected
[ 7.203266] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 7.220755] init: - preinit -
[ 7.743336] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 7.751855] mtk_soc_eth 15100000.ethernet eth0: Link is
Up - 2.5Gbps/Full - flow control rx/tx
[ 7.760653] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 7.920050] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 7.931870] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 7.939697] IPv6: ADDRCONF(NETDEV_CHANGE): lan1: link becomes ready
[ 10.034699] UBIFS (ubi0:7): Mounting in unauthenticated
mode
[ 10.040447] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 648
[ 10.353223] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "rootfs_data"
[ 10.361046] UBIFS (ubi0:7): LEB size: 126976 bytes (124
KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 10.370937] UBIFS (ubi0:7): FS size: 163418112 bytes (155 MiB, 1287 LEBs), max 1299 LEBs, journal size 8126464 bytes (7 MiB, 64 LEBs)
[ 10.382909] UBIFS (ubi0:7): reserved for root: 4952683 bytes (4836 KiB)
[ 10.389505] UBIFS (ubi0:7): media format: w5/r0 (latest
is w5/r0), UUID 6FD43B59-2EB6-4425-9B7A-EF7B438CDD82, small LPT model
[ 10.405320] mount_root: overlay filesystem has not been
fully initialized yet
[ 10.414746] mount_root: switching to ubifs overlay
[ 10.427495] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 10.787450] urandom-seed: Seed file not found (/etc/urandom.seed)
[ 10.848857] mt7530-mdio mdio-bus:1f lan1: Link is Down
[ 10.860796] procd: - early -
[ 10.863726] procd: - watchdog -
[ 11.419624] procd: - watchdog -
[ 11.422910] procd: - ubus -
[ 11.575855] procd: - init -
[ 11.928837] kmodloader: loading kernel modules from /etc/modules.d/*
[ 11.973417] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0
[ 11.989417] Loading modules backported from Linux version v6.5-0-g2dde18cd1d8f
[ 11.996646] Backport generated by backports.git v5.15.92-1-56-g5fb2ccb6b9e8
[ 12.084642] urngd: v1.0.2 started.
[ 12.439985] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20221012174648a
[ 12.439985]
[ 12.761315] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20221012174725
[ 12.910914] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20221012174937
[ 13.057421] mt798x-wmac 18000000.wifi: eeprom load fail, use default bin
[ 13.064190] mt798x-wmac 18000000.wifi: Direct firmware load for mediatek/mt7986_eeprom_mt7976_dual.bin failed with error -2
[ 13.075314] mt798x-wmac 18000000.wifi: Falling back to sysfs fallback for: mediatek/mt7986_eeprom_mt7976_dual.bin
[ 13.200477] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0'
[ 13.208441] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1'
[ 25.790611] PPP generic driver version 2.4.2
[ 25.795531] NET: Registered PF_PPPOX protocol family
[ 25.802476] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 30.012128] mtk_soc_eth 15100000.ethernet eth0: Link is Down
[ 30.025861] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 30.034540] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 30.041734] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 30.053795] br-lan: port 1(lan1) entered blocking state
[ 30.059108] br-lan: port 1(lan1) entered disabled state
[ 30.067357] device lan1 entered promiscuous mode
[ 30.074620] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 30.088719] mt7530-mdio mdio-bus:1f lan2: configuring for phy/gmii link mode
[ 30.098587] br-lan: port 2(lan2) entered blocking state
[ 30.103822] br-lan: port 2(lan2) entered disabled state
[ 30.110880] device lan2 entered promiscuous mode
[ 30.121955] mt7530-mdio mdio-bus:1f lan3: configuring for phy/gmii link mode
[ 30.131882] br-lan: port 3(lan3) entered blocking state
[ 30.137148] br-lan: port 3(lan3) entered disabled state
[ 30.144284] device lan3 entered promiscuous mode
[ 30.154820] mt7530-mdio mdio-bus:1f lan4: configuring for phy/gmii link mode
[ 30.164638] br-lan: port 4(lan4) entered blocking state
[ 30.169876] br-lan: port 4(lan4) entered disabled state
[ 30.177074] device lan4 entered promiscuous mode
[ 30.185029] mt7530-mdio mdio-bus:1f lan5: configuring for phy/2500base-x link mode
[ 30.194342] br-lan: port 5(lan5) entered blocking state
[ 30.199568] br-lan: port 5(lan5) entered disabled state
[ 30.206901] device lan5 entered promiscuous mode
[ 30.215668] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:06] driver [Maxlinear Ethernet GPY211C] (irq=POLL)
[ 30.225851] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/2500base-x link mode
[ 31.827689] br-lan: port 6(phy0-ap0) entered blocking state
[ 31.833265] br-lan: port 6(phy0-ap0) entered disabled state
[ 31.839082] device phy0-ap0 entered promiscuous mode
[ 31.844160] br-lan: port 6(phy0-ap0) entered blocking state
[ 31.849746] br-lan: port 6(phy0-ap0) entered forwarding state
[ 31.855563] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 31.864015] device phy0-ap0 left promiscuous mode
[ 31.868836] br-lan: port 6(phy0-ap0) entered disabled state
[ 31.989570] br-lan: port 6(phy0-ap0) entered blocking state
[ 31.995157] br-lan: port 6(phy0-ap0) entered disabled state
[ 32.000995] device phy0-ap0 entered promiscuous mode
[ 32.007300] device phy0-ap0 left promiscuous mode
[ 32.012065] br-lan: port 6(phy0-ap0) entered disabled state
[ 32.090449] br-lan: port 6(phy1-ap0) entered blocking state
[ 32.096025] br-lan: port 6(phy1-ap0) entered disabled state
[ 32.101806] device phy1-ap0 entered promiscuous mode
[ 32.106925] br-lan: port 6(phy1-ap0) entered blocking state
[ 32.112494] br-lan: port 6(phy1-ap0) entered forwarding state
[ 32.169671] mt7530-mdio mdio-bus:1f lan2: Link is Up - 100Mbps/Full - flow control off
[ 32.177638] br-lan: port 2(lan2) entered blocking state
[ 32.182858] br-lan: port 2(lan2) entered forwarding state
[ 33.126433] br-lan: port 6(phy1-ap0) entered disabled state
[ 34.250140] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 34.257910] br-lan: port 1(lan1) entered blocking state
[ 34.263121] br-lan: port 1(lan1) entered forwarding state
[ 48.857123] IPv6: ADDRCONF(NETDEV_CHANGE): phy1-ap0: link becomes ready
[ 48.863848] br-lan: port 6(phy1-ap0) entered blocking state
[ 48.869416] br-lan: port 6(phy1-ap0) entered forwarding state
[ 48.917953] br-guest: port 1(phy1-ap1) entered blocking state
[ 48.923710] br-guest: port 1(phy1-ap1) entered disabled state
[ 48.929710] device phy1-ap1 entered promiscuous mode
[ 48.937332] br-guest: port 1(phy1-ap1) entered blocking state
[ 48.943082] br-guest: port 1(phy1-ap1) entered forwarding state
[ 48.949124] IPv6: ADDRCONF(NETDEV_CHANGE): br-guest: link becomes ready
[ 48.956116] device phy1-ap1 left promiscuous mode
[ 48.960867] br-guest: port 1(phy1-ap1) entered disabled state
[ 49.037564] br-guest: port 1(phy1-ap1) entered blocking state
[ 49.043307] br-guest: port 1(phy1-ap1) entered disabled state
[ 49.049202] device phy1-ap1 entered promiscuous mode
[ 49.054254] br-guest: port 1(phy1-ap1) entered blocking state
[ 49.059997] br-guest: port 1(phy1-ap1) entered forwarding state
[ 49.067842] IPv6: ADDRCONF(NETDEV_CHANGE): phy1-ap1: link becomes ready
605

Linux version 6.1.78 after extra reboot

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 6.1.78 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r25251-afca1236f3) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Mon Feb 19 19:52:06 2024
[ 0.000000] Machine model: ASUS TUF-AX6000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff]
[ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff]
[ 0.000000] node 0: [mem 0x0000000043030000-0x000000004fbfffff]
[ 0.000000] node 0: [mem 0x000000004fc00000-0x000000004ffbffff]
[ 0.000000] node 0: [mem 0x000000004ffc0000-0x000000005fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.2
[ 0.000000] percpu: Embedded 17 pages/cpu s30824 r8192 d30616 u69632
[ 0.000000] pcpu-alloc: s30824 r8192 d30616 u69632 alloc=17*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register CPU interface
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129024
[ 0.000000] Kernel command line: ubi.mtd=UBI_DEV
[ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 496928K/524288K available (8576K kernel code, 902K rwdata, 2492K rodata, 448K init, 304K bss, 27360K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 640 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.000125] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000)
[ 0.000133] pid_max: default: 32768 minimum: 301
[ 0.000338] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.000345] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.001024] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 0.001321] cblist_init_generic: Setting adjustable number of callback queues.
[ 0.001323] cblist_init_generic: Setting shift to 2 and lim to 1.
[ 0.001413] rcu: Hierarchical SRCU implementation.
[ 0.001414] rcu: Max phase no-delay instances is 1000.
[ 0.001703] smp: Bringing up secondary CPUs ...
[ 0.001963] Detected VIPT I-cache on CPU1
[ 0.002007] cacheinfo: Unable to detect cache hierarchy for CPU 1
[ 0.002015] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.002042] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.002306] Detected VIPT I-cache on CPU2
[ 0.002334] cacheinfo: Unable to detect cache hierarchy for CPU 2
[ 0.002338] GICv3: CPU2: found redistributor 2 region 0:0x000000000c0c0000
[ 0.002349] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[ 0.002595] Detected VIPT I-cache on CPU3
[ 0.002623] cacheinfo: Unable to detect cache hierarchy for CPU 3
[ 0.002627] GICv3: CPU3: found redistributor 3 region 0:0x000000000c0e0000
[ 0.002636] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[ 0.002660] smp: Brought up 1 node, 4 CPUs
[ 0.002664] SMP: Total of 4 processors activated.
[ 0.002666] CPU features: detected: 32-bit EL0 Support
[ 0.002668] CPU features: detected: CRC32 instructions
[ 0.002690] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.002693] CPU: All CPU(s) started at EL2
[ 0.002694] alternatives: applying system-wide alternatives
[ 0.005263] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.005281] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.005420] pinctrl core: initialized pinctrl subsystem
[ 0.006062] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.006305] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[ 0.006326] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.006343] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.006676] thermal_sys: Registered thermal governor 'fair_share'
[ 0.006679] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.006681] thermal_sys: Registered thermal governor 'step_wise'
[ 0.006683] thermal_sys: Registered thermal governor 'user_space'
[ 0.006724] ASID allocator initialised with 65536 entries
[ 0.007047] pstore: Registered ramoops as persistent store backend
[ 0.007050] ramoops: using 0x10000@0x42ff0000, ecc: 0
[ 0.014576] cryptd: max_cpu_qlen set to 1000
[ 0.015461] SCSI subsystem initialized
[ 0.015531] libata version 3.00 loaded.
[ 0.016414] clocksource: Switched to clocksource arch_sys_counter
[ 0.016941] NET: Registered PF_INET protocol family
[ 0.017022] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.017474] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.017484] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.017490] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.017510] TCP bind hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.017602] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.017657] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.017669] UDP-Lite hash table entries: 256 (order: 1,
8192 bytes, linear)
[ 0.017764] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.017784] PCI: CLS 0 bytes, default 64
[ 0.018670] workingset: timestamp_bits=46 max_order=17 bucket_order=0
[ 0.021453] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.021462] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.043400] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
[ 0.047158] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.049053] printk: console [ttyS0] disabled
[ 0.069200] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 116, base_baud = 2500000) is a ST16650V2
[ 0.757904] printk: console [ttyS0] enabled
[ 0.762722] mtk_rng 1020f000.rng: registered RNG driver
[ 0.768185] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 0.776666] loop: module loaded
[ 0.779820] Loading iSCSI transport class v2.0-870.
[ 0.786044] spi spi0.0: setup: ignoring unsupported mode bits a00
[ 0.792405] spi-nand spi0.0: Winbond SPI NAND was found.[ 0.797714] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[ 0.806048] 2 fixed-partitions partitions found on MTD device spi0.0
[ 0.812391] Creating 2 MTD partitions on "spi0.0":
[ 0.817203] 0x000000000000-0x000000400000 : "Bootloader"[ 0.827048] 0x000000400000-0x000010000000 : "UBI_DEV"
[ 1.227668] mtk_soc_eth 15100000.ethernet: generated random MAC address 65:74:68:25:64:00
[ 1.235846] mtk_soc_eth 15100000.ethernet: generated random MAC address 65:74:68:25:64:00
[ 1.347462] Maxlinear Ethernet GPY211C mdio-bus:05: Firmware Version: 8.111 (0x886F)
[ 1.356446] Maxlinear Ethernet GPY211C mdio-bus:06: Firmware Version: 8.111 (0x886F)
[ 1.366082] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc009480000, irq 120
[ 1.375910] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc009480000, irq 120
[ 1.385429] i2c_dev: i2c /dev entries driver
[ 1.390927] mtk-wdt 1001c000.watchdog: Watchdog enabled
(timeout=31 sec, nowayout=0)
[ 1.399466] NET: Registered PF_INET6 protocol family
[ 1.405093] Segment Routing with IPv6
[ 1.408802] In-situ OAM (IOAM) with IPv6
[ 1.412743] NET: Registered PF_PACKET protocol family
[ 1.417806] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 1.430842] 8021q: 802.1Q VLAN Support v1.8
[ 1.436028] pstore: Using crash dump compression: deflate
[ 1.482319] mt7530-mdio mdio-bus:1f: no interrupt support
[ 1.493876] mt7530-mdio mdio-bus:1f: configuring for fixed/2500base-x link mode
[ 1.502862] mt7530-mdio mdio-bus:1f: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 1.512058] MediaTek MT7531 PHY mt7530-0:01: Configure LED registers (num=14)
[ 1.526594] mt7530-mdio mdio-bus:1f lan4 (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.546676] MediaTek MT7531 PHY mt7530-0:02: Configure LED registers (num=14)
[ 1.561210] mt7530-mdio mdio-bus:1f lan3 (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.580986] MediaTek MT7531 PHY mt7530-0:03: Configure LED registers (num=14)
[ 1.595520] mt7530-mdio mdio-bus:1f lan2 (uninitialized): PHY [mt7530-0:03] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.615272] MediaTek MT7531 PHY mt7530-0:04: Configure LED registers (num=14)
[ 1.629805] mt7530-mdio mdio-bus:1f lan1 (uninitialized): PHY [mt7530-0:04] driver [MediaTek MT7531 PHY] (irq=POLL)[ 1.640998] mt7530-mdio mdio-bus:1f lan5 (uninitialized): PHY [mdio-bus:05] driver [Maxlinear Ethernet GPY211C] (irq=POLL)
[ 1.652503] device eth0 entered promiscuous mode
[ 1.657152] DSA: tree 0 setup
[ 1.660339] ubi0: default fastmap pool size: 100
[ 1.664944] ubi0: default fastmap WL pool size: 50
[ 1.669738] ubi0: attaching mtd1
[ 4.116410] random: crng init done
[ 5.800627] ubi0: scanning is finished
[ 5.828388] ubi0: attached mtd1 (name "UBI_DEV", size 252 MiB)
[ 5.834217] ubi0: PEB size: 131072 bytes (128 KiB), LEB
size: 126976 bytes
[ 5.841081] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 5.847851] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 5.854791] ubi0: good PEBs: 2016, bad PEBs: 0, corrupted PEBs: 0
[ 5.860869] ubi0: user volume: 8, internal volumes: 1, max. volumes count: 128
[ 5.868071] ubi0: max/mean erase counter: 13/8, WL threshold: 4096, image sequence number: 1367689613
[ 5.877266] ubi0: available PEBs: 0, total reserved PEBs: 2016, PEBs reserved for bad PEB handling: 40
[ 5.886552] ubi0: background thread "ubi_bgt0d" started, PID 467
[ 5.890236] block ubiblock0_6: created from ubi0:6(rootfs)
[ 5.898017] ubiblock: device ubiblock0_6 (rootfs) set to be root filesystem
[ 5.920842] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
[ 5.928137] Freeing unused kernel memory: 448K
[ 5.986450] Run /sbin/init as init process
[ 5.990530] with arguments:
[ 5.993480] /sbin/init
[ 5.996171] with environment:
[ 5.999302] HOME=/
[ 6.001647] TERM=linux
[ 6.355091] init: Console is alive
[ 6.358625] init: - watchdog -
[ 7.081821] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 7.124324] usbcore: registered new interface driver usbfs
[ 7.129854] usbcore: registered new interface driver hub[ 7.135183] usbcore: registered new device driver usb
[ 7.145355] xhci-mtk 11200000.usb: xHCI Host Controller
[ 7.150607] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 1
[ 7.161058] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000210010
[ 7.170212] xhci-mtk 11200000.usb: irq 124, io mem 0x11200000
[ 7.176026] xhci-mtk 11200000.usb: xHCI Host Controller
[ 7.181258] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 2
[ 7.188644] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed
[ 7.196061] hub 1-0:1.0: USB hub found
[ 7.199830] hub 1-0:1.0: 2 ports detected
[ 7.204087] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 7.212436] hub 2-0:1.0: USB hub found
[ 7.216190] hub 2-0:1.0: 1 port detected
[ 7.223252] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 7.237719] init: - preinit -
[ 7.759849] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 7.768363] mtk_soc_eth 15100000.ethernet eth0: Link is
Up - 2.5Gbps/Full - flow control rx/tx
[ 7.777042] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 7.910084] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 7.921891] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 7.929693] IPv6: ADDRCONF(NETDEV_CHANGE): lan1: link becomes ready
[ 10.044748] UBIFS (ubi0:7): Mounting in unauthenticated mode
[ 10.050474] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 648
[ 10.178196] UBIFS (ubi0:7): recovery needed
[ 10.467629] UBIFS (ubi0:7): recovery completed
[ 10.472117] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "rootfs_data"
[ 10.479935] UBIFS (ubi0:7): LEB size: 126976 bytes (124
KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 10.489830] UBIFS (ubi0:7): FS size: 163418112 bytes (155 MiB, 1287 LEBs), max 1299 LEBs, journal size 8126464 bytes (7 MiB, 64 LEBs)
[ 10.501804] UBIFS (ubi0:7): reserved for root: 4952683 bytes (4836 KiB)
[ 10.508402] UBIFS (ubi0:7): media format: w5/r0 (latest
is w5/r0), UUID 6FD43B59-2EB6-4425-9B7A-EF7B438CDD82, small LPT model
[ 10.537509] mount_root: switching to ubifs overlay
[ 10.560039] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 10.586395] urandom-seed: Seeding with /etc/urandom.seed[ 10.668899] mt7530-mdio mdio-bus:1f lan1: Link is Down
[ 10.680886] procd: - early -
[ 10.683817] procd: - watchdog -
[ 11.246045] procd: - watchdog -
[ 11.254667] procd: - ubus -
[ 11.407641] procd: - init -
[ 11.933099] kmodloader: loading kernel modules from /etc/modules.d/*
[ 11.977463] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0
[ 11.993531] Loading modules backported from Linux version v6.5-0-g2dde18cd1d8f
[ 12.000762] Backport generated by backports.git v5.15.92-1-56-g5fb2ccb6b9e8
[ 12.103541] urngd: v1.0.2 started.
[ 12.455109] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20221012174648a
[ 12.455109]
[ 12.776339] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20221012174725
[ 12.924839] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20221012174937
[ 13.071347] mt798x-wmac 18000000.wifi: eeprom load fail, use default bin
[ 13.081457] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0'
[ 13.089344] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1'
[ 22.895096] PPP generic driver version 2.4.2
[ 22.900053] NET: Registered PF_PPPOX protocol family
[ 22.906868] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 26.609074] mtk_soc_eth 15100000.ethernet eth0: Link is Down
[ 26.622925] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 26.632137] mtk_soc_eth 15100000.ethernet eth0: Link is
Up - 2.5Gbps/Full - flow control rx/tx
[ 26.640774] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 26.644387] br-lan: port 1(lan1) entered blocking state
[ 26.653098] br-lan: port 1(lan1) entered disabled state
[ 26.661381] device lan1 entered promiscuous mode
[ 26.667613] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 26.681678] mt7530-mdio mdio-bus:1f lan2: configuring for phy/gmii link mode
[ 26.691524] br-lan: port 2(lan2) entered blocking state
[ 26.696800] br-lan: port 2(lan2) entered disabled state
[ 26.703862] device lan2 entered promiscuous mode
[ 26.714668] mt7530-mdio mdio-bus:1f lan3: configuring for phy/gmii link mode
[ 26.724849] br-lan: port 3(lan3) entered blocking state
[ 26.730158] br-lan: port 3(lan3) entered disabled state
[ 26.737264] device lan3 entered promiscuous mode
[ 26.747833] mt7530-mdio mdio-bus:1f lan4: configuring for phy/gmii link mode
[ 26.757884] br-lan: port 4(lan4) entered blocking state
[ 26.763120] br-lan: port 4(lan4) entered disabled state
[ 26.770520] device lan4 entered promiscuous mode
[ 26.778625] mt7530-mdio mdio-bus:1f lan5: configuring for phy/2500base-x link mode
[ 26.787914] br-lan: port 5(lan5) entered blocking state
[ 26.793129] br-lan: port 5(lan5) entered disabled state
[ 26.800577] device lan5 entered promiscuous mode
[ 26.809370] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:06] driver [Maxlinear Ethernet GPY211C] (irq=POLL)
[ 26.819562] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/2500base-x link mode
[ 28.438986] br-lan: port 6(phy0-ap0) entered blocking state
[ 28.444561] br-lan: port 6(phy0-ap0) entered disabled state
[ 28.450353] device phy0-ap0 entered promiscuous mode
[ 28.455467] br-lan: port 6(phy0-ap0) entered blocking state
[ 28.461074] br-lan: port 6(phy0-ap0) entered forwarding state
[ 28.466932] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 28.475251] device phy0-ap0 left promiscuous mode
[ 28.480150] br-lan: port 6(phy0-ap0) entered disabled state
[ 28.595643] br-lan: port 6(phy0-ap0) entered blocking state
[ 28.601265] br-lan: port 6(phy0-ap0) entered disabled state
[ 28.607055] device phy0-ap0 entered promiscuous mode
[ 28.613471] device phy0-ap0 left promiscuous mode
[ 28.618264] br-lan: port 6(phy0-ap0) entered disabled state
[ 28.731876] br-lan: port 6(phy1-ap0) entered blocking state
[ 28.737477] br-lan: port 6(phy1-ap0) entered disabled state
[ 28.743232] device phy1-ap0 entered promiscuous mode
[ 28.748296] br-lan: port 6(phy1-ap0) entered blocking state
[ 28.753856] br-lan: port 6(phy1-ap0) entered forwarding state
[ 28.760941] device phy1-ap0 left promiscuous mode
[ 28.765692] br-lan: port 6(phy1-ap0) entered disabled state
[ 28.812239] mt7530-mdio mdio-bus:1f lan2: Link is Up - 100Mbps/Full - flow control off
[ 28.820708] br-lan: port 2(lan2) entered blocking state
[ 28.825928] br-lan: port 2(lan2) entered forwarding state
[ 28.970424] br-lan: port 6(phy1-ap0) entered blocking state
[ 28.975994] br-lan: port 6(phy1-ap0) entered disabled state
[ 28.981748] device phy1-ap0 entered promiscuous mode
[ 28.986773] br-lan: port 6(phy1-ap0) entered blocking state
[ 28.992328] br-lan: port 6(phy1-ap0) entered forwarding state
[ 29.766476] br-lan: port 6(phy1-ap0) entered disabled state
[ 29.769673] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 29.772207] br-lan: port 1(lan1) entered blocking state
[ 29.784990] br-lan: port 1(lan1) entered forwarding state
606

what is extra reboot?

607

Hi,

Just an additional restart of the router after the firmware update :grinning:

608

very strange why after upgrade process first boot not execute script which create fw file. Maybe there is a race conditioning or script has been executed after driver loading.

609

Do you know how could I fix this or debug it?

610

Any one could help?
Need to enter failsafe MODE and no luck so far

611

I plan to take Openwrt into use but some steps are unclear. If I understood correctly, it's not safe to use snapshots more than once because of the partitions that cause to soft brick the router. I could use USB TTL adapter with it if I can plug the pins without opening the router. Not sure though what steps to take with it but maybe I should rely on the wiki page of the router(the official method).

I don't have the adapter but I realised I could use Arduino Uno. Uno TX is 5V so is it a problem with the router or should I divide the voltage to 3.3v? I know that VCC should not be connected because of the risk of frying the router and only TX, RX and GND are needed.

612

No one has figured out the reason for the soft bricking after installing sysupgrade images.
A very small number of people have this problem. And none of them provided logs from UART.

So first, try the installation method via trx-image + sysupgarde, and if you get a soft brick, then start soldering.

613

Thanks, I'll try that first. According to the guide, opening the case or soldering aren't required for the serial port connection so why would you suggest that? Anyways, if I ever soft brick it, I would really appreciate a confirmation what voltage is safe for TX/RX pins.

614

I'm just not a fan of pushing wires through holes in the case.

I open all my routers and install a minijack connector in the case

image882×1280 59.6 KB

3.3V

2 Likes
615

Welcome to the club :+1: . same here.

1 Like
616

Hey all,

I am new to the club and want to start my OpenWRT journey with my new AX6000 :slight_smile:

I already started scanning this thread and the OpenWRT Documentation, but I am a bit unsure if I understood everything correctly. Especially the reports about broken auc make me a bit nervous and I am not sure what the exact alternative to auc is and what the caveats are?

I want to use the TRX method.

  1. Initial installation via TRX
    1.a) Download TRX-image [google drive link in Device wiki]
    1.b) Install via original Asus Web interface
    1.c) Change computer IP-addr to 192.168.1.10 and wait 60...90 seconds.

  2. Upgrade with Sysupgrade instead of AUC (Attend Sysupgrade) to avoid potential issues. This is now clear, but which image to chose? Can I use the "standard" firmware selector image (sysupgrade version) or do i have to request a custom build from the firmware selector? It was not clear to me, if this makes any difference.

Many thanks! :slight_smile:

617

I was trying to figure out SQM settings and ended up using fq_codel with simplest_tbf.qos for now. However, I wanted to use cake(piece_of_cake or some other one?) because it's most often recommended and the hardware should handle it. However, it was mentioned somewhere that cake works only in one core and the workload can probably be split with the rest of the cores which doesn't remove delay(?) caused by some lock. Anyways, that was something I tried to figure out while fixing the cake.

I have 1 Gbps fiber connection(GPON?) and can get about 945/945 in speedtest and almost the same with the simplest_tbf but especially upload needed to be limited with SQM settings a little bit to avoid +200 ms loaded latency.

I didn't do any significant steps while swapping between the queueing disciplines and my problem with cake was really low download speed. It was capped at ~500 Mbps and if I'm not mistaken, upload wasn't perfect either. Limiting the speed with SQM setting didn't make any difference upward. At that point of testing with cake, I had recommended settings for per packet overhead(44) and I had something in MTU but not sure if it was a mistake. MTU with devices/interfaces is 1500 and I think most of the settings related to this topic are default. Anyways, I got rid of the overhead(but actually kept the link layer ethernet overhead setting chosen) and at this point I don't understand if it is needed at all or what would be the value for this kind of environment. I pinged without fragmenting packets and 1472 was working well. Additionally, I tried to go over 1472 but mostly failed at trying it.

When I initially started testing that new fiber setup, I had to use some tool called TCP Optimizer because I couldn't figure out what was limiting my connection speed even if I checked all the most common things. It really helped a lot and I can get 945/945. I'm going to test reverting the changes by using the backup I took because at the moment I can get stable full dl/ul speed in Waveform's Bufferbloat test only with Ubuntu and my Windows 11 gaming PC cannot achieve anything like that with it. There would probably be some other ways to test connection quality but that website is currently the simplest and fastest indication of the quality for me. Just wondering if someone knew what is going on

Just some extra detail that popped, I used sysupgrade linked in the AX6000 wiki but I assume it's the same as in the firmware selector except I was missing Luci.
