Wireguard connection troubleshooting

agarg · December 27, 2024, 6:45am

My purpose to creating a wireguard tunnel is so that:

I can access my Home internal network
Appear to Amazon / Banks that I am in US when overseas.
Use Netflix (US Content) when overseas.

I have a TP-Link 1900 on which I installed DDNS with the goal of receiving incoming connection and it is now working fine. The upstream ISP router's firewall is disabled and the IP Passthrough is configured.

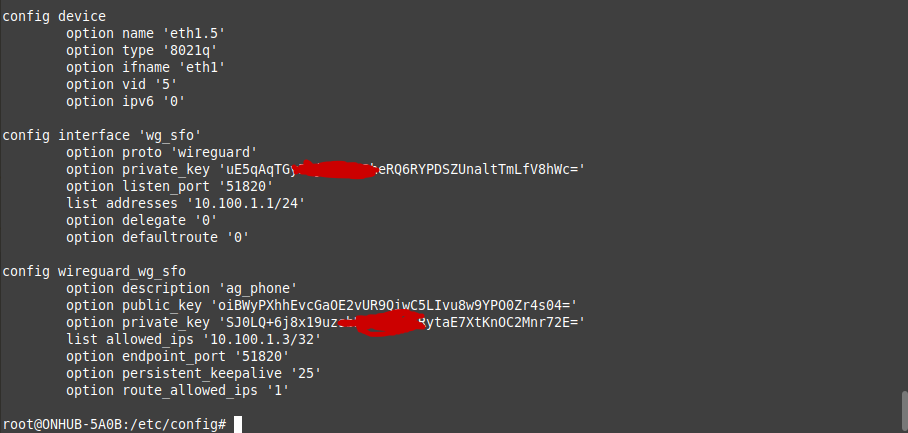

I have installed wireguard using Luci and here is the network, firewall details:

I have used the QR code scan to configure my Android client. My wireguard connection does not make and the wireguard interface shows zero rx, tx. The android client only shows TX.

Any clues and pointers?

Pls help.

psherman · December 27, 2024, 6:47am

Please repost your configs in text format and provide the following so that we can better understand what is happening:

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/firewall
wg show

And also please show only the first two octets (in bold: aaa.bbb.ccc.ddd) of the following:

ifstatus wan | grep address

agarg · December 27, 2024, 7:11am

ubus call system board:

root@ONHUB-5A0B:/etc/config# ubus call system board
{
	"kernel": "5.15.167",
	"hostname": "ONHUB-5A0B",
	"system": "ARMv7 Processor rev 0 (v7l)",
	"model": "TP-Link OnHub",
	"board_name": "tplink,onhub",
	"rootfs_type": "squashfs",
	"release": {
		"distribution": "OpenWrt",
		"version": "23.05.5",
		"revision": "r24106-10cc5fcd00",
		"target": "ipq806x/chromium",
		"description": "OpenWrt 23.05.5 r24106-10cc5fcd00"
	}
}
root@ONHUB-5A0B:/etc/config#

cat /etc/config/network:

root@ONHUB-5A0B:/etc/config# cat /etc/config/network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd84:a75f:3d3d::/48'

config switch
	option name 'switch0'
	option reset '1'
	option enable_vlan '1'

config switch_vlan
	option device 'switch0'
	option vlan '1'
	option ports '1t 6t'
	option vid '1'
	option description 'SOS'

config switch_vlan
	option device 'switch0'
	option vlan '3'
	option vid '10'
	option description 'WAN'
	option ports '0t 2'

config switch_vlan
	option device 'switch0'
	option vlan '5'
	option vid '5'
	option description 'LAN'
	option ports '1t 6t'

config switch_vlan
	option device 'switch0'
	option vlan '6'
	option vid '6'
	option description 'IOT'
	option ports '1t 6t'

config device
	option type '8021q'
	option ifname 'eth0'
	option vid '10'
	option name 'eth0.10'
	option ipv6 '0'

config device
	option name 'eth0'

config device
	option type 'bridge'
	option name 'br-wan'
	list ports 'eth0'
	list ports 'eth0.10'
	option multicast_querier '1'
	option ipv6 '0'

config interface 'wan'
	option proto 'dhcp'
	option device 'br-wan'
	option delegate '0'
	option peerdns '0'
	list dns '8.8.8.8'
	list dns '9.9.9.9'

config device
	option type '8021q'
	option ifname 'eth1'
	option vid '6'
	option name 'eth1.6'
	option ipv6 '0'

config device
	option type 'bridge'
	option name 'br-iot'
	list ports 'eth1'
	list ports 'eth1.6'
	option ipv6 '0'

config interface 'iot'
	option proto 'static'
	option device 'br-iot'
	option ipaddr '192.168.116.1'
	option netmask '255.255.255.0'
	option delegate '0'

config device
	option type 'bridge'
	option name 'br-lan'
	list ports 'eth1'
	list ports 'eth1.5'
	option ipv6 '0'

config interface 'lan'
	option proto 'static'
	option device 'br-lan'
	option ipaddr '192.168.111.1'
	option netmask '255.255.255.0'
	option delegate '0'
	list dns '8.8.8.8'
	list dns '9.9.9.9'

config device
	option name 'br-sos'
	option type 'bridge'
	list ports 'eth1'
	list ports 'eth1.1'
	option ipv6 '0'

config interface 'sos'
	option proto 'static'
	option device 'br-sos'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option delegate '0'

config device
	option name 'eth1.1'
	option type '8021q'
	option ifname 'eth1'
	option vid '1'
	option ipv6 '0'

config device
	option name 'eth1.5'
	option type '8021q'
	option ifname 'eth1'
	option vid '5'
	option ipv6 '0'

config interface 'wg_sfo'
	option proto 'wireguard'
	option private_key '<REDACTED>'
	option listen_port '51820'
	list addresses '10.100.1.1/24'
	option delegate '0'
	option defaultroute '0'

config wireguard_wg_sfo
	option description 'ag_phone'
	option public_key 'oiBWyPXhhEvcGaOE2vUR9QiwC5LIvu8w9YPO0Zr4s04='
	option private_key '<REDACTED>'
	list allowed_ips '10.100.1.3/32'
	option endpoint_port '51820'
	option persistent_keepalive '25'
	option route_allowed_ips '1'

root@ONHUB-5A0B:/etc/config#

cat /etc/config/firewall: (luci-app-pbr was added in firmware selector but not configured, stopped, and disabled )

root@ONHUB-5A0B:/etc/config# cat /etc/config/firewall

config defaults
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'

config zone
	option name 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	list network 'lan'
	list network 'wg_sfo'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'allow-wg-inbound'
	list proto 'udp'
	option src 'wan'
	option src_port '51820'
	option dest 'lan'
	list dest_ip '10.100.1.1/24'
	option dest_port '51820'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Block NEP Internet'
	list src_ip '192.168.116.66'
	option dest 'wan'
	option target 'DROP'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

config include 'pbr'
	option fw4_compatible '1'
	option type 'script'
	option path '/usr/share/pbr/firewall.include'

config zone
	option name 'iot'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	list network 'iot'

config zone
	option name 'sos'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	list network 'sos'

config zone
	option name 'wan'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'
	list network 'wan'

config forwarding
	option src 'lan'
	option dest 'iot'

config forwarding
	option src 'lan'
	option dest 'sos'

config forwarding
	option src 'iot'
	option dest 'wan'

root@ONHUB-5A0B:/etc/config#

wg show:

root@ONHUB-5A0B:/etc/config# wg show
interface: wg_sfo
  public key: oiBWyPXhhEvcGaOE2vUR9QiwC5LIvu8w9YPO0Zr4s04=
  private key: (hidden)
  listening port: 51820
root@ONHUB-5A0B:/etc/config#

ifstatus wan | grep address:

root@ONHUB-5A0B:/etc/config# ifstatus wan | grep address
		"addresses",
	"ipv4-address": [
			"address": "76.218.NNN.NN",
	"ipv6-address": [
		"ipv4-address": [
		"ipv6-address": [
root@ONHUB-5A0B:/etc/config#

psherman · December 27, 2024, 7:18am

Thanks for posting this...

I don't have time to go through it in detail now (I can try to get to this tomorrow if your problem isn't solved by then)...

You've got a bunch of issues with your bridges... I'm not sure why you've got eth1 and eth1.6 bridged here, and you have a similar thing for your other bridges. This is almost certainly wrong, but may not be the cause of your issue. It should be fixed, though.

Remove the last 2 lines here:

agarg:

config interface 'wg_sfo'
	option proto 'wireguard'
	option private_key '<REDACTED>'
	option listen_port '51820'
	list addresses '10.100.1.1/24'
	option delegate '0'
	option defaultroute '0'

Remove the endpoint port from the peer config:

agarg:

config wireguard_wg_sfo
	option description 'ag_phone'
	option public_key 'oiBWyPXhhEvcGaOE2vUR9QiwC5LIvu8w9YPO0Zr4s04='
	option private_key '<REDACTED>'
	list allowed_ips '10.100.1.3/32'
	option endpoint_port '51820'
	option persistent_keepalive '25'
	option route_allowed_ips '1'

D
Remove the dest, dest_ip, and dest_port lines below:

agarg:

config rule
	option name 'allow-wg-inbound'
	list proto 'udp'
	option src 'wan'
	option src_port '51820'
	option dest 'lan'
	list dest_ip '10.100.1.1/24'
	option dest_port '51820'
	option target 'ACCEPT'
	option family 'ipv4'

Then restart and try again.

If it doesn't work, try connecting while on your lan with the endpoint address (defined on the actually remote peer) as 192.168.1.1. Then show us the result of wg show.

agarg · December 27, 2024, 7:20am

I too thought it to be odd. However, in the stock firmware lan and wan are bridged just like this and so I just continued for consistency.

psherman · December 27, 2024, 7:26am

I’d be surprised if the default configuration had the VLANs bridged like that. Make a backup and then you can easily reset to see what was there in the default state.

agarg · December 27, 2024, 7:29am

Yes, I will do that. However, I found it odd too. First time I saw a br-wan device too. I was timid to take these bridges to eth0 and eth1 out.
Thanks. I will test your suggested mods.

agarg · December 27, 2024, 8:15am

I took a backup, removed the eth0 from br-wan and eth1 from br-lan, br-iot, and br-sos and rebooted.

No trouble. It works as expected. I will try the default configs as well.

Is there a place where I should post this as a defect?
Also on these devices, if there is a USB storage attached at reboot, the router just hangs. Remove the USB and reboot, and it works fine.

agarg · December 27, 2024, 8:29am

I tried this lan connection test, and before during and after wg show is attached. It did not work,

In my case the end point defined on my phone was 192.168.111.1:51820 ( in place of original home.ezpzcooking.com).

root@ONHUB-5A0B:~# wg show
interface: wg_sfo
  public key: oiBWyPXhhEvcGaOE2vUR9QiwC5LIvu8w9YPO0Zr4s04=
  private key: (hidden)
  listening port: 51820
root@ONHUB-5A0B:~# wg show
interface: wg_sfo
  public key: oiBWyPXhhEvcGaOE2vUR9QiwC5LIvu8w9YPO0Zr4s04=
  private key: (hidden)
  listening port: 51820
root@ONHUB-5A0B:~# wg show
interface: wg_sfo
  public key: oiBWyPXhhEvcGaOE2vUR9QiwC5LIvu8w9YPO0Zr4s04=
  private key: (hidden)
  listening port: 51820
root@ONHUB-5A0B:~# wg show

egc · December 27, 2024, 9:15am

Remove this rule:

agarg:

config rule
	option name 'allow-wg-inbound'
	list proto 'udp'
	option src 'wan'
	option src_port '51820'
	option dest 'lan'
	list dest_ip '10.100.1.1/24'
	option dest_port '51820'
	option target 'ACCEPT'
	option family 'ipv4'

Replace with:

config rule 'wg'
	option name 'Allow-WireGuard'
	option src 'wan'
	option dest_port '51820'
	option proto 'udp'
	option target 'ACCEPT'

Reboot and test again, if that does not help please show the first two octets of your WAN IP: aaa.bbb do not show the rest
So that we can see if you have a public IP address on your router

agarg · December 27, 2024, 9:51am

I tried and this did not work. I do have ip address on the want port as you can see from my prev message.

root@ONHUB-5A0B:/etc/config# ifstatus wan | grep address
		"addresses",
	"ipv4-address": [
			"address": "76.218.NNN.NN",
	"ipv6-address": [
		"ipv4-address": [
		"ipv6-address": [
root@ONHUB-5A0B:/etc/config#

lleachii · December 27, 2024, 10:23am

Do you mean the OpenWrt QR code?

If so, verify your Android private key and your OpenWrt's interface private key don't match.

egc · December 27, 2024, 10:36am

Well lets see if something is coming through, please show output of:
nft list ruleset | grep 51820

agarg · December 27, 2024, 5:21pm

udp dport 51820 counter packets 0 bytes 0 accept comment "!fw4: Allow-WireGuard"

agarg · December 27, 2024, 5:24pm

I have read that qrencode makes it possible in luci.
I will delete and create the interface manually.

psherman · December 27, 2024, 5:41pm

Did you fix those bridge issues? Please post your latest network and firewall configs.

lleachii · December 27, 2024, 5:44pm

That didn't answer the question, but OK.

agarg · December 27, 2024, 6:56pm

I am sorry for missing to answer. The private key on the phone is not visible.
So I deleted, and then created another tunnel "from scratch" and in there I was able to enter the private key for the wg phone interface and it created a public key as soon as I was done. I then completed the peer data. Tried connecting. Still no luck.

Just now, I am taking another older router Netgear R6100 and flashing with 23.5 and then I will change the Mac address on AT&T for pass through.

Then I will test for wireguard using the same exact steps. And, then report. This is perhaps something stupid I am doing and will soon find out.

agarg · December 27, 2024, 7:14pm

Yes I removed the redundant bridge last night. The device worked fine despite removing those bridges. However the wireguard did not. Will post revised date again shortly.

agarg · December 27, 2024, 7:32pm

My most sincere apologies to all of you. My settings key were wrongly entered. I made a mistake on Capital O and Zero 0.

The wireguard from phone connected fine over the 5G (after I fixed the error in key)
It is not serving the content but that may be some firewall glitch. I am looking into it and would post the results soon.
