VLANs on WAX206 - add eth0 to Bridge VLAN Filtering?

Installing and Using OpenWrt
1

I have seen tutorials showing both ways... Do I need to add eth0 under the bridge ports selection of my bridge device?

My VLANs seem to work both ways, with or without eth0 added as a tagged trunked bridge port.

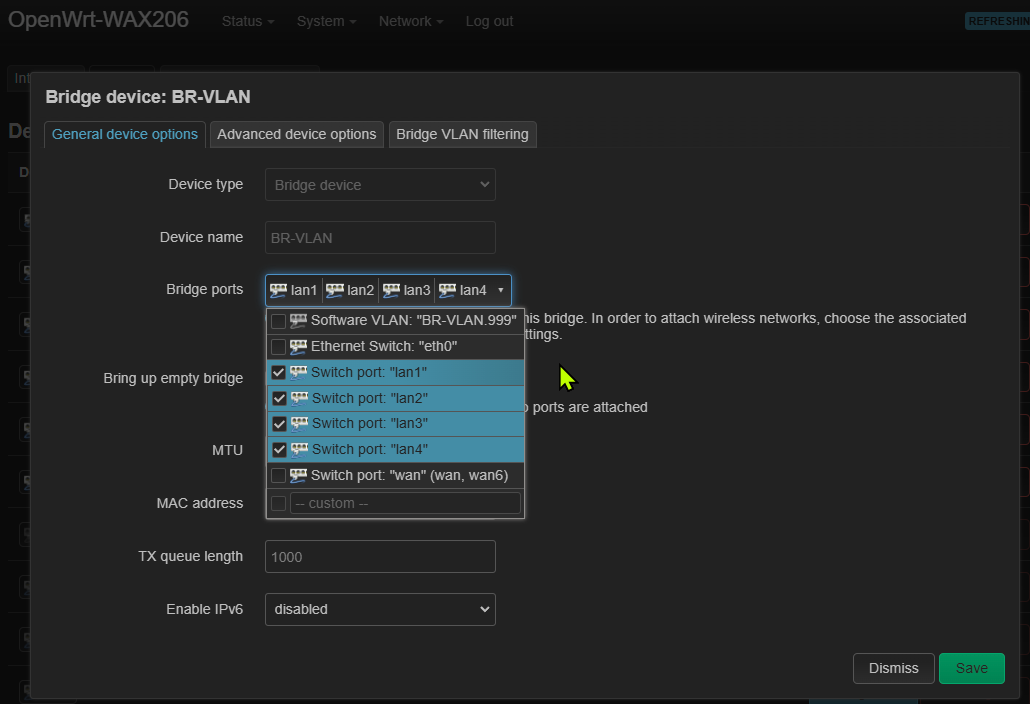

image1030×704 47.6 KB

Is there any performance / pros / cons one way or the other?

2

Answer is NO
it is dsa double-vlan type interface, not ethernet.

1 Like
3
