Vlans on an CM4 with DFRobot

[GoodGameCrafter]

Hi, I'm trying to get some to get somem vlans working. Vlan 1 10.10.0.0 and Vlan 20 192.168.20.0.
The switch i use is a TL-SG105E and connected from port 5 to eth1 on my OPNWrt router(CM4+dfrobot).

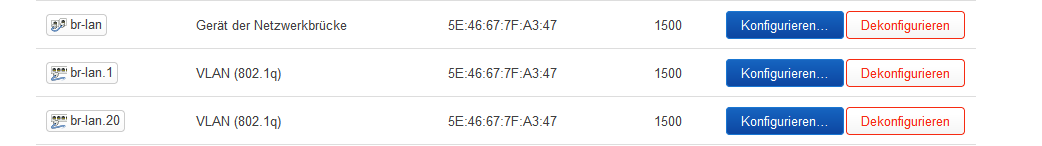

I created a bridge(br-lan) from eth1 and set the vlans up like you see in the pictures below.
Then i configured the switch so that an port 1 and 4 i get vlan1 and on 2 and 3 i get vlan20. But only vlan 1 is working, so what did i do wrong?
I'musing OpenWrt 23.05

[GoodGameCrafter]

[GoodGameCrafter]

[GoodGameCrafter]

[psherman]

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network

[GoodGameCrafter]

config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'

config globals 'globals'
option ula_prefix 'fdfe:e647:bf2b::/48'

config device
option name 'br-lan'
option type 'bridge'
list ports 'eth1'
option ipv6 '0'

config interface 'lan'
option device 'br-lan.1'
option proto 'static'
option ipaddr '10.10.0.1'
option netmask '255.255.255.248'
list dns '10.10.0.1'

config interface 'wan'
option device 'eth0'
option proto 'dhcp'
option type 'bridge'

config device
option name 'br-lan.20'
option type '8021q'
option ifname 'br-lan'
option vid '20'
option ipv6 '0'

config device
option name 'br-lan.1'
option type '8021q'
option ifname 'br-lan'
option vid '1'
option ipv6 '0'

config interface 'VLAN20'
option proto 'static'
option ipaddr '192.168.20.1'
option netmask '255.255.255.0'
option device 'br-lan.20'

config bridge-vlan
option device 'br-lan'
option vlan '1'
list ports 'eth1:t'

config bridge-vlan
option device 'br-lan'
option vlan '20'
list ports 'eth1:t'

[psherman]

@GoodGameCrafter

config device
option name 'br-lan.20'
option type '8021q'
option ifname 'br-lan'
option vid '20'
option ipv6 '0'

config device
option name 'br-lan.1'
option type '8021q'
option ifname 'br-lan'
option vid '1'
option ipv6 '0'

Delete these. Then reboot your router.

[psherman]

Also, make sure that you’ve set the pvid on the ports correctly. Ports 1 and 4 should have pvid 1; ports 2 and 3 should be pvid 20.

[GoodGameCrafter]

Yes i forgot to set the pvid in my switch.
Also i deleted the bridge and its vlans and set them up directly from eth1. Now it works
