Unable to assign IP to WiFi devices

Hi,

Let me start by saying I'm new to OpenWRT (started yesterday).

I have OpenWRT (23.05.3), installed on the Zyxel EX5601-T0 router and configured on a Fastweb network with an external OpenFiber ONT.

The WAN configuration is working; any device connected via LAN cable works correctly and is connected to the internet.
The problem is with devices connected to the router via WiFi; no IP is assigned.

/etc/config/dhcp

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'
        option filter_aaaa '0'
        option filter_a '0'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'
        list dhcp_option '8.8.8.8'
        list dhcp_option '8.8.4.4'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

/etc/config/network

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'ULA_PREFIX'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        list ports 'lan4'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config device
        option type '8021q'
        option ifname 'eth1'
        option vid '835'
        option name 'eth1.835'
        option macaddr 'FASTWEB_FASTGATE_MAC'

config interface 'wanfw'
        option proto 'dhcp'
        option device 'eth1.835'
        option vendorid 'askey_HW_ES1_SW_0.00.47/dslforum.org'
        option type 'bridge'

/etc/config/wireless

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'platform/soc/18000000.wifi'
        option channel '1'
        option band '2g'
        option htmode 'HE20'
        option cell_density '0'
        option country 'IT'
        option disabled '1'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'psk2'
        option key 'WIFI_KEY'
        option disabled '1'

config wifi-device 'radio1'
        option type 'mac80211'
        option path 'platform/soc/18000000.wifi+1'
        option channel '36'
        option band '5g'
        option htmode 'HE80'
        option cell_density '0'
        option country 'IT'

config wifi-iface 'wifinet1'
        option device 'radio1'
        option mode 'ap'
        option ssid 'OpenWRT'
        option encryption 'psk2'
        option key 'WIFI_KEY'
        option network 'lan'

Thanks & Best Regards

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/18000000.wifi'
option channel '1'
option band '2g'
option htmode 'HE20'
option cell_density '0'
option country 'IT'
option disabled '1' <---off

config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'psk2'
option key 'WIFI_KEY'
option disabled '1' <---off

Why are the radios disabled?

For convenience, I left only the 5ghz radio and interface active.
If useful, I also leave the other radio active. The problem persists even if I enable them.

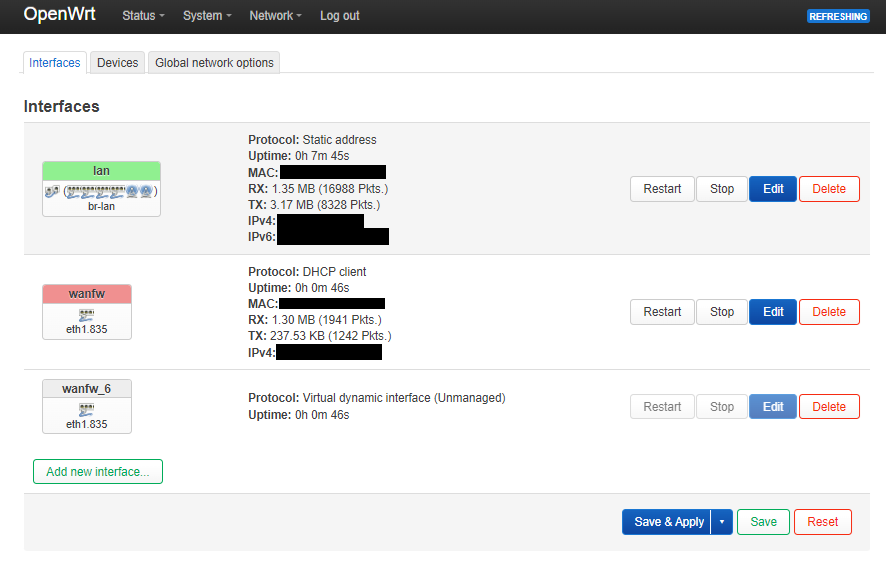

Show me a snip of the interface column with all radios enabled.

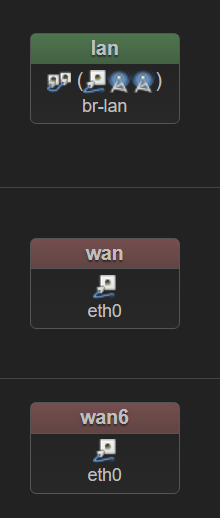

e.g.

/etc/config/dhcp

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'
        option filter_aaaa '0'
        option filter_a '0'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'
        list dhcp_option '8.8.8.8'
        list dhcp_option '8.8.4.4'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

/etc/config/network

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix '<ULA_PREFIX>'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        list ports 'lan4'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config device
        option type '8021q'
        option ifname 'eth1'
        option vid '835'
        option name 'eth1.835'
        option macaddr '<FASTWEB_FASTGATE_MAC>'

config interface 'wanfw'
        option proto 'dhcp'
        option device 'eth1.835'
        option vendorid 'askey_HW_ES1_SW_0.00.47/dslforum.org'
        option type 'bridge'

/etc/config/wireless

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'platform/soc/18000000.wifi'
        option channel '1'
        option band '2g'
        option htmode 'HE20'
        option cell_density '0'
        option country 'IT'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'psk2'
        option key '<WIFI_KEY>'

config wifi-device 'radio1'
        option type 'mac80211'
        option path 'platform/soc/18000000.wifi+1'
        option channel '36'
        option band '5g'
        option htmode 'HE80'
        option cell_density '0'
        option country 'IT'

config wifi-iface 'wifinet1'
        option device 'radio1'
        option mode 'ap'
        option ssid 'OpenWRT'
        option encryption 'psk2'
        option key '<WIFI_KEY>'
        option network 'lan'

/etc/config/firewall

root@OpenWrt:~# cat /etc/config/firewall

config defaults
        option syn_flood '1'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wanfw'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

Did you use LuCi or did you CLI all this in?

Because, from what I see, the network is othing like what I expect to see.

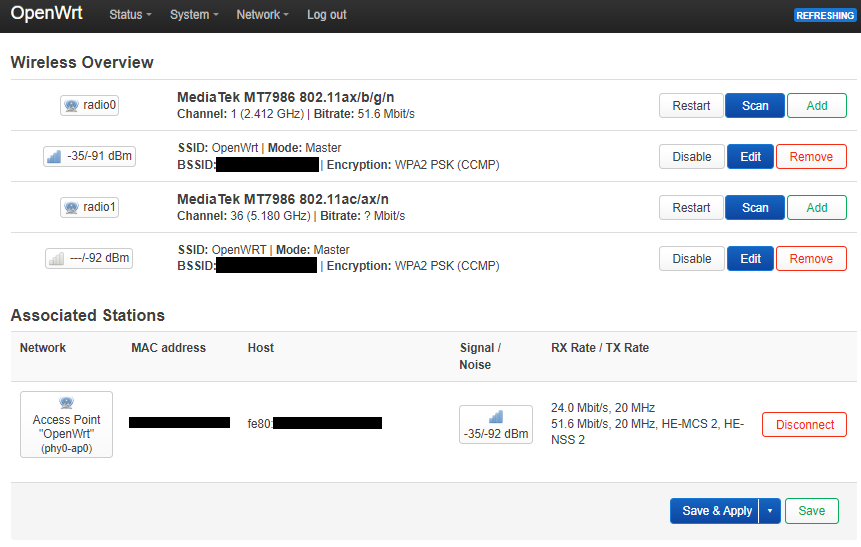

And you are getting an ip address on Radio0, it is just an IPv6 address and not an IPv4 address.

All via GUI :sweat_smile:

Well, the radios are in the same interface as the ehternet ports so they should be treated exactly the same way.

Did you blaze through the set up or did you config one thing at a time? I.E. pasword, saveapply, archive, dhcp,save and apply archive, wireless, save and apply, archive?

I did "Save & Apply" after each step; in other words "Save & Apply" before changing a configuration, tabs or pages.

Which step broke IPv4?

I'd tell you to start over but maybe someone else can spot what I am missing.

In the meantime, I'll start over later and see how it goes.

You have not specified a DHCP option number. Run these commands from the CLI.

uci del dhcp.lan.dhcp_option
uci add_list dhcp.lan.dhcp_option='6,8.8.8.8,8.8.4.4'
uci commit dhcp
service dnsmasq restart
2 Likes

Oh s**t... I followed a guide specific for my ISP by copying the DHCP options in the wrong format, without looking at the tip...

Now, devices connected via WiFi also work correctly.

@pavelgl @LilRedDog Thanks for your support!

3 Likes
