i use a tp-link archer mr600 router, i should recently install a new official firmware 1.2.0 0.9.1 v0001.0 Build 240716 Rel.54691n , with a new hardware version ! : Archer MR600 v3 00000001 .
now i try to install openwrt, then when i try to flash the firmware with the device's admin web interface, the error code 71211 stop the process. that say " fail to download the updating file, select the correct file.
i have done an error ? or does it the recent official factory update who stop the flash?
Thanks to all openwrt developpers.
Where did you find info about v3 being supported?
yes, nowhere, bad question, sorry.
Can you get a boot log at debug level to see whats inside the box - ie if it is similar to v2 or to some A or C series?
this:?
2018-10-01 00:00:42 [5] 4G: init LTE module, set flowstat [enableDataLimit 0, enablePaymentDay 0, paymentDay 1, limitation 0, warningPercent 90]
2018-10-01 00:00:42 [5] 4G: LTE Module: profile num [3], default profile [3], active profile [0]
2018-10-01 00:00:42 [5] 4G: DM: profile num [3], default profile [3], active profile [0]
2018-10-01 00:00:44 [5] System: Enable IPv4 SPI Firewall
2018-10-01 00:00:44 [5] System: Enable IPv6 SPI Firewall
2018-10-01 00:00:46 [7] DHCPC: Send DISCOVER with request ip 0.0.0.0 and unicast flag 0
2018-10-01 00:00:48 [7] DHCPC: Send DISCOVER with request ip 0.0.0.0 and unicast flag 0
2018-10-01 00:00:50 [5] DHCPD: Recv DISCOVER from xxxxxxxxxx
2018-10-01 00:00:50 [5] DHCPD: Send OFFER with ip 192.168.1.102
2018-10-01 00:00:50 [5] DHCPD: Recv REQUEST from xxxxxxxxx
2018-10-01 00:00:51 [5] DHCPD: Send ACK to 192.168.1.102
2018-10-01 00:00:51 [7] DHCPC: Send DISCOVER with request ip 0.0.0.0 and unicast flag 0
2018-10-01 00:00:58 [6] System: Device(76:FE:CE:02:0C:98) joins in 2.4G Wlan
2018-10-01 00:00:58 [5] DHCPD: Recv DISCOVER from xxxxxxxx
2018-10-01 00:00:58 [5] DHCPD: Send OFFER with ip 192.168.1.103
2018-10-01 00:01:00 [5] DHCPD: Recv REQUEST from xxxxxxxxx
2018-10-01 00:01:01 [6] System: Device(0C:43:F9:E4:36:D9) joins in 2.4G Wlan
2018-10-01 00:01:01 [5] DHCPD: Send ACK to 192.168.1.103
2018-10-01 00:01:01 [5] DHCPD: Recv DISCOVER from xxxxxxxxxx
2018-10-01 00:01:01 [5] DHCPD: Send OFFER with ip 192.168.1.100
2018-10-01 00:01:01 [5] DHCPD: Recv REQUEST from xxxxxxxx
2018-10-01 00:01:02 [5] DHCPD: Send ACK to 192.168.1.100
2018-10-01 00:01:06 [6] System: Device(xxxxxxx) joins in 5G Wlan
2018-10-01 00:01:09 [5] DHCPD: Recv DISCOVER from 7xxxxxx
2018-10-01 00:01:09 [5] DHCPD: Send OFFER with ip 192.168.1.103
2018-10-01 00:01:09 [5] DHCPD: Recv REQUEST from xxxxxx
2018-10-01 00:01:10 [5] DHCPD: Send ACK to 192.168.1.103
2018-10-01 00:01:26 [6] 4G: WARN: Network selecting failed, mostly rejected.
2018-10-01 00:05:33 [6] System: User(Mac xxxxxx;IP:192.168.1.102) logs in.
2018-10-01 00:05:46 [6] 4G: USER: lte_sms_status_valid invalid .
2018-10-01 00:05:46 [6] 4G: USER: no need to init device sca
2018-10-01 00:05:46 [6] 4G: USER: SMSC Address Indication, value = +336XXXXXXXX
2018-10-01 00:05:47 [6] 4G: USER: no need to init device sca
2018-10-01 00:05:47 [6] 4G: USER: SMSC Address Indication, value = +336XXXXXXXX
2018-10-01 00:05:47 [6] 4G: USER: lte_sms_status_valid invalid .
2018-10-01 00:05:47 [6] 4G: USER: Network type is LTE.
2018-10-01 00:05:48 [6] 4G: USER: lte_sms_status_valid 0.
2018-10-01 00:05:48 [6] 4G: USER: The service is available.
2018-10-01 00:05:48 [6] 4G: USER: Registered with a network!
2018-10-01 00:05:48 [6] 4G: USER: Get ISP's profile now.
2018-10-01 00:05:48 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange
2018-10-01 00:05:48 [6] 4G: USER: Get ISP's profile now.
2018-10-01 00:05:48 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange psw:
2018-10-01 00:05:48 [6] 4G: USER: Start connecting to the network!
2018-10-01 00:05:48 [6] 4G: USER: ModifyDefaultAttachProfileIP attach ip ver equal to profile
2018-10-01 00:05:48 [6] 4G: USER: Get ISP's profile now.
2018-10-01 00:05:48 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange psw:
2018-10-01 00:05:48 [6] 4G: ERROR: Bind mux port session 0 failed (0).
2018-10-01 00:05:48 [6] 4G: ERROR: Bind mux port session 1 failed (0).
2018-10-01 00:05:48 [6] 4G: USER: lte_sms_status_valid 3.
2018-10-01 00:05:48 [6] 4G: USER: Get ISP's profile now.
2018-10-01 00:05:48 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange psw:orange
2018-10-01 00:05:48 [6] 4G: ERROR: 0x0000000E QMI_ERR_CALL_FAILED
2018-10-01 00:05:48 [6] 4G: ERROR: Call end reason = 1.
2018-10-01 00:05:48 [6] 4G: ERROR: Verbose Call end reason = 50, type = 6.
2018-10-01 00:05:49 [6] 4G: USER: Connected to the network!
2018-10-01 00:05:49 [6] 4G: LTE connection up
2018-10-01 00:05:49 [5] 4G: LTE internet connected.
2024-12-16 16:08:51 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:08:51 [6] 4G: USER: Network type is LTE.
2024-12-16 16:08:53 [6] 4G: USER: lte_sms_status_valid 3.
2024-12-16 16:08:53 [6] 4G: USER: Get ISP's profile now.
2024-12-16 16:08:53 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange psw:
2024-12-16 16:08:53 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:08:55 [6] 4G: USER: Network type is LTE.
2024-12-16 16:08:56 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:08:57 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:00 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:02 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:02 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:03 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:06 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:08 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:14 [6] 4G: USER: lte_sms_status_valid 3.
2024-12-16 16:09:14 [6] 4G: USER: Get ISP's profile now.
2024-12-16 16:09:14 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange psw:
2024-12-16 16:09:27 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:27 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:37 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:40 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:48 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:50 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:50 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:09:52 [6] 4G: USER: Network type is LTE.
2024-12-16 16:09:53 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:10:02 [6] 4G: USER: Network type is LTE.
2024-12-16 16:10:02 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:10:03 [6] 4G: USER: Network type is LTE.
2024-12-16 16:10:04 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:10:05 [6] 4G: USER: Network type is LTE.
2024-12-16 16:10:06 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:10:08 [6] 4G: USER: Network type is LTE.
2024-12-16 16:10:27 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:10:28 [6] 4G: USER: Network type is LTE.
Yes, but everything from when it boots.
2018-10-01 00:00:43 [5] 4G: init LTE module, set flowstat [enableDataLimit 0, enablePaymentDay 0, paymentDay 1, limitation 0, warningPercent 90]
2018-10-01 00:00:43 [5] 4G: LTE Module: profile num [3], default profile [3], active profile [0]
2018-10-01 00:00:43 [5] 4G: DM: profile num [3], default profile [3], active profile [0]
2018-10-01 00:00:43 [6] 4G: USER: lte_sms_status_valid 3.
2018-10-01 00:00:43 [6] 4G: USER: Get ISP's profile now.
2018-10-01 00:00:43 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange psw:xxxx
2018-10-01 00:00:43 [5] System: Enable IPv4 SPI Firewall
2018-10-01 00:00:43 [5] System: Enable IPv6 SPI Firewall
2018-10-01 00:00:46 [7] DHCPC: Send DISCOVER with request ip 0.0.0.0 and unicast flag 0
2018-10-01 00:00:48 [7] DHCPC: Send DISCOVER with request ip 0.0.0.0 and unicast flag 0
2018-10-01 00:00:50 [5] DHCPD: Recv DISCOVER from xxxxxxxxx
2018-10-01 00:00:50 [5] DHCPD: Send OFFER with ip 192.168.1.102
2018-10-01 00:00:50 [5] DHCPD: Recv REQUEST from xxxxxxx
2018-10-01 00:00:50 [5] DHCPD: Send ACK to 192.168.1.102
2018-10-01 00:00:51 [7] DHCPC: Send DISCOVER with request ip 0.0.0.0 and unicast flag 0
2018-10-01 00:00:59 [6] System: Device(xxxxxxxx) joins in 2.4G Wlan
2018-10-01 00:01:01 [6] System: Device(xxxxxxxx) joins in 2.4G Wlan
2018-10-01 00:01:02 [5] DHCPD: Recv DISCOVER from xxxxxxxx
2018-10-01 00:01:02 [5] DHCPD: Send OFFER with ip 192.168.1.100
2018-10-01 00:01:02 [5] DHCPD: Recv REQUEST from xxxxxx
2018-10-01 00:01:02 [5] DHCPD: Send ACK to 192.168.1.100
2018-10-01 00:01:04 [6] 4G: LTE connection up
2018-10-01 00:01:04 [5] 4G: LTE internet connected.
2024-12-16 16:40:01 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:40:03 [6] 4G: USER: Network type is LTE.
2024-12-16 16:40:03 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:40:06 [6] System: Device(xxxxxxxx) joins in 5G Wlan
2024-12-16 16:40:07 [6] 4G: USER: Network type is LTE.
2024-12-16 16:40:07 [5] DHCPD: Recv DISCOVER from xxxxxxx
2024-12-16 16:40:07 [5] DHCPD: Send OFFER with ip 192.168.1.103
2024-12-16 16:40:08 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:40:09 [5] DHCPD: Recv DISCOVER from xxxxx
2024-12-16 16:40:09 [5] DHCPD: Send OFFER with ip 192.168.1.103
2024-12-16 16:40:09 [5] DHCPD: Recv REQUEST from xxxxxx
2024-12-16 16:40:09 [6] 4G: USER: Network type is LTE.
2024-12-16 16:40:10 [5] DHCPD: Send ACK to 192.168.1.103
2024-12-16 16:40:11 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:40:12 [6] 4G: USER: Network type is LTE.
2024-12-16 16:40:21 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:40:22 [6] 4G: USER: Network type is LTE.
2024-12-16 16:40:39 [6] 4G: USER: lte_sms_status_valid 3.
2024-12-16 16:40:39 [6] 4G: USER: Get ISP's profile now.
2024-12-16 16:40:39 [6] 4G: USER: GetCurrProf result is:ipver:2 staticApn:0 authType:1 pkgName:Orange Internet profname:Orange Internet apn:orange.fr usr:orange pswxxxx
2024-12-16 16:40:43 [6] System: User(Mac:B4:2E:99:8C:A4:BB;IP:192.168.1.102) logs in.
2024-12-16 16:40:47 [6] Httpd: DNS 192.168.10.110 resolve succeed for dns.msftncsi.com
2024-12-16 16:40:47 [6] Httpd: DNS 192.168.10.110 resolve succeed for www.msftncsi.com
2024-12-16 16:40:47 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:40:47 [6] 4G: USER: Network type is LTE.
2024-12-16 16:40:48 [6] Httpd: DNS 192.168.10.110 resolve succeed for dns.msftncsi.com
2024-12-16 16:40:48 [6] Httpd: DNS 192.168.10.110 resolve succeed for www.msftncsi.com
2024-12-16 16:41:02 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:41:02 [6] 4G: USER: Network type is LTE.
2024-12-16 16:41:21 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:41:22 [6] 4G: USER: Network type is LTE.
2024-12-16 16:41:29 [6] Httpd: DNS 192.168.10.110 resolve succeed for dns.msftncsi.com
2024-12-16 16:41:29 [6] Httpd: DNS 192.168.10.110 resolve succeed for www.msftncsi.com
2024-12-16 16:41:30 [6] 4G: USER: Network type is LTE PLUS.
2024-12-16 16:41:32 [6] 4G: USER: Network type is LTE.
?
From the bootup to network connection, it is not a formal picking on, it is supposed to describe the SoC etc hw.
no hw describe in the logs, on debug or information levels.
i think no way to found the infos
You can always take it apart.
no way to have the spec from the device's admin web interface.

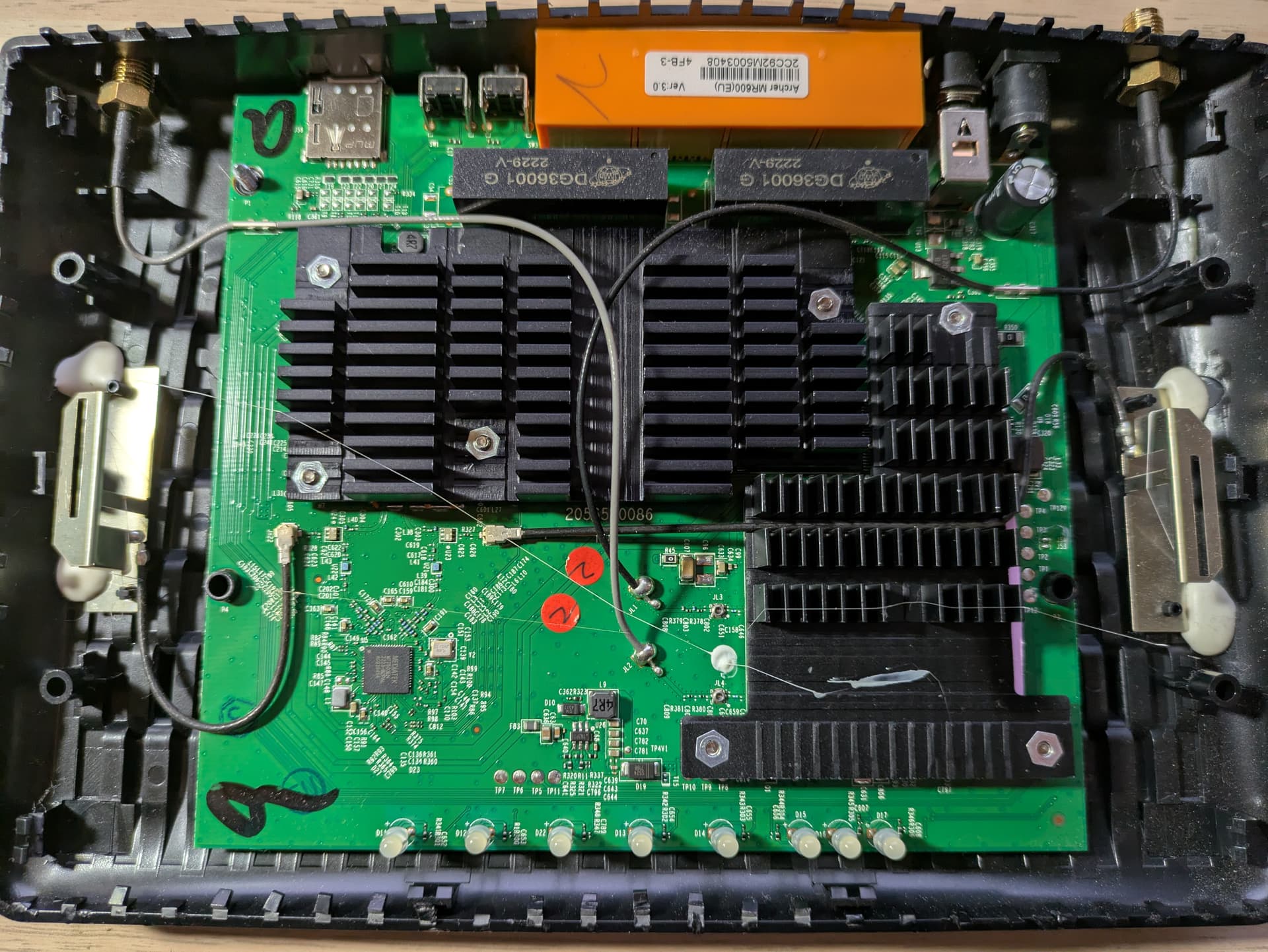

should i open the box and take a photo?
that's what was suggested yesterday, wasn't it ?
The thermal pads are stuck
Do you know how to remove and remount them whithout braking.
replace by thermal cpu's paste?

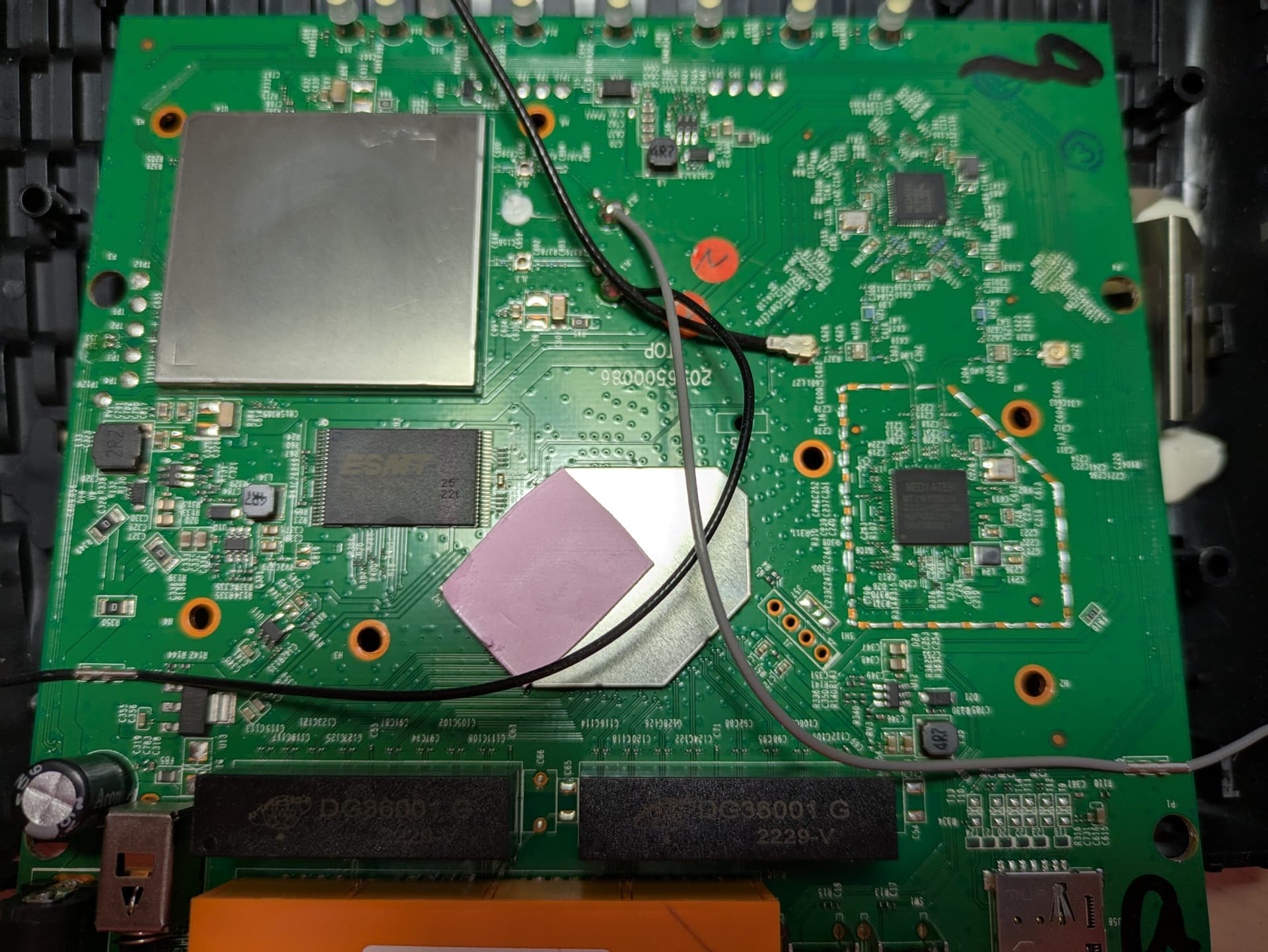

Try again, looks like important chips are behind metallic shields. Two blurred mediatek give some hope.
I'm too old and blind to see the markings on those chips, except for the one in the last photo.
there's a serial console, I'd try to connect to it, see what the logs say.
don't connect the pin with the arrow, it's probably the Vcc.
2 Likes
It look liké Qualcomm bdm8240
And pmd9645
would probably be the modem ...
