Surfshark Wireguard configuration - OpenWrt 23.05.2

Installing and Using OpenWrt
1

Documentation and configuration
Installation and configuration based on https://hoerli.net/tutorials/

WLANs über VLANs verteilen https://hoerli.net/tutorials/

Wireguard configured like

or
for me the better way, with trafic on the tunnel

Information about the point of now
Interfaces
lan - Switch.10 with WLAN (phy1-ap0)
Gast - Switch.20 with WLAN (phy2-ap0)
VPN - Switch.30 with WLAN (phy0-ap0)

Firewall
lan => wan
Gast => wan
VPN => wan
wan => drop

trafic-rules
DNS for Gast
DHCP for Gast
DNS for VPN
DHCP for VPN

Every VLAN works fine, so far.
Every VLAN has WAN connection.
Every WLAN get the right IP from the VLAN.

Now change for Wireguard with that howto

My Steps
Interface wg0 - Import configuration with file from Surfshark
Firewall - tunnel
peer
Allowed IPs from the VLAN VPN in my Case (192.168.30.0/24), not 0.0.0.0/0
Route Allowed IP checked

Firewall
tunnel => DROP, Masquerading
change VPN from => WAN to => tunnel, WAN

After changes lan and Gast works fine, connection via WAN.
VPN no connect to everywhere.

I guess there is missing 1 or 2 little points to solved.

Has everyone a nearly configuration and can help me?

2

That is probably wrong.

If you want internet access via your WG client you have to use 0.0.0.0/0 for allowed IPs

But what is it you exactly want to accomplish?

Please connect to your OpenWRT device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/firewall
ip route show
wg show
3

Hi egc,
thx for the answers.

Whats the goal for me?

lan with internet connection, no connection to Gast or VPN.
Gast with internet connection, no connection to lan or VPN.
VPN with VPN internet connection, no connection to lan or Gast.

Sure, that was my idea. if i get 0.0.0.0/0 no VLAN has connection to the internet.

ubus call system board

      "kernel": "5.15.137",
        "hostname": "HomeHost",
        "system": "ARMv8 Processor rev 4",
        "model": "Xiaomi AX3600",
        "board_name": "xiaomi,ax3600",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "23.05.2",
                "revision": "r23630-842932a63d",
                "target": "ipq807x/generic",
                "description": "OpenWrt 23.05.2 r23630-842932a63d"

cat /etc/config/network
config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix '_____::/48'

config interface 'lan'
        option device 'Switch.10'
        option proto 'static'
        option ipaddr '192.168.10.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config interface 'wan'
        option device 'wan'
        option proto 'dhcp'

config interface 'wan6'
        option device 'wan'
        option proto 'dhcpv6'

config device
        option type 'bridge'
        option name 'Switch'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'

config bridge-vlan
        option device 'Switch'
        option vlan '10'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'

config bridge-vlan
        option device 'Switch'
        option vlan '20'
        list ports 'lan1:t'
        list ports 'lan2:t'
        list ports 'lan3:t'

config bridge-vlan
        option device 'Switch'
        option vlan '30'
        list ports 'lan1:t'
        list ports 'lan2:t'
        list ports 'lan3:t'

config interface 'Gast'
        option proto 'static'
        option device 'Switch.20'
        option ipaddr '192.168.20.1'
        option netmask '255.255.255.0'

config interface 'VPN'
        option proto 'static'
        option device 'Switch.30'
        option ipaddr '192.168.30.1'
        option netmask '255.255.255.0'

config device
        option name 'Switch.20'
        option type '8021q'
        option ifname 'Switch'
        option vid '20'
        option ipv6 '1'

config interface 'wg0'
        option proto 'wireguard'
        option private_key '________'
        list addresses '____/16'
        list dns '162.252.172.57'
        list dns '149.154.159.92'

config wireguard_wg0
        option description 'lu-ste.conf'
        option public_key '____'
        option endpoint_host '____surfshark.com'
        option endpoint_port '51820'
        option private_key '______'
        option route_allowed_ips '1'
        option persistent_keepalive '25'
        list allowed_ips '192.168.30.0/24'


cat /etc/config/firewall

config defaults
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'DROP'
        option synflood_protect '1'
        option drop_invalid '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'Gast'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'DROP'
        list network 'Gast'

config zone
        option name 'VPN'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'DROP'
        list network 'VPN'
        option mtu_fix '1'

config zone
        option name 'wan'
        option input 'DROP'
        option output 'ACCEPT'
        option forward 'DROP'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config forwarding
        option src 'Gast'
        option dest 'wan'

config rule
        option name 'G-DHCP'
        list proto 'udp'
        option src 'Gast'
        option dest_port '67 68'
        option target 'ACCEPT'

config rule
        option name 'V-DHCP'
        list proto 'udp'
        option src 'VPN'
        option dest_port '67 68'
        option target 'ACCEPT'

config rule
        option name 'G-DNS'
        option src 'Gast'
        option dest_port '53'
        option target 'ACCEPT'

config rule
        option name 'V-DNS'
        option src 'VPN'
        option dest_port '53'
        option target 'ACCEPT'

config zone
        option name 'tunnel'
        option input 'DROP'
        option output 'ACCEPT'
        option forward 'DROP'
        option masq '1'
        option mtu_fix '1'
        list network 'wg0'

config forwarding
        option src 'VPN'
        option dest 'tunnel'

config forwarding
        option src 'VPN'
        option dest 'wan'

ip route show
default via 192.168.222.1 dev wan proto static src 192.168.222.13
10.____/16 dev wg0 proto kernel scope link src 10.____
__________ via 192.168.222.1 dev wan proto static
192.168.10.0/24 dev Switch.10 proto kernel scope link src 192.168.10.1
192.168.20.0/24 dev Switch.20 proto kernel scope link src 192.168.20.1
192.168.30.0/24 dev wg0 proto static scope link
192.168.222.0/24 dev wan proto kernel scope link src 192.168.222.13

wg show
interface: wg0
  public key: _________________
  private key: (hidden)
  listening port: 33077

peer: _____________________
  endpoint: _____________:51820
  allowed ips: 192.168.30.0/24
  latest handshake: 51 seconds ago
  transfer: 35.73 KiB received, 159.94 KiB sent
  persistent keepalive: every 25 seconds
4

What you want is Policy Based Routing:

Set Allowed IPs to 0.0.0.0/0
Disable Route Allowed IPs

Use PBR to set 192.168.30.0/24 to use the WG tunnel, with the PBR pakage

EDIT:
You can make a simple manual PBR with something like (not tested):

config route
	option interface 'wg_0'
	option table '102'
	option target '0.0.0.0/0'

config rule
	option src '192.168.30.0/24'
	option lookup '102'
5

For a setup with simple requirements, I like @egc's manual approach (and use it, or the flipped "VPN everywhere except..." version) on several devices rather than messing around with the PBR package. One custom routing table and then a single rule for each included (or excluded) local network. It's simple and easy to see exactly what's happening.

1 Like
6

Thx,
thats my first time with pbr. i need to read.

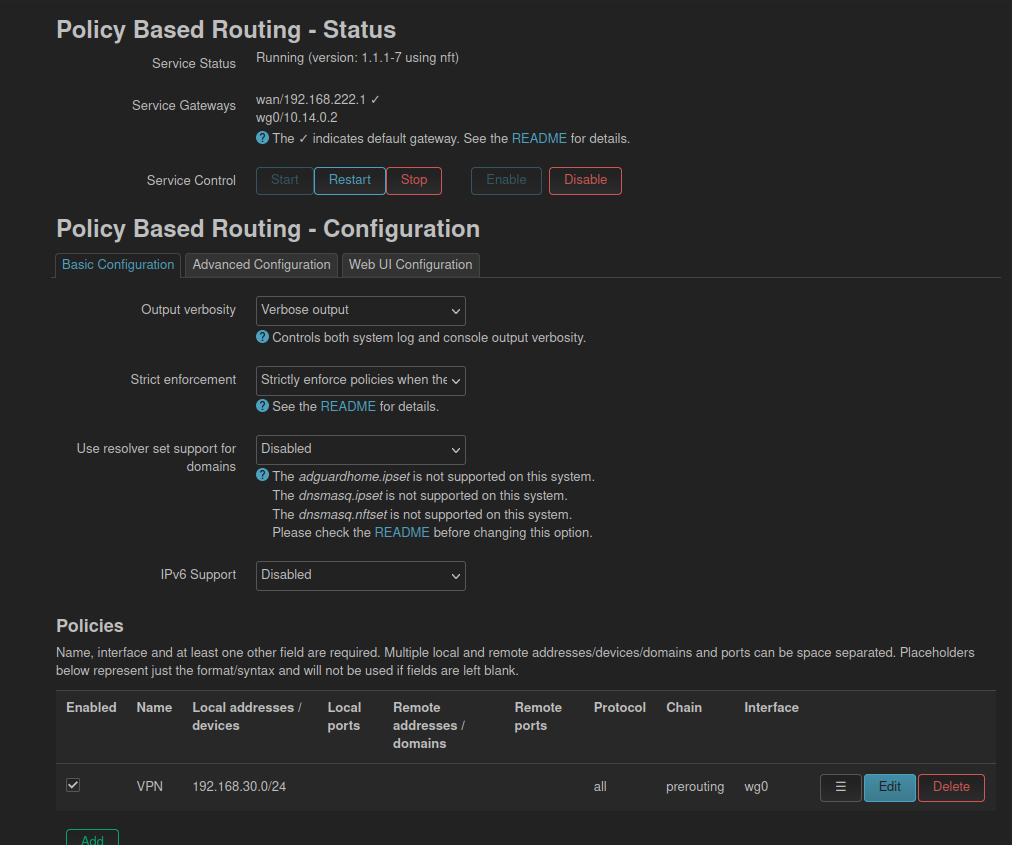

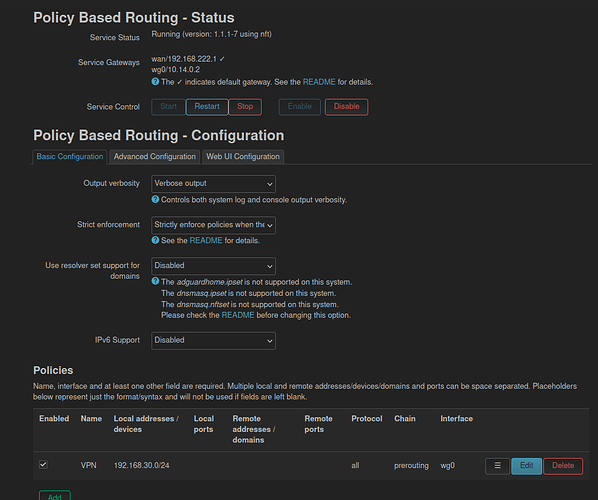

Screenshot_20240222_075712
Screenshot_20240222_0757121012×845 99.5 KB

Ist that the right way? i ll check this later.

7

That looks about right.

Make sure you also do this to allow the rest of the traffic to go through the WAN:
