Struggling With Scout Project

Robbo · February 10, 2019, 12:08pm

Hi all

First time user and poster here, so we have a BT home hub 5 flashed with OpenWRT and LEDE GUI. I’ve been trying to setup the following:

Uplink to BT router which is 192.168.1.254
LAN which is 172.16.0.1/16
Guest which is 10.0.0.1/16 (Isolated)

Then two WIFI networks a management one linked to LAN and a guest one linked to guest.

A base firewall which generally allows everything for now, and then we can change it and lock it down.

I’ve encountered a bunch of weird issues, such as everything is working but no internet on the lan or the guest - but the OpenWRT can ping and trace route the internet.

I have relatively good networking knowledge, but I’m really getting confused by what else is going on here. Not sure if anyone has a similar setup which they could provide a config for?

Any and all help appreciated and happy to upload screenshots and my config.

Thanks in advance

Dan

vgaetera · February 10, 2019, 2:49pm

ping 10.0.0.1
ping 172.16.0.1
ping 192.168.1.254
nslookup example.org
nslookup example.org 8.8.8.8
traceroute example.org

Robbo · February 10, 2019, 7:55pm

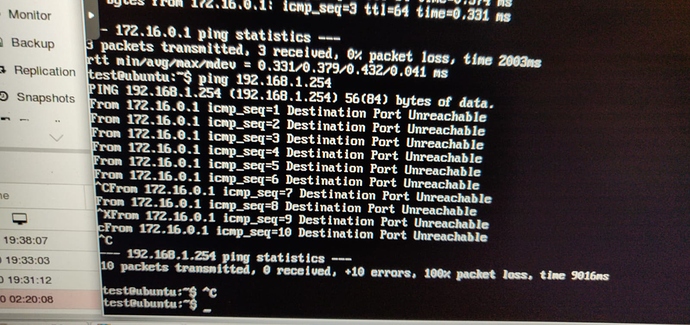

Hi, thanks for your reply. Attached are some images as per your post.

Robbo · February 10, 2019, 7:55pm

Robbo · February 10, 2019, 7:56pm

Robbo · February 10, 2019, 7:57pm

Sorry for all the posts I can only upload one pic a time as a new user. The weird thing is we have port forwarding in place and can get into the router remotely and configure this and hit another machine. It’s just those machines cannot talk out to the internet

vgaetera · February 10, 2019, 8:40pm

@openwrt-router:

uci show network
uci show firewall
ip a; ip r; ip ru
iptables-save

Pippo · February 10, 2019, 10:15pm

Shouldn’t be better to upgrade LUCI to https and change the port if it is open on WAN ?

dlakelan · February 10, 2019, 10:38pm

Copy the text from the window and paste it between triple backquotes rather than screenshot
