Hi guys, I need help setting up my homelab network,

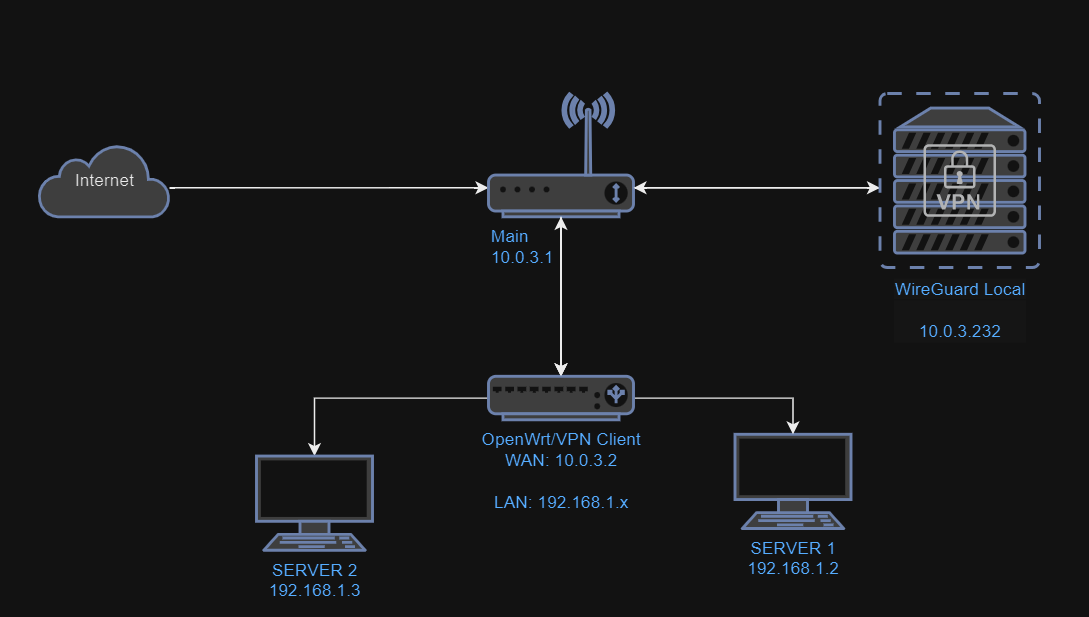

I have a Xiaomi Router as the main one, an OpenWrt as a VPN Client, a Wireguard server (10.0.3.232) connected to the Xiaomi Router.
I needed OpenWrt to be able to reach the Wireguard server connected to the main Router, but when trying to ping Wireguard, no, it can't find it.
NOTE: I reset OpenWrt to default configuration
Based on your diagram, the route should be set in the main router. Not openwrt.
hi @zViniicius
something is wrong with your setup
since all your devices are in same subnet 10.0.3.x they must have ping's
what is your exact problem?
how you tested ?
Yes, you are correct, it was a problem with the WG Server firewall.
I was able to connect to the WG Server Now another question arose, after establishing the connection, I cannot find the other devices connected to the WG outside of the OpenWRT peer.
peer 1 - 10.0.8.2: OpenWrt
peer 2 - 10.0.8.3: Notebook
peer 3 - 10.0.8.4: Tablet
if I connect directly from point 3 -> point 2, OK. But if I try to connect through peer 2 or 3 to devices connected to peer 1, I get a timeout
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'ula_prefix'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
config interface 'wg0'
option proto 'wireguard'
option private_key 'pk'
list dns '1.1.1.1'
list dns '1.0.0.1'
list addresses '10.0.8.2/32'
list addresses 'fd42:42:42::2/128'
config wireguard_wg0
option description 'Imported peer configuration'
option public_key 'key'
option preshared_key 'psk'
list allowed_ips '0.0.0.0/0'
list allowed_ips '::/0'
option endpoint_host '10.0.3.232'
option endpoint_port '50789'
option persistent_keepalive '25'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option synflood_protect '1'
config zone
option name 'lan'
list network 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
config zone
option name 'wan'
list network 'wan'
list network 'wan6'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config rule
option name 'Allow Management-WAN'
list proto 'tcp'
option src '*'
option dest_port '443 80 22'
option target 'ACCEPT'
config forwarding
option src 'lan'
option dest 'wan'
config zone
option name 'VPN'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wg0'
config forwarding
option src 'lan'
option dest 'VPN'
config rule
option name 'MGR'
list proto 'all'
option src 'VPN'
option target 'ACCEPT'
