seems to be a competent Linux radio device. Hopefully, the chipset is supportable with openwrt too.
1 Like
1x100Mb Ethernet port
Impressive specs….
It is not meant as wifi router. It is zigbee, matter, z-wave hub.
It's telling that there is (almost) no mention of the host SOC, while there is rather extensive listing about the radios. But as brada4 implied, the CPU specs (1000+700 MHz) and the single 100 MBit/s ethernet core are suggesting an 'unconventional' and low-end SOC (the RAM and eMMC provide a little more hope); I wouldn't hold my breath.
1 Like
This might give us some hints
1 Like
I for one will want one, and from the looks of the firmware update linked from their site, this is a RISC-V platform:
_boot.emmc.extracted/158: Linux kernel RISC-V boot executable Image, little-endian
started by Uboot (most likely U-boot-2021.1):
$ cat partition_emmc.xml
<physical_partition type="emmc">
<partition label="BOOT" size_in_kb="8192" file="boot.emmc" />
<partition label="MISC" size_in_kb="2048" file="logo.jpg" />
<!-- Beware that in emmc u-boot environment should be 0x40000 alignment -->
<partition label="ENV" size_in_kb="128" file="" />
<partition label="ROOTFS" size_in_kb="1573120" file="rootfs_ext4.emmc" type="ext4"/>
<partition label="USER" size_in_kb="4194304" file="user_ext4.emmc" type="ext4"/>
</physical_partition>
The device has USB-Host Connections, as well as a USB-Device-Connection (USB-C), which should be at least wired for USB2, and should thus support more than 100Mbit.
Digging a bit further, the SOC seems to be a CVITEK CV1800B SoC (“cv181x” in file flash.bat, but “cv182x” is mentioned a lot in the DTS), for which there is:
I still need to check this out further, but on first glance, this might turn out to be an interesting device. A device tree for the kernel running is also in the images.
A similar device seems to be the “Milk-V Duo”, which has among the specs:
2x RISC V cores, C906@1Ghz + C906@700Mhz
4 UART
, which is like the SMHUB.
Mainline kernel support is nearly finished.
At least one other person has interest of porting openwrt to it:
https://blog.obsoletemadness.com/2024/12/29/low-cost-localtalk-to-ethernet-bridge-aka-low-end-embedded-linux-part-1/ (see “Chapter 4”).

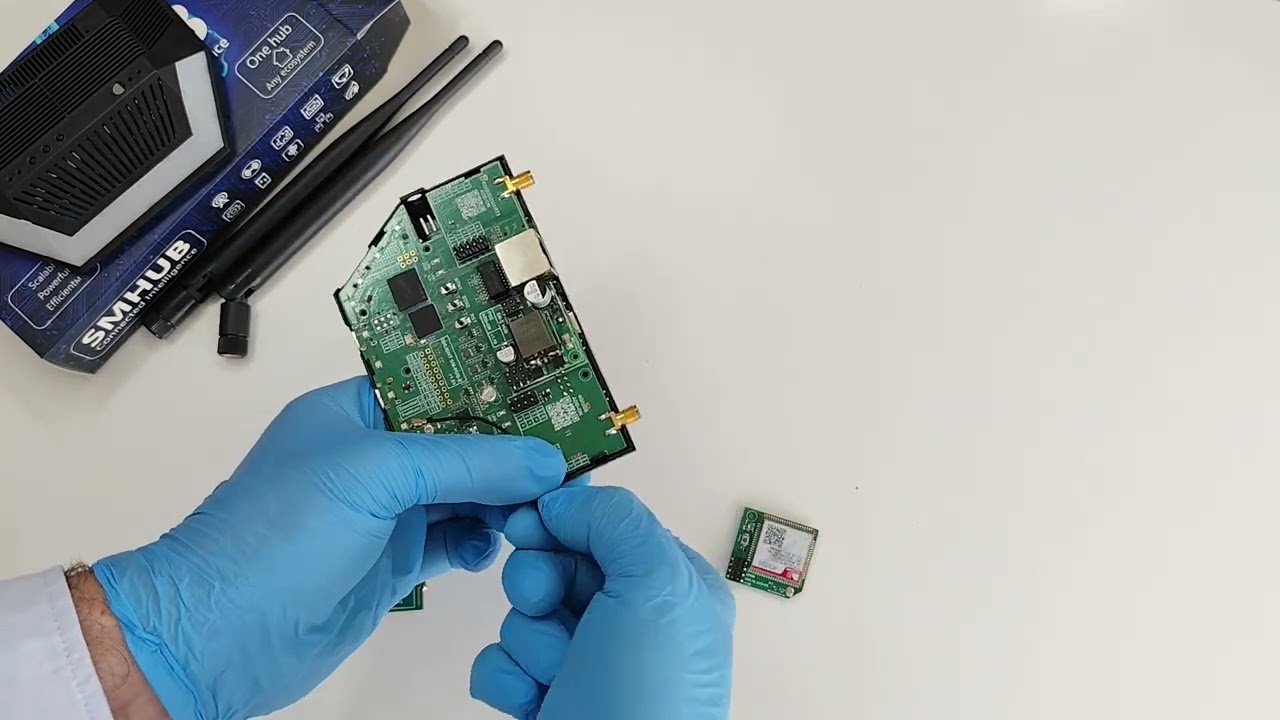

EDIT: It would seem from the video , that UART is available on a row of pins accessible from the outside, without opening. Along with other signals and GPIOs. I would love to run openwrt on these types of IOT devices too, even if their application as a “router” might not make much sense. But maybe this thing can run EDIT: (a Wifi bridge) to some device/network, that would not need more than 100Mbit.
The device easily opens, and can be outfitted with an internal POE module. an LTE-Modem and/or a mini-UPS (via a bottom connector). So, that makes it even more interesting (imo).
1 Like
Not in next release realistically.
The mainline support matrix here looks fairly advanced, though:
Edit:
I don’t care much about (next) release date, I build from master anyway for most of my stuff.
Most of Ethernet support is in 6.17, just missing this patch under review:
Board support for the milk-v:
EDIT, The CPU (in single-core) is already supported in the the allwinner d1 RISC-V devices in master. Hmm, the CVITEC CPU/SOC supports secure-boot. I’m hoping, it’s not switched on.
this is how I flashed SMhub OS 0.12
[INFO] Waiting for USB device connection: ---
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] USB download start...
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] set MGN1 flag
[INFO] break
[INFO] Connecting to ROM 2nd stage...
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] fip_tx_offset: 4096, fip_tx_size: 33792
[INFO] set MGN1 flag
[INFO] break
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] fip_tx_offset: 37888, fip_tx_size: 4096
[INFO] set MGN1 flag
[INFO] break
[INFO] Waiting for USB device connection: |
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] Waiting for USB device connection: |
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] fip_tx_offset: 41984, fip_tx_size: 8192
[INFO] set MGN1 flag
[INFO] break
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] Waiting for USB device connection: |
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] fip_tx_offset: 50176, fip_tx_size: 116736
[INFO] set MGN1 flag
[INFO] break
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] Waiting for USB device connection: |
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] fip_tx_offset: 166912, fip_tx_size: 512
[INFO] set MGN1 flag
[INFO] break
[INFO] Waiting for USB device connection: \
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] fip_tx_offset: 166912, fip_tx_size: 273408
[INFO] set MGN1 flag
[INFO] break
[INFO] Waiting for USB device connection: ---
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] Waiting for USB device connection: ---
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] xml file is partition_emmc.xml
[INFO] xml storage type: emmc
[INFO] update total size: 2034168599 byte
[INFO] downloading file: .\rom\fip.bin
[INFO] send fip.bin finish
[INFO] break
[INFO] Waiting for USB device connection: ---
[INFO] found usb device vid=0x3346 pid=0x1000
[INFO] downloading file: .\rom\boot.emmc
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 4107148/2034168599(0%)
[INFO] downloading file: .\rom\logo.jpg
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 4117463/2034168599(0%)
[INFO] downloading file: .\rom\rootfs_ext4.emmc
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 20894743/2034168599(1%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 37672023/2034168599(1%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 54449303/2034168599(2%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 71226583/2034168599(3%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 88003863/2034168599(4%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 104781143/2034168599(5%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 121558423/2034168599(5%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 138335703/2034168599(6%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 155112983/2034168599(7%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 171890263/2034168599(8%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 188667543/2034168599(9%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 205444823/2034168599(10%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 222222103/2034168599(10%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 238999383/2034168599(11%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 255776663/2034168599(12%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 272553943/2034168599(13%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 289331223/2034168599(14%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 306108503/2034168599(15%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 322885783/2034168599(15%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 339663063/2034168599(16%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 356440343/2034168599(17%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 373217623/2034168599(18%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 389994903/2034168599(19%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 406772183/2034168599(19%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 423549463/2034168599(20%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 440326743/2034168599(21%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 457104023/2034168599(22%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 473881303/2034168599(23%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 490658583/2034168599(24%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 507435863/2034168599(24%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 524213143/2034168599(25%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 540990423/2034168599(26%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 557767703/2034168599(27%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 574544983/2034168599(28%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 591322263/2034168599(29%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 608099543/2034168599(29%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 624876823/2034168599(30%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 641654103/2034168599(31%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 658431383/2034168599(32%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 675208663/2034168599(33%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 691985943/2034168599(34%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 708763223/2034168599(34%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 725540503/2034168599(35%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 742317783/2034168599(36%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 759095063/2034168599(37%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 775872343/2034168599(38%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 792649623/2034168599(38%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 809426903/2034168599(39%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 826204183/2034168599(40%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 842981463/2034168599(41%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 859758743/2034168599(42%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 876536023/2034168599(43%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 893313303/2034168599(43%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 910090583/2034168599(44%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 926867863/2034168599(45%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 943645143/2034168599(46%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 960422423/2034168599(47%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 977199703/2034168599(48%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 993976983/2034168599(48%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1010754263/2034168599(49%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1027531543/2034168599(50%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1044308823/2034168599(51%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1061086103/2034168599(52%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1077863383/2034168599(52%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1094640663/2034168599(53%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1111417943/2034168599(54%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1128195223/2034168599(55%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1144972503/2034168599(56%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1161749783/2034168599(57%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1178527063/2034168599(57%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1195304343/2034168599(58%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1212081623/2034168599(59%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1228858903/2034168599(60%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1245636183/2034168599(61%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1262413463/2034168599(62%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1279190743/2034168599(62%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1295968023/2034168599(63%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1312745303/2034168599(64%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1329522583/2034168599(65%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1346299863/2034168599(66%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1363077143/2034168599(67%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1379854423/2034168599(67%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1396631703/2034168599(68%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1413408983/2034168599(69%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1430186263/2034168599(70%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1446963543/2034168599(71%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1463740823/2034168599(71%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1480518103/2034168599(72%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1497295383/2034168599(73%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1514072663/2034168599(74%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1530849943/2034168599(75%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1547627223/2034168599(76%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1564404503/2034168599(76%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1581181783/2034168599(77%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1597959063/2034168599(78%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1614736343/2034168599(79%)
[INFO] downloading file: .\rom\user_ext4.emmc
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1631513623/2034168599(80%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1648290903/2034168599(81%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1665068183/2034168599(81%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1681845463/2034168599(82%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1698622743/2034168599(83%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1715400023/2034168599(84%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1732177303/2034168599(85%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1748954583/2034168599(85%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1765731863/2034168599(86%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1782509143/2034168599(87%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1799286423/2034168599(88%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1816063703/2034168599(89%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1832840983/2034168599(90%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1849618263/2034168599(90%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1866395543/2034168599(91%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1883172823/2034168599(92%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1899950103/2034168599(93%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1916727383/2034168599(94%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1933504663/2034168599(95%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1950281943/2034168599(95%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1967059223/2034168599(96%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 1983836503/2034168599(97%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 2000613783/2034168599(98%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 2017391063/2034168599(99%)
[INFO] CVI_USB_PROGRAM
[INFO] updated size: 2034168343/2034168599(99%)
[INFO] USB download complete
command line ssh acess
[smlight@SMHUB]~$ help
GNU bash, version 5.2.37(1)-release (riscv64-buildroot-linux-gnu)
These shell commands are defined internally. Type `help' to see this list.
Type `help name' to find out more about the function `name'.
Use `info bash' to find out more about the shell in general.
Use `man -k' or `info' to find out more about commands not in this list.
A star (*) next to a name means that the command is disabled.
job_spec [&] history [-c] [-d offset] [n] or hist>
(( expression )) if COMMANDS; then COMMANDS; [ elif C>
. filename [arguments] jobs [-lnprs] [jobspec ...] or jobs >
: kill [-s sigspec | -n signum | -sigs>
[ arg... ] let arg [arg ...]
[[ expression ]] local [option] name[=value] ...
alias [-p] [name[=value] ... ] logout [n]
bg [job_spec ...] mapfile [-d delim] [-n count] [-O or>
bind [-lpsvPSVX] [-m keymap] [-f file> popd [-n] [+N | -N]
break [n] printf [-v var] format [arguments]
builtin [shell-builtin [arg ...]] pushd [-n] [+N | -N | dir]
caller [expr] pwd [-LP]
case WORD in [PATTERN [| PATTERN]...)> read [-ers] [-a array] [-d delim] [->
cd [-L|[-P [-e]] [-@]] [dir] readarray [-d delim] [-n count] [-O >
command [-pVv] command [arg ...] readonly [-aAf] [name[=value] ...] o>
compgen [-abcdefgjksuv] [-o option] [> return [n]
complete [-abcdefgjksuv] [-pr] [-DEI]> select NAME [in WORDS ... ;] do COMM>
compopt [-o|+o option] [-DEI] [name .> set [-abefhkmnptuvxBCEHPT] [-o optio>
continue [n] shift [n]
coproc [NAME] command [redirections] shopt [-pqsu] [-o] [optname ...]
declare [-aAfFgiIlnrtux] [name[=value> source filename [arguments]
dirs [-clpv] [+N] [-N] suspend [-f]
disown [-h] [-ar] [jobspec ... | pid > test [expr]
echo [-neE] [arg ...] time [-p] pipeline
enable [-a] [-dnps] [-f filename] [na> times
eval [arg ...] trap [-lp] [[arg] signal_spec ...]
exec [-cl] [-a name] [command [argume> true
exit [n] type [-afptP] name [name ...]
export [-fn] [name[=value] ...] or ex> typeset [-aAfFgiIlnrtux] name[=value>
false ulimit [-SHabcdefiklmnpqrstuvxPRT] [>
fc [-e ename] [-lnr] [first] [last] o> umask [-p] [-S] [mode]
fg [job_spec] unalias [-a] name [name ...]
for NAME [in WORDS ... ] ; do COMMAND> unset [-f] [-v] [-n] [name ...]
for (( exp1; exp2; exp3 )); do COMMAN> until COMMANDS; do COMMANDS-2; done
function name { COMMANDS ; } or name > variables - Names and meanings of so>
getopts optstring name [arg ...] wait [-fn] [-p var] [id ...]
hash [-lr] [-p pathname] [-dt] [name > while COMMANDS; do COMMANDS-2; done
help [-dms] [pattern ...] { COMMANDS ; }
[smlight@SMHUB]~$
1 Like
Mine(with just +POE module) (currently 52€ on fr.aliex) arrives mid-October. If you want, we(the forum and I) can maybe guide you through some experiments or commands-to-run to do some recon on the device?
if you’d be willing, you could start by posting the output of commands like dmesg, lspci, `id`, … the usual?
yes
I am willing to experiment
[smlight@SMHUB]~$ sudo [smlight@SMHUB]~$ lspci
Password:
sudo: [smlight@SMHUB]~$: command not found
[smlight@SMHUB]~$ id
uid=1000(smlight) gid=1000(smlight) groups=10(wheel),18(dialout),82(netdev),106(sudo),1000(smlight)
[smlight@SMHUB]~$
1 Like
The current state of mainline for this family of CPU looks good:
@KOA : Could you run some/all of these, and post them:
cat /proc/cpuinfo;
free;
cat /etc/os-release;
lsblk;
cat /proc/partitions;
lsusb;
ip link show;
cat /proc/interrupts;
cat /proc/loadavg;
df -T;
mount;
lsmod;
ps aux;
Edit: And please, if possible make some high-res pictures of the board, front and back, and -if you can- please also connect to UART? And also connect the device via the USB-C power connector once to another linux-PC, and then run lsusb -t to see, what it enumerates as. It should show as minimum an network card(according to manual) , but may also additionally show up as serial port, or other devices.
If you can find the pins for the (main) 3.3v UART, it would be great, if you could catch then entire serial boot log from power on, so that we can see the U-Boot output
cat /proc/cpuinfo;
processor : 0
hart : 0
isa : rv64imafdvcsu
mmu : sv39
free;
total used free shared buff/cache available
Mem: 503144 116648 100196 7796 286300 367364
cat /etc/os-release;
NAME=Buildroot
VERSION=-gaadaa24c69
ID=buildroot
VERSION_ID=2025.05.2
PRETTY_NAME="Buildroot 2025.05.2"
lsblk;
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
mmcblk0 179:0 0 7.1G 0 disk
|-mmcblk0p1 179:1 0 8M 0 part
|-mmcblk0p2 179:2 0 2M 0 part
|-mmcblk0p3 179:3 0 128K 0 part
|-mmcblk0p4 179:4 0 1.5G 0 part /
`-mmcblk0p5 179:5 0 5.6G 0 part /var
/opt
/home
/mnt/user
mmcblk0boot0 179:8 0 2M 1 disk
mmcblk0boot1 179:16 0 2M 1 disk
cat /proc/partitions;
major minor #blocks name
179 0 7471104 mmcblk0
179 1 8192 mmcblk0p1
179 2 2048 mmcblk0p2
179 3 128 mmcblk0p3
179 4 1573120 mmcblk0p4
179 5 5887616 mmcblk0p5
lsusb;
Bus 001 Device 001: ID 1d6b:0002 Linux 5.10.4 dwc2_hsotg DWC OTG Controller
cat /proc/interrupts;
CPU0
5: 518974 RISC-V INTC 5 riscv-timer
11: 0 T-Head PLIC 29 dw_dmac
12: 88 T-Head PLIC 54 4180000.spi0
13: 0 T-Head PLIC 57 41b0000.spi3
14: 100 T-Head PLIC 44 ttyS0
15: 4868 T-Head PLIC 45
19: 3 T-Head PLIC 50 4010000.i2c
20: 0 T-Head PLIC 53 4040000.i2c
21: 102479 T-Head PLIC 31 eth0
22: 26902 T-Head PLIC 34 mmc0
23: 0 T-Head PLIC 36 mmc1
24: 22173 T-Head PLIC 38 mmc2
25: 0 T-Head PLIC 40 4100000.i2s
26: 0 T-Head PLIC 43 4130000.i2s
36: 65 T-Head PLIC 30 4340000.usb, 4340000.usb, dwc2_hsotg:usb1
44: 0 gpio-dwapb 6 cviusb-otg
45: 0 gpio-dwapb 4 gpio-ir-recv-irq
46: 0 gpio-dwapb 13 cd-gpio-irq
cat /proc/loadavg;
0.00 0.00 0.00 1/97 1071
df -T;
Filesystem Type 1K-blocks Used Available Use% Mounted on
/dev/root ext4 1513096 467808 950264 33% /
devtmpfs devtmpfs 251492 0 251492 0% /dev
tmpfs tmpfs 251572 4 251568 0% /dev/shm
tmpfs tmpfs 251572 7536 244036 3% /tmp
tmpfs tmpfs 251572 240 251332 0% /run
/dev/mmcblk0p5 ext4 373376 179261 169539 51% /mnt/user
/dev/mmcblk0p5 ext4 373376 179261 169539 51% /home
/dev/mmcblk0p5 ext4 373376 179261 169539 51% /opt
/dev/mmcblk0p5 ext4 373376 179261 169539 51% /var
mount;
/dev/root on / type ext4 (rw,relatime)
devtmpfs on /dev type devtmpfs (rw,relatime,size=251492k,nr_inodes=62873,mode=755)
proc on /proc type proc (rw,relatime)
devpts on /dev/pts type devpts (rw,relatime,gid=5,mode=620,ptmxmode=666)
tmpfs on /dev/shm type tmpfs (rw,relatime,mode=777)
tmpfs on /tmp type tmpfs (rw,relatime)
tmpfs on /run type tmpfs (rw,nosuid,nodev,relatime,mode=755)
sysfs on /sys type sysfs (rw,relatime)
debug on /sys/kernel/debug type debugfs (rw,relatime)
config on /sys/kernel/config type configfs (rw,relatime)
/dev/mmcblk0p5 on /mnt/user type ext4 (rw,relatime)
/dev/mmcblk0p5 on /home type ext4 (rw,relatime)
/dev/mmcblk0p5 on /opt type ext4 (rw,relatime)
/dev/mmcblk0p5 on /var type ext4 (rw,relatime)
lsmod;
Module Size Used by Tainted: GF
aic8800_fdrv 767242 0
aic8800_bsp 129728 1 aic8800_fdrv
tun 64657 0
ps aux;
PID USER COMMAND
1 root init
2 root [kthreadd]
3 root [rcu_gp]
4 root [rcu_par_gp]
8 root [mm_percpu_wq]
9 root [ksoftirqd/0]
10 root [rcu_preempt]
11 root [kdevtmpfs]
12 root [rcu_tasks_kthre]
13 root [oom_reaper]
14 root [writeback]
15 root [kcompactd0]
35 root [kblockd]
37 root [watchdogd]
38 root [kworker/0:1H-kb]
39 root [rpciod]
40 root [kworker/u3:0]
41 root [xprtiod]
42 root [cfg80211]
43 root [kswapd0]
44 root [nfsiod]
49 root [kworker/u2:4-ev]
50 root [spi0]
51 root [spi1]
52 root [stmmac_wq]
85 root [irq/44-cviusb-o]
86 root [rc0]
87 root [sdhci]
88 root [irq/22-mmc0]
89 root [irq/46-cd-gpio-]
90 root [sdhci]
91 root [irq/23-mmc1]
93 root [mmc_complete]
94 root [sdhci]
95 root [irq/24-mmc2]
96 root [ion_system_heap]
97 root [ipv6_addrconf]
106 root [krfcommd]
111 root [jbd2/mmcblk0p4-]
112 root [ext4-rsv-conver]
118 root [jbd2/mmcblk0p5-]
119 root [ext4-rsv-conver]
133 root [aicwf_bustx_thr]
134 root [aicwf_busrx_thr]
135 root [aicwf_pwrctl]
136 root [aicwf_bustx_thr]
137 root [aicwf_busrx_thr]
138 root [cmd_wq]
139 root [apmStaloss_wq]
145 root /sbin/syslogd -n
149 root /sbin/klogd -n
164 root /sbin/udevd -d
185 root /usr/sbin/haveged -w 1024 -r 0
187 root /usr/sbin/haveged -w 1024 -r 0
192 root /usr/sbin/lircd -n -O /etc/lirc/lirc_options.conf
198 root [uname]
199 dbus dbus-daemon --system
295 root /usr/libexec/bluetooth/bluetoothd -n
311 root /usr/sbin/ModemManager
319 root /usr/sbin/NetworkManager --pid-file=/var/run/NetworkManager.pid
337 ntp /usr/sbin/ntpd -u ntp:ntp -g -p /var/run/ntpd.pid
343 avahi avahi-daemon: running [SMHUB.local]
344 avahi avahi-daemon: chroot helper
350 root /usr/sbin/crond -f
355 mosquitt /usr/sbin/mosquitto -c /etc/mosquitto/mosquitto.conf
364 root nginx: master process /usr/sbin/nginx
365 www-data nginx: worker process
371 root /usr/sbin/wpa_supplicant -u
374 root /usr/sbin/ser2net -P /var/run/ser2net.pid
377 root sshd: /usr/sbin/sshd [listener] 0 of 10-100 startups
380 root /usr/bin/stunnel
387 root {smhub-services} /opt/smhub-services/venv/bin/python /usr/bin/sm
403 root /sbin/getty -L console 0 vt100
404 root init
405 root /sbin/dhclient -d -q -sf /usr/libexec/nm-dhcp-helper -pf /run/Ne
985 root [kworker/0:0H-kb]
988 root [kworker/u2:1-ev]
1001 root [kworker/0:0-eve]
1013 root [kworker/0:1-eve]
1016 root sshd-session: smlight [priv]
1018 smlight sshd-session: smlight@pts/0
1019 smlight -bash
1094 root [kworker/0:2]
1095 smlight ps aux
1 Like
Please also fw_printenv , cat /proc/cmdline
For video of internal
That’s a good video, but I can’t make out the details needed. Can you please open it, like shown in the video, and then make some Hi-Res pictures of the board? Ideally both sides? Thank you
I will try to make one when I get back home. I did try to initially pry open it but couldn't. Will try again.
Cool, thanks. Maybe there are screws? The video above makes it look like it’s only weakly held together by some clips
[smlight@SMHUB]~$ fw_printenv
-bash: fw_printenv: command not found
[smlight@SMHUB]~$ cat /proc/cmdline
root=/dev/mmcblk0p4 rootwait rw blkdevparts=mmcblk0:8192K(BOOT),2048K(MISC),128K(ENV),1573120K(ROOTFS),-(USER);mmcblk0boot0:1M(fip),1M(fip_bak); console=ttyS0,115200 earlycon=sbi riscv.fwsz=0x80000 loglevel=9
1 Like
