Simple question mesh ip

Installing and Using OpenWrt Network and Wireless Configuration
1

hi everybody i will try configurate mesh

just i has 3X belkin RT3200 so the first router should be 192.168.1.1 --> 2nd 192.168.2.1 and the last 192.168.3.1
or
192.168.1.1--> 192.168.1.2 --> 192.168.1.3 or

the 3 same ip ? thanks

2 router are 22.03 and one router has 23.05 the main

2

Most straight forward is to use 192.168.1.1--> 192.168.1.2 --> 192.168.1.3 as their lan addresses.

1 Like
3

Ok i will test thanks for tour response

4

Excellent tutorial DIY WI-FI MESH with OpenWrt - YouTube

1 Like
5

A mesh is a layer 2 bridge. So you would set them up as a main router and two dumb APs. All the IPs should be in the same subnet for management purposes. Wireless clients bridge through to the main router-- they don't use or care about the AP's IP. The network works the same as if the nodes were connected with Ethernet cable.

1 Like
6

he seems work perfectly

Summary

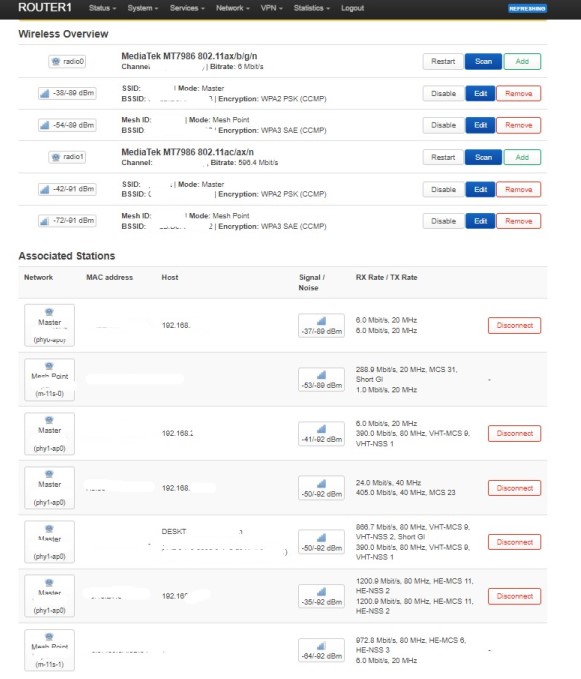

MESH LONG LIST 1 RTER hide
MESH LONG LIST 1 RTER hide581×679 64.5 KB

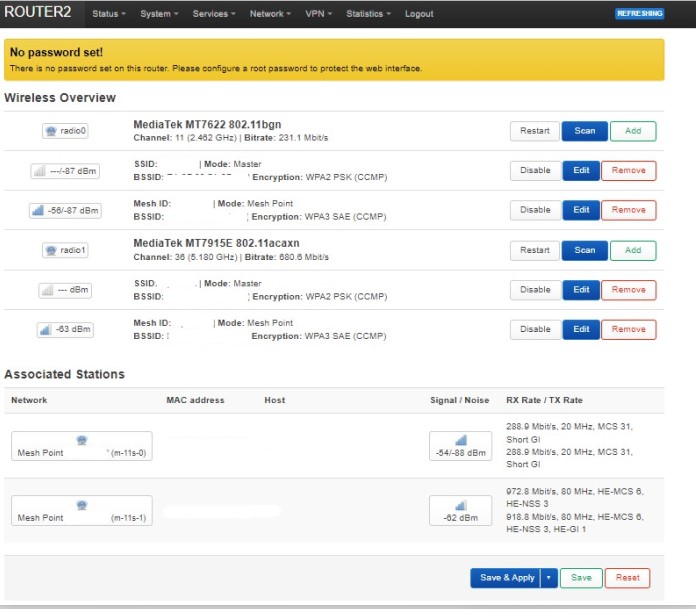

MESH LONG LIST 2 RTER hide
MESH LONG LIST 2 RTER hide696×609 69.9 KB

i has a long list after that who appair

root@ROUTER1:~# mesh11sd status
{
  "setup":{
    "version":"2.0.0",
    "enabled":"1",
    "procd_status":"running",
    "portal_detect":"1",
    "mesh_basename":"m-11s-",
    "checkinterval":"10",
    "interface_timeout":"10",
    "debuglevel":"1"
  }
  "interfaces":{


root@ROUTER2:~# mesh11sd status
{
  "setup":{
    "version":"2.0.0",
    "enabled":"1",
    "procd_status":"running",
    "portal_detect":"1",
    "mesh_basename":"m-11s-",
    "checkinterval":"10",
    "interface_timeout":"10",
    "debuglevel":"1"
  }
  "interfaces":{
    "m-11s-1":{
7

thanks is exaclty than search
