Setup OpenWRT Router for Fiber Router

Installing and Using OpenWrt
1

Greetings All

Need your support ----> Router : Banana BPI-R4 ( latest snapshot)

  • How can I connect a fiber router to an OpenWRT router through the WAN port of the OpenWRT router? and How to setup Vlan

Provider Router Lan (RJ45) to WAN (RJ45) BPI-R4 Router

I tried Network interface -----> PPPOE-----> I put username and password but no network

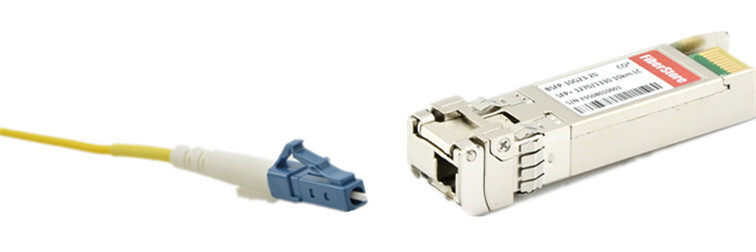

  • How I can replace Fiber router by OpenWRT router I have SFP fiber optic WAN

image756×252 22.2 KB

2

If it is PON you need pon sfp module, not optical ethernet.

1 Like
3

Thx @anon63541380 as usual ...
Can you advise on first point

4

You need pon sfp module from your provider. Not banana laser pointer.

1 Like
5

Provider Router Lan (RJ45) to WAN (RJ45) OpenWRT BPI-R4 Router.... but still no network

6

Whos your provider?

7

Provider Name : STC (Saudi Telecom Company)
Country : Saudi Arabia

8

In English just connect your router... Check if you have some dsl ppoe remnants, disable those and add new dhcp client wan.

9

one of friends has Linksys wrt3200acm

He connected the ethernet from LAN of Fiber Router (Provider) ---> To WAN of BPI-R4 (OpenWRT)

He installed New OpenWRT system but couldn't get network through PPPoE WAN

He tried old version of OpenWRT that one has Switch tap ... he got network through PPPoE WAN

10

You need to check Arabic pages, in English pages it says to plug cable in the wall.
