Setting up wired guest vlan on an XR500

rmdir · June 12, 2023, 11:03pm

Hello all

I currently have an XR500 running OpenWrt 22.03.3 with 5 SSIDs. These consist of 3 isolated guest networks for various IoT/guest devices and configurations, and the default LAN zone split into 1 SSID for the 2.4 ghz radio and 1 SSID for the 5 ghz radio.

I want to essentially create the same thing as a guest wifi for one port on my router, which will be connected to a cable IoT device that receives channel information for our TVs. I'd like the device connected to this port to be unable to reach other wired devices, the router, and any of the wifi SSIDs.

Would I need to do any bridging or more complicated setup than what's outlined here? This video is basically the same information, just in video format.

The reason I ask is that I wasn't able to find much information for this specific use case, and this seems far more simple than other VLAN guides I've found.

psherman · June 12, 2023, 11:47pm

In general, this is fairly simple...

Do you want this wired guest network to be tied to one of the existing guest SSIDs, or is this separate?

if it should be tied, you'll create a bridge that contains the ethernet port (details TBD based on your current config), and then adjust the network to use that bridge
if it should be independent and isolated, create a new network with the ethernet port as the device (again, details TBD).

Once we know what you want above, and based on your network config file, we can easily suggest the changes.

Please copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

cat /etc/config/network

rmdir · June 13, 2023, 1:03am

Thank you for the very prompt response!

I'd like to make this guest network completely separate from all SSIDs and other wired devices. I'd like it to be completely isolated from accessing the router and everything else except the internet.

Here is the output from that command:

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd8b:a29b:2ba7::/48'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'eth1.1'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option ip6assign '60'

config interface 'wan'
	option device 'eth0.2'
	option proto 'dhcp'

config interface 'wan6'
	option device 'eth0.2'
	option proto 'dhcpv6'

config switch
	option name 'switch0'
	option reset '1'
	option enable_vlan '1'

config switch_vlan
	option device 'switch0'
	option vlan '1'
	option ports '1 2 3 4 6t'

config switch_vlan
	option device 'switch0'
	option vlan '2'
	option ports '5 0t'

config interface 'GUEST'
	option proto 'static'
	option ipaddr '192.168.8.1'
	option netmask '255.255.255.0'

config interface 'IOT'
	option proto 'static'
	option ipaddr '192.168.7.1'
	option netmask '255.255.255.0'

config interface 'NAS'
	option proto 'static'
	option netmask '255.255.255.0'
	option ipaddr '192.168.11.1'

config interface 'OI'
	option proto 'static'
	option ipaddr '192.168.9.1'
	option netmask '255.255.255.0'

The OI interface is not used by any SSID or firewall zone, but I didn't want to leave it out in case its presence was relevant.

psherman · June 13, 2023, 1:15am

What we'll do is split out one of the ports from VLAN 1 (which is used for the lan connected ethernet ports). The first stanza is your existing VLAN 1 statement, but with logical port 4 removed. The second one is VLAN 3 with logical port 4 assigned. Then the next is a new network that uses the new VLAN.

config switch_vlan
	option device 'switch0'
	option vlan '1'
	option ports '1 2 3 6t'

config switch_vlan
	option device 'switch0'
	option vlan '3'
	option ports '4 6t'

config interface 'vlan3'
	option device 'eth1.3'
	option proto 'static'
	option ipaddr '192.168.3.1'
	option netmask '255.255.255.0'

Then create a DHCP server for this new network, and setup the firewall appropraitely. Let me know if you need help with those (if so, post your dhcp and firewall files).

EDIT: The above is just an example -- you can adapt using a different logical port (1, 2, or 3) if you don't like using logical port 4 (FWIW, I don't know what the physical-to-logical port mapping looks like for this device). Also, you can use any non-overlapping address and name for that new network.

rmdir · June 13, 2023, 1:48am

Thank you again!

Just to double check, would this be how I'd make the VLAN changes from LuCI? I was unsure about what to label the eth0 and eth1 CPUs, since other routers don't seem to have two of these.

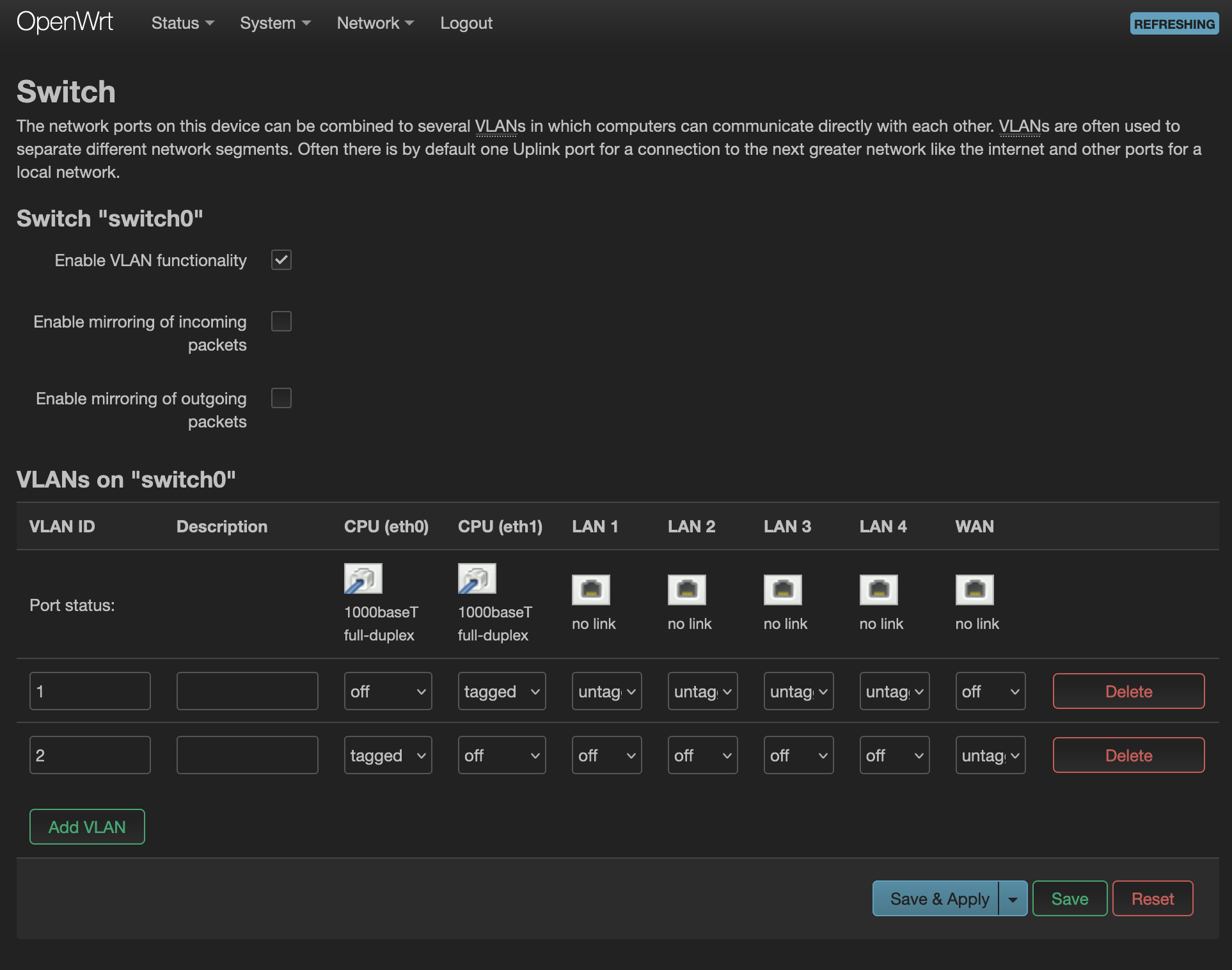

Here is the default state my switch page was at:

And here are my proposed changes:

psherman · June 13, 2023, 2:03am

Yup... looks good. Now associate eth1.3 with a new network.

Also, I noticed a small typo in my earlier post (I had said eth0.3)... now fixed.

rmdir · June 13, 2023, 2:48am

Awesome, it seems to be working!

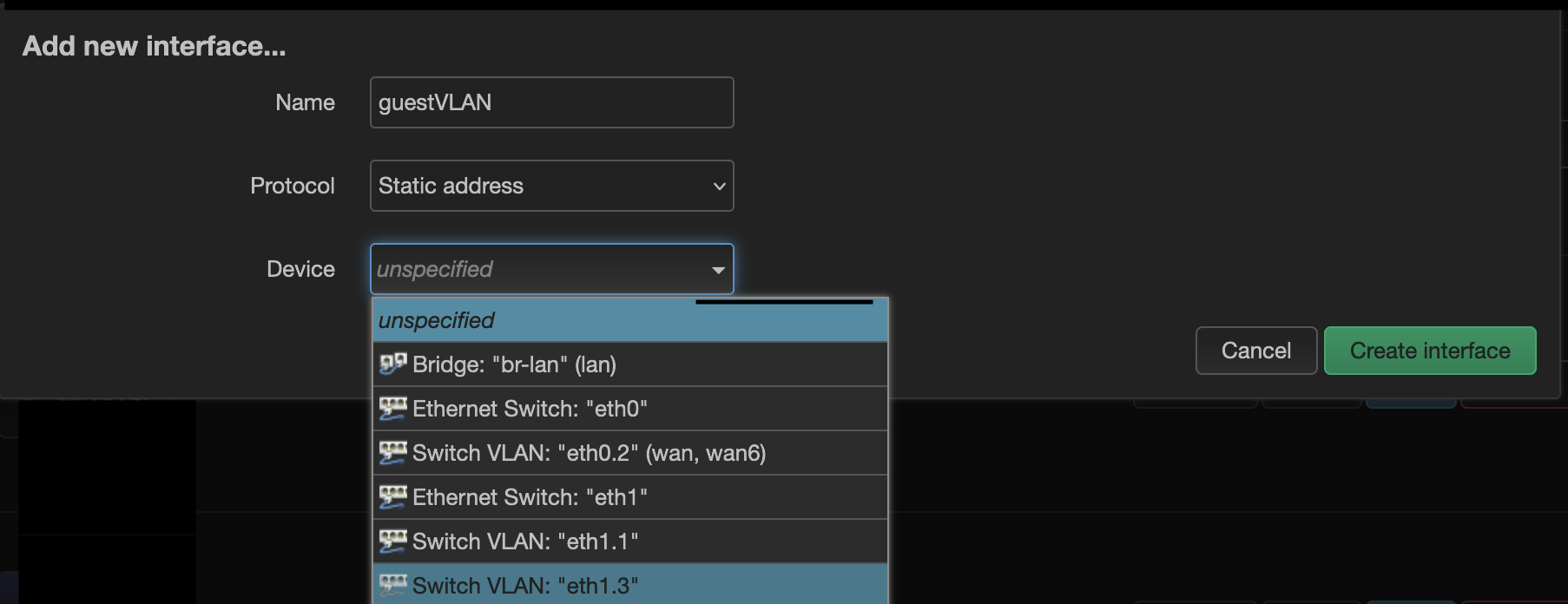

To double check once more, I added the eth1.3 association to a new interface I created, as shown below:

And then proceeded to set up the interface as I had done when making the guest wifi networks. I assigned an IP range, a netmask of 255.255.255.0, created a new firewall zone, and turned on the DHCP server.

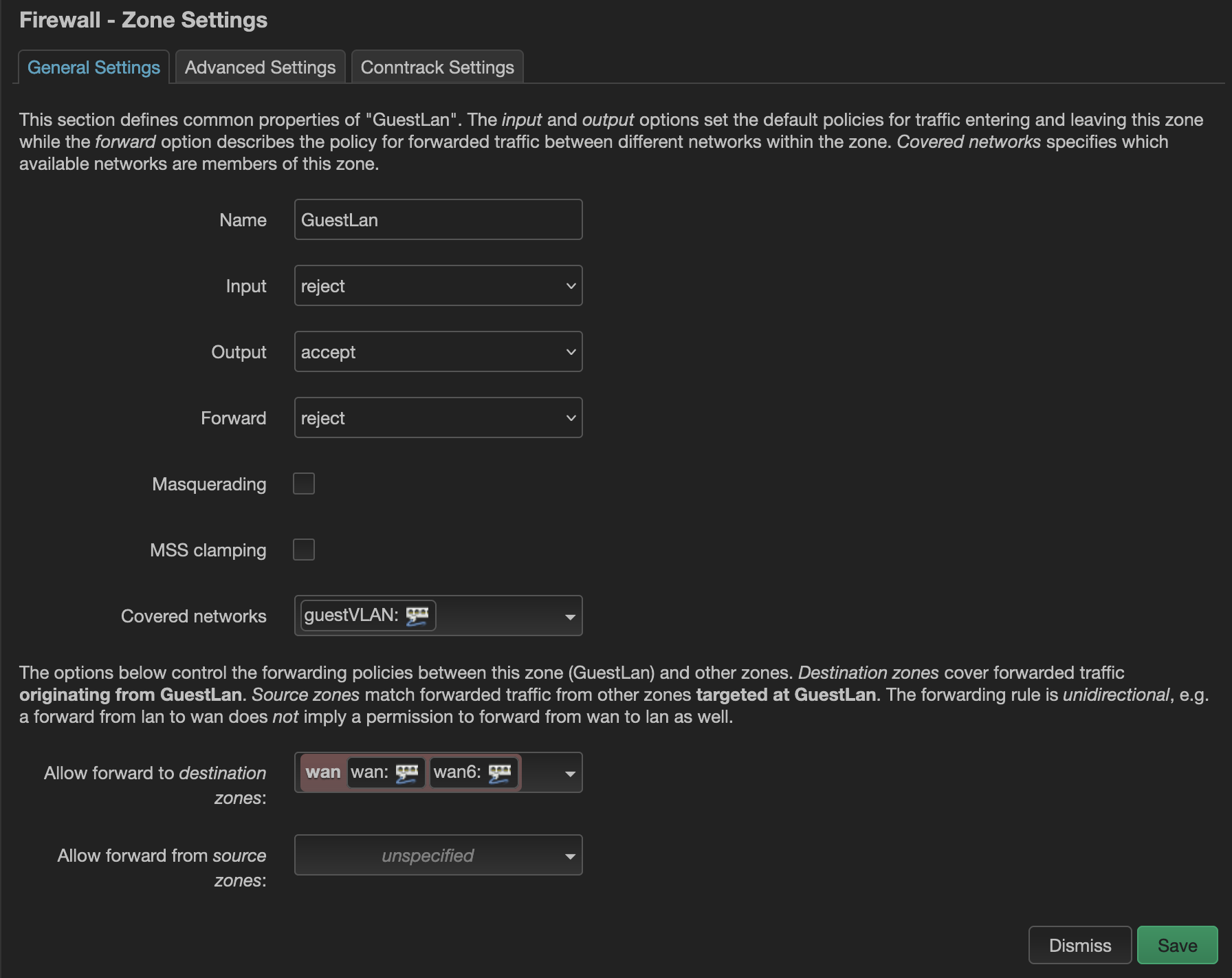

I then defined the firewall zone like below:

Then I set firewall rules to allow for DHCP and DNS.

And I am no longer able to connect to the router via SSH or its IP on the 4th physical port. I believe this is set up correctly.

I'll have more time to test it hopefully this weekend or maybe next week, so I may end up revisiting this thread, but thank you so much for the help!

psherman · June 13, 2023, 3:52am

Yup... all looks correct based on the screenshots. The configs are a better way to verify this, but I think you've probably already got pretty good indications that it is working as expected.

rmdir · June 13, 2023, 10:57am

Understood.

Here are the results of running cat /etc/config/network after the changes:

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd8b:a29b:2ba7::/48'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'eth1.1'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option ip6assign '60'

config interface 'wan'
	option device 'eth0.2'
	option proto 'dhcp'

config interface 'wan6'
	option device 'eth0.2'
	option proto 'dhcpv6'

config switch
	option name 'switch0'
	option reset '1'
	option enable_vlan '1'

config switch_vlan
	option device 'switch0'
	option vlan '1'
	option vid '1'
	option ports '2 3 4 6t'

config switch_vlan
	option device 'switch0'
	option vlan '2'
	option ports '0t 5'
	option vid '2'

config interface 'GUEST'
	option proto 'static'
	option ipaddr '192.168.8.1'
	option netmask '255.255.255.0'

config interface 'IOT'
	option proto 'static'
	option ipaddr '192.168.7.1'
	option netmask '255.255.255.0'

config interface 'NAS'
	option proto 'static'
	option netmask '255.255.255.0'
	option ipaddr '192.168.11.1'

config interface 'OI'
	option proto 'static'
	option ipaddr '192.168.9.1'
	option netmask '255.255.255.0'

config switch_vlan
	option device 'switch0'
	option vlan '3'
	option ports '1 6t'
	option vid '3'
	option description 'Guest VLAN'

config interface 'guestVLAN'
	option proto 'static'
	option device 'eth1.3'
	option ipaddr '192.168.3.1'
	option netmask '255.255.255.0'

The only real difference I can see in comparing your original config outline to these configs, is that the third VLAN's option ports are set to option ports '1 6t'. Would the 1 signify a bind to the first physical port? The correct port is being bound (physical port 4 is the one that doesn't allow connections over SSH and etc.), so it doesn't seem to be a big issue.

psherman · June 13, 2023, 2:15pm

Your config looks fine. The 1 vs 4 is a logical port, which may or may not directly relate to the physical port number (in your case, maybe they are in reverse order). This is not a problem, as long as you know what physical port corresponds with the logical port you’re designating.
