Setting up RE200 with OpenWrt, having trouble connecting to internet

Installing and Using OpenWrt Network and Wireless Configuration
1

I am having trouble setting up my wifi repeater

Hostname OpenWrt
Model TP-Link RE200 v2
Architecture MediaTek MT7628AN ver:1 eco:2
Target Platform ramips/mt76x8
Firmware Version OpenWrt 22.03.2 r19803-9a599fee93 /

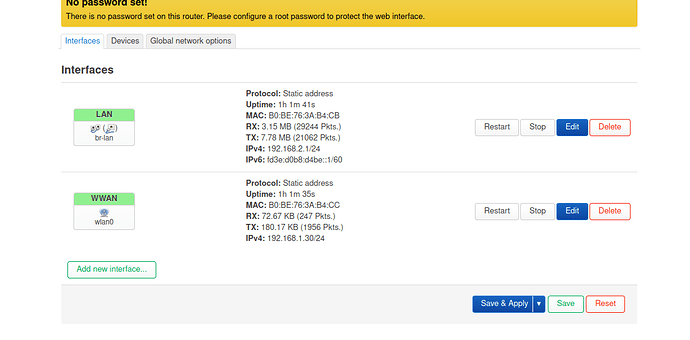

my wired connection does not receive any internet traffic

Screenshot from 2022-12-27 13-36-49
Screenshot from 2022-12-27 13-36-491126×556 65.3 KB

2

this is the wireless page

Screenshot from 2022-12-27 13-39-32
Screenshot from 2022-12-27 13-39-321142×639 95.4 KB

3

wired connection settings

Screenshot from 2022-12-27 14-09-17
Screenshot from 2022-12-27 14-09-17840×563 51.9 KB

4

Assume you've followed https://openwrt.org/docs/guide-user/network/wifi/relay_configuration?

1 Like
5

LAN and WWAN appear to be in the same firewall zone.

  • Place in WAN zone; or
  • Make sure that you allow forwarding on the LAN zone
6

It's supposed to be like that, if you follow the wiki.

1 Like
7

Then, the seconds option applies to the OP:

1 Like
8

This won't work unless either

  1. There is a static route in the main router (192.168.2.0/24 via 192.168.1.30)
    or
  2. The wwan is moved to the wan firewall zone (or really any separate zone that has masquerading enabled.

In addition, the wwan network has been set with a static IP. Not shown in the picture is if the gateway and dns has been specified. If it hasn't, it also will not work.

1 Like
9

Yes but openwrt comes pre configured for re200

10

Not for wireless relay, it doesn't, did had a look at the page?
