RT3200 image check failed

Installing and Using OpenWrt
1

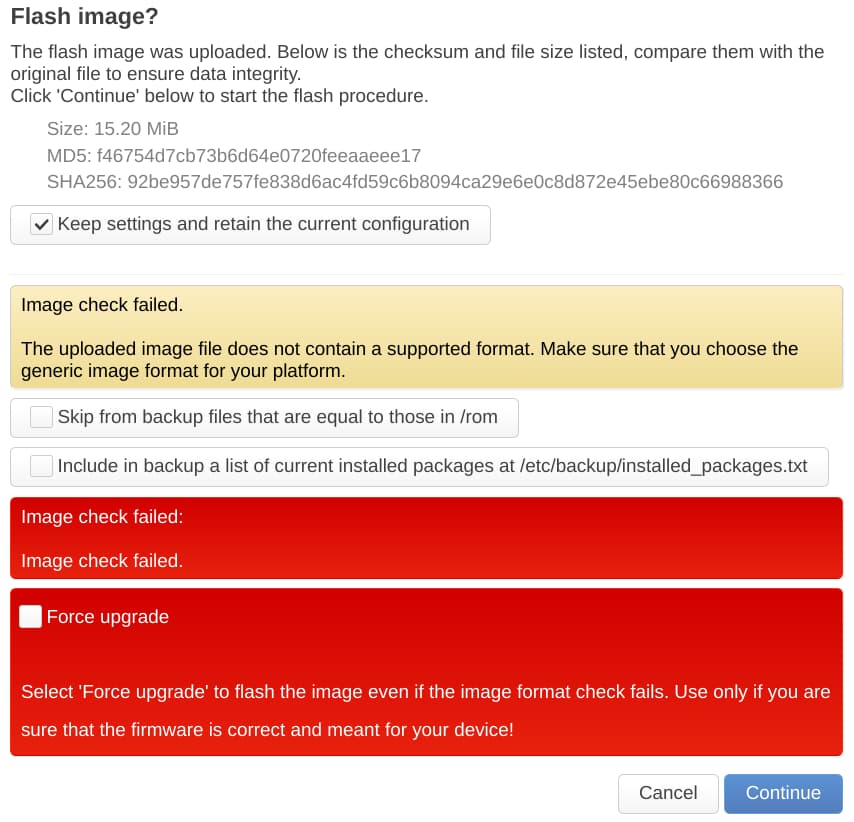

I have been building firmware for my RT3200 for a long time now. I built a snapshot from the latest git just now and went to flash it but was presented with this warning:

why
why854×822 70.5 KB

I used the same diffconfig that I always do:

diffconfig
CONFIG_TARGET_mediatek=y
CONFIG_TARGET_mediatek_mt7622=y
CONFIG_TARGET_mediatek_mt7622_DEVICE_linksys_e8450-ubi=y
CONFIG_PACKAGE_attendedsysupgrade-common=y
CONFIG_PACKAGE_block-mount=y
CONFIG_PACKAGE_cgi-io=y
CONFIG_PACKAGE_coreutils=y
CONFIG_PACKAGE_coreutils-numfmt=y
CONFIG_PACKAGE_e2fsprogs=y
CONFIG_PACKAGE_htop=y
CONFIG_PACKAGE_iperf3=y
CONFIG_PACKAGE_kmod-fs-ext4=y
CONFIG_PACKAGE_kmod-lib-crc16=y
CONFIG_PACKAGE_kmod-scsi-core=y
CONFIG_PACKAGE_kmod-usb-storage=y
CONFIG_PACKAGE_libblkid=y
CONFIG_PACKAGE_libcap=y
CONFIG_PACKAGE_libcomerr=y
CONFIG_PACKAGE_libext2fs=y
CONFIG_PACKAGE_libiperf3=y
CONFIG_PACKAGE_libiwinfo-lua=y
CONFIG_PACKAGE_liblua=y
CONFIG_PACKAGE_liblucihttp=y
CONFIG_PACKAGE_liblucihttp-lua=y
CONFIG_PACKAGE_liblucihttp-ucode=y
CONFIG_PACKAGE_libmount=y
CONFIG_PACKAGE_libncurses=y
CONFIG_PACKAGE_libpcre=y
CONFIG_PACKAGE_libpopt=y
CONFIG_PACKAGE_librt=y
CONFIG_PACKAGE_libsmartcols=y
CONFIG_PACKAGE_libss=y
CONFIG_PACKAGE_libubus-lua=y
CONFIG_PACKAGE_libuuid=y
CONFIG_PACKAGE_libwolfssl=m
CONFIG_PACKAGE_lua=y
CONFIG_PACKAGE_luci=y
CONFIG_PACKAGE_luci-app-attendedsysupgrade=y
CONFIG_PACKAGE_luci-app-firewall=y
CONFIG_PACKAGE_luci-app-opkg=y
CONFIG_PACKAGE_luci-base=y
CONFIG_PACKAGE_luci-lib-base=y
CONFIG_PACKAGE_luci-lib-ip=y
CONFIG_PACKAGE_luci-lib-jsonc=y
CONFIG_PACKAGE_luci-lib-nixio=y
CONFIG_PACKAGE_luci-light=y
CONFIG_PACKAGE_luci-mod-admin-full=y
CONFIG_PACKAGE_luci-mod-network=y
CONFIG_PACKAGE_luci-mod-status=y
CONFIG_PACKAGE_luci-mod-system=y
CONFIG_PACKAGE_luci-proto-ipv6=y
CONFIG_PACKAGE_luci-proto-ppp=y
CONFIG_PACKAGE_luci-theme-bootstrap=y
CONFIG_PACKAGE_mount-utils=y
CONFIG_PACKAGE_ncdu=y
CONFIG_PACKAGE_rpcd=y
CONFIG_PACKAGE_rpcd-mod-file=y
CONFIG_PACKAGE_rpcd-mod-iwinfo=y
CONFIG_PACKAGE_rpcd-mod-luci=y
CONFIG_PACKAGE_rpcd-mod-rpcsys=y
CONFIG_PACKAGE_rpcd-mod-rrdns=y
CONFIG_PACKAGE_rpcd-mod-ucode=y
CONFIG_PACKAGE_rsync=y
CONFIG_PACKAGE_terminfo=y
CONFIG_PACKAGE_tree=y
CONFIG_PACKAGE_ucode-mod-html=y
CONFIG_PACKAGE_ucode-mod-math=y
CONFIG_PACKAGE_uhttpd=y
CONFIG_PACKAGE_uhttpd-mod-ubus=y
CONFIG_PACKAGE_vim-fuller=y
CONFIG_PACKAGE_wpad-wolfssl=m
CONFIG_PACKAGE_zlib=y
CONFIG_PACKAGE_zsh=y
CONFIG_WOLFSSL_HAS_NO_HW=y
CONFIG_WPA_WOLFSSL=y

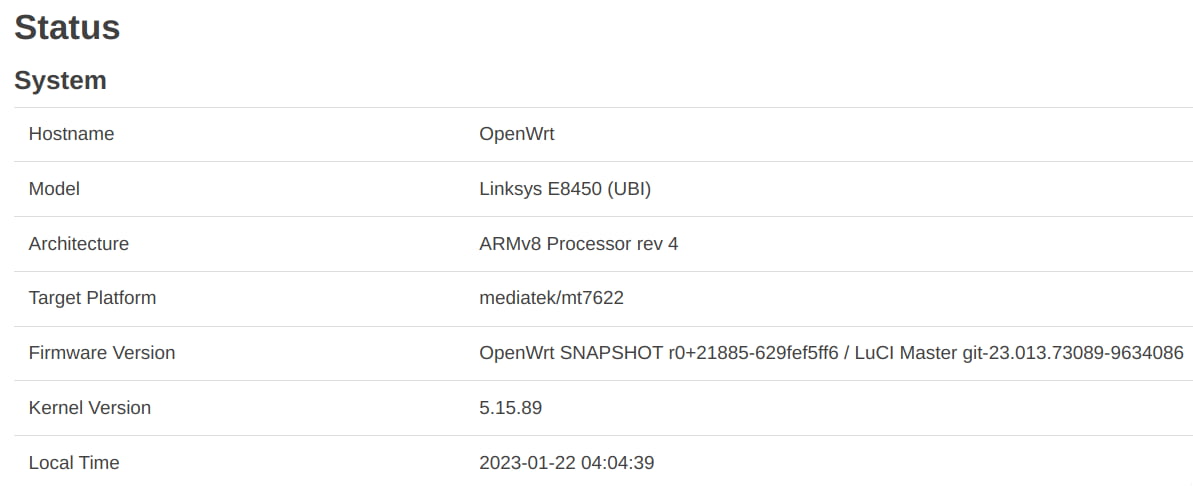

85.status
85.status1193×486 35.3 KB

Why am I seeing this warning?

2

The file is faulty.
It does not even say that it is for another router. Sounds like it is not a sysupgrade file at all.

What is the name of the file?
can you show the first lines of the diffconfig output from your build system?

3

I posted the entire diffconfig above but using the hidden text option. Here are the first few:

CONFIG_TARGET_mediatek=y
CONFIG_TARGET_mediatek_mt7622=y
CONFIG_TARGET_mediatek_mt7622_DEVICE_linksys_e8450-ubi=y

File name under /scratch/union/bin/targets/mediatek/mt7622/ is:

openwrt-mediatek-mt7622-linksys_e8450-ubi-squashfs-sysupgrade.itb
4

I missed that. Too fancy for me :wink:

But you are right. It looks normal.

I wonder if the reason is that you are might be running the faulty versioned build.
"r0+21885-xxx". An early build from buildbot/auc ?

But your screenshot show the correct UBI... hmmm...

Might be best to revert to the initranfs recovery console and use that for flashing.

5

I can't remember the source of the current firmware... I thought I built it. What is your suggestion? Use an alternative method to use that same source file but not the sysupgrade part of luci?

% ls /scratch/union/bin/targets/mediatek/mt7622
packages
config.buildinfo
feeds.buildinfo
openwrt-mediatek-mt7622-linksys_e8450-ubi-bl31-uboot.fip
openwrt-mediatek-mt7622-linksys_e8450-ubi-initramfs-recovery.itb
openwrt-mediatek-mt7622-linksys_e8450-ubi-preloader.bin
openwrt-mediatek-mt7622-linksys_e8450-ubi-squashfs-sysupgrade.itb
openwrt-mediatek-mt7622-linksys_e8450-ubi.manifest
profiles.json
sha256sums
version.buildinfo

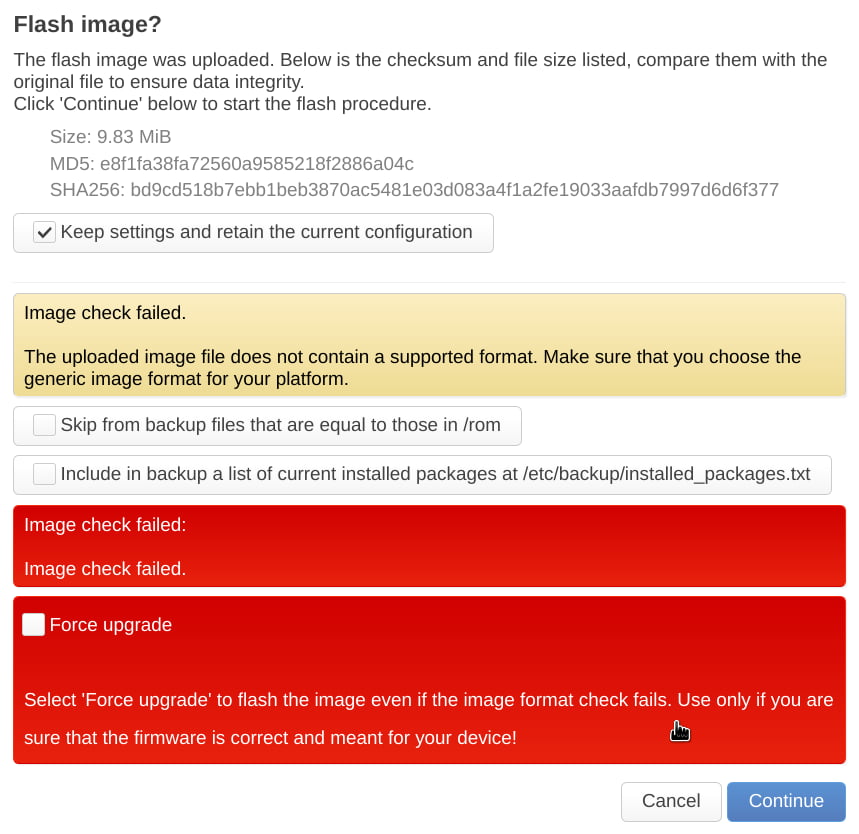

My openwrt-mediatek-mt7622-linksys_e8450-ubi-initramfs-recovery.itb gives this when I try using it from luci:

85.oo
85.oo849×919 133 KB

EDIT: I even get those warnings when I try using the official 22.03.5 image:

85.official
85.official859×834 94.6 KB

@daniel

6

Of course it gives, because that is wrong image.
That is the recovery image, not sysupgrade.

I proposed that you use the recovery console for flashing. You trigger recovery during boot and end up in the initramfs recovery console that is unique to the RT3200/E8450. You can then use that to completely overwrite the current run-time OpenWrt image.

EDIT:
the versinioning of your current image is so strange, that I guess that that image might be a reason for your problems.

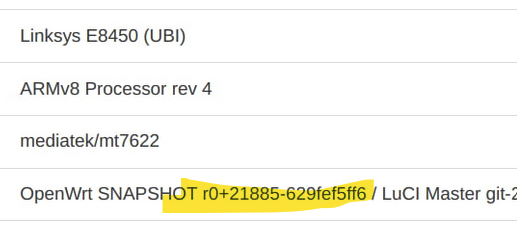

kuva

There is no commit 629fef5ff6 in OpenWrt

7

How does one trigger recovery during boot? I am only aware of holding reset down for 10 sec which resets the configs to factory values. Thanks!

EDIT: Ah, see here, wait for fast blink then hit reset several times.

I used the image I built and flashed with force mode and now everything seems normal. Thanks for the advice.

 sysupgrade -F -i -v /tmp/openwrt-mediatek-mt7622-linksys_e8450-ubi-squashfs-sysupgrade.itb
Image check failed but --force given - will update anyway!
Keep config files over reflash (Y/n): Y
Edit config file list (y/N): N
Thu Jan  1 00:04:13 UTC 1970 upgrade: Saving config files...
etc/config/dhcp
etc/config/dropbear
etc/config/firewall
etc/config/luci
etc/config/rpcd
etc/config/ucitrack
etc/config/uhttpd
etc/dropbear/dropbear_ed25519_host_key
etc/dropbear/dropbear_rsa_host_key
etc/group
etc/hosts
etc/inittab
etc/luci-uploads/.placeholder
etc/nftables.d/10-custom-filter-chains.nft
etc/nftables.d/README
etc/opkg/keys/36499f12d93c34f3
etc/opkg/keys/8a11255d14aef6c8
etc/opkg/keys/b5043e70f9a75cde
etc/passwd
etc/profile
etc/rc.local
etc/shadow
etc/shells
etc/shinit
etc/sysctl.conf
Thu Jan  1 00:04:13 UTC 1970 upgrade: Commencing upgrade. Closing all shell sessions.

There are two images in the RT3200 UBI right? Could this be corresponding to the original dangowrt image? How can I tell which of the two images I am booted into?

8

No. It used normal versining, I think.

Actually no.
That is likely the "normal" OpenWrt failsafe mode.

I meant the RT3200-specific recovery console.

9

Thanks for the advice... it seems that just running the force option did the trick.

There are two boot partitions with two images in the RT3200 UBI right? How can I tell which of the two images I am booted into?

10

ubus call system board

or

cat /etc/os-release

The version in either of those should match what you cloned/built.
