Hello, I'm in the process of setting up my network and ran into the following problem(s), and have no clue on how to fix these issues.
- I'm unable to ping my DNS Server from within
192.168.0.0/24. Caddy cannot ping AGH, but I can ping AGH from any client that's routed via the Router... - I cannot
sshfrom my client (192.168.1.50) to192.168.0.5, but ssh to192.168.1.5works.
I use DNS Port Forwarding to redirect all DNS traffic, even forced nameservers, to my internal DNS. I deleted the 192.168.0.0/24 route on AGH as suggested by this tutorial video: https://youtu.be/Q-xDtCxnD0Q?t=1400 to make requests go over the router.
dns~# ip route
default via 192.168.0.1 dev eth0 metric 249
-192.168.0.0/24 dev eth0 scope link src 192.168.0.204
Removing this route causes my pings to AGH to fail. I have to add a custom route on caddy to route to 192.168.0.1 in order to make ping work again. Since AGH has a webui and caddy is my reverse proxy, only caddy really needs access to AGH. All traffic to AGH either goes through the router or to the reverse proxy. When I do this it works for a few minutes, maybe hours, but eventually fails. Sometimes it adds additional routes. Deleting the 192.168.0.0/24 route also works, but then all other 192.168.0.0/24 clients can't ping caddy either...
caddy:~# ip route
default via 192.168.0.1 dev eth0 metric 202
192.168.0.0/24 dev eth0 scope link src 192.168.0.99
+192.168.0.204 via 192.168.0.1 dev eth0
Also, as soon as I add this route I'm unable to ping .lan hosts:
caddy:~# traceroute bleproxy.lan
traceroute: bad address 'bleproxy.lan'
In addition to this problem, and maybe even related, is the issue that I cannot ssh into 192.168.0.5 anymore from 192.168.1.50/24, but I can ssh from 192.168.1.1/24... I can ping 192.168.0.5 from 192.168.1.50 however.

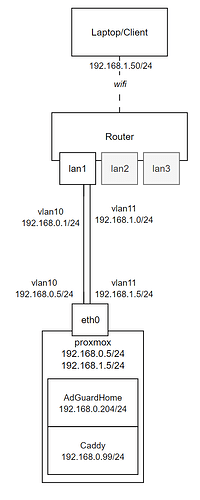

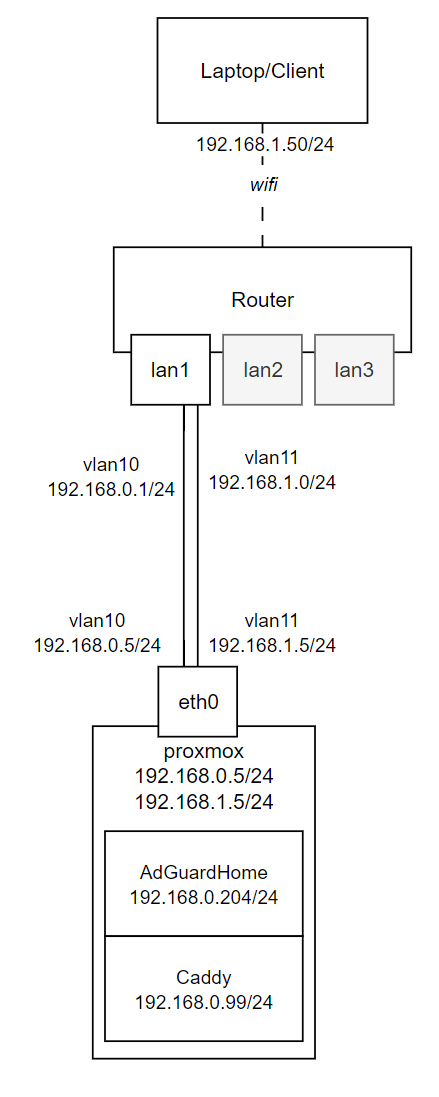

This is the topology, simplified.
My router config:
~# ubus call system board
{
"kernel": "5.15.134",
"hostname": "OpenWrt",
"system": "MediaTek MT7621 ver:1 eco:3",
"model": "ASUS RT-AX53U",
"board_name": "asus,rt-ax53u",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05.0",
"revision": "r23497-6637af95aa",
"target": "ramips/mt7621",
"description": "OpenWrt 23.05.0 r23497-6637af95aa"
}
}
~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option packet_steering '1'
option ula_prefix 'fdd0:a84f:5d28::/48'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
option peerdns '0'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
option reqaddress 'try'
option reqprefix 'auto'
option peerdns '0'
config device
option type 'bridge'
option name 'br-guest'
config interface 'guest'
option device 'br-guest'
option proto 'static'
option ipaddr '192.168.255.1'
option netmask '255.255.255.0'
config interface 'infra'
option proto 'static'
option ipaddr '192.168.0.1'
option netmask '255.255.255.0'
option device 'br-vlan10'
config interface 'lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
option device 'br-vlan11'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
config bridge-vlan
option device 'br-lan'
option vlan '10'
list ports 'lan1:t'
list ports 'lan2'
config bridge-vlan
option device 'br-lan'
option vlan '11'
list ports 'lan1:t'
list ports 'lan3'
config device
option type 'bridge'
option name 'br-vlan10'
list ports 'br-lan.10'
option bridge_empty '1'
config device
option type 'bridge'
option name 'br-vlan11'
list ports 'br-lan.11'
option bridge_empty '1'
config interface 'iot'
option proto 'static'
option ipaddr '192.168.3.1'
option netmask '255.255.255.0'
option device 'br-iot'
config device
option type 'bridge'
option name 'br-iot'
~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0'
option channel '1'
option band '2g'
option htmode 'HE20'
option cell_density '0'
option country 'AT'
config wifi-iface 'default_radio0'
option device 'radio0'
option mode 'ap'
option ssid 'ABC'
option encryption 'psk2'
option key 'XYZ'
option network 'lan'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
config wifi-device 'radio1'
option type 'mac80211'
option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0+1'
option channel '36'
option band '5g'
option htmode 'HE80'
option cell_density '0'
option country 'AT'
config wifi-iface 'default_radio1'
option device 'radio1'
option mode 'ap'
option ssid 'ABC'
option encryption 'psk2'
option key 'XYZ'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
option network 'lan'
config wifi-iface 'wifinet2'
option device 'radio0'
option mode 'ap'
option ssid 'ABC-Guest'
option key 'XYZ'
option encryption 'psk2'
option network 'guest'
option isolate '1'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
config wifi-iface 'wifinet3'
option device 'radio1'
option mode 'ap'
option ssid 'ABC-Guest'
option key 'XYZ'
option encryption 'psk2'
option isolate '1'
option network 'guest'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
config wifi-iface 'wifinet5'
option device 'radio0'
option mode 'ap'
option ssid 'ABCIoT'
option encryption 'psk2'
option key 'XYZ'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
option network 'infra'
config wifi-iface 'wifinet6'
option device 'radio1'
option mode 'ap'
option ssid 'ABC IoT'
option encryption 'psk2'
option key 'XYZ'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
option network 'infra'
~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option localise_queries '1'
option expandhosts '1'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option localservice '1'
option ednspacket_max '1232'
option rebind_protection '0'
option local '/lan/'
option domain 'lan'
list server '192.168.0.204#53'
option logqueries '1'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
config dhcp 'guest'
option interface 'guest'
option start '100'
option limit '150'
option leasetime '12h'
# config host static leases truncated...
config dhcp 'infra'
option interface 'infra'
option start '100'
option limit '150'
option leasetime '12h'
config dhcp 'iot'
option interface 'iot'
option start '100'
option limit '150'
option leasetime '12h'
~# cat /etc/config/firewall
config defaults
option syn_flood '1'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'DROP'
option flow_offloading '1'
option drop_invalid '1'
config zone
option name 'guest'
option output 'ACCEPT'
list network 'guest'
option input 'REJECT'
option forward 'REJECT'
config zone
option name 'iot'
option output 'ACCEPT'
list network 'iot'
option forward 'REJECT'
option input 'REJECT'
config zone
option name 'infra'
option input 'ACCEPT'
option output 'ACCEPT'
list network 'infra'
option forward 'ACCEPT'
config zone
option name 'lan'
list network 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
config zone
option name 'wan'
list network 'wan'
list network 'wan6'
option output 'ACCEPT'
option masq '1'
option mtu_fix '1'
option input 'DROP'
option forward 'DROP'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option proto 'icmp'
option family 'ipv4'
option target 'ACCEPT'
list icmp_type 'echo-request'
option src '*'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option proto 'icmp'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
list icmp_type 'bad-header'
list icmp_type 'destination-unreachable'
list icmp_type 'echo-reply'
list icmp_type 'echo-request'
list icmp_type 'neighbour-advertisement'
list icmp_type 'neighbour-solicitation'
list icmp_type 'packet-too-big'
list icmp_type 'router-advertisement'
list icmp_type 'router-solicitation'
list icmp_type 'time-exceeded'
list icmp_type 'unknown-header-type'
option src '*'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config redirect
option target 'DNAT'
option name 'Forward IoT DNS'
option src 'iot'
option src_dport '53'
option dest 'infra'
option dest_ip '192.168.0.204'
option dest_port '53'
option src_ip '!192.168.0.204'
config redirect
option name 'Foward INFRA DNS'
option src 'infra'
option src_dport '53'
option dest_ip '192.168.0.204'
option dest_port '53'
option dest 'infra'
option src_ip '!192.168.0.204'
config redirect
option name 'Forward LAN DNS'
option src 'lan'
option src_dport '53'
option dest 'infra'
option dest_ip '192.168.0.204'
option dest_port '53'
option src_ip '!192.168.0.204'
config forwarding
option src 'lan'
option dest 'wan'
config forwarding
option src 'guest'
option dest 'wan'
config forwarding
option src 'infra'
option dest 'lan'
config forwarding
option src 'infra'
option dest 'wan'
config forwarding
option src 'lan'
option dest 'infra'
config rule
option name 'Guest DNS'
option src 'guest'
option dest_port '53'
option target 'ACCEPT'
config rule
option name 'Guest DHCP'
list proto 'udp'
option src 'guest'
option target 'ACCEPT'
option dest_port '67-68'
config rule
option name 'Guest Block All'
option src 'guest'
option target 'DROP'
config forwarding
option src 'iot'
option dest 'wan'
config forwarding
option src 'lan'
option dest 'iot'
config forwarding
option src 'infra'
option dest 'iot'
On AGH the only interesting setting is the upstream DNS server to resolve .lan domains:
upstream_dns:
- https://dns.quad9.net/dns-query
+ - '[/lan/]192.168.0.1'
