Qualcommax NSS Build

Community Builds, Projects & Packages
4343

Hi @bgcngm,

Yes, this is the recipe I use to compile all the devices I support:

CONFIG_NSS_MEM_PROFILE_HIGH=y
# CONFIG_NSS_MEM_PROFILE_MEDIUM is not set
# CONFIG_NSS_MEM_PROFILE_LOW is not set
.....
# CONFIG_ATH11K_MEM_PROFILE_1G is not set
CONFIG_ATH11K_MEM_PROFILE_512M=y
# CONFIG_ATH11K_MEM_PROFILE_256M is not set
.....
#
# Qualcomm IPQ Options
#

#
# Kernel build options
#
# CONFIG_IPQ_MEM_PROFILE_1024 is not set
CONFIG_IPQ_MEM_PROFILE_512=y
# CONFIG_IPQ_MEM_PROFILE_256 is not set
CONFIG_KERNEL_IPQ_MEM_PROFILE=512
CONFIG_KERNEL_SKB_RECYCLER=y
# CONFIG_SKB_RECYCLE_SIZE_1856 is not set
CONFIG_SKB_RECYCLE_SIZE_2304=y
CONFIG_KERNEL_SKB_RECYCLE_SIZE=2304
CONFIG_KERNEL_SKB_RECYCLER_MULTI_CPU=y
# CONFIG_KERNEL_SKB_RECYCLER_PREALLOC is not set
# CONFIG_KERNEL_SKB_FIXED_SIZE_2K is not set
# CONFIG_KERNEL_ALLOC_SKB_PAGE_FRAG_DISABLE is not set
CONFIG_KERNEL_PREEMPT_NONE=y
CONFIG_KERNEL_PREEMPT_NONE_BUILD=y
# CONFIG_KERNEL_PREEMPT is not set
# end of Qualcomm IPQ Options

Regards, Agustin

1 Like
4344

Thanks for sharing. Are these limits doing any good for the issues that I mentioned with memory leak? I mean, is that a known fix or something?

I have Xiaomi AX3600, for the record.

4345

Yep, it is the best configuration between performance and RAM usage.

1 Like
4346

Thanks for the great work. i have AX3600 and just one router. No mesh. Is it stable enough for me to just upgrade ? or i need to do anything in particular ? do i need to start SQM or MWAN3 ? all i have in my setup is adguardhome

4347

Hi @everydaydealer,

With the normal version, you should be fine and you don't need to activate any additional services.

Link: https://github.com/AgustinLorenzo/openwrt/releases/tag/ipq807x-nsswifi-2025-01-09-1946

Regards, Agustin

4348

You can just max out the mem profile. Unused ram is wasted ram^^

4349

Thank you. Even in 5g wifi my speed dropped with this firmware. Iā€™m not sure why. I have 1.5 gbps fiber. In LAN Iā€™m getting 940 mbps. Wifi I usually get 500 plus but now maxing at 90. What can I do?

4350

Hi @everydaydealer,

Check your wifi configuration, something is wrong for sure.

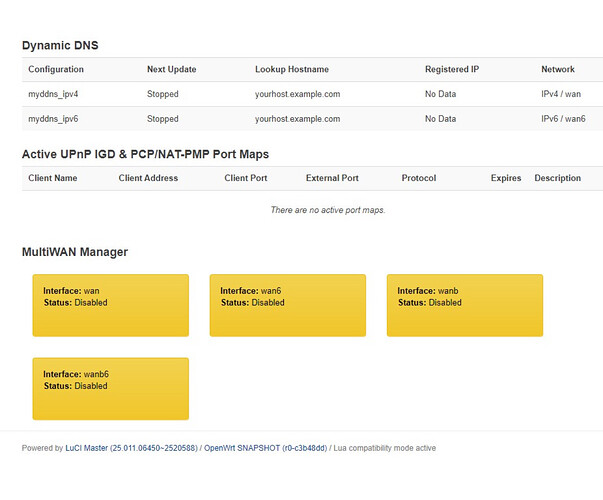

Can you give me a screenshot of LUCI's home page?

Regards, Agustin

4351

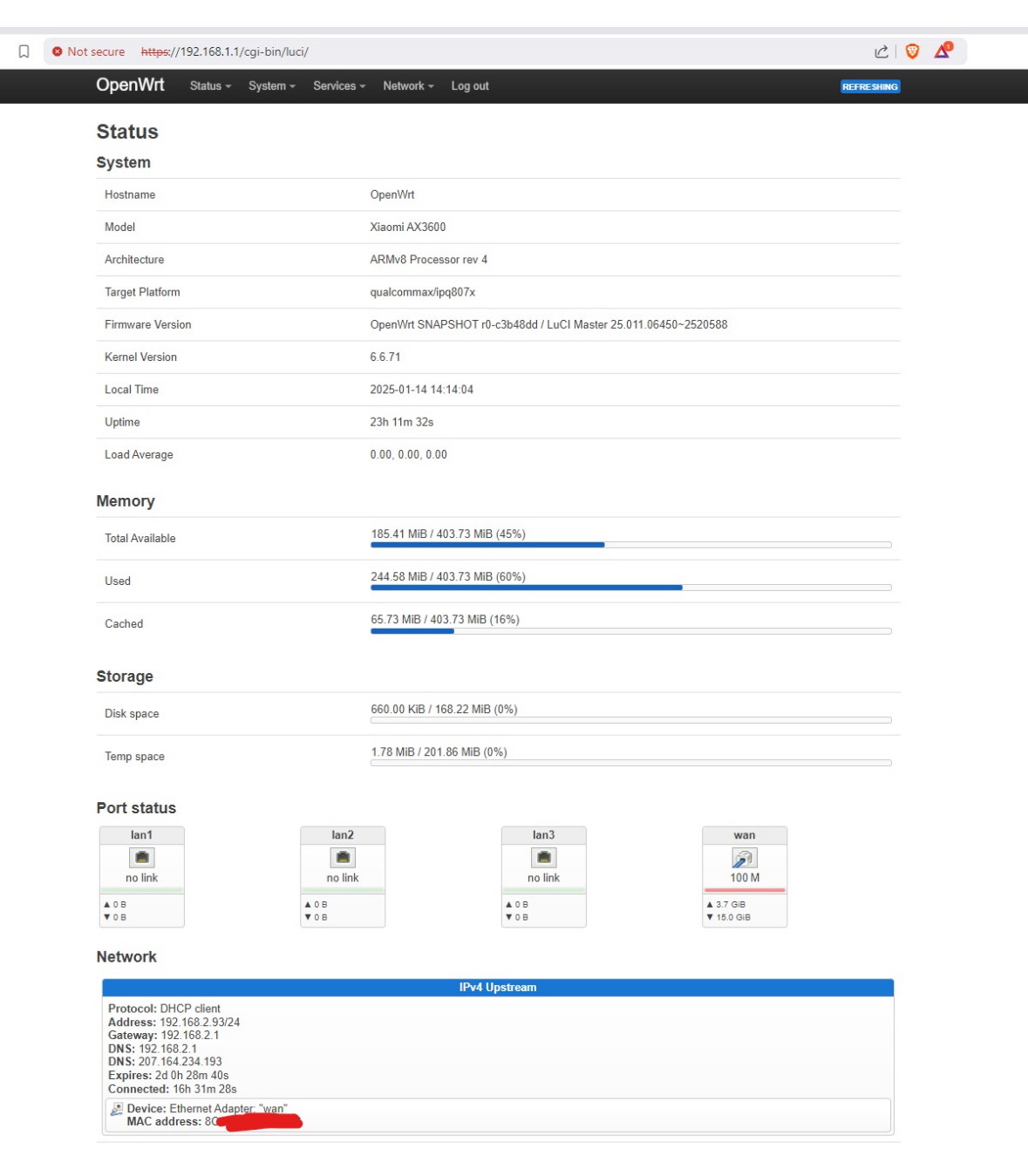

(attachments)

IMG_2695.jpeg1179Ɨ977 112 KB

IMG_2694.jpeg1179Ɨ1349 136 KB

IMG_2696.jpeg1179Ɨ883 116 KB

4352

Hi @everydaydealer,

Check your cable to WAN is stuck at 100M.... (unplug and plug)

Regards, Agustin

2 Likes
4353

who else interests with lto builds
i got very stable lto build with -flto-partition=locality gcc option
I don't know if it has anything to do with performance increase
but its rock solid anyway

currently i only can build with mold-2.34.1 and patch must backported to gcc-14 of course

1 Like
4354

Does anyone knows, what do i need to do to have ethernet clients getting routed trough the main lan-bridge on a router setup as a dhcp client, aka repeater/dumb router? is an mx5300 fresh install, something is not working just with ethernet vlan ports, everyhing else is working smooth

4355

708EA699570364C31709813229AA37BD
708EA699570364C31709813229AA37BD1179Ɨ2366 207 KB

Exciting good news, skb has been fixed, memory recall is now working, wireless is working, nss is working!

2 Likes
4356

where can I find I NSS build for Meraki MR 42 and 52?

4357

They don't exist, yet.

4358

I have never seen my OpenWRT with that much free memory as in the picture, Looking good!

Waiting for @AgustinLorenzo to implement the patches :slight_smile:

4359

hi, it would be nice if you add support for mx8500, thanks!

4360

is ax3600 supported in this ? im not seeing the list of devices supported

4361

I gave it a quick try on one of my MX4300 satellites that currently runs a vanilla build. Looks promising; but unfortunately gets locked out as soon as I apply my VLAN config. If I get a chance, I'll try it this weekend on one of my AX3600s that has serial access to see what's going on.

4362

Works like this for months: https://github.com/JuliusBairaktaris/Qualcommax_NSS_Builder/blob/main/ax3600.config

1 Like
