Openwrt one EN8811H Is this wrong? Is it drawn wrong?

Hardware Questions and Recommendations
1

en8811h

2319118625675893e704369925c600fc

gpy211

693ab68d738a26b85b2861ed04b77cf9

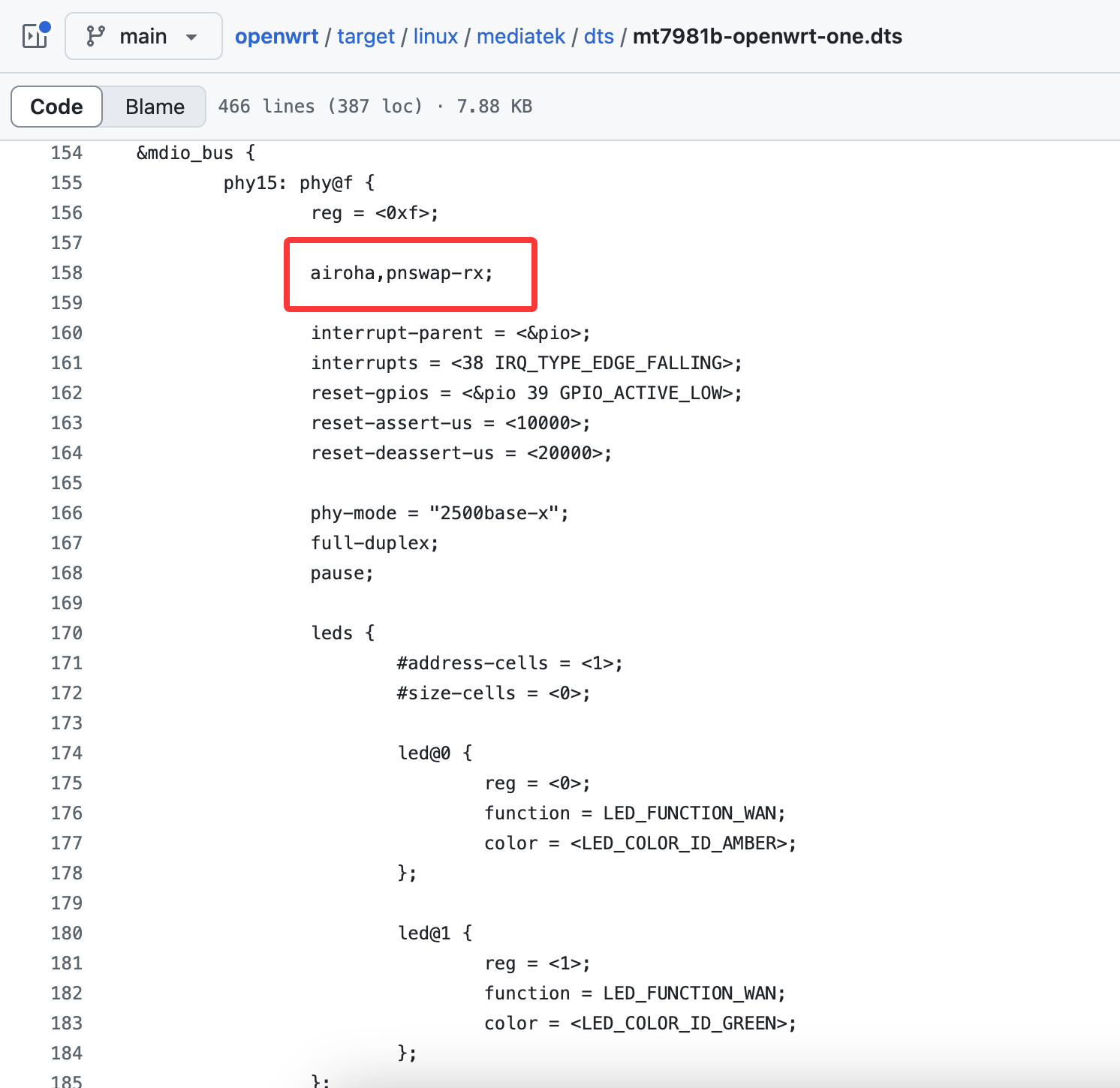

airoha,pnswap-rx;

image1492×1450 232 KB

2

What exactly is your question/point? In the schematic you linked, P and N are swapped on the Rx pair of the Airoha PHY, hence the pnswap-rx line in the DTS. P and N are not swapped on the GPY211.

3

My point is that the en8811h of openwrt one was drawn incorrectly, and then special configuration was made on dts to remedy it?

4

Hm, BananaPI did the same in the R3 Mini and the Arcadyan Mozart has the same property set. I supposes this was done to simplify the PCB layout?
