New OpenWRT based system for security

Community Builds, Projects & Packages
1

Hello all,

I am working on a new OpenWRT based system inluding latest CrowdSec…

All works fine by now and the development continue to elaborate an enduser security home and small companies solutions…

You can check and get some pre release of the projecct at secubox.cybermood.eu and cybermood.eu…

I also put available on the net my own home routeur which is protected by CrowdSec at seccubox.maegia.tv.

All feedback will be greatly appreciate.

The full source code is available on GitHub and will always be…

Have a nice day all.

Stay tuned.

Gandalf @ CyberMind.fr

1 Like
2
1 Like
3

Hello,

When will you be supporting 25.12 or SNAPSHOT?

4

in // development, really soon… it is already in the plan and based code may already advice these master changes…

thx to had asked

6

yesterday: https://live.maegia.tv/

today: https://status.maegia.tv/

more: https://secubox.maegia.tv/secubox-services.html

7

secubox-comic-poster
secubox-comic-poster1080×1350 162 KB

8

Merci beaucoup

Nice initiative, Open Source and European :slight_smile:

1 Like
10

merci… thanks…

11

Next up?

  1. VoIP Integration (secubox-voip) — Asterisk micro-PBX for E2E encrypted calls over WireGuard mesh
  2. Matrix Integration (secubox-matrix) — Conduit Matrix server (~15MB RAM) for E2EE messaging
  3. Factory Auto-Provisioning (secubox-factory) — Auto-provision new nodes via mesh P2P

implementing the SecuBox Station Cloner.

⎿ :black_medium_square: Create secubox-clone-station.sh host tool
:white_medium_square: Create secubox-cloner device CLI
:white_medium_square: Create clone first-boot provisioning script
:white_medium_square: Add clone token to master-link
:white_medium_square: Add clone command to secubox CLI

12

2026-02-09_09-57-32_C3BOX_-_LuCI_https_secubox_maegia_tv_cgi-bin_luci_admin_secubox_security_mitmproxy
2026-02-09_09-57-32_C3BOX_-_LuCI_https_secubox_maegia_tv_cgi-bin_luci_admin_secubox_security_mitmproxy1920×2610 362 KB

crowdsec embedded and augmented

2026-02-09_09-57-21_C3BOX_-_LuCI_https_secubox_maegia_tv_cgi-bin_luci_admin_secubox_security
2026-02-09_09-57-21_C3BOX_-_LuCI_https_secubox_maegia_tv_cgi-bin_luci_admin_secubox_security1920×1133 130 KB

14

Interesting.
Can you consider providing your website in english?
+french of course.
PS : I'm French ! :rofl:

2 Likes
16

great idea, I also add a chinese version to the actual english / french.

1 Like
17
  Summary: OpenWrt SecuBox Analysis
  ┌────────────────┬─────────────────────────────────────────────────────────────────────┐
  │   Component    │                               Details                               │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ OS             │ OpenWrt 24.10.5, Kernel 6.6.119                                     │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ Board          │ mvebu/cortexa72 (MOCHAbin Armada 7040)                              │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ Hostname       │ C3BOX                                                               │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ RAM            │ 8GB (3GB used, 5GB available)                                       │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ Storage        │ 915GB /srv (97% used), 1.8TB /mnt/MUSIC                             │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ LuCI Apps      │ ~55 modules installed                                               │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ SecuBox Apps   │ ~45 packages                                                        │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ RPCD Backends  │ ~100 shell scripts                                                  │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ LXC Containers │ 30 (14 running, 16 stopped)                                         │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ Network        │ br-lan (192.168.255.1), br-wan (DHCP), WireGuard (wg0-2), Yggdrasil │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ Security Stack │ CrowdSec + firewall bouncer, nftables (DROP default), mitmproxy WAF │
  ├────────────────┼─────────────────────────────────────────────────────────────────────┤
  │ DPI            │ Dual-stream (nDPId + netifyd) with correlation                      │
  └────────────────┴─────────────────────────────────────────────────────────────────────┘
18

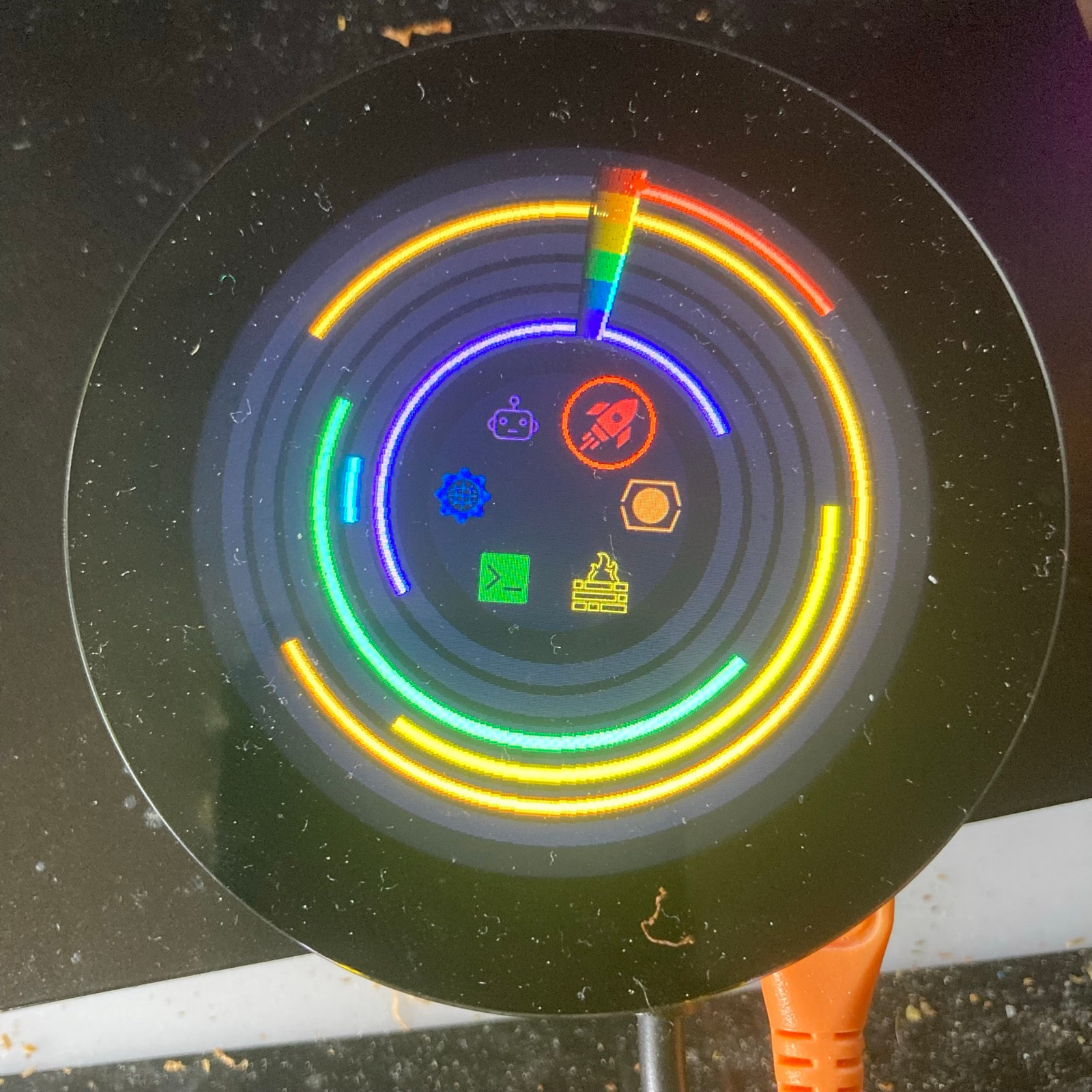

IMG_3082
IMG_30821600×1600 559 KB

remote eye roundui device companion
