Issue on 5G Connection

Installing and Using OpenWrt
1

Hello, OpenWRT noob here. The whole OS has been so freaking cool so far. Makes me never want to touch a Cisco Router ever again LOL. I was looking for some guidance on configuration.

Problem: I can't seem to get a 5G interface to work. Any help is appreciated. I tried to put as much info as possible in this.

Hardware:
1.) Raspberry Pi 4B+
2.) Sixfab 5G Modem (Has a Quectel RM502Q-AE M.2)
3.) T-Mobile SIM

Version:
DISTRIB_ID='OpenWrt'
DISTRIB_RELEASE='23.05.5'
DISTRIB_REVISION='r24106-10cc5fcd00'
DISTRIB_TARGET='bcm27xx/bcm2711'
DISTRIB_ARCH='aarch64_cortex-a72'
DISTRIB_DESCRIPTION='OpenWrt 23.05.5 r24106-10cc5fcd00'
DISTRIB_TAINTS=''

AT Responses:

AT+QENG
ERROR

AT+QNWINFO
+QNWINFO: No Service

OK

AT+C5GREG
OK

AT+COPS
OK

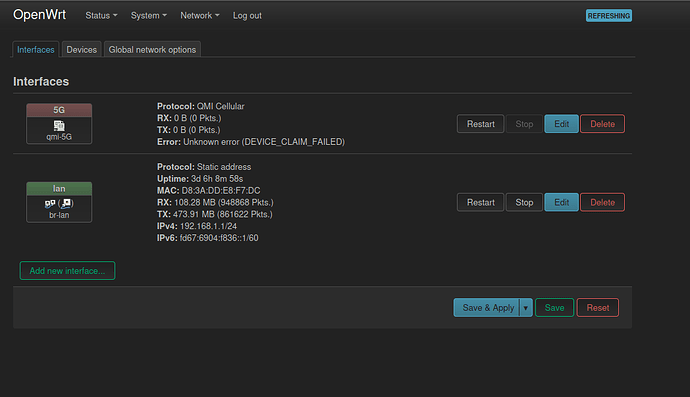

Screenshot from 2024-11-13 21-07-50
Screenshot from 2024-11-13 21-07-501048×603 55.2 KB
