eeemill
January 21, 2025, 10:23pm
1
Hello,

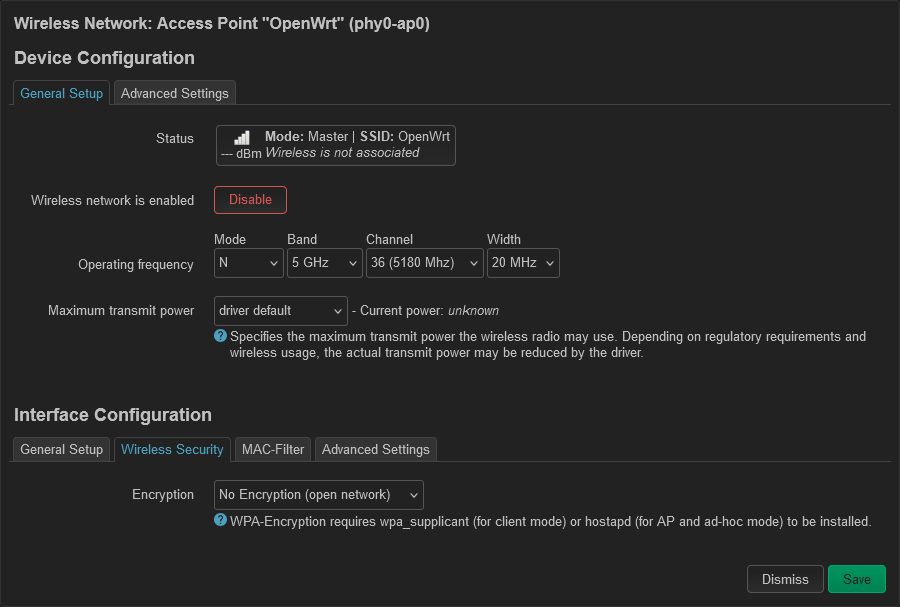

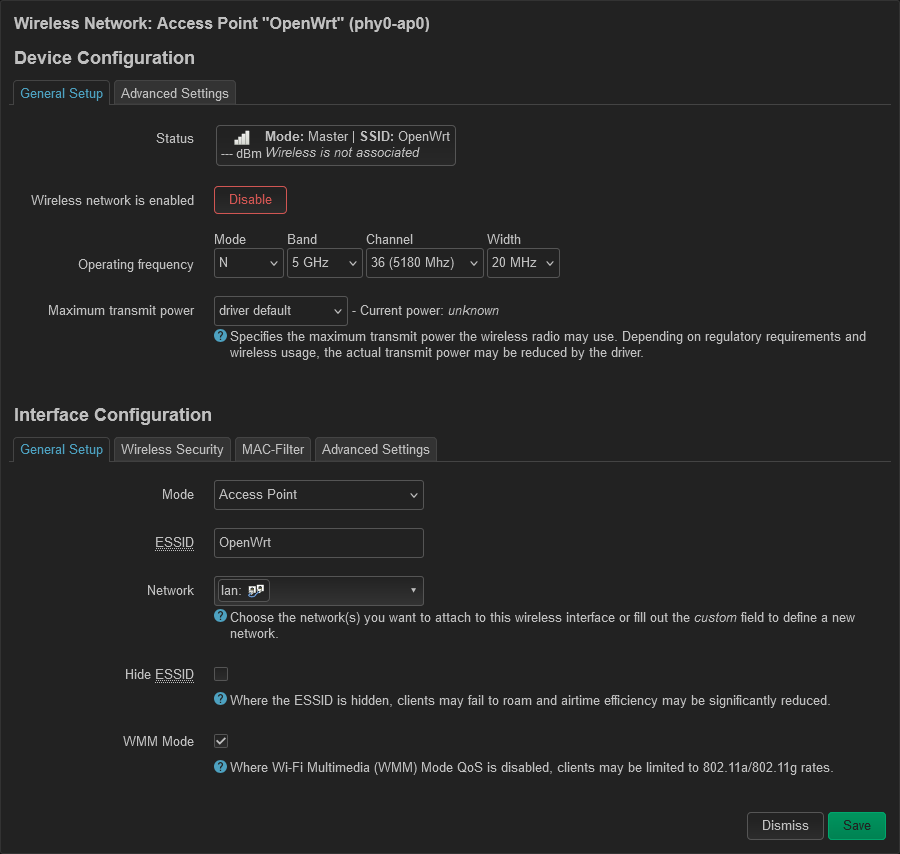

I need some help. I have today reinstalled my router with Openwrt and Luci and everything works except wifi. I have updated the drivers for Qualcomm Atheros QCA9880 802.11ac/b/g/n and Generic MAC80211 802.11a/b/g/n but I dont get it to work. I would like some help. I attach a screenshot.
Thanks in advance.
brada4
January 21, 2025, 10:29pm
2
Rates will appear when the client is connected. Make sure to set at least wpa2 security with word salad password
eeemill
January 21, 2025, 10:33pm
3
I cannot set any encryption on any radio. And I cant find any SSID when I search on my phone.
brada4
January 21, 2025, 10:39pm
4
Press "edit" on each AP
check tx power
get back and disable AP
set country code (upper advanced tab if not in first tab) - save and apply
set security in lower part -save and apply
Done.

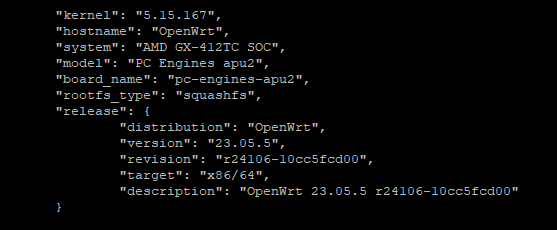

What is your device type (via SSH)
ubus call system board
Does it match what is printed on device label?
eeemill
January 21, 2025, 10:45pm
5
Here is what I get. Thank you again for helping me out.
post a list (not a picture!) of all installed packages (opkg list-installed
).
lspci
of the hw would help too.
Thank you all for helping me out. Here is the output.
ath10k-board-qca988x - 20230804-1
ath10k-firmware-qca988x - 20230804-1
base-files - 1562-r24106-10cc5fcd00
bnx2-firmware - 20230804-1
busybox - 1.36.1-1
ca-bundle - 20230311-1
cgi-io - 2022-08-10-901b0f04-21
dnsmasq - 2.90-2
dropbear - 2022.82-6
e2fsprogs - 1.47.0-2
firewall4 - 2023-09-01-598d9fbb-1
fstools - 2023-02-28-bfe882d5-1
fwtool - 2019-11-12-8f7fe925-1
getrandom - 2022-08-13-4c7b720b-2
grub2 - 2.06-5
grub2-bios-setup - 2.06-5
grub2-efi - 2.06-5
hostapd-common - 2023-09-08-e5ccbfc6-8
iw - 5.19-1
iwinfo - 2023-07-01-ca79f641-1
jansson4 - 2.14-3
jshn - 2023-05-23-75a3b870-1
jsonfilter - 2024-01-23-594cfa86-1
kernel - 5.15.167-1-59d1431675acc6823a33c7eb2323daeb
kmod-amazon-ena - 5.15.167-1
kmod-amd-xgbe - 5.15.167-1
kmod-ath - 5.15.167+6.1.110-1-1
kmod-ath10k - 5.15.167+6.1.110-1-1
kmod-ath9k - 5.15.167+6.1.110-1-1
kmod-ath9k-common - 5.15.167+6.1.110-1-1
kmod-bnx2 - 5.15.167-1
kmod-button-hotplug - 5.15.167-3
kmod-cfg80211 - 5.15.167+6.1.110-1-1
kmod-crypto-acompress - 5.15.167-1
kmod-crypto-aead - 5.15.167-1
kmod-crypto-ccm - 5.15.167-1
kmod-crypto-cmac - 5.15.167-1
kmod-crypto-crc32c - 5.15.167-1
kmod-crypto-ctr - 5.15.167-1
kmod-crypto-gcm - 5.15.167-1
kmod-crypto-gf128 - 5.15.167-1
kmod-crypto-ghash - 5.15.167-1
kmod-crypto-hash - 5.15.167-1
kmod-crypto-hmac - 5.15.167-1
kmod-crypto-manager - 5.15.167-1
kmod-crypto-null - 5.15.167-1
kmod-crypto-rng - 5.15.167-1
kmod-crypto-seqiv - 5.15.167-1
kmod-crypto-sha512 - 5.15.167-1
kmod-e1000 - 5.15.167-1
kmod-e1000e - 5.15.167-1
kmod-forcedeth - 5.15.167-1
kmod-fs-vfat - 5.15.167-1
kmod-hwmon-core - 5.15.167-1
kmod-i2c-algo-bit - 5.15.167-1
kmod-i2c-core - 5.15.167-1
kmod-igb - 5.15.167-1
kmod-igc - 5.15.167-1
kmod-input-core - 5.15.167-1
kmod-ixgbe - 5.15.167-1
kmod-lib-crc-ccitt - 5.15.167-1
kmod-lib-crc32c - 5.15.167-1
kmod-lib-lzo - 5.15.167-1
kmod-libphy - 5.15.167-1
kmod-mac80211 - 5.15.167+6.1.110-1-1
kmod-mdio - 5.15.167-1
kmod-mdio-devres - 5.15.167-1
kmod-mii - 5.15.167-1
kmod-nf-conntrack - 5.15.167-1
kmod-nf-conntrack6 - 5.15.167-1
kmod-nf-flow - 5.15.167-1
kmod-nf-log - 5.15.167-1
kmod-nf-log6 - 5.15.167-1
kmod-nf-nat - 5.15.167-1
kmod-nf-reject - 5.15.167-1
kmod-nf-reject6 - 5.15.167-1
kmod-nfnetlink - 5.15.167-1
kmod-nft-core - 5.15.167-1
kmod-nft-fib - 5.15.167-1
kmod-nft-nat - 5.15.167-1
kmod-nft-offload - 5.15.167-1
kmod-nls-base - 5.15.167-1
kmod-nls-cp437 - 5.15.167-1
kmod-nls-iso8859-1 - 5.15.167-1
kmod-nls-utf8 - 5.15.167-1
kmod-phy-realtek - 5.15.167-1
kmod-ppp - 5.15.167-1
kmod-pppoe - 5.15.167-1
kmod-pppox - 5.15.167-1
kmod-pps - 5.15.167-1
kmod-ptp - 5.15.167-1
kmod-r8169 - 5.15.167-1
kmod-random-core - 5.15.167-1
kmod-slhc - 5.15.167-1
kmod-tg3 - 5.15.167-1
libblkid1 - 2.39-2
libblobmsg-json20230523 - 2023-05-23-75a3b870-1
libc - 1.2.4-4
libcomerr0 - 1.47.0-2
libext2fs2 - 1.47.0-2
libf2fs6 - 1.16.0-1
libgcc1 - 12.3.0-4
libiwinfo-data - 2023-07-01-ca79f641-1
libiwinfo20230701 - 2023-07-01-ca79f641-1
libjson-c5 - 0.16-3
libjson-script20230523 - 2023-05-23-75a3b870-1
liblucihttp-ucode - 2023-03-15-9b5b683f-1
liblucihttp0 - 2023-03-15-9b5b683f-1
libmbedtls12 - 2.28.9-1
libmnl0 - 1.0.5-1
libncurses6 - 6.4-2
libnftnl11 - 1.2.6-1
libnl-tiny1 - 2023-07-27-bc92a280-1
libpthread - 1.2.4-4
librt - 1.2.4-4
libsmartcols1 - 2.39-2
libss2 - 1.47.0-2
libubox20230523 - 2023-05-23-75a3b870-1
libubus20230605 - 2023-06-05-f787c97b-1
libuci20130104 - 2023-08-10-5781664d-1
libuclient20201210 - 2023-04-13-007d9454-1
libucode20230711 - 2024-07-11-1a8a0bcf-3
libustream-mbedtls20201210 - 2023-02-25-498f6e26-1
libuuid1 - 2.39-2
logd - 2022-08-13-4c7b720b-2
luci - git-24.364.71483-75d2b84
luci-app-firewall - git-24.364.71483-75d2b84
luci-app-opkg - git-24.364.71483-75d2b84
luci-base - git-24.364.71483-75d2b84
luci-light - git-24.364.71483-75d2b84
luci-mod-admin-full - git-24.364.71483-75d2b84
luci-mod-network - git-24.364.71483-75d2b84
luci-mod-status - git-24.364.71483-75d2b84
luci-mod-system - git-24.364.71483-75d2b84
luci-proto-ipv6 - git-24.364.71483-75d2b84
luci-proto-ppp - git-24.364.71483-75d2b84
luci-ssl - git-24.364.71483-75d2b84
luci-theme-bootstrap - git-24.364.71483-75d2b84
mkf2fs - 1.16.0-1
mtd - 26
nano - 8.3-1
netifd - 2024-01-04-c18cc79d-2
nftables-json - 1.0.8-1
odhcp6c - 2023-05-12-bcd28363-20
odhcpd-ipv6only - 2023-10-24-d8118f6e-1
openwrt-keyring - 2022-03-25-62471e69-2
opkg - 2022-02-24-d038e5b6-2
partx-utils - 2.39-2
ppp - 2.4.9.git-2021-01-04-4
ppp-mod-pppoe - 2.4.9.git-2021-01-04-4
procd - 2023-06-25-2db83655-2
procd-seccomp - 2023-06-25-2db83655-2
procd-ujail - 2023-06-25-2db83655-2
px5g-mbedtls - 10
r8169-firmware - 20230804-1
rpcd - 2023-07-01-c07ab2f9-1
rpcd-mod-file - 2023-07-01-c07ab2f9-1
rpcd-mod-iwinfo - 2023-07-01-c07ab2f9-1
rpcd-mod-luci - 20240305-1
rpcd-mod-rrdns - 20170710
rpcd-mod-ucode - 2023-07-01-c07ab2f9-1
terminfo - 6.4-2
ubox - 2022-08-13-4c7b720b-2
ubus - 2023-06-05-f787c97b-1
ubusd - 2023-06-05-f787c97b-1
uci - 2023-08-10-5781664d-1
uclient-fetch - 2023-04-13-007d9454-1
ucode - 2024-07-11-1a8a0bcf-3
ucode-mod-fs - 2024-07-11-1a8a0bcf-3
ucode-mod-html - 1
ucode-mod-math - 2024-07-11-1a8a0bcf-3
ucode-mod-ubus - 2024-07-11-1a8a0bcf-3
ucode-mod-uci - 2024-07-11-1a8a0bcf-3
uhttpd - 2023-06-25-34a8a74d-2
uhttpd-mod-ubus - 2023-06-25-34a8a74d-2
urandom-seed - 3
urngd - 2023-11-01-44365eb1-1
usign - 2020-05-23-f1f65026-1
wireless-regdb - 2024.10.07-1
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Root Complex
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Mullins IOMMU
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Host Bridge
00:02.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 16h Processor Functions 5:1
00:02.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 16h Processor Functions 5:1
00:02.4 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 16h Processor Functions 5:1
00:02.5 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 16h Processor Functions 5:1
00:08.0 Encryption controller: Advanced Micro Devices, Inc. [AMD] Kabini/Mullins PSP-Platform Security Processor
00:10.0 USB controller: Advanced Micro Devices, Inc. [AMD] FCH USB XHCI Controller (rev 11)
00:11.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 40)
00:13.0 USB controller: Advanced Micro Devices, Inc. [AMD] FCH USB EHCI Controller (rev 39)
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 42)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 11)
00:14.7 SD Host controller: Advanced Micro Devices, Inc. [AMD] FCH SD Flash Controller (rev 01)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Function 0
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Function 1
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Function 2
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Function 3
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Function 4
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 16h (Models 30h-3fh) Processor Function 5
01:00.0 Network controller: Qualcomm Atheros AR928X Wireless Network Adapter (PCI-Express) (rev 01)
02:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
03:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
04:00.0 Network controller: Qualcomm Atheros QCA986x/988x 802.11ac Wireless Network Adapter
brada4
January 22, 2025, 4:13pm
8
You need wpad-mbedtls
or wpad-openssl to run access point
2 Likes
AWESOME! Thank you so much for the help!
