[How-to] use OpenWRT as a syslog server

[How-to] use OpenWRT as a syslog server



ncat -4 -l -k 5555 | logger


Packages to install via opkg

In my home lab I required a syslog remote viewer, to check the remote logs of a openWRT box.
This post will show the steps I used to create a local syslog veiwer in a openWRT machine.
I used two virtual openWRT machines in PROXMOX, with a physical openWRT box for dhcp.

Naming convention.
SYSLOG machine : syslog-OpenWrt with static IP via DHCP server
REMOTE machine : openwrt-41

Spin up the SYSLOG machine
Using winscp and putty to access the cli.


opkg install luci-i18n-commands-en
opkg install ncat

From https://github.com/gSpotx2f/luci-app-log

wget --no-check-certificate -O /tmp/luci-app-log_0.6-2_all.ipk https://github.com/gSpotx2f/packages-openwrt/raw/master/current/luci-app-log_0.6-2_all.ipk
opkg install /tmp/luci-app-log_0.6-2_all.ipk
rm /tmp/luci-app-log_0.6-2_all.ipk
/etc/init.d/rpcd restart

Using LUCI commands
created command to reset logs

Require ncat to start with machine and continuously monitor port 5555
Using startup command via LuCI
Start netcat session and pass to logfile

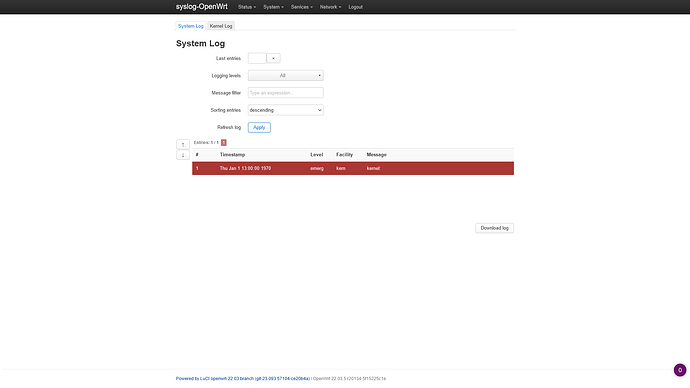

Using LUCI check log file and the ability to clear the logs via LuCI

Check process to confirm netcat has started

Spin up the REMOTE machine.
From https://openwrt.org/docs/guide-user/base-system/log.essentials

Using LUCI set ip and port 555 of remote server using TCP


Check the logs from remote machine via LUCI on the SYSLOG machine

Using message filter I can choose the name of the REMOTE machine : openwrt-41

With this setup I can monitor many REMOTE machine logs, quickly. I do not require to keep a copy of the logs. My setup is for real time monitoring during remote installation.
