GL.iNet GL-MT1300 under the current snapshot build has two 5Ghz radios and none of 2.4Ghz

Hello,

I've flashed my GL-MT1300 with the current snapshot build and noticed the 2.4Ghz radio has gone, while another 5Ghz radio is shown instead (probably a phantom of the actual 5Ghz one):

Is there a workaround to get back the 2.4Ghz radio?

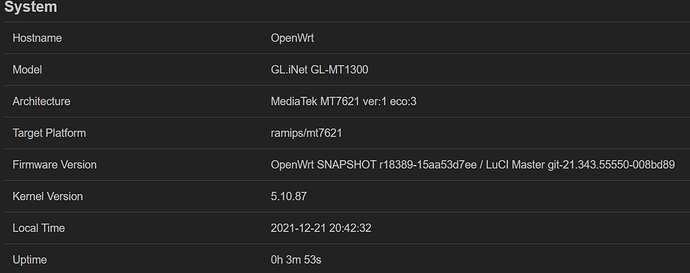

Thanks for any ideas! Here are some pics and the diag info:

root@OpenWrt:~# uci export network; uci export wireless; \
> uci export dhcp; uci export firewall; \
> wifi status ; iwinfo ; iw list
package network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option packet_steering '1'
        option ula_prefix 'fd4b:0c15:a28f::/48'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config interface 'wan'
        option device 'wan'
        option proto 'dhcp'

config interface 'wan6'
        option device 'wan'
        option proto 'dhcpv6'

package wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
        option channel '36'
        option band '5g'
        option htmode 'VHT80'
        option disabled '1'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'none'

config wifi-device 'radio1'
        option type 'mac80211'
        option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0+1'
        option channel '36'
        option band '5g'
        option htmode 'VHT80'
        option disabled '1'

config wifi-iface 'default_radio1'
        option device 'radio1'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'none'

package dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

package firewall

config defaults
        option syn_flood '1'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'REJECT'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option src_ip 'fc00::/6'
        option dest_ip 'fc00::/6'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config rule
        option name 'Support-UDP-Traceroute'
        option src 'wan'
        option dest_port '33434:33689'
        option proto 'udp'
        option family 'ipv4'
        option target 'REJECT'
        option enabled 'false'

config include
        option path '/etc/firewall.user'

{
        "radio0": {
                "up": false,
                "pending": false,
                "autostart": true,
                "disabled": true,
                "retry_setup_failed": false,
                "config": {
                        "path": "1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0",
                        "channel": "36",
                        "band": "5g",
                        "htmode": "VHT80",
                        "disabled": true
                },
                "interfaces": [
                        {
                                "section": "default_radio0",
                                "config": {
                                        "mode": "ap",
                                        "ssid": "OpenWrt",
                                        "encryption": "none",
                                        "network": [
                                                "lan"
                                        ],
                                        "mode": "ap"
                                },
                                "vlans": [

                                ],
                                "stations": [

                                ]
                        }
                ]
        },
        "radio1": {
                "up": false,
                "pending": false,
                "autostart": true,
                "disabled": true,
                "retry_setup_failed": false,
                "config": {
                        "path": "1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0+1",
                        "channel": "36",
                        "band": "5g",
                        "htmode": "VHT80",
                        "disabled": true
                },
                "interfaces": [
                        {
                                "section": "default_radio1",
                                "config": {
                                        "mode": "ap",
                                        "ssid": "OpenWrt",
                                        "encryption": "none",
                                        "network": [
                                                "lan"
                                        ],
                                        "mode": "ap"
                                },
                                "vlans": [

                                ],
                                "stations": [

                                ]
                        }
                ]
        }
}
wlan0     ESSID: unknown
          Access Point: 94:83:C4:08:89:4E
          Mode: Client  Channel: unknown (unknown)
          Center Channel 1: unknown 2: unknown
          Tx-Power: 3 dBm  Link Quality: unknown/70
          Signal: unknown  Noise: unknown
          Bit Rate: unknown
          Encryption: unknown
          Type: nl80211  HW Mode(s): 802.11nac
          Hardware: 14C3:7615 7615:14C3 [MediaTek MT7615E]
          TX power offset: none
          Frequency offset: none
          Supports VAPs: yes  PHY name: phy0

wlan1     ESSID: unknown
          Access Point: 16:83:C4:08:89:4E
          Mode: Client  Channel: unknown (unknown)
          Center Channel 1: unknown 2: unknown
          Tx-Power: 3 dBm  Link Quality: unknown/70
          Signal: unknown  Noise: unknown
          Bit Rate: unknown
          Encryption: unknown
          Type: nl80211  HW Mode(s): 802.11nac
          Hardware: 14C3:7615 7615:14C3 [MediaTek MT7615E]
          TX power offset: none
          Frequency offset: none
          Supports VAPs: yes  PHY name: phy1

Wiphy phy1
        wiphy index: 1
        max # scan SSIDs: 4
        max scan IEs length: 543 bytes
        max # sched scan SSIDs: 10
        max # match sets: 16
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Device supports T-DLS.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
        Band 2:
                Capabilities: 0x1ff
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX Greenfield
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 3839 bytes
                        No DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: No restriction (0x00)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x338001b0):
                        Max MPDU length: 3895
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                Frequencies:
                        * 5180 MHz [36] (20.0 dBm)
                        * 5200 MHz [40] (20.0 dBm)
                        * 5220 MHz [44] (20.0 dBm)
                        * 5240 MHz [48] (20.0 dBm)
                        * 5260 MHz [52] (20.0 dBm) (no IR, radar detection)
                        * 5280 MHz [56] (20.0 dBm) (no IR, radar detection)
                        * 5300 MHz [60] (20.0 dBm) (no IR, radar detection)
                        * 5320 MHz [64] (20.0 dBm) (no IR, radar detection)
                        * 5500 MHz [100] (20.0 dBm) (no IR, radar detection)
                        * 5520 MHz [104] (20.0 dBm) (no IR, radar detection)
                        * 5540 MHz [108] (20.0 dBm) (no IR, radar detection)
                        * 5560 MHz [112] (20.0 dBm) (no IR, radar detection)
                        * 5580 MHz [116] (20.0 dBm) (no IR, radar detection)
                        * 5600 MHz [120] (20.0 dBm) (no IR, radar detection)
                        * 5620 MHz [124] (20.0 dBm) (no IR, radar detection)
                        * 5640 MHz [128] (20.0 dBm) (no IR, radar detection)
                        * 5660 MHz [132] (20.0 dBm) (no IR, radar detection)
                        * 5680 MHz [136] (20.0 dBm) (no IR, radar detection)
                        * 5700 MHz [140] (20.0 dBm) (no IR, radar detection)
                        * 5720 MHz [144] (20.0 dBm) (no IR, radar detection)
                        * 5745 MHz [149] (20.0 dBm) (no IR)
                        * 5765 MHz [153] (20.0 dBm) (no IR)
                        * 5785 MHz [157] (20.0 dBm) (no IR)
                        * 5805 MHz [161] (20.0 dBm) (no IR)
                        * 5825 MHz [165] (20.0 dBm) (no IR)
                        * 5845 MHz [169] (disabled)
                        * 5865 MHz [173] (disabled)
        valid interface combinations:
                 * #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 16,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: 65535
        max scan plan iterations: 0
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
Wiphy phy0
        wiphy index: 0
        max # scan SSIDs: 4
        max scan IEs length: 2304 bytes
        max # sched scan SSIDs: 0
        max # match sets: 0
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Device supports T-DLS.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
        Band 1:
                Capabilities: 0x1ff
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX Greenfield
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 3839 bytes
                        No DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: No restriction (0x00)
                HT TX/RX MCS rate indexes supported: 0-15
                Frequencies:
                        * 2412 MHz [1] (20.0 dBm)
                        * 2417 MHz [2] (20.0 dBm)
                        * 2422 MHz [3] (20.0 dBm)
                        * 2427 MHz [4] (20.0 dBm)
                        * 2432 MHz [5] (20.0 dBm)
                        * 2437 MHz [6] (20.0 dBm)
                        * 2442 MHz [7] (20.0 dBm)
                        * 2447 MHz [8] (20.0 dBm)
                        * 2452 MHz [9] (20.0 dBm)
                        * 2457 MHz [10] (20.0 dBm)
                        * 2462 MHz [11] (20.0 dBm)
                        * 2467 MHz [12] (20.0 dBm) (no IR)
                        * 2472 MHz [13] (20.0 dBm) (no IR)
                        * 2484 MHz [14] (20.0 dBm) (no IR)
        Band 2:
                Capabilities: 0x1ff
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX Greenfield
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 3839 bytes
                        No DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: No restriction (0x00)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x338001b0):
                        Max MPDU length: 3895
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                Frequencies:
                        * 5180 MHz [36] (20.0 dBm)
                        * 5200 MHz [40] (20.0 dBm)
                        * 5220 MHz [44] (20.0 dBm)
                        * 5240 MHz [48] (20.0 dBm)
                        * 5260 MHz [52] (20.0 dBm) (no IR, radar detection)
                        * 5280 MHz [56] (20.0 dBm) (no IR, radar detection)
                        * 5300 MHz [60] (20.0 dBm) (no IR, radar detection)
                        * 5320 MHz [64] (20.0 dBm) (no IR, radar detection)
                        * 5500 MHz [100] (20.0 dBm) (no IR, radar detection)
                        * 5520 MHz [104] (20.0 dBm) (no IR, radar detection)
                        * 5540 MHz [108] (20.0 dBm) (no IR, radar detection)
                        * 5560 MHz [112] (20.0 dBm) (no IR, radar detection)
                        * 5580 MHz [116] (20.0 dBm) (no IR, radar detection)
                        * 5600 MHz [120] (20.0 dBm) (no IR, radar detection)
                        * 5620 MHz [124] (20.0 dBm) (no IR, radar detection)
                        * 5640 MHz [128] (20.0 dBm) (no IR, radar detection)
                        * 5660 MHz [132] (20.0 dBm) (no IR, radar detection)
                        * 5680 MHz [136] (20.0 dBm) (no IR, radar detection)
                        * 5700 MHz [140] (20.0 dBm) (no IR, radar detection)
                        * 5720 MHz [144] (20.0 dBm) (no IR, radar detection)
                        * 5745 MHz [149] (20.0 dBm) (no IR)
                        * 5765 MHz [153] (20.0 dBm) (no IR)
                        * 5785 MHz [157] (20.0 dBm) (no IR)
                        * 5805 MHz [161] (20.0 dBm) (no IR)
                        * 5825 MHz [165] (20.0 dBm) (no IR)
                        * 5845 MHz [169] (disabled)
                        * 5865 MHz [173] (disabled)
        valid interface combinations:
                 * #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 16,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: 0
        max scan plan iterations: 0
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
root@OpenWrt:~#

Try SSH in to the router and typing " rm /etc/config/wireless "
Then " wifi "
This will try and make your router reconfig your wifi radios.

1 Like

Thanks @tapper, sadly that didn't solve the problem. Running wifi didn't recreate /etc/config/wireless by itself (I also tried wifi reconf, wifi reload), I had to reboot.

Upon reboot, I still see two MediaTek MT7615E 802.11nac radios in Luci Wireless section, and the 2.4Ghz band is missing on each of them:

1 Like

Ok, I've found a workaround, thanks to this.

The following /etc/config/wireless works for me, now I have 2.4Ghz on radio0 and 5Ghz on radio1:

config wifi-device 'radio0'
        option type 'mac80211'
        option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
        option channel '11'
        option hwmode '11g'
        option band '2.4g'
        option htmode 'HT20'
        option disabled '1'

        # == alternatively ==
        # option disabled_path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
        # option phy 'phy0'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'none'

config wifi-device 'radio1'
        option type 'mac80211'
        option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0+1'
        option channel '36'
        option hwmode '11a'
        option band '5g'
        option htmode 'VHT80'
        option disabled '1'

        # == alternatively ==
        # option disabled_path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0+1'
        # option phy 'phy1'

config wifi-iface 'default_radio1'
        option device 'radio1'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'none'

For the record, the current iw list output:

Wiphy phy1
        wiphy index: 1
        max # scan SSIDs: 4
        max scan IEs length: 543 bytes
        max # sched scan SSIDs: 10
        max # match sets: 16
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Device supports T-DLS.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
        Band 2:
                Capabilities: 0x1ff
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX Greenfield
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 3839 bytes
                        No DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: No restriction (0x00)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x338001b0):
                        Max MPDU length: 3895
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                Frequencies:
                        * 5180 MHz [36] (20.0 dBm)
                        * 5200 MHz [40] (20.0 dBm)
                        * 5220 MHz [44] (20.0 dBm)
                        * 5240 MHz [48] (20.0 dBm)
                        * 5260 MHz [52] (20.0 dBm) (no IR, radar detection)
                        * 5280 MHz [56] (20.0 dBm) (no IR, radar detection)
                        * 5300 MHz [60] (20.0 dBm) (no IR, radar detection)
                        * 5320 MHz [64] (20.0 dBm) (no IR, radar detection)
                        * 5500 MHz [100] (20.0 dBm) (no IR, radar detection)
                        * 5520 MHz [104] (20.0 dBm) (no IR, radar detection)
                        * 5540 MHz [108] (20.0 dBm) (no IR, radar detection)
                        * 5560 MHz [112] (20.0 dBm) (no IR, radar detection)
                        * 5580 MHz [116] (20.0 dBm) (no IR, radar detection)
                        * 5600 MHz [120] (20.0 dBm) (no IR, radar detection)
                        * 5620 MHz [124] (20.0 dBm) (no IR, radar detection)
                        * 5640 MHz [128] (20.0 dBm) (no IR, radar detection)
                        * 5660 MHz [132] (20.0 dBm) (no IR, radar detection)
                        * 5680 MHz [136] (20.0 dBm) (no IR, radar detection)
                        * 5700 MHz [140] (20.0 dBm) (no IR, radar detection)
                        * 5720 MHz [144] (20.0 dBm) (no IR, radar detection)
                        * 5745 MHz [149] (20.0 dBm)
                        * 5765 MHz [153] (20.0 dBm) (no IR)
                        * 5785 MHz [157] (20.0 dBm) (no IR)
                        * 5805 MHz [161] (20.0 dBm) (no IR)
                        * 5825 MHz [165] (20.0 dBm) (no IR)
                        * 5845 MHz [169] (disabled)
                        * 5865 MHz [173] (disabled)
        valid interface combinations:
                 * #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 16,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: 65535
        max scan plan iterations: 0
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
Wiphy phy0
        wiphy index: 0
        max # scan SSIDs: 4
        max scan IEs length: 2304 bytes
        max # sched scan SSIDs: 0
        max # match sets: 0
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Device supports T-DLS.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
        Band 1:
                Capabilities: 0x1ff
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX Greenfield
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 3839 bytes
                        No DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: No restriction (0x00)
                HT TX/RX MCS rate indexes supported: 0-15
                Frequencies:
                        * 2412 MHz [1] (20.0 dBm)
                        * 2417 MHz [2] (20.0 dBm)
                        * 2422 MHz [3] (20.0 dBm)
                        * 2427 MHz [4] (20.0 dBm)
                        * 2432 MHz [5] (20.0 dBm)
                        * 2437 MHz [6] (20.0 dBm)
                        * 2442 MHz [7] (20.0 dBm)
                        * 2447 MHz [8] (20.0 dBm)
                        * 2452 MHz [9] (20.0 dBm)
                        * 2457 MHz [10] (20.0 dBm)
                        * 2462 MHz [11] (20.0 dBm)
                        * 2467 MHz [12] (20.0 dBm) (no IR)
                        * 2472 MHz [13] (20.0 dBm)
                        * 2484 MHz [14] (20.0 dBm) (no IR)
        Band 2:
                Capabilities: 0x1ff
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX Greenfield
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 3839 bytes
                        No DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: No restriction (0x00)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x338001b0):
                        Max MPDU length: 3895
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                Frequencies:
                        * 5180 MHz [36] (20.0 dBm)
                        * 5200 MHz [40] (20.0 dBm)
                        * 5220 MHz [44] (20.0 dBm)
                        * 5240 MHz [48] (20.0 dBm)
                        * 5260 MHz [52] (20.0 dBm) (no IR, radar detection)
                        * 5280 MHz [56] (20.0 dBm) (no IR, radar detection)
                        * 5300 MHz [60] (20.0 dBm) (no IR, radar detection)
                        * 5320 MHz [64] (20.0 dBm) (no IR, radar detection)
                        * 5500 MHz [100] (20.0 dBm) (no IR, radar detection)
                        * 5520 MHz [104] (20.0 dBm) (no IR, radar detection)
                        * 5540 MHz [108] (20.0 dBm) (no IR, radar detection)
                        * 5560 MHz [112] (20.0 dBm) (no IR, radar detection)
                        * 5580 MHz [116] (20.0 dBm) (no IR, radar detection)
                        * 5600 MHz [120] (20.0 dBm) (no IR, radar detection)
                        * 5620 MHz [124] (20.0 dBm) (no IR, radar detection)
                        * 5640 MHz [128] (20.0 dBm) (no IR, radar detection)
                        * 5660 MHz [132] (20.0 dBm) (no IR, radar detection)
                        * 5680 MHz [136] (20.0 dBm) (no IR, radar detection)
                        * 5700 MHz [140] (20.0 dBm) (no IR, radar detection)
                        * 5720 MHz [144] (20.0 dBm) (no IR, radar detection)
                        * 5745 MHz [149] (20.0 dBm)
                        * 5765 MHz [153] (20.0 dBm) (no IR)
                        * 5785 MHz [157] (20.0 dBm) (no IR)
                        * 5805 MHz [161] (20.0 dBm) (no IR)
                        * 5825 MHz [165] (20.0 dBm) (no IR)
                        * 5845 MHz [169] (disabled)
                        * 5865 MHz [173] (disabled)
        valid interface combinations:
                 * #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 16,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: 0
        max scan plan iterations: 0
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support

This topic was automatically closed 10 days after the last reply. New replies are no longer allowed.
