Dynalink DL-WRX36 Askey RT5010W IPQ8072A technical discussion

For Developers
2863

Does this support dual boot?
If so can we manually change the boot partition from mtd20 to/from mtd18 and/or setup as a fall-over function?
After recently having an attended upgrade to snapshot fail and going through the serial process, it would be useful to use the extra partition and perhaps have a function to use it to backup current configuration.

I've added to the below for changing between partitions and untested, and this will only be useful if you're able to load openwrt, not in a recovery situation.
luci-app-advanced-reboot discussion

2864

It doesn't, currently.
DL-WRX36 has dual partitions, but only one partition is used by OpenWrt, so it is single boot in practice.

Year ago there was discussion about implementing dual-boot functionality, and there is a proof-of-concept code for that. But the idea never took hold.

@luaraneda did this:

Here is actually even code for luci-app-advanced-reboot by @jaharon

3 Likes
2865

If you have implemented the boot from USB you can simply plug in the USB stick, then the initramfs is loaded and you can recover from there (been there done that).
No need for serial.

3 Likes
2866

Unfortunately missed implementing boot from USB before the issue came up

2867

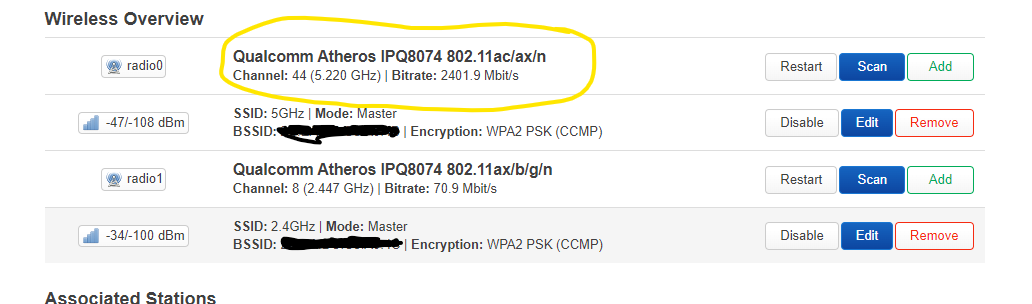

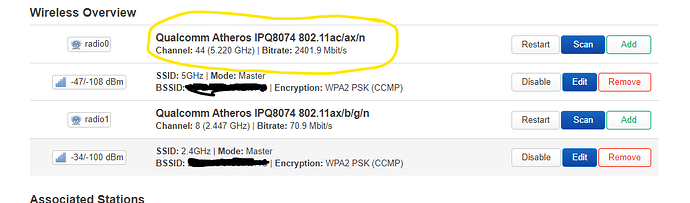

Anyone else have issues with the 5Ghz Radio 0 not working on the DL-WRX36?

I have posted about it in this thread.

2868

From time to time, 5GHz WiFi doesn't work properly on my WRX36, after changing configuration. I need to turn it off, wait a few seconds, turn it on again, and all works reliably for months (until I change something)

2869

I have suffered this before. What channel is your 5GHz radio set to? Try other channels between 36 - 48 and see. Remember to set your region's regulatory domain correctly.

1 Like
2870

So, until you change what thing?

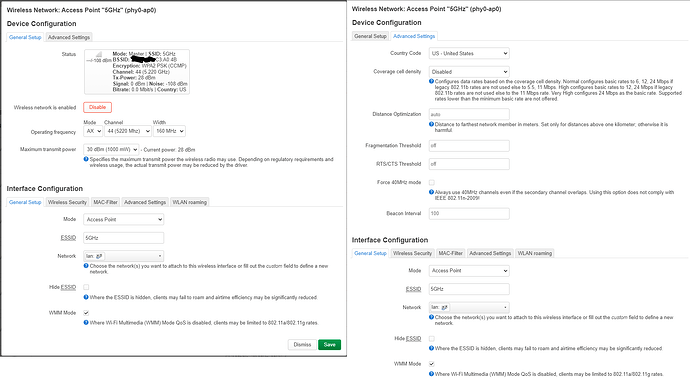

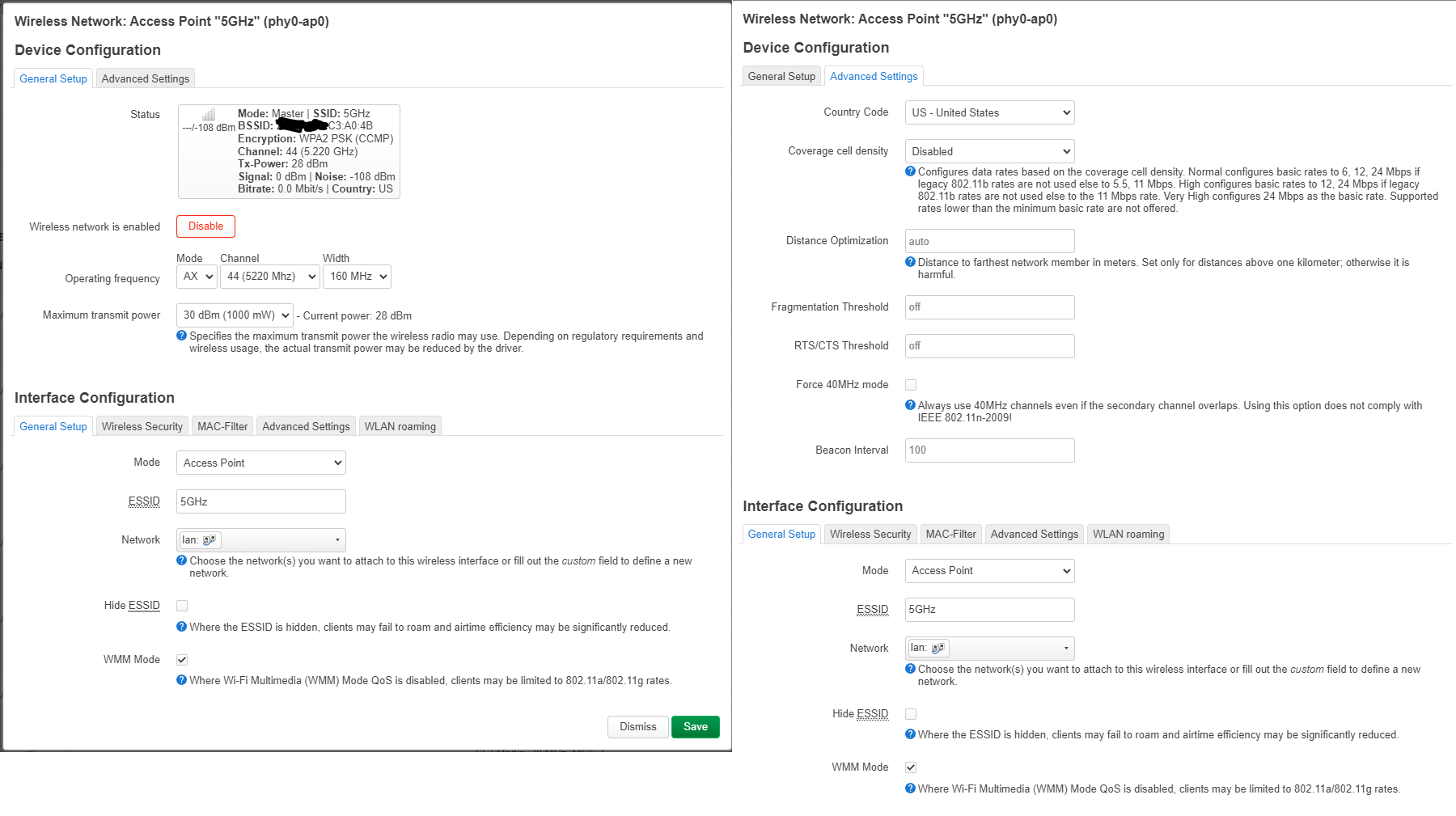

Below is how mine is configured for RELEASE firmware versions. Once in a while, I have to change the channel being used, but that's usually it!

5GHZ
5GHZ1800ร—1009 88.1 KB

2871

So I tried going to the SNAPSHOT and I ended up with a READONLY fs. I could not even update the pkgs or install any. Because I had implemented the boot from USB option, it saved me a lot. I just went back to 23.05.3.
I am wondering what led to the RO fs though.

2872

Until I change anything. Channel, SSID, etc. I never really spent much time investigating it, since changing 5GHz configuration is almost never required, and a power cycle solves it

2873

I am seeing a strange situation on my router. When I login via SSH, I see a normal file listing:

root@172.16.17.1's password:


BusyBox v1.36.1 (2024-04-23 10:36:22 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt 23.05.3, r23809-234f1a2efa
 -----------------------------------------------------
root@DL-WRX36:~# cd /
root@DL-WRX36:/# ls -al
drwxr-xr-x    1 root     root           672 May  1  2024 .
drwxr-xr-x    1 root     root           672 May  1  2024 ..
drwxr-xr-x    1 root     root           160 May  1  2024 bin
drwxr-xr-x    5 root     root          2780 Apr 29 12:48 dev
drwxr-xr-x    1 root     root          2224 May  1  2024 etc
drwxr-xr-x    1 root     root           232 Mar 23 01:09 lib
drwxr-xr-x    1 root     root           296 Apr 28 18:04 mnt
lrwxrwxrwx    1 root     root            13 May  1  2024 opt -> /mnt/sda1/opt
drwxr-xr-x    4 root     root           360 Apr 28 18:05 overlay
dr-xr-xr-x  199 root     root             0 Jan  1  1970 proc
drwxr-xr-x   16 root     root           248 Mar 23 01:09 rom
drwxr-xr-x    1 root     root           160 May  1  2024 root
drwxr-xr-x    2 root     root           913 Mar 23 01:09 sbin
dr-xr-xr-x   13 root     root             0 Jan  1  1970 sys
drwxrwxrwt   22 root     root           640 Apr 29 12:51 tmp
drwxr-xr-x    1 root     root           224 Mar 23 01:09 usr
lrwxrwxrwx    1 root     root             3 Mar 23 01:09 var -> tmp
drwxr-xr-x    4 root     root            79 Mar 23 01:09 www
root@DL-WRX36:/#

However, after some time I find hundreds of zero-sized files, some even having non-ascii characters in their names, in the root directory as well as inside other directories, like in /bin.
I am wondering what could be creating these files. My router is not directly connected to the Internet. It is on the LAN side of my ISPs router.

BusyBox v1.36.1 (2024-04-23 10:36:22 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt 23.05.3, r23809-234f1a2efa
 -----------------------------------------------------
root@DL-WRX36:~# ls -al /
-rw-r--r--    1 root     root             0 May  1 15:46 #
-rw-r--r--    1 root     root             0 May  1 15:41 #:
-rw-r--r--    1 root     root             0 May  1 15:21 $โ–’โ–’ัฅz1โ–’]Iaโ–’โ–’โ–’jR$โ–’
-rw-r--r--    1 root     root             0 May  1 15:39 )
-rw-r--r--    1 root     root             0 May  1 15:52 -
-rw-r--r--    1 root     root             0 May  1 15:52 -W
drwxr-xr-x    1 root     root         20656 May  1 15:52 .
drwxr-xr-x    1 root     root         20656 May  1 15:52 ..
-rw-r--r--    1 root     root             0 May  1 15:31 1โ–’
-rw-r--r--    1 root     root             0 May  1 15:30 1โ–’]Iaโ–’โ–’โ–’jR$
-rw-r--r--    1 root     root             0 May  1 15:16 1โ–’]Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’z1โ–’
-rw-r--r--    1 root     root             0 May  1 15:48 36
-rw-r--r--    1 root     root             0 May  1 15:32 36:found
-rw-r--r--    1 root     root             0 May  1 15:49 6
-rw-r--r--    1 root     root             0 May  1 15:33 6und
-rw-r--r--    1 root     root             0 May  1 15:51 :
-rw-r--r--    1 root     root             0 May  1 15:32 :root@DL-WRX3sh:
-rw-r--r--    1 root     root             0 May  1 15:50 :sh:
-rw-r--r--    1 root     root             0 May  1 15:52 @D
-rw-r--r--    1 root     root             0 May  1 15:44 @DL-WRX
-rw-r--r--    1 root     root             0 May  1 15:30 BjR$โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:36 DL-WRX3
-rw-r--r--    1 root     root             0 May  1 15:48 DL-WRX3sh:
-rw-r--r--    1 root     root             0 May  1 15:47 Dsh:
-rw-r--r--    1 root     root             0 May  1 15:21 Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’z1โ–’]Ia
-rw-r--r--    1 root     root             0 May  1 15:43 L
-rw-r--r--    1 root     root             0 May  1 15:35 R$โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:21 R$โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:37 R$โ–’โ–’โ–’z1โ–’]Iaโ–’โ–’โ–’j:
-rw-r--r--    1 root     root             0 May  1 15:21 R$โ–’โ–’โ–’z1โ–’]Iaโ–’โ–’โ–’jR$โ–’
-rw-r--r--    1 root     root             0 May  1 15:48 RX
-rw-r--r--    1 root     root             0 May  1 15:41 Rro:
-rw-r--r--    1 root     root             0 May  1 15:30 W:
-rw-r--r--    1 root     root             0 May  1 15:47 WRX36:sh:
-rw-r--r--    1 root     root             0 May  1 15:49 Wsh:
-rw-r--r--    1 root     root             0 May  1 15:48 X3
-rw-r--r--    1 root     root             0 May  1 15:37 ]Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’zอก:
-rw-r--r--    1 root     root             0 May  1 15:21 ]Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’zอกโ–’5
-rw-r--r--    1 root     root             0 May  1 15:49 a
-rw-r--r--    1 root     root             0 May  1 15:49 ash:
-rw-r--r--    1 root     root             0 May  1 15:48 ash::
-rw-r--r--    1 root     root             0 May  1 15:19 aโ–’
-rw-r--r--    1 root     root             0 May  1 15:21 aโ–’โ–’โ–’jR$โ–’โ–’โ–’z1โ–’]Iaโ–’
-rw-r--r--    1 root     root             0 May  1 15:48 b
-rw-r--r--    1 root     root             0 May  1 15:35 b:
-rw-r--r--    1 root     root             0 May  1 15:38 bi
-rw-r--r--    1 root     root             0 May  1 15:32 bi::
-rw-r--r--    1 root     root             0 May  1 15:43 biission
drwxr-xr-x    1 root     root          1480 May  1 15:52 bin
-rw-r--r--    1 root     root             0 May  1 15:38 bin#
-rw-r--r--    1 root     root             0 May  1 15:42 binctory
-rw-r--r--    1 root     root             0 May  1 15:42 binected
-rw-r--r--    1 root     root             0 May  1 15:35 binh:
-rw-r--r--    1 root     root             0 May  1 15:31 binied
-rw-r--r--    1 root     root             0 May  1 15:47 binsh:
-rw-r--r--    1 root     root             0 May  1 15:52 bish:
-rw-r--r--    1 root     root             0 May  1 15:38 bit
-rw-r--r--    1 root     root             0 May  1 15:50 bsh:
-rw-r--r--    1 root     root             0 May  1 15:36 bsion
-rw-r--r--    1 root     root             0 May  1 15:47 d
-rw-r--r--    1 root     root             0 May  1 15:44 denied
drwxr-xr-x    5 root     root          2780 Apr 29 12:48 dev
-rw-r--r--    1 root     root             0 May  1 15:49 dsh:
-rw-r--r--    1 root     root             0 May  1 15:43 e
-rw-r--r--    1 root     root             0 May  1 15:49 ected
-rw-r--r--    1 root     root             0 May  1 15:45 ed
-rw-r--r--    1 root     root             0 May  1 15:33 enied
-rw-r--r--    1 root     root             0 May  1 15:49 ermission
-rw-r--r--    1 root     root             0 May  1 15:35 error:
drwxr-xr-x    1 root     root          2224 May  1 15:02 etc
-rw-r--r--    1 root     root             0 May  1 15:52 exsh:
-rw-r--r--    1 root     root             0 May  1 15:49 f
-rw-r--r--    1 root     root             0 May  1 15:43 found
-rw-r--r--    1 root     root             0 May  1 15:51 foundsh:
-rw-r--r--    1 root     root             0 May  1 15:50 h:
-rw-r--r--    1 root     root             0 May  1 15:33 hroot@DL-WRXsion
-rw-r--r--    1 root     root             0 May  1 15:36 ine
-rw-r--r--    1 root     root             0 May  1 15:50 ion
-rw-r--r--    1 root     root             0 May  1 15:50 irectory
-rw-r--r--    1 root     root             0 May  1 15:48 istent
-rw-r--r--    1 root     root             0 May  1 15:30 jR$โ–’โ–’โ–’z1โ–’]Iaโ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:31 jR$โ–’โ–’โ–’z1โ–’]Iaโ–’โ–’โ–’jR
drwxr-xr-x    1 root     root           232 Mar 23 01:09 lib
drwxr-xr-x    1 root     root           296 Apr 28 18:04 mnt
-rw-r--r--    1 root     root             0 May  1 15:52 n
-rw-r--r--    1 root     root             0 May  1 15:42 nd
-rw-r--r--    1 root     root             0 May  1 15:43 newline
-rw-r--r--    1 root     root             0 May  1 15:52 nexpected
-rw-r--r--    1 root     root             0 May  1 15:51 nied
-rw-r--r--    1 root     root             0 May  1 15:49 nonexistent
-rw-r--r--    1 root     root             0 May  1 15:52 not
-rw-r--r--    1 root     root             0 May  1 15:49 ntax
-rw-r--r--    1 root     root             0 May  1 15:39 ntaxโ–’แ•โ–’::
-rw-r--r--    1 root     root             0 May  1 15:43 o
-rw-r--r--    1 root     root             0 May  1 15:49 on
-rw-r--r--    1 root     root             0 May  1 15:49 onexistent
-rw-r--r--    1 root     root             0 May  1 15:49 oot@DLsh:
lrwxrwxrwx    1 root     root            13 May  1 15:04 opt -> /mnt/sda1/opt
-rw-r--r--    1 root     root             0 May  1 15:48 or:
-rw-r--r--    1 root     root             0 May  1 15:52 ot
-rw-r--r--    1 root     root             0 May  1 15:38 ot@D
-rw-r--r--    1 root     root             0 May  1 15:50 ound
drwxr-xr-x    4 root     root           360 Apr 28 18:05 overlay
dr-xr-xr-x  172 root     root             0 Jan  1  1970 proc
-rw-r--r--    1 root     root             0 May  1 15:48 r
-rw-r--r--    1 root     root             0 May  1 15:49 r:
-rw-r--r--    1 root     root             0 May  1 15:31 rash::
-rw-r--r--    1 root     root             0 May  1 15:46 reate
-rw-r--r--    1 root     root             0 May  1 15:36 rermission
-rw-r--r--    1 root     root             0 May  1 15:41 rexpected
-rw-r--r--    1 root     root             0 May  1 15:38 rh:
-rw-r--r--    1 root     root             0 May  1 15:50 rmission
-rw-r--r--    1 root     root             0 May  1 15:48 rnexistent
-rw-r--r--    1 root     root             0 May  1 15:46 rnot
-rw-r--r--    1 root     root             0 May  1 15:52 ro
-rw-r--r--    1 root     root             0 May  1 15:32 ro#
-rw-r--r--    1 root     root             0 May  1 15:52 ro#:
-rw-r--r--    1 root     root             0 May  1 15:48 roate
-rw-r--r--    1 root     root             0 May  1 15:34 rod
-rw-r--r--    1 root     root             0 May  1 15:47 roected
drwxr-xr-x   16 root     root           248 Mar 23 01:09 rom
-rw-r--r--    1 root     root             0 May  1 15:40 ron
-rw-r--r--    1 root     root             0 May  1 15:50 roo
-rw-r--r--    1 root     root             0 May  1 15:21 rood
-rw-r--r--    1 root     root             0 May  1 15:52 rooh:
-rw-r--r--    1 root     root             0 May  1 15:48 roononexistent
-rw-r--r--    1 root     root             0 May  1 15:49 roosh:
-rw-r--r--    1 root     root             0 May  1 15:37 roosh::
drwxr-xr-x    1 root     root           160 May  1 15:02 root
-rw-r--r--    1 root     root             0 May  1 15:46 root#
-rw-r--r--    1 root     root             0 May  1 15:44 root@
-rw-r--r--    1 root     root             0 May  1 15:32 root@#
-rw-r--r--    1 root     root             0 May  1 15:31 root@$โ–’โ–’โ–’::
-rw-r--r--    1 root     root             0 May  1 15:38 root@D
-rw-r--r--    1 root     root             0 May  1 15:32 root@D#
-rw-r--r--    1 root     root             0 May  1 15:48 root@DL
-rw-r--r--    1 root     root             0 May  1 15:44 root@DL-
-rw-r--r--    1 root     root             0 May  1 15:38 root@DL-#:
-rw-r--r--    1 root     root             0 May  1 15:38 root@DL-::
-rw-r--r--    1 root     root             0 May  1 15:21 root@DL-Rzโ–’โ–’โ–’โ–’อกโ–’:
-rw-r--r--    1 root     root             0 May  1 15:48 root@DL-W
-rw-r--r--    1 root     root             0 May  1 15:46 root@DL-W:
-rw-r--r--    1 root     root             0 May  1 15:52 root@DL-WR
-rw-r--r--    1 root     root             0 May  1 15:31 root@DL-WR::
-rw-r--r--    1 root     root             0 May  1 15:45 root@DL-WRX
-rw-r--r--    1 root     root             0 May  1 15:46 root@DL-WRX3
-rw-r--r--    1 root     root             0 May  1 15:46 root@DL-WRX3#
-rw-r--r--    1 root     root             0 May  1 15:45 root@DL-WRX36
-rw-r--r--    1 root     root             0 May  1 15:52 root@DL-WRX36:
-rw-r--r--    1 root     root             0 May  1 15:50 root@DL-WRX36:#
-rw-r--r--    1 root     root             0 May  1 15:38 root@DL-WRX36:#:
-rw-r--r--    1 root     root             0 May  1 15:49 root@DL-WRX36::
-rw-r--r--    1 root     root             0 May  1 15:44 root@DL-WRX36:ent
-rw-r--r--    1 root     root             0 May  1 15:36 root@DL-WRX36:found
-rw-r--r--    1 root     root             0 May  1 15:34 root@DL-WRX36:h::
-rw-r--r--    1 root     root             0 May  1 15:35 root@DL-WRX36:nied
-rw-r--r--    1 root     root             0 May  1 15:34 root@DL-WRX36:ot
-rw-r--r--    1 root     root             0 May  1 15:38 root@DL-WRX36:sh:
-rw-r--r--    1 root     root             0 May  1 15:31 root@DL-WRX36:un
-rw-r--r--    1 root     root             0 May  1 15:40 root@DL-WRX36ash:
-rw-r--r--    1 root     root             0 May  1 15:35 root@DL-WRX36d
-rw-r--r--    1 root     root             0 May  1 15:22 root@DL-WRX36not
-rw-r--r--    1 root     root             0 May  1 15:34 root@DL-WRX36ot
-rw-r--r--    1 root     root             0 May  1 15:51 root@DL-WRX36sh:
-rw-r--r--    1 root     root             0 May  1 15:31 root@DL-WRX36und
-rw-r--r--    1 root     root             0 May  1 15:41 root@DL-WRX36unexpected
-rw-r--r--    1 root     root             0 May  1 15:44 root@DL-WRX3directory
-rw-r--r--    1 root     root             0 May  1 15:35 root@DL-WRX3found
-rw-r--r--    1 root     root             0 May  1 15:33 root@DL-WRX3nd
-rw-r--r--    1 root     root             0 May  1 15:37 root@DL-WRX3rmission
-rw-r--r--    1 root     root             0 May  1 15:32 root@DL-WRX3sh:
-rw-r--r--    1 root     root             0 May  1 15:33 root@DL-WRX3sion
-rw-r--r--    1 root     root             0 May  1 15:33 root@DL-WRX3und
-rw-r--r--    1 root     root             0 May  1 15:49 root@DL-WRX:
-rw-r--r--    1 root     root             0 May  1 15:37 root@DL-WRX::
-rw-r--r--    1 root     root             0 May  1 15:32 root@DL-WRXermission
-rw-r--r--    1 root     root             0 May  1 15:32 root@DL-WRXnot
-rw-r--r--    1 root     root             0 May  1 15:36 root@DL-WRd
-rw-r--r--    1 root     root             0 May  1 15:44 root@DL-WRnd
-rw-r--r--    1 root     root             0 May  1 15:33 root@DL-WRnot
-rw-r--r--    1 root     root             0 May  1 15:35 root@DL-WRon
-rw-r--r--    1 root     root             0 May  1 15:45 root@DL-WRot
-rw-r--r--    1 root     root             0 May  1 15:45 root@DL-WRrectory
-rw-r--r--    1 root     root             0 May  1 15:42 root@DL-WRrmission
-rw-r--r--    1 root     root             0 May  1 15:47 root@DL-WRsh::
-rw-r--r--    1 root     root             0 May  1 15:38 root@DL-Wed
-rw-r--r--    1 root     root             0 May  1 15:35 root@DL-Wh::
-rw-r--r--    1 root     root             0 May  1 15:34 root@DL-Wied
-rw-r--r--    1 root     root             0 May  1 15:39 root@DL-Wirectory
-rw-r--r--    1 root     root             0 May  1 15:45 root@DL-Wmission
-rw-r--r--    1 root     root             0 May  1 15:34 root@DL-Wnied
-rw-r--r--    1 root     root             0 May  1 15:49 root@DL-Wntax
-rw-r--r--    1 root     root             0 May  1 15:48 root@DL-Wsh:
-rw-r--r--    1 root     root             0 May  1 15:32 root@DL-Wsh::
-rw-r--r--    1 root     root             0 May  1 15:36 root@DL-ash:
-rw-r--r--    1 root     root             0 May  1 15:36 root@DL-d
-rw-r--r--    1 root     root             0 May  1 15:32 root@DL-ission
-rw-r--r--    1 root     root             0 May  1 15:46 root@DL-not
-rw-r--r--    1 root     root             0 May  1 15:32 root@DL-root@DL-WRX3:
-rw-r--r--    1 root     root             0 May  1 15:35 root@DL-sh::
-rw-r--r--    1 root     root             0 May  1 15:38 root@DL-ssion
-rw-r--r--    1 root     root             0 May  1 15:31 root@DLash:
-rw-r--r--    1 root     root             0 May  1 15:33 root@DLash::
-rw-r--r--    1 root     root             0 May  1 15:26 root@DLermission
-rw-r--r--    1 root     root             0 May  1 15:35 root@DLfound
-rw-r--r--    1 root     root             0 May  1 15:47 root@DLline
-rw-r--r--    1 root     root             0 May  1 15:33 root@DLnd
-rw-r--r--    1 root     root             0 May  1 15:50 root@DLsh:
-rw-r--r--    1 root     root             0 May  1 15:32 root@DLsh::
-rw-r--r--    1 root     root             0 May  1 15:48 root@DLt
-rw-r--r--    1 root     root             0 May  1 15:42 root@DLund
-rw-r--r--    1 root     root             0 May  1 15:31 root@DPermission
-rw-r--r--    1 root     root             0 May  1 15:49 root@Dd
-rw-r--r--    1 root     root             0 May  1 15:32 root@Ddenied
-rw-r--r--    1 root     root             0 May  1 15:33 root@Ded
-rw-r--r--    1 root     root             0 May  1 15:51 root@Dot
-rw-r--r--    1 root     root             0 May  1 15:30 root@Dsyntax
-rw-r--r--    1 root     root             0 May  1 15:35 root@Dund
-rw-r--r--    1 root     root             0 May  1 15:37 root@enied
-rw-r--r--    1 root     root             0 May  1 15:35 root@ound
-rw-r--r--    1 root     root             0 May  1 15:50 root@sh:
-rw-r--r--    1 root     root             0 May  1 15:38 rootash::
-rw-r--r--    1 root     root             0 May  1 15:32 rootdenied
-rw-r--r--    1 root     root             0 May  1 15:49 rootfound
-rw-r--r--    1 root     root             0 May  1 15:32 rootnd
-rw-r--r--    1 root     root             0 May  1 15:49 rootsh:
-rw-r--r--    1 root     root             0 May  1 15:46 rootwline
-rw-r--r--    1 root     root             0 May  1 15:34 rootโ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:30 roound
-rw-r--r--    1 root     root             0 May  1 15:49 rosh:
-rw-r--r--    1 root     root             0 May  1 15:49 rot
-rw-r--r--    1 root     root             0 May  1 15:37 round
-rw-r--r--    1 root     root             0 May  1 15:52 rsh:
-rw-r--r--    1 root     root             0 May  1 15:44 rt
-rw-r--r--    1 root     root             0 May  1 15:51 rtax
-rw-r--r--    1 root     root             0 May  1 15:51 ry
-rw-r--r--    1 root     root             0 May  1 15:44 s
drwxr-xr-x    2 root     root           913 Mar 23 01:09 sbin
-rw-r--r--    1 root     root             0 May  1 15:43 sh
-rw-r--r--    1 root     root             0 May  1 15:52 sh:
-rw-r--r--    1 root     root             0 May  1 15:37 sh::
-rw-r--r--    1 root     root             0 May  1 15:47 shnexpected
-rw-r--r--    1 root     root             0 May  1 15:50 sion
dr-xr-xr-x   13 root     root             0 Jan  1  1970 sys
-rw-r--r--    1 root     root             0 May  1 15:52 t
-rw-r--r--    1 root     root             0 May  1 15:31 t@DL-WRXission
-rw-r--r--    1 root     root             0 May  1 15:48 ted
drwxrwxrwt   22 root     root           660 May  1 15:13 tmp
-rw-r--r--    1 root     root             0 May  1 15:47 un
-rw-r--r--    1 root     root             0 May  1 15:50 und
drwxr-xr-x    1 root     root           224 Mar 23 01:09 usr
lrwxrwxrwx    1 root     root             3 Mar 23 01:09 var -> tmp
drwxr-xr-x    4 root     root            79 Mar 23 01:09 www
-rw-r--r--    1 root     root             0 May  1 15:42 xistent
-rw-r--r--    1 root     root             0 May  1 15:36 yntax
-rw-r--r--    1 root     root             0 May  1 15:38 z1โ–’]Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:25 zโ–’r:
-rw-r--r--    1 root     root             0 May  1 15:19 zโ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:32 zอกโ–’5Rzโ–’โ–’โ–’โ–’อกโ–’
-rw-r--r--    1 root     root             0 May  1 15:30 โ–’โ–’BjR
-rw-r--r--    1 root     root             0 May  1 15:37 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:33 โ–’โ–’โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:43 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:34 โ–’BjR$
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’ั•โ–’
-rw-r--r--    1 root     root             0 May  1 15:21 โ–’ั•โ–’โ–’โ–’BjR$โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:35 โ–’โ–’โ–’BjR$โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:38 โ–’โ–’ั•โ–’
-rw-r--r--    1 root     root             0 May  1 15:21 โ–’โ–’ั•โ–’โ–’โ–’BjR$โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:33 โ–’โ–’ษฝโ–’้ชโ–’โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:35 โ–’โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:52 โ–’โ–’zโ–’โ–’โ–’โ–’อกโ–’rโ–’ัโ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:40 โ–’5Rzโ–’โ–’โ–’โ–’อก้šโ–’:
-rw-r--r--    1 root     root             0 May  1 15:33 โ–’โ–’โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:38 โ–’โ–’โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:47 โ–’]
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’]Iaโ–’
-rw-r--r--    1 root     root             0 May  1 15:30 โ–’]Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’zอกโ–’
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:21 โ–’:
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’โ–’อก้šโ–’ั…แ•โ–’no
-rw-r--r--    1 root     root             0 May  1 15:30 โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:38 โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:52 โ–’โ–’โ–’z1โ–’]
-rw-r--r--    1 root     root             0 May  1 15:34 โ–’โ–’โ–’zอกโ–’5Rzโ–’โ–’โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:47 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:35 โ–’โ–’ั•โ–’โ–’โ–’JjR$โ–’โ–’ัฅ:
-rw-r--r--    1 root     root             0 May  1 15:19 อก
-rw-r--r--    1 root     root             0 May  1 15:34 อกโ–’5Rzโ–’โ–’::
-rw-r--r--    1 root     root             0 May  1 15:31 อก้š
-rw-r--r--    1 root     root             0 May  1 15:21 โ–’โ–’โ–’jR$
-rw-r--r--    1 root     root             0 May  1 15:21 โ–’โ–’โ–’jR$โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:35 โ–’::
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’z1โ–’]Iaโ–’โ–’โ–’jR$โ–’โ–’โ–’z
-rw-r--r--    1 root     root             0 May  1 15:21 โ–’z1โ–’]Iaโ–’โ–’า‚โ–’*โ–’ั•โ–’
-rw-r--r--    1 root     root             0 May  1 15:41 ั•โ–’โ–’โ–’B
-rw-r--r--    1 root     root             0 May  1 15:44 ั•โ–’โ–’โ–’BjR$โ–’โ–’โ–’อกโ–’
-rw-r--r--    1 root     root             0 May  1 15:36 โ–’jR$โ–’โ–’โ–’zrโ–’ัโ–’โ–’ีนโ–’
-rw-r--r--    1 root     root             0 May  1 15:47 โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:19 โ–’โ–’j
-rw-r--r--    1 root     root             0 May  1 15:38 โ–’า‚โ–’*โ–’ั•ษ•โ–’โ–’โ–’โ–’โ–’:
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’
-rw-r--r--    1 root     root             0 May  1 15:34 โ–’โ–’โ–’ั•โ–’โ–’โ–’
-rw-r--r--    1 root     root             0 May  1 15:31 โ–’
2874

are these permanent or if you log in again does it clear

reason I ask is I have seen issues a bit like this in a shell when MTU is incorrectly configured on a network

edit : actually scroll down and look at the filenames, this is some kind of failing shell command and there is a permission denied error. whatever the error message is, said shell command is somehow using the error message to create empty files. maybe try ls -altr to see if time ordering gives more of a clue then grep your filesystem to see which script might be the culprit.

if correct, "root@DL-WRX36" almost certainly appears in it somewhere, and maybe what we are also seeing there is and incorrect hashed password (randomly chopped up) for root

1 Like
2875

To complement previous advice, have you installed anything, packages, scripts, etc. that should do extra logging and save something to flash? (and could be the reason for the file activity)
By default OpenWrt writes pretty much nothing to the flash during operations, so having files created at all seems strange.

2 Likes
2876

It turns out that I had some integrations within my Home Assistant that were causing these because I had disabled the corresponding scripts in the router.

2877

Interesting could you cite what integrations you installed - per a previous comment I would not expect anything to write to flash, I have HA, but haven't ventured to integrate with openWRT as yet so good to know what to avoid.

2878

Update 2:
My 2nd WRX36 SysUpgrade from Stable to Snapshot then to NSS build without issues. All can boot OK.

So it is only my 1st WRX36 failed to run Snapshot / NSS build - but Stable runs fine.

Can I copy partitions from 2nd WRX36 to 1st WRX36 to make then identical? Which partitions should be copied?

==
Update 1:

I tried using 23.05.3, snapshot, and the NSS custom build.

Only 23.05.3 works by writing with ubiformat to /dev/mtd18 and /dev/mtd20

Both snapshot and NSS build will brick.

==
My WRX36 softbricks again.

About 1 month ago my WRX36 is running snapshot fine for months.

Then after running AttendedSysUpgrade, it softbricked.

I just recover using Serial Console to 23.05.3 OK.

Then I download snapshot again, using Luci to flash the sysupgrade image - openwrt-qualcommax-ipq807x-dynalink_dl-wrx36-squashfs-sysupgrade.bin , then it softbricked again.

Serial Console is giving this error:

cpufreq: cpufreq_online: CPU0: Running at unlisted initial frequency: 800000 KHz, changing to: 1017600 KHz
[    1.208328] remoteproc remoteproc0: cd00000.q6v5_wcss is available
[    1.217642] UBI error: cannot open mtd rootfs, e๏ฟฝ[    1.229127] Waiting for root device /dev/ubiblock0_1...

What is the correct way changing from stable to snapshot?

2879

2 posts were merged into an existing topic: Spectrum SAX1V1K (Askey RT5010W) OpenWrt Support

2880

I'm only getting 500Mbit download via 5GHz WiFi (160MHz, channel 116) on 23.05.3. I already enabled packet steering and software flow offloading. Is there anything else I can do?

Only 160MHz seems to be affected. The 80MHz download speed is even higher. (Tested with Pixel 7 and Intel AX210).

The AX210 receive link is just using 80 MHz instead of 160 MHZ.

I also noticed that the upload speed becomes horrible slow (50mbit instead of 200Mbit) when being just 3 meters away.

2881

2 posts were merged into an existing topic: Spectrum SAX1V1K (Askey RT5010W) OpenWrt Support

2882

Can you try between 36 - 48?

Screenshot 2024-05-16 162920
Screenshot 2024-05-16 1629201032ร—304 30.9 KB
