Doesn't know if it's related the openwrt or not but ever since I Installed openwrt, my download speed kind of drop down for some reason. The speedtest shows i am still able to reach 100+ Mbps. But if I download anything from Google drive or anywhere my download speed just limited at 4 MB/s.
I have checked the router ram usage and cpu load looks normal.
The speed went above 10 MB/s then goes down to 3 MB/s. Before openwrt I can download 12 MB/s just fine.
How do you connect to your ISP and:
Mainly Wifi, but i also have LAN connected to PC, have the same problem.
BusyBox v1.36.1 (2024-02-21 19:17:25 UTC) built-in shell (ash)
_______ ________ __
| |.-----.-----.-----.| | | |.----.| |_
| - || _ | -__| || | | || _|| _|
|_______|| __|_____|__|__||________||__| |____|
|__| W I R E L E S S F R E E D O M
-----------------------------------------------------
OpenWrt SNAPSHOT, r25429-7617d60301
-----------------------------------------------------
root@OpenWrt:~# ubus call system board
{
"kernel": "6.1.78",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Xiaomi AX3600",
"board_name": "xiaomi,ax3600",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"revision": "r25429-7617d60301",
"target": "qualcommax/ipq807x",
"description": "OpenWrt SNAPSHOT r25429-7617d60301"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd20:4960:35a4::/48'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
option ipv6 '0'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'

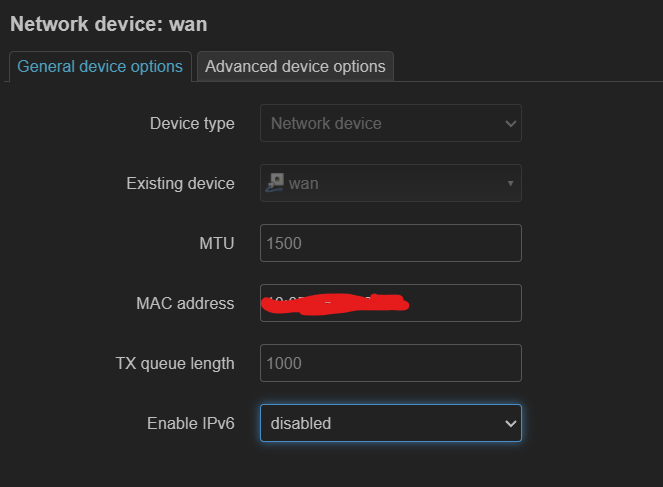

config device
option name 'wan'
option macaddr '*******'
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'soc/20000000.pci/pci0000:00/0000:00:00.0/0000:01:00.0'
option channel '36'
option band '5g'
option htmode 'VHT80'
option disabled '1'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
option disabled '1'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/c000000.wifi'
option channel '36'
option band '5g'
option htmode 'HE160'
option disabled '0'
option country 'US'
option cell_density '0'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'Wifi_5G'
option encryption 'psk2'
option key '*****'
config wifi-device 'radio2'
option type 'mac80211'
option path 'platform/soc/c000000.wifi+1'
option channel 'auto'
option band '2g'
option htmode 'HE20'
option disabled '0'
option country 'US'
option cell_density '0'
config wifi-iface 'default_radio2'
option device 'radio2'
option network 'lan'
option mode 'ap'
option ssid 'Wifi'
option encryption 'psk2'
option key '*****'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option noresolv '1'
option domainneeded '1'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option cachesize '10000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option localservice '1'
option ednspacket_max '1232'
list server '/mask.icloud.com/'
list server '/mask-h2.icloud.com/'
list server '/use-application-dns.net/'
list server '127.0.0.1#5053'
list server '127.0.0.1#5054'
option doh_backup_noresolv '1'
list doh_backup_server '127.0.0.53'
list doh_server '127.0.0.1#5053'
list doh_server '127.0.0.1#5054'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option fullcone '1'
option fullcone6 '0'
option synflood_protect '1'
config zone
option name 'lan'
list network 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
config zone
option name 'wan'
list network 'wan'
list network 'wan6'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config include 'qcanssecm'
option type 'script'
option path '/etc/firewall.d/qca-nss-ecm'
root@OpenWrt:~#
I apologzie for not being more specific:
Cable, fiber,adsl, wireless..
How do you connect to the internet?
And what device gets internet directly with a public address?
So, some sites download a 100Mbps, while others download at 4MB/s, is that right? First thing I would look into is IPv4 vs IPv6: try to disable WAN6, and check the speeds again.
Fiber -> ISP's router (Bridge mode) -> My Router (Clone MAC Adress)
Do you have any device specific VPN you can enable and then try to download from Google?
The only thing I would change in your config is the 160width. I'd bring it down to 80 (for many reasons) but since you have the same slowdown on ethernet it cannot be the problem.
I'm thinking you are getting throttled.
And please run a speed test both wired and Wi-Fi from... ...whomever you prefer and post both results.
Do you have any device specific VPN you can enable and then try to download from Google?
Yes, i tried VPN and still the same.
LAN
.\iperf3.exe -c 192.168.1.1 -R -t 20
Connecting to host 192.168.1.1, port 5201
Reverse mode, remote host 192.168.1.1 is sending
[ 4] local 192.168.1.230 port 59983 connected to 192.168.1.1 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 73.7 MBytes 618 Mbits/sec
[ 4] 1.00-2.00 sec 74.2 MBytes 623 Mbits/sec
[ 4] 2.00-3.00 sec 77.7 MBytes 651 Mbits/sec
[ 4] 3.00-4.00 sec 77.1 MBytes 647 Mbits/sec
[ 4] 4.00-5.00 sec 77.4 MBytes 649 Mbits/sec
[ 4] 5.00-6.00 sec 77.5 MBytes 650 Mbits/sec
[ 4] 6.00-7.00 sec 79.4 MBytes 666 Mbits/sec
[ 4] 7.00-8.00 sec 76.5 MBytes 641 Mbits/sec
[ 4] 8.00-9.00 sec 75.7 MBytes 635 Mbits/sec
[ 4] 9.00-10.00 sec 76.6 MBytes 642 Mbits/sec
[ 4] 10.00-11.00 sec 74.5 MBytes 625 Mbits/sec
[ 4] 11.00-12.00 sec 78.0 MBytes 655 Mbits/sec
[ 4] 12.00-13.00 sec 75.9 MBytes 636 Mbits/sec
[ 4] 13.00-14.00 sec 75.3 MBytes 632 Mbits/sec
[ 4] 14.00-15.00 sec 75.1 MBytes 630 Mbits/sec
[ 4] 15.00-16.00 sec 75.6 MBytes 634 Mbits/sec
[ 4] 16.00-17.00 sec 78.3 MBytes 656 Mbits/sec
[ 4] 17.00-18.00 sec 77.0 MBytes 646 Mbits/sec
[ 4] 18.00-19.00 sec 75.4 MBytes 633 Mbits/sec
[ 4] 19.00-20.00 sec 77.0 MBytes 646 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth Retr
[ 4] 0.00-20.00 sec 1.49 GBytes 641 Mbits/sec 0 sender
[ 4] 0.00-20.00 sec 1.49 GBytes 641 Mbits/sec receiver
.\iperf3.exe -c 192.168.1.1 -t 20
Connecting to host 192.168.1.1, port 5201
[ 4] local 192.168.1.230 port 60010 connected to 192.168.1.1 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 89.1 MBytes 747 Mbits/sec
[ 4] 1.00-2.00 sec 88.5 MBytes 743 Mbits/sec
[ 4] 2.00-3.00 sec 88.9 MBytes 745 Mbits/sec
[ 4] 3.00-4.00 sec 88.2 MBytes 740 Mbits/sec
[ 4] 4.00-5.00 sec 88.6 MBytes 743 Mbits/sec
[ 4] 5.00-6.00 sec 88.6 MBytes 743 Mbits/sec
[ 4] 6.00-7.00 sec 88.9 MBytes 746 Mbits/sec
[ 4] 7.00-8.00 sec 88.6 MBytes 743 Mbits/sec
[ 4] 8.00-9.00 sec 88.4 MBytes 742 Mbits/sec
[ 4] 9.00-10.00 sec 88.4 MBytes 741 Mbits/sec
[ 4] 10.00-11.00 sec 88.4 MBytes 741 Mbits/sec
[ 4] 11.00-12.00 sec 88.5 MBytes 742 Mbits/sec
[ 4] 12.00-13.00 sec 88.4 MBytes 741 Mbits/sec
[ 4] 13.00-14.00 sec 88.1 MBytes 740 Mbits/sec
[ 4] 14.00-15.00 sec 88.5 MBytes 742 Mbits/sec
[ 4] 15.00-16.00 sec 88.6 MBytes 743 Mbits/sec
[ 4] 16.00-17.00 sec 88.2 MBytes 740 Mbits/sec
[ 4] 17.00-18.00 sec 88.5 MBytes 742 Mbits/sec
[ 4] 18.00-19.00 sec 88.1 MBytes 740 Mbits/sec
[ 4] 19.00-20.00 sec 88.6 MBytes 742 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-20.00 sec 1.73 GBytes 742 Mbits/sec sender
[ 4] 0.00-20.00 sec 1.73 GBytes 742 Mbits/sec receiver
Wifi 5 Ghz 160Mhz
.\iperf3.exe -c 192.168.1.1 -R -t 20
Connecting to host 192.168.1.1, port 5201
Reverse mode, remote host 192.168.1.1 is sending
[ 4] local 192.168.1.199 port 59647 connected to 192.168.1.1 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 33.4 MBytes 280 Mbits/sec
[ 4] 1.00-2.00 sec 36.2 MBytes 304 Mbits/sec
[ 4] 2.00-3.00 sec 35.0 MBytes 294 Mbits/sec
[ 4] 3.00-4.00 sec 38.2 MBytes 320 Mbits/sec
[ 4] 4.00-5.00 sec 38.2 MBytes 321 Mbits/sec
[ 4] 5.00-6.00 sec 36.0 MBytes 302 Mbits/sec
[ 4] 6.00-7.00 sec 37.5 MBytes 314 Mbits/sec
[ 4] 7.00-8.00 sec 37.8 MBytes 317 Mbits/sec
[ 4] 8.00-9.00 sec 36.0 MBytes 302 Mbits/sec
[ 4] 9.00-10.00 sec 36.8 MBytes 309 Mbits/sec
[ 4] 10.00-11.00 sec 37.3 MBytes 313 Mbits/sec
[ 4] 11.00-12.00 sec 36.6 MBytes 307 Mbits/sec
[ 4] 12.00-13.00 sec 36.5 MBytes 306 Mbits/sec
[ 4] 13.00-14.00 sec 36.3 MBytes 305 Mbits/sec
[ 4] 14.00-15.00 sec 36.9 MBytes 310 Mbits/sec
[ 4] 15.00-16.00 sec 36.7 MBytes 308 Mbits/sec
[ 4] 16.00-17.00 sec 36.7 MBytes 308 Mbits/sec
[ 4] 17.00-18.00 sec 37.0 MBytes 310 Mbits/sec
[ 4] 18.00-19.00 sec 36.2 MBytes 304 Mbits/sec
[ 4] 19.00-20.00 sec 36.4 MBytes 305 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth Retr
[ 4] 0.00-20.00 sec 733 MBytes 307 Mbits/sec 0 sender
[ 4] 0.00-20.00 sec 732 MBytes 307 Mbits/sec receiver
.\iperf3.exe -c 192.168.1.1 -t 20
Connecting to host 192.168.1.1, port 5201
[ 4] local 192.168.1.199 port 59660 connected to 192.168.1.1 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.00 sec 48.0 MBytes 401 Mbits/sec
[ 4] 1.00-2.00 sec 49.2 MBytes 414 Mbits/sec
[ 4] 2.00-3.00 sec 51.4 MBytes 431 Mbits/sec
[ 4] 3.00-4.00 sec 46.4 MBytes 388 Mbits/sec
[ 4] 4.00-5.00 sec 45.2 MBytes 381 Mbits/sec
[ 4] 5.00-6.01 sec 21.6 MBytes 181 Mbits/sec
[ 4] 6.01-7.01 sec 12.0 MBytes 101 Mbits/sec
[ 4] 7.01-8.00 sec 38.1 MBytes 321 Mbits/sec
[ 4] 8.00-9.00 sec 52.2 MBytes 438 Mbits/sec
[ 4] 9.00-10.00 sec 52.4 MBytes 439 Mbits/sec
[ 4] 10.00-11.00 sec 54.1 MBytes 454 Mbits/sec
[ 4] 11.00-12.00 sec 55.4 MBytes 466 Mbits/sec
[ 4] 12.00-13.00 sec 52.4 MBytes 438 Mbits/sec
[ 4] 13.00-14.00 sec 53.1 MBytes 447 Mbits/sec
[ 4] 14.00-15.00 sec 51.4 MBytes 430 Mbits/sec
[ 4] 15.00-16.00 sec 50.2 MBytes 422 Mbits/sec
[ 4] 16.00-17.00 sec 47.0 MBytes 395 Mbits/sec
[ 4] 17.00-18.01 sec 51.1 MBytes 427 Mbits/sec
[ 4] 18.01-19.00 sec 49.6 MBytes 418 Mbits/sec
[ 4] 19.00-20.00 sec 51.1 MBytes 429 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-20.00 sec 932 MBytes 391 Mbits/sec sender
[ 4] 0.00-20.00 sec 932 MBytes 391 Mbits/sec receiver
When downloading the speed is limited to 4MB/s but I don't see increasing latency. It's some sort of QoS which is strange cause I don't have QoS in my openwrt. I think somehow my OpenWRT throttle my bandwidth to improve bufferfloat?
Tried disabling WAN6, still the same.
No need to worry about that. You would have to set it up.
We are going to try @eduperez's idea and shut down IPv6 by going to Network/Interfaces/Devices->configure.
Edit every device by going to the bottom of the General device options and disabling IPv6.
lol, the timing..
How did you disable IPv6?
Deleting WAN6 in network interface and disable this also did it on lan too.
On the Status page of LuCI (the main page) how many devices have IPv6?
And please go here and post the results but remove anything personally identifiable.

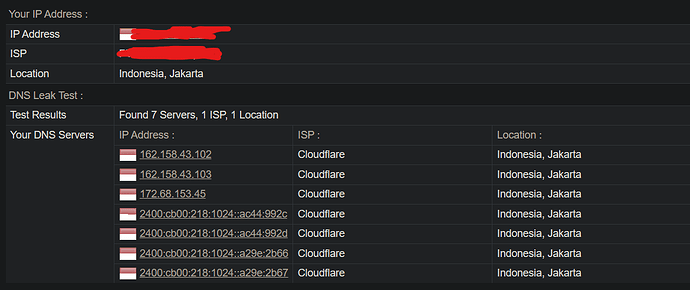

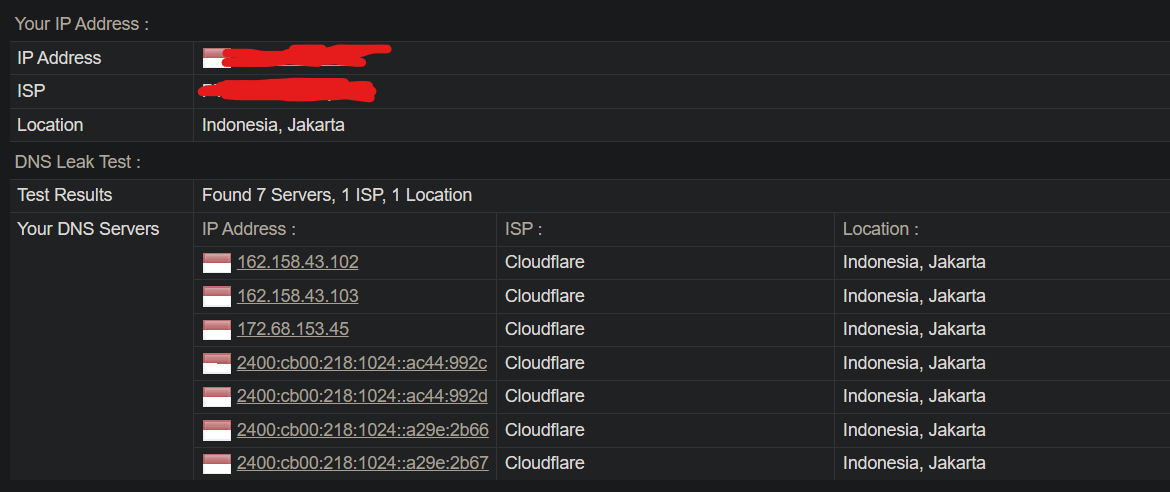

The DNS Leak Test is a tool used to determine which DNS servers your browser is using to resolve domain names. This test attempts to resolve 50 randomly generated domain names, of which 25 are IPv4-only and 25 are IPv6-only.
Yeah, I don't know how they get IPv6 DNS lookups but my IPv6 is shut down at the router and I get the same results. I was just looking for something irregular.
Please use LuCi's Status/Realtime Graphs/Traffic eth0 (I'm assuming that is you wan port) and keep that page open and download from Google. See if the traffic in the router matches what is sent to the lan.
Because it's your DNS server that has IPv6 Internet access not yours. The test shows your ipv6 of your DNS server not your Internet. Your DNS server is able to receive the address of the ipv6 website. DNS server is just simply giving you the address of the website not for actually accessing a site. But you can't connect because you don't have ipv6.
DNS Resolver - getting IPv6 results when there is no IPv6? | Netgate Forum
Please use LuCi's Status/Realtime Graphs/Traffic eth0 (I'm assuming that is you wan port) and keep that page open and download from Google. See if the traffic in the router matches what is sent to the lan.
Can confirm i have plugged my pc to the ISP router and i have the same result. But my ISP claim that they don't throttle tho. It's not the OpenWRT. Although it could be the cable issue first time i plugged it was registered as 100 Mb cable not 1 Gb, but it got recognized as 1 Gb after i replugged it again.
I've had that happen on factory made cables.
