DM micro sdcard reader MT7688AN

my micro sdcard reader have MT7688AN and I just found out about this, i need some help to use my first experience of openwrt.
this board have admin panel and access to it
i found TX and RX on board and connect via usb to ttl but need login user and password and i not have it and not found any where,the original usb port just access to sdcard

best regards.

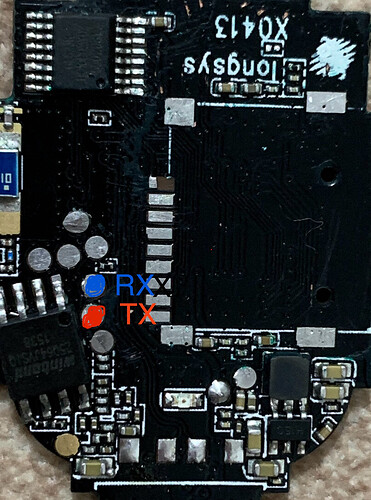

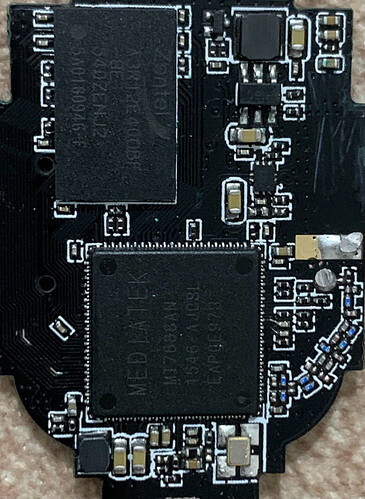

photo of board


Are you saying that the device runs OpenWrt? Or are you trying to make it possible to install OpenWrt on this thing?

If it is already running OpenWrt, it is almost certainly a customized fork and not provided by the official OpenWrt project.

yes ,openwrt 14 is pre installed
i create log info and take it here

To be clear, that was released 10 years ago and has not been supported for the better part of a decade now.

I don't believe that OpenWrt (from the official project) ever supported card readers of that type, so it's almost certainly a vendor specific fork.

What is it that you want to do, though?

i need to install new version of openwrt and add simcard module to it
i can add ether port to it by some module but pinout of this MT7688AN is different with datasheet, tx and rx pins is on other pins on datasheet.

How exactly do you intend to add a sim card and ethernet port? And have you started by identifying how much flash memory and ram that device has on board?

yes that simple, this board have 512mb zentel A3R12E40DBFddr2 and 64mb winbond 25Q64JVS
and MT7688AN with many of unused pins

You do know that you can't just add an ethernet port directly to IO pins, right? You typically need other support components. How are you going to accommodate those devices?

i use some module usb to ethernet and use usb pins from mt7688an

Ok... sounds like you're pretty determined.

You'll need to do some reverse engineering of the device, create a corresponding hardware config file, and then build the source from there. Follow this:
https://openwrt.org/docs/guide-developer/add.new.device

1 Like

the boot log


Board: Ralink APSoC DRAM:  64 MB
relocate_code Pointer at: 83f60000
flash manufacture id: ef, device id 40 17
find flash: W25Q64BV
*** Warning - bad CRC, using default environment

============================================
Ralink UBoot Version: 4.3.0.0
--------------------------------------------
ASIC 7628_MP (Port5<->None)
DRAM component: 512 Mbits DDR, width 16
DRAM bus: 16 bit
Total memory: 64 MBytes
Flash component: SPI Flash
Date:Sep 25 2015  Time:13:48:31
============================================
icache: sets:512, ways:4, linesz:32 ,total:65536
dcache: sets:256, ways:4, linesz:32 ,total:32768

 ##### The CPU freq = 575 MHZ ####
 estimate memory size =64 Mbytes
RESET MT7628 PHY!!!!!!
Please choose the operation:
   1: Load system code to SDRAM via TFTP.
   2: Load system code then write to Flash via TFTP.
   3: Boot system code via Flash (default).
   4: Entr boot command line interface.
   5: Upgrade FW/U-Boot/ART via USB disk.
   6: Upgrade FW/U-Boot/ART via web http://192.168.222.6/.
   7: Load Boot Loader code then write to Flash via Serial.
   9: Load Boot Loader code then write to Flash via TFTP.
tip:Press reset button while power on will enter usb upgrade mode.
   :If cannot find the upgrade file in usb,will enter web upgrade mode .                                                                                                                                                                   0

3: System Boot system code via Flash.
## Booting image at bc050000 ...
   Image Name:   MIPS OpenWrt Linux-3204_8M
   Image Type:   MIPS Linux Kernel Image (lzma compressed)
   Data Size:    1567935 Bytes =  1.5 MB
   Load Address: 80000000
   Entry Point:  80000000
   Verifying Checksum ... OK
   Uncompressing Kernel Image ... OK
No initrd
## Transferring control to Linux (at address 80000000) ...
## Giving linux memsize in MB, 64

Starting kernel ...


LINUX started...

 THIS IS ASIC
[    0.000000] Linux version 3.10.14+ (hcy@srv64) (gcc version 4.8.3 (OpenWrt/Linaro GCC 4.8-2014.04 r64) ) #1 Sat Dec 26 14:47:14 CST 2015
[    0.000000]
[    0.000000]  The CPU feqenuce set to 575 MHz
[    0.000000]
[    0.000000]  MIPS CPU sleep mode enabled.
[    0.000000] CPU0 revision is: 00019655 (MIPS 24KEc)
[    0.000000] Software DMA cache coherency
[    0.000000] Determined physical RAM map:
[    0.000000]  memory: 04000000 @ 00000000 (usable)
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x00000000-0x03ffffff]
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x00000000-0x03ffffff]
[    0.000000] Primary instruction cache 64kB, 4-way, VIPT, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16256
[    0.000000] Kernel command line: console=ttyS1,115200n8 root=/dev/mtdblock5 rootfstype=squashfs,jffs2 rootfstype=squashfs,jffs2
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Writing ErrCtl register=00048c2d
[    0.000000] Readback ErrCtl register=00048c2d
[    0.000000] Memory: 60188k/65536k available (3391k kernel code, 5348k reserved, 881k data, 204k init, 0k highmem)
[    0.000000] NR_IRQS:128
[    0.000000] console [ttyS1] enabled
[    0.084000] Calibrating delay loop... 385.02 BogoMIPS (lpj=770048)
[    0.116000] pid_max: default: 32768 minimum: 301
[    0.120000] Mount-cache hash table entries: 512
[    0.124000] NET: Registered protocol family 16
[    0.128000] RALINK_GPIOMODE = 54050404
[    0.132000] RALINK_GPIOMODE = 54040404
[    0.232000] ***** Xtal 40MHz *****
[    0.236000] start PCIe register access
[    0.736000] RALINK_RSTCTRL = 2400000
[    0.740000] RALINK_CLKCFG1 = fdbfffc0
[    0.740000]
[    0.740000] *************** MT7628 PCIe RC mode *************
[    1.240000] PCIE0 no card, disable it(RST&CLK)
[    1.244000]
[    1.244000]  mt7628 gpio init
[    1.276000] bio: create slab <bio-0> at 0
[    1.280000] usbcore: registered new interface driver usbfs
[    1.284000] usbcore: registered new interface driver hub
[    1.288000] usbcore: registered new device driver usb
[    1.292000] cfg80211: Calling CRDA to update world regulatory domain
[    1.296000] Switching to clocksource Ralink Systick timer
[    1.300000] NET: Registered protocol family 2
[    1.308000] TCP established hash table entries: 512 (order: 0, 4096 bytes)
[    1.312000] TCP bind hash table entries: 512 (order: -1, 2048 bytes)
[    1.320000] TCP: Hash tables configured (established 512 bind 512)
[    1.328000] TCP: reno registered
[    1.328000] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    1.336000] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    1.344000] NET: Registered protocol family 1
[    1.348000] MTK/Ralink EHCI/OHCI init.
[    1.352000] >>>>>>>>>>register my wifi led<<<<<<<<<<<<<<<<<
[    1.360000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.364000] ufsd: driver (8.6, Dec 26 2015 14:46:48, LBD=ON, delalloc, ioctl, bdi) loaded at   (null)
[    1.364000] NTFS (with native replay) support included
[    1.364000] optimized: speed
[    1.364000] Built_for__Asus_n65u_2012-03-29
[    1.364000]
[    1.388000] NTFS driver 2.1.30 [Flags: R/W].
[    1.392000] jffs2: version 2.2. (NAND) (SUMMARY)  (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    1.404000] msgmni has been set to 117
[    1.408000] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
[    1.416000] io scheduler noop registered (default)
[    1.428000] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[    1.436000] serial8250: ttyS0 at MMIO 0x10000d00 (irq = 21) is a 16550A
[    1.444000] serial8250: ttyS1 at MMIO 0x10000c00 (irq = 20) is a 16550A
[    1.452000] Ralink gpio driver initialized
[    1.456000] flash manufacture id: ef, device id 40 17
[    1.460000] W25Q64BV(ef 40170000) (8192 Kbytes)
[    1.468000] mtd .name = raspi, .size = 0x00800000 (8M) .erasesize = 0x00010000 (64K) .numeraseregions = 0
[    1.476000] Creating 6 MTD partitions on "raspi":
[    1.480000] 0x000000000000-0x000000800000 : "ALL"
[    1.488000] 0x000000000000-0x000000030000 : "Bootloader"
[    1.496000] 0x000000030000-0x000000040000 : "config"
[    1.500000] 0x000000040000-0x000000050000 : "Factory"
[    1.508000] 0x000000050000-0x0000007c0000 : "firmware"
[    1.516000] 0x0000001cecff-0x0000007c0000 : "rootfs"
[    1.520000] mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
[    1.532000] mtd: partition "rootfs_data" created automatically, ofs=0x720000, len=0xa0000
[    1.544000] 0x000000720000-0x0000007c0000 : "rootfs_data"
[    1.548000] 0x0000007c0000-0x000000800000 : "webpages"
[    1.556000] rdm_major = 251
[    1.560000] GMAC1_MAC_ADRH -- : 0x0000845d
[    1.564000] GMAC1_MAC_ADRL -- : 0xd70407e9
[    1.568000] Ralink APSoC Ethernet Driver Initilization. v3.1  256 rx/tx descriptors allocated, mtu = 1500!
[    1.576000] GMAC1_MAC_ADRH -- : 0x0000845d
[    1.580000] GMAC1_MAC_ADRL -- : 0xd70407e9
[    1.588000] PROC INIT OK!
[    1.588000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    1.596000] ehci-pci: EHCI PCI platform driver
[    1.600000] ehci-platform: EHCI generic platform driver
[    1.628000] ******MT7628 mtk phy
[    1.628000] *****run project phy.
[    1.640000] FM_OUT value: u4FmOut = 0(0x00000000)
[    1.652000] FM_OUT value: u4FmOut = 131(0x00000083)
[    1.656000] FM detection done! loop = 1
[    1.668000] SR calibration value u1SrCalVal = 6
[    1.672000] *********Execute mt7628_phy_init!!
[    1.676000] ehci-platform ehci-platform: EHCI Host Controller
[    1.680000] ehci-platform ehci-platform: new USB bus registered, assigned bus number 1
[    1.688000] ehci-platform ehci-platform: irq 18, io mem 0x101c0000
[    1.708000] ehci-platform ehci-platform: USB 2.0 started, EHCI 1.00
[    1.712000] hub 1-0:1.0: USB hub found
[    1.716000] hub 1-0:1.0: 1 port detected
[    1.720000] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    1.748000] *********Execute mt7628_phy_init!!
[    1.752000] ohci-platform ohci-platform: Generic Platform OHCI Controller
[    1.760000] ohci-platform ohci-platform: new USB bus registered, assigned bus number 2
[    1.768000] ohci-platform ohci-platform: irq 18, io mem 0x101c1000
[    1.836000] hub 2-0:1.0: USB hub found
[    1.840000] hub 2-0:1.0: 1 port detected
[    1.844000] TCP: cubic registered
[    1.848000] NET: Registered protocol family 10
[    1.852000] NET: Registered protocol family 17
[    1.860000] 8021q: 802.1Q VLAN Support v1.8
[    1.864000] ralink_nvram: unable to register character device
[    1.868000] registered taskstats version 1
[    1.880000] VFS: Mounted root (squashfs filesystem) readonly on device 31:5.
[    1.888000] Freeing unused kernel memory: 204K (8042d000 - 80460000)
[    2.236000] usb 1-1: new high-speed USB device number 2 using ehci-platform
procd: Console is alive
[    3.656000] SCSI subsystem initialized
[    3.668000] usb-storage 1-1:1.0: USB Mass Storage device detected
[    3.676000] scsi0 : usb-storage 1-1:1.0
[    3.680000] usbcore: registered new interface driver usb-storage
procd: - preinit -
[    4.580000] Raeth v3.1 (Tasklet)
[    4.584000]
[    4.584000] phy_tx_ring = 0x03fa3000, tx_ring = 0xa3fa3000
[    4.592000]
[    4.592000] phy_rx_ring0 = 0x03fa4000, rx_ring0 = 0xa3fa4000
[    4.612000] GMAC1_MAC_ADRH -- : 0x0000845d
[    4.616000] GMAC1_MAC_ADRL -- : 0xd70407e9
[    4.620000] RT305x_ESW: Link Status Changed
Press the [f] key and hit [enter] to enter failsafe mode
Press [    4.680000] scsi 0:0:0:0: Direct-Access     Generic  STORAGE DEVICE   1402 PQ: 0 ANSI: 6
the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[    4.908000] sd 0:0:0:0: [sda] Attached SCSI removable disk
kmod: ran 1 iterations
[    8.348000] jffs2: notice: (273) jffs2_build_xattr_subsystem: complete building xattr subsystem, 1 of xdatum (1 unchecked, 0 orphan) and 8 of xref (0 dead, 0 orphan) found.
block: extroot: no root or overlay mount defined
jffs2 is ready
jffs2 is ready
[    8.416000] jffs2: notice: (270) jffs2_build_xattr_subsystem: complete building xattr subsystem, 1 of xdatum (1 unchecked, 0 orphan) and 8 of xref (0 dead, 0 orphan) found.
switching to overlay
[    8.444000] ra2880stop()...Done
[    8.448000] Free TX/RX Ring Memory!
procd: - early -
procd: - ubus -
procd: - init -
Please press Enter to activate this console.
[   10.364000] nf_conntrack version 0.5.0 (943 buckets, 3772 max)
[   10.376000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[   10.392000] sd 0:0:0:0: Attached scsi generic sg0 type 0
[   11.188000]
[   11.188000]
[   11.188000] === pAd = c0523000, size = 1352928 ===
[   11.188000]
[   11.200000] <-- RTMPAllocTxRxRingMemory, Status=0, ErrorValue=0x
[   11.208000] <-- RTMPAllocAdapterBlock, Status=0
[   11.212000] RtmpChipOpsHook(748): Not support for HIF_MT yet!
[   11.216000] mt7628_init()-->
[   11.220000] mt7628_init(FW(8a00), HW(8a01), CHIPID(7628))
[   11.224000] e2.bin mt7628_init(1142)::(2), pChipCap->fw_len(63232)
[   11.232000] mt_bcn_buf_init(289): Not support for HIF_MT yet!
[   11.236000] <--mt7628_init()
[   11.256000] usbcore: registered new interface driver cdc_acm
[   11.260000] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[   11.284000] exFAT: Version 1.2.9
[   11.288000] ip_tables: (C) 2000-2006 Netfilter Core Team
[   11.296000] Type=Linux
[   11.348000] xt_time: kernel timezone is -0000
[   11.360000] PPP generic driver version 2.4.2
[   11.368000] NET: Registered protocol family 24
[   15.976000] Raeth v3.1 (Tasklet)
[   15.980000]
[   15.980000] phy_tx_ring = 0x02ce3000, tx_ring = 0xa2ce3000
[   15.988000]
[   15.988000] phy_rx_ring0 = 0x02ce4000, rx_ring0 = 0xa2ce4000
[   16.008000] GMAC1_MAC_ADRH -- : 0x0000845d
[   16.012000] GMAC1_MAC_ADRL -- : 0xd70407e9
[   16.020000] RT305x_ESW: Link Status Changed
[   16.024000] TX_BCN DESC a34f6000 size = 320
[   16.028000] RX[0] DESC a34f8000 size = 2048
[   16.036000] RX[1] DESC a34f9000 size = 1024
[   16.080000] E2pAccessMode=2
[   16.084000] cfg_mode=9
[   16.084000] cfg_mode=9
[   16.088000] wmode_band_equal(): Band Equal!
[   16.096000] APSDCapable[0]=1
[   16.100000] APSDCapable[1]=1
[   16.100000] APSDCapable[2]=1
[   16.104000] APSDCapable[3]=1
[   16.108000] APSDCapable[4]=1
[   16.112000] APSDCapable[5]=1
[   16.112000] APSDCapable[6]=1
[   16.116000] APSDCapable[7]=1
[   16.120000] APSDCapable[8]=1
[   16.124000] APSDCapable[9]=1
[   16.124000] APSDCapable[10]=1
[   16.128000] APSDCapable[11]=1
[   16.132000] APSDCapable[12]=1
[   16.136000] APSDCapable[13]=1
[   16.136000] APSDCapable[14]=1
[   16.140000] APSDCapable[15]=1
[   16.144000] default ApCliAPSDCapable[0]=1
[   16.348000] Key1Str is Invalid key length(0) or Type(0)
[   16.352000] Key2Str is Invalid key length(0) or Type(0)
[   16.356000] Key3Str is Invalid key length(0) or Type(0)
[   16.364000] Key4Str is Invalid key length(0) or Type(0)
[   16.424000] load fw image from fw_header_image
[   16.428000] AndesMTLoadFwMethod1(2548)::pChipCap->fw_len(63232)
[   16.432000] FW Version:_e2_mp
[   16.436000] FW Build Date:20150420143347
[   16.440000] CmdAddressLenReq:(ret = 0)
[   16.444000] CmdFwStartReq: override = 1, address = 1048576
[   16.452000] CmdStartDLRsp: WiFI FW Download Success
[   16.836000] MtAsicDMASchedulerInit(): DMA Scheduler Mode=0(LMAC)
[   16.840000] efuse_probe: efuse = 10000012
[   16.844000] RtmpChipOpsEepromHook::e2p_type=2, inf_Type=4
[   16.848000] RtmpEepromGetDefault::e2p_dafault=2
[   16.856000] RtmpChipOpsEepromHook: E2P type(2), E2pAccessMode = 2, E2P default = 2
[   16.864000] NVM is FLASH mode
[   16.864000] 1. Phy Mode = 14
[   17.068000] Country Region from e2p = ffff
[   17.072000] tssi_1_target_pwr_g_band = 35
[   17.076000] 2. Phy Mode = 14
[   17.080000] 3. Phy Mode = 14
[   17.084000] NICInitPwrPinCfg(11): Not support for HIF_MT yet!
[   17.088000] NICInitializeAsic(848): Not support rtmp_mac_sys_reset () for HIF_MT yet!
[   17.096000] mt_mac_init()-->
[   17.100000] MtAsicInitMac()-->
[   17.172000] mt7628_init_mac_cr()-->
[   17.176000] MtAsicSetMacMaxLen(1842): Set the Max RxPktLen=1024!
[   17.184000] <--mt_mac_init()
[   17.188000]  WTBL Segment 1 info:
[   17.192000]          MemBaseAddr/FID:0x28000/0
[   17.196000]          EntrySize/Cnt:32/128
[   17.196000]  WTBL Segment 2 info:
[   17.200000]          MemBaseAddr/FID:0x40000/0
[   17.204000]          EntrySize/Cnt:64/128
[   17.208000]  WTBL Segment 3 info:
[   17.212000]          MemBaseAddr/FID:0x42000/64
[   17.216000]          EntrySize/Cnt:64/128
[   17.220000]  WTBL Segment 4 info:
[   17.224000]          MemBaseAddr/FID:0x44000/128
[   17.228000]          EntrySize/Cnt:32/128
[   17.228000] AntCfgInit(3591): Not support for HIF_MT yet!
[   17.236000] MCS Set = ff 00 00 00 01
[   17.240000] MtAsicSetChBusyStat(1146): Not support for HIF_MT yet!
[   17.244000] [PMF]ap_pmf_init:: apidx=0, MFPC=0, MFPR=0, SHA256=0
[   17.252000] [PMF]RTMPMakeRsnIeCap: RSNIE Capability MFPC=0, MFPR=0
[   17.256000] MtAsicSetRalinkBurstMode(4061): Not support for HIF_MT yet!
[   17.264000] MtAsicSetPiggyBack(1081): Not support for HIF_MT yet!
[   17.356000] MtAsicSetTxPreamble(4040): Not support for HIF_MT yet!
[   17.364000] CmdSlotTimeSet:(ret = 0)
[   17.372000] MtAsicAddSharedKeyEntry(1909): Not support for HIF_MT yet!
[   17.380000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2
[   17.388000] MtAsicSetPreTbtt(): bss_idx=0, PreTBTT timeout = 0xf0
[   17.392000] Main bssid = 84:5d:d7:04:07:e9
[   17.396000] <==== rt28xx_init, Status=0
[   17.624000] RT28xx_Monitor_Init: 868 !!!!####!!!!!!
[   17.632000] mt7628_set_ed_cca: TURN OFF EDCCA  mac 0x10618 = 0xd7083f0f, EDCCA_Status=0
[   17.640000] WiFi Startup Cost (ra0): 1.616s
[   17.652000] device eth0.1 entered promiscuous mode
[   17.656000] device eth0 entered promiscuous mode
[   17.680000] br-lan: port 1(eth0.1) entered forwarding state
[   17.684000] br-lan: port 1(eth0.1) entered forwarding state
[   17.744000] AddTxSType: already registered TxSType (PID = 32, Format = 0
[   17.748000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2
[   19.688000] br-lan: port 1(eth0.1) entered forwarding state
[   20.236000] device ra0 entered promiscuous mode
[   20.240000] br-lan: port 2(ra0) entered forwarding state
[   20.248000] br-lan: port 2(ra0) entered forwarding state
[   20.368000] AddTxSType: already registered TxSType (PID = 32, Format = 0
[   20.376000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2
[   21.264000] AddTxSType: already registered TxSType (PID = 32, Format = 0
[   21.268000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2
[   22.252000] br-lan: port 2(ra0) entered forwarding state
[   25.292000] MtAsicAddSharedKeyEntry(1909): Not support for HIF_MT yet!
[   25.536000] AP SETKEYS DONE - WPA2, AuthMode(7)=WPA2PSK, WepStatus(6)=AES, GroupWepStatus(6)=AES
[   25.536000]
[   25.548000] Rcv Wcid(2) AddBAReq
[   25.552000] Start Seq = 00000002
[   26.004000] Rcv Wcid(1) AddBAReq
[   26.004000] Start Seq = 00000004
[   26.196000] usb 1-1: USB disconnect, device number 2
[   27.368000] usb 1-1: new high-speed USB device number 3 using ehci-platform
[   27.532000] usb-storage 1-1:1.0: USB Mass Storage device detected
[   27.564000] scsi1 : usb-storage 1-1:1.0
[   28.576000] scsi 1:0:0:0: Direct-Access     Generic  STORAGE DEVICE   1402 PQ: 0 ANSI: 6
[   28.604000] sd 1:0:0:0: Attached scsi generic sg0 type 0
[   28.816000] sd 1:0:0:0: [sda] Attached SCSI removable disk
[   36.384000] MtAsicSetPreTbtt(): bss_idx=0, PreTBTT timeout = 0x0
[   36.388000] MtAsicSetPiggyBack(1081): Not support for HIF_MT yet!
[   36.396000] [PMF]ap_pmf_init:: apidx=0, MFPC=0, MFPR=0, SHA256=0
[   36.404000] [PMF]RTMPMakeRsnIeCap: RSNIE Capability MFPC=0, MFPR=0
[   36.408000] MtAsicSetRalinkBurstMode(4061): Not support for HIF_MT yet!
[   36.416000] MtAsicSetPiggyBack(1081): Not support for HIF_MT yet!
[   36.448000] MtAsicSetTxPreamble(4040): Not support for HIF_MT yet!
[   36.456000] MtAsicAddSharedKeyEntry(1909): Not support for HIF_MT yet!
[   36.464000] AddTxSType: already registered TxSType (PID = 32, Format = 0
[   36.468000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2
[   36.476000] AddTxSType: already registered TxSType (PID = 6, Format = 0
[   36.484000] MtAsicSetPreTbtt(): bss_idx=0, PreTBTT timeout = 0xf0
[   36.492000] Main bssid = 84:5d:d7:04:07:e9
[   38.384000] Rcv Wcid(1) AddBAReq
[   38.384000] Start Seq = 00000000
[   38.408000] MtAsicAddSharedKeyEntry(1909): Not support for HIF_MT yet!
procd: - init complete -
[   47.548000] AP SETKEYS DONE - WPA2, AuthMode(7)=WPA2PSK, WepStatus(6)=AES, GroupWepStatus(6)=AES
[   47.548000]
[   47.588000] Rcv Wcid(2) AddBAReq
[   47.592000] Start Seq = 00000002
[   50.816000] Rcv Wcid(1) AddBAReq
[   50.816000] Start Seq = 00000000```
