Device broken?

Hi all

I am having problems with connecting to a WiFi network and I suspect my device might be broken.
I did a factory reset and just tried to connect one of the radios to my WiFi without changing any settings.

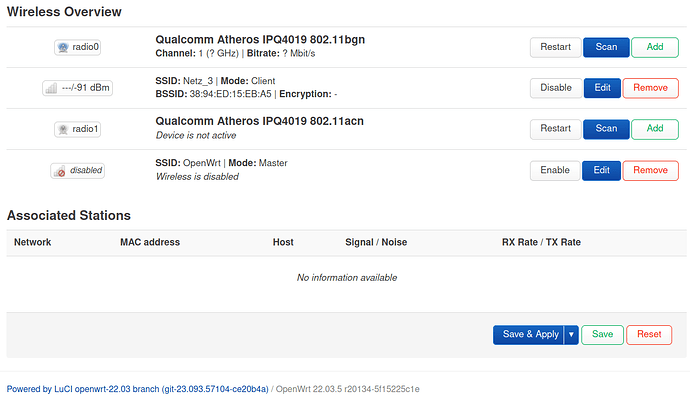

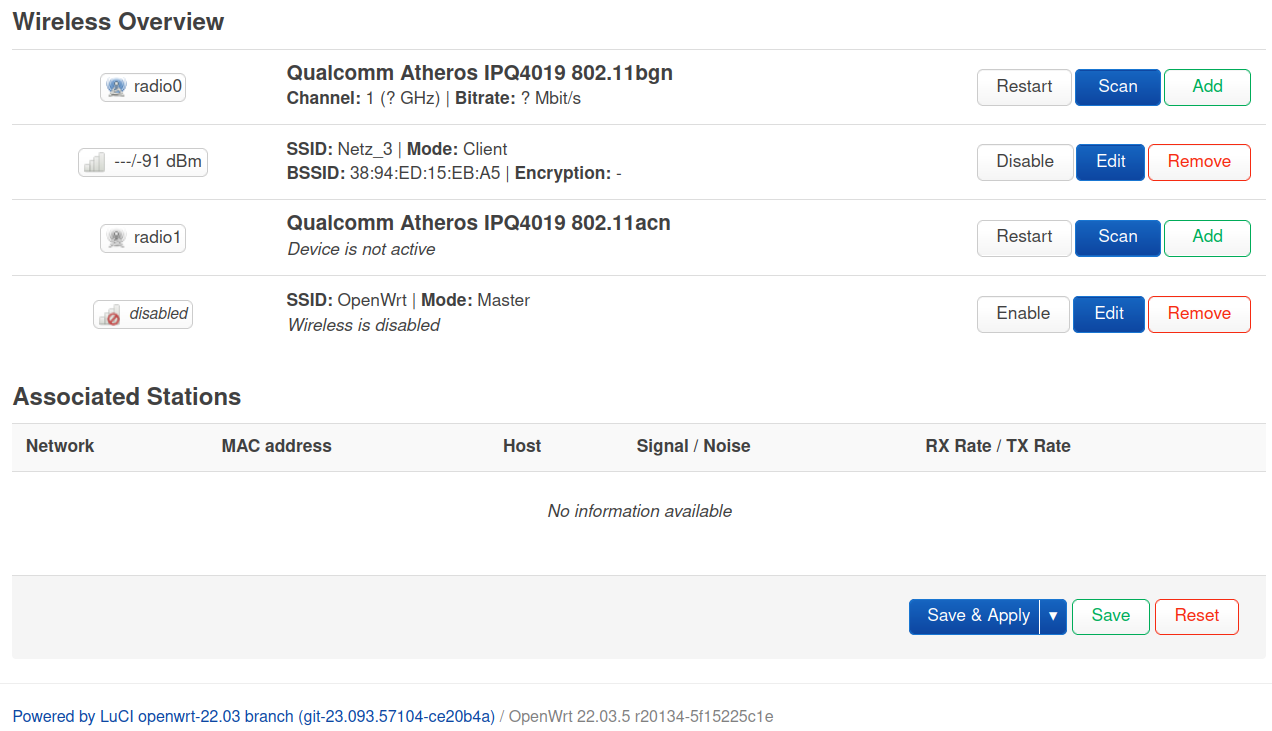

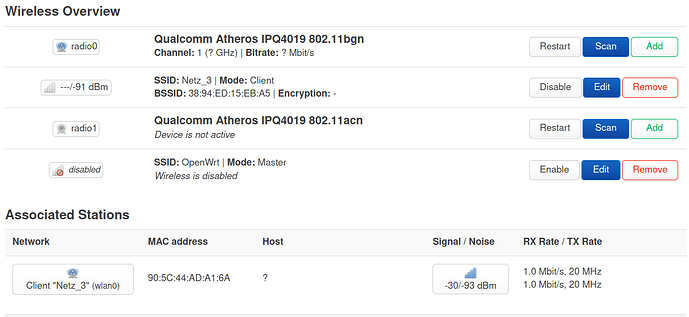

In Luci I see the connection to the network switching between two states, see screenshots:


Did I do something very basic wrong or is the hardware broken?

Thanks for your support!

Check the system log for wifi errors. A common issue is having the wrong encryption mode or key will cause a repeated incomplete connection.

1 Like

Thanks for the comment mk24.
I looked at the logs but it did not help me to find the culprit.
Do you have any idea maybe?

Mon Jun 26 14:40:37 2023 kern.warn kernel: [ 5898.620742] ath10k_ahb a000000.wifi: 10.4 wmi init: vdevs: 16  peers: 48  tid: 96
Mon Jun 26 14:40:37 2023 kern.warn kernel: [ 5898.620802] ath10k_ahb a000000.wifi: msdu-desc: 2500  skid: 32
Mon Jun 26 14:40:37 2023 kern.info kernel: [ 5898.656397] ath10k_ahb a000000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186  msdu-desc: 2500  sw-crypt: 0 ct-sta: 0'
Mon Jun 26 14:40:37 2023 kern.info kernel: [ 5898.657469] ath10k_ahb a000000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Mon Jun 26 14:40:38 2023 kern.info kernel: [ 5898.988975] ath10k_ahb a000000.wifi: rts threshold -1
Mon Jun 26 14:40:38 2023 kern.warn kernel: [ 5898.994424] ath10k_ahb a000000.wifi: Firmware lacks feature flag indicating a retry limit of > 2 is OK, requested limit: 4
Mon Jun 26 14:40:42 2023 kern.warn kernel: [ 5903.615790] ath10k_ahb a000000.wifi: 10.4 wmi init: vdevs: 16  peers: 48  tid: 96
Mon Jun 26 14:40:42 2023 kern.warn kernel: [ 5903.615853] ath10k_ahb a000000.wifi: msdu-desc: 2500  skid: 32
Mon Jun 26 14:40:42 2023 kern.info kernel: [ 5903.651922] ath10k_ahb a000000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186  msdu-desc: 2500  sw-crypt: 0 ct-sta: 0'
Mon Jun 26 14:40:42 2023 kern.info kernel: [ 5903.653434] ath10k_ahb a000000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Mon Jun 26 14:40:43 2023 kern.info kernel: [ 5903.955271] ath10k_ahb a000000.wifi: rts threshold -1
Mon Jun 26 14:40:43 2023 kern.warn kernel: [ 5903.958509] ath10k_ahb a000000.wifi: Firmware lacks feature flag indicating a retry limit of > 2 is OK, requested limit: 4
Mon Jun 26 14:41:02 2023 daemon.notice netifd: Wireless device 'radio0' is now down
Mon Jun 26 14:41:04 2023 kern.warn kernel: [ 5925.005078] ath10k_ahb a000000.wifi: 10.4 wmi init: vdevs: 16  peers: 48  tid: 96
Mon Jun 26 14:41:04 2023 kern.warn kernel: [ 5925.005147] ath10k_ahb a000000.wifi: msdu-desc: 2500  skid: 32
Mon Jun 26 14:41:04 2023 kern.info kernel: [ 5925.040875] ath10k_ahb a000000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186  msdu-desc: 2500  sw-crypt: 0 ct-sta: 0'
Mon Jun 26 14:41:04 2023 kern.info kernel: [ 5925.041931] ath10k_ahb a000000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Mon Jun 26 14:41:04 2023 kern.info kernel: [ 5925.347550] ath10k_ahb a000000.wifi: rts threshold -1
Mon Jun 26 14:41:04 2023 kern.warn kernel: [ 5925.349678] ath10k_ahb a000000.wifi: Firmware lacks feature flag indicating a retry limit of > 2 is OK, requested limit: 4
Mon Jun 26 14:41:04 2023 daemon.notice netifd: radio0 (7414): sh: out of range
Mon Jun 26 14:41:04 2023 daemon.info dnsmasq[1]: read /etc/hosts - 4 addresses
Mon Jun 26 14:41:04 2023 daemon.info dnsmasq[1]: read /tmp/hosts/dhcp.cfg01411c - 2 addresses
Mon Jun 26 14:41:04 2023 daemon.info dnsmasq[1]: read /tmp/hosts/odhcpd - 1 addresses
Mon Jun 26 14:41:04 2023 daemon.info dnsmasq-dhcp[1]: read /etc/ethers - 0 addresses
Mon Jun 26 14:41:04 2023 daemon.notice netifd: Wireless device 'radio0' is now up
Mon Jun 26 14:41:04 2023 daemon.notice netifd: Interface 'wwan' is enabled
Mon Jun 26 14:41:06 2023 daemon.notice wpa_supplicant[1288]: wlan0: SME: Trying to authenticate with 90:5c:44:ad:a1:6a (SSID='Netz_3' freq=2437 MHz)
Mon Jun 26 14:41:06 2023 kern.info kernel: [ 5927.320667] wlan0: authenticate with 90:5c:44:ad:a1:6a
Mon Jun 26 14:41:06 2023 kern.info kernel: [ 5927.541438] wlan0: send auth to 90:5c:44:ad:a1:6a (try 1/3)
Mon Jun 26 14:41:06 2023 kern.info kernel: [ 5927.549514] wlan0: authenticated
Mon Jun 26 14:41:06 2023 daemon.notice wpa_supplicant[1288]: wlan0: Trying to associate with 90:5c:44:ad:a1:6a (SSID='Netz_3' freq=2437 MHz)
Mon Jun 26 14:41:06 2023 kern.info kernel: [ 5927.558719] wlan0: associate with 90:5c:44:ad:a1:6a (try 1/3)
Mon Jun 26 14:41:06 2023 kern.info kernel: [ 5927.572575] wlan0: RX AssocResp from 90:5c:44:ad:a1:6a (capab=0x1411 status=0 aid=1)
Mon Jun 26 14:41:06 2023 kern.warn kernel: [ 5927.573663] ath10k_ahb a000000.wifi: pdev param 0 not supported by firmware
Mon Jun 26 14:41:06 2023 kern.warn kernel: [ 5927.579753] ath10k_ahb a000000.wifi: failed to enable peer stats info: -95
Mon Jun 26 14:41:06 2023 kern.info kernel: [ 5927.586247] wlan0: associated
Mon Jun 26 14:41:06 2023 daemon.notice netifd: Network device 'wlan0' link is up
Mon Jun 26 14:41:06 2023 daemon.notice netifd: Interface 'wwan' has link connectivity
Mon Jun 26 14:41:06 2023 daemon.notice netifd: Interface 'wwan' is setting up now
Mon Jun 26 14:41:06 2023 daemon.notice wpa_supplicant[1288]: wlan0: Associated with 90:5c:44:ad:a1:6a
Mon Jun 26 14:41:06 2023 daemon.notice wpa_supplicant[1288]: wlan0: CTRL-EVENT-SUBNET-STATUS-UPDATE status=0
Mon Jun 26 14:41:06 2023 kern.debug kernel: [ 5927.595314] wlan0: Limiting TX power to 20 (20 - 0) dBm as advertised by 90:5c:44:ad:a1:6a
Mon Jun 26 14:41:06 2023 daemon.notice netifd: wwan (7712): udhcpc: started, v1.35.0
Mon Jun 26 14:41:06 2023 daemon.notice netifd: wwan (7712): udhcpc: broadcasting discover
Mon Jun 26 14:41:07 2023 daemon.notice wpa_supplicant[1288]: wlan0: Unknown event 37
Mon Jun 26 14:41:08 2023 daemon.notice wpa_supplicant[1288]: wlan0: Unknown event 37
Mon Jun 26 14:41:09 2023 daemon.notice wpa_supplicant[1288]: wlan0: Unknown event 37
Mon Jun 26 14:41:10 2023 daemon.notice wpa_supplicant[1288]: wlan0: Unknown event 37
Mon Jun 26 14:41:10 2023 daemon.notice netifd: wwan (7712): udhcpc: broadcasting discover
Mon Jun 26 14:41:13 2023 kern.info kernel: [ 5933.823933] wlan0: deauthenticated from 90:5c:44:ad:a1:6a (Reason: 15=4WAY_HANDSHAKE_TIMEOUT)
Mon Jun 26 14:41:13 2023 daemon.notice netifd: Network device 'wlan0' link is down
Mon Jun 26 14:41:13 2023 daemon.notice netifd: Interface 'wwan' has link connectivity loss
Mon Jun 26 14:41:13 2023 daemon.notice netifd: wwan (7712): udhcpc: broadcasting discover
Mon Jun 26 14:41:13 2023 kern.info kernel: [ 5933.918784] ath10k_ahb a000000.wifi: mac flush vdev 0 drop 0 queues 0x1 ar->paused: 0x0  arvif->paused: 0x0
Mon Jun 26 14:41:13 2023 kern.warn kernel: [ 5933.919645] ath10k_ahb a000000.wifi: peer-unmap-event: unknown peer id 1
Mon Jun 26 14:41:13 2023 daemon.notice wpa_supplicant[1288]: wlan0: CTRL-EVENT-DISCONNECTED bssid=90:5c:44:ad:a1:6a reason=15
Mon Jun 26 14:41:13 2023 daemon.notice wpa_supplicant[1288]: wlan0: WPA: 4-Way Handshake failed - pre-shared key may be incorrect
Mon Jun 26 14:41:13 2023 daemon.notice wpa_supplicant[1288]: wlan0: CTRL-EVENT-SSID-TEMP-DISABLED id=0 ssid="Netz_3" auth_failures=1 duration=10 reason=WRONG_KEY
Mon Jun 26 14:41:13 2023 kern.info kernel: [ 5933.930704] ath10k_ahb a000000.wifi: mac flush null vif, drop 0 queues 0xffff
Mon Jun 26 14:41:13 2023 daemon.notice netifd: wwan (7712): udhcpc: received SIGTERM
Mon Jun 26 14:41:13 2023 daemon.notice netifd: wwan (7712): udhcpc: entering released state
Mon Jun 26 14:41:13 2023 daemon.notice netifd: wwan (7712): Command failed: ubus call network.interface notify_proto { "action": 0, "link-up": false, "keep": false, "interface": "wwan" } (Permission denied)
Mon Jun 26 14:41:13 2023 daemon.notice netifd: Interface 'wwan' is now down
Mon Jun 26 14:41:13 2023 daemon.notice netifd: Interface 'wwan' is disabled
Mon Jun 26 14:41:13 2023 daemon.notice netifd: Interface 'wwan' is enabled

This is indeed a problem at the stage of the connection where encryption is negotiated, but it is not clear exactly why.

Again confirm the key is correct and the WPA mode matches.

1 Like

Thanks a lot for your help and indicating (again :sweat_smile:) where to look.
I actually used the wrong key... can't explain why i mixed this up... quite embarrassing :dotted_line_face:

This topic was automatically closed 10 days after the last reply. New replies are no longer allowed.
