Hi all,
if someone have full flash dump for D-Link DWR-921 C1 or C3 original or OpenWrt, please share.

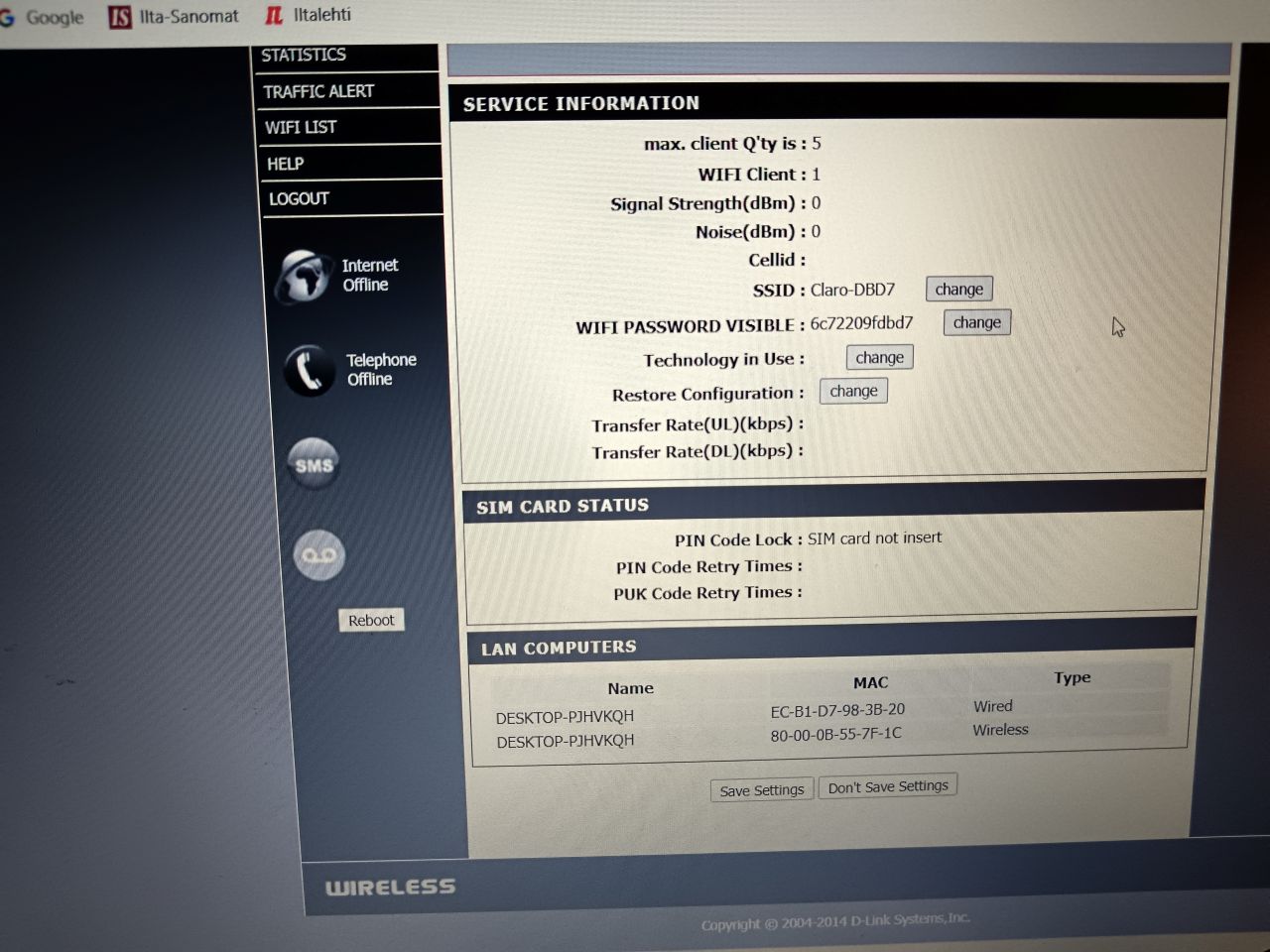

I have Zyxel LTE3301-M209 and like to flash OpenWrt to it. Now I have D-Link DWR-922 brasilian Claro dump in it, but it cannot upgrade with OpenWrt factory.bin.
Like to test if DWR-921 dump allows upgrade to OpenWrt.
Thank you
All OK, get it work forking original Zyxel dump bin file and flash whole chip. Only LTE is not working, look inside the modem and there was Qualcomm MDM9225 chip.
Here is boot log:
CDG561ZY_0T1 Jboot B923
JRecovery Version R1.2 2017/08/22 16:44
spi device id: ef 40 18 0 0 (40180000)
SPI FLASH: W25Q128FV 16M
.
...
Starting kernel @80000000...
OpenWrt kernel loader for MIPS based SoC
Copyright (C) 2011 Gabor Juhos juhosg@openwrt.org
Looking for OpenWrt image... found at 0xbc020000
Decompressing kernel... done!
Starting kernel at 80000000...
[ 0.000000] Linux version 5.15.167 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r24106-10cc5fcd00) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 Mon Sep 23 12:34:46 2024
[ 0.000000] Board has DDR1
[ 0.000000] Analog PMU set to hw control
[ 0.000000] Digital PMU set to hw control
[ 0.000000] SoC Type: MediaTek MT7620N ver:2 eco:6
[ 0.000000] printk: bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019650 (MIPS 24KEc)
[ 0.000000] MIPS: machine is D-Link DWR-921 C1
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 16240
[ 0.000000] Kernel command line: console=ttyS0,57600 rootfstype=squashfs,jffs2
[ 0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
[ 0.000000] Writing ErrCtl register=0007c27a
[ 0.000000] Readback ErrCtl register=0007c27a
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 56084K/65536K available (5949K kernel code, 611K rwdata, 744K rodata, 1200K init, 225K bss, 9452K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] NR_IRQS: 256
[ 0.000000] CPU Clock: 580MHz
[ 0.000000] clocksource: systick: mask: 0xffff max_cycles: 0xffff, max_idle_ns: 583261500 ns
[ 0.000000] systick: enable autosleep mode
[ 0.000000] systick: running - mult: 214748, shift: 32
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6590553264 ns
[ 0.000002] sched_clock: 32 bits at 290MHz, resolution 3ns, wraps every 7405115902ns
[ 0.015564] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
[ 0.087770] pid_max: default: 32768 minimum: 301
[ 0.098069] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.112496] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.135757] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.155266] futex hash table entries: 256 (order: -1, 3072 bytes, linear)
[ 0.168953] pinctrl core: initialized pinctrl subsystem
[ 0.180928] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.193311] thermal_sys: Registered thermal governor 'step_wise'
[ 0.209230] rt2880_gpio 10000600.gpio: registering 24 gpios
[ 0.232187] rt2880_gpio 10000600.gpio: registering 24 irq handlers
[ 0.244943] rt2880_gpio 10000638.gpio: registering 16 gpios
[ 0.255974] rt2880_gpio 10000638.gpio: registering 16 irq handlers
[ 0.268590] rt2880_gpio 10000660.gpio: registering 32 gpios
[ 0.279617] rt2880_gpio 10000660.gpio: registering 32 irq handlers
[ 0.292265] rt2880_gpio 10000688.gpio: registering 1 gpios
[ 0.303121] rt2880_gpio 10000688.gpio: registering 1 irq handlers
[ 0.317862] clocksource: Switched to clocksource systick
[ 0.330147] NET: Registered PF_INET protocol family
[ 0.340034] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.355448] tcp_listen_portaddr_hash hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.372211] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.387538] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.402775] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.416794] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.429618] UDP hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.442547] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.456828] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.468092] PCI: CLS 0 bytes, default 32
[ 0.475976] rt-timer 10000100.timer: maximum frequency is 1220Hz
[ 0.492656] workingset: timestamp_bits=14 max_order=14 bucket_order=0
[ 0.512306] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.523836] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.545086] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[ 0.562753] gpio-export gpio_export: 1 gpio(s) exported
[ 0.573855] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.589847] printk: console [ttyS0] disabled
[ 0.598354] 10000c00.uartlite: ttyS0 at MMIO 0x10000c00 (irq = 20, base_baud = 2500000) is a Palmchip BK-3103
[ 0.617996] printk: console [ttyS0] enabled
[ 0.617996] printk: console [ttyS0] enabled
[ 0.634569] printk: bootconsole [early0] disabled
[ 0.634569] printk: bootconsole [early0] disabled
[ 0.676353] spi spi0.0: force spi mode3
[ 0.685256] spi-nor spi0.0: w25q128 (16384 Kbytes)
[ 0.694971] 3 fixed-partitions partitions found on MTD device spi0.0
[ 0.707682] OF: Bad cell count for /palmbus@10000000/spi@b00/flash@0/partitions
[ 0.722296] OF: Bad cell count for /palmbus@10000000/spi@b00/flash@0/partitions
[ 0.737171] Creating 3 MTD partitions on "spi0.0":
[ 0.746832] 0x000000000000-0x000000010000 : "jboot"
[ 0.759362] 0x000000010000-0x000000ff0000 : "firmware"
[ 0.894028] 2 uimage-fw partitions found on MTD device firmware
[ 0.905878] Creating 2 MTD partitions on "firmware":
[ 0.915851] 0x000000000000-0x00000024230d : "kernel"
[ 0.925758] mtd: partition "kernel" doesn't end on an erase/write block -- force read-only
[ 0.943579] 0x00000024230d-0x000000fe0000 : "rootfs"
[ 0.953563] mtd: partition "rootfs" doesn't start on an erase/write block boundary -- force read-only
[ 0.974839] mtd: setting mtd3 (rootfs) as root device
[ 0.985177] 1 squashfs-split partitions found on MTD device rootfs
[ 0.997593] 0x0000005d0000-0x000000fe0000 : "rootfs_data"
[ 1.010630] 0x000000ff0000-0x000001000000 : "config"
[ 1.049377] gsw: setting port4 to ephy mode
[ 1.057908] mtk_soc_eth 10100000.ethernet: generated random MAC address be:86:08:61:ca:7c
[ 1.074234] mtk_soc_eth 10100000.ethernet: no mdio-bus child node found
[ 1.087417] mtk_soc_eth 10100000.ethernet: mdio-bus disabled
[ 1.098906] mtk_soc_eth 10100000.ethernet: loaded mt7620 driver
[ 1.111481] mtk_soc_eth 10100000.ethernet eth0: mediatek frame engine at 0xb0100000, irq 5
[ 1.128768] rt2880_wdt 10000120.watchdog: Initialized
[ 1.140766] NET: Registered PF_INET6 protocol family
[ 1.157970] Segment Routing with IPv6
[ 1.165400] In-situ OAM (IOAM) with IPv6
[ 1.173393] NET: Registered PF_PACKET protocol family
[ 1.183619] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 1.209816] 8021q: 802.1Q VLAN Support v1.8
[ 1.220294] clk: Disabling unused clocks
[ 1.247395] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 1.268146] Freeing unused kernel image (initmem) memory: 1200K
[ 1.279975] This architecture does not have kernel memory protection.
[ 1.292819] Run /sbin/init as init process
[ 2.667178] init: Console is alive
[ 2.674735] init: - watchdog -
[ 3.829388] mtk_soc_eth 10100000.ethernet eth0: port 2 link up (100Mbps/Full duplex)
[ 5.084663] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 5.232906] usbcore: registered new interface driver usbfs
[ 5.244115] usbcore: registered new interface driver hub
[ 5.254852] usbcore: registered new device driver usb
[ 5.273330] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 5.290427] fsl-ehci: Freescale EHCI Host controller driver
[ 5.303483] ehci-platform: EHCI generic platform driver
[ 5.324574] phy phy-usbphy.0: remote usb device wakeup disabled
[ 5.336402] phy phy-usbphy.0: UTMI 16bit 30MHz
[ 5.345255] ehci-platform 101c0000.ehci: EHCI Host Controller
[ 5.356735] ehci-platform 101c0000.ehci: new USB bus registered, assigned bus number 1
[ 5.372661] ehci-platform 101c0000.ehci: irq 26, io mem 0x101c0000
[ 5.393484] ehci-platform 101c0000.ehci: USB 2.0 started, EHCI 1.00
[ 5.407188] hub 1-0:1.0: USB hub found
[ 5.415627] hub 1-0:1.0: 1 port detected
[ 5.429582] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 5.445887] ohci-platform: OHCI generic platform driver
[ 5.456925] ohci-platform 101c1000.ohci: Generic Platform OHCI controller
[ 5.470559] ohci-platform 101c1000.ohci: new USB bus registered, assigned bus number 2
[ 5.486474] ohci-platform 101c1000.ohci: irq 26, io mem 0x101c1000
[ 5.526172] hub 2-0:1.0: USB hub found
[ 5.534684] hub 2-0:1.0: 1 port detected
[ 5.554292] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 5.573281] init: - preinit -
[ 8.184542] random: jshn: uninitialized urandom read (4 bytes read)
[ 8.429013] random: jshn: uninitialized urandom read (4 bytes read)
[ 8.895517] random: jshn: uninitialized urandom read (4 bytes read)
[ 9.193643] random: jshn: uninitialized urandom read (4 bytes read)
[ 9.361832] random: jshn: uninitialized urandom read (4 bytes read)
[ 9.925305] 8021q: adding VLAN 0 to HW filter on device eth0
[ 10.117084] random: procd: uninitialized urandom read (4 bytes read)
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[ 11.426980] jffs2: notice: (339) jffs2_build_xattr_subsystem: complete building xattr subsystem, 34 of xdatum (30 unchecked, 4 orphan) and 45 of xref (4 dead, 0 orphan) found.
[ 11.470530] mount_root: switching to jffs2 overlay
[ 11.492050] overlayfs: upper fs does not support tmpfile.
[ 11.542812] urandom-seed: Seeding with /etc/urandom.seed
[ 11.734387] procd: - early -
[ 11.740666] procd: - watchdog -
[ 12.736655] procd: - watchdog -
[ 12.756736] procd: - ubus -
[ 12.902550] random: jshn: uninitialized urandom read (4 bytes read)
[ 13.215676] random: ubusd: uninitialized urandom read (4 bytes read)
[ 13.280586] random: ubusd: uninitialized urandom read (4 bytes read)
[ 13.306863] procd: - init -
Please press Enter to activate this console.
[ 14.032309] random: jshn: uninitialized urandom read (4 bytes read)
[ 16.188669] kmodloader: loading kernel modules from /etc/modules.d/*
[ 16.929236] ehci-pci: EHCI PCI platform driver
[ 17.360414] usbcore: registered new interface driver cdc_wdm
[ 17.386323] Loading modules backported from Linux version v6.1.110-0-g5f55cad62cc9d
[ 17.401672] Backport generated by backports.git v6.1.110-1-0-g965f73fc
[ 17.498216] usbcore: registered new interface driver usbserial_generic
[ 17.511466] usbserial: USB Serial support registered for generic
[ 17.556570] usbcore: registered new interface driver cdc_ether
[ 18.551898] PPP generic driver version 2.4.2
[ 18.585789] NET: Registered PF_PPPOX protocol family
[ 18.607597] usbcore: registered new interface driver qmi_wwan
[ 18.636974] usbcore: registered new interface driver rndis_host
[ 18.699101] usbcore: registered new interface driver option
[ 18.710444] usbserial: USB Serial support registered for GSM modem (1-port)
[ 18.790202] ieee80211 phy0: rt2x00lib_request_eeprom_file: Info - Loading EEPROM data from 'soc_wmac.eeprom'.
[ 18.835872] ieee80211 phy0: rt2x00_set_rt: Info - RT chipset 6352, rev 0500 detected
[ 18.851428] ieee80211 phy0: rt2x00_set_rf: Info - RF chipset 7620 detected
[ 18.943411] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 26.094834] usb 1-1: new high-speed USB device number 2 using ehci-platform
[ 26.375781] option 1-1:1.0: GSM modem (1-port) converter detected
[ 26.388349] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB0
[ 26.403019] option 1-1:1.1: GSM modem (1-port) converter detected
[ 26.415599] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB1
[ 26.430246] option 1-1:1.2: GSM modem (1-port) converter detected
[ 26.442923] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB2
[ 26.457614] option 1-1:1.3: GSM modem (1-port) converter detected
[ 26.470222] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB3
[ 27.425198] qmi_wwan 1-1:1.4: cdc-wdm0: USB WDM device
[ 27.675792] qmi_wwan 1-1:1.4 wwan0: register 'qmi_wwan' at usb-101c0000.ehci-1, WWAN/QMI device, 2a:cc:fb:04:03:96
[ 40.344741] random: crng init done
[ 40.351540] random: 179 urandom warning(s) missed due to ratelimiting
[ 72.685175] 8021q: adding VLAN 0 to HW filter on device eth0
[ 72.761948] device eth0 entered promiscuous mode
[ 72.795945] br-lan: port 1(eth0.1) entered blocking state
[ 72.806821] br-lan: port 1(eth0.1) entered disabled state
[ 72.817961] device eth0.1 entered promiscuous mode
[ 72.984857] br-lan: port 1(eth0.1) entered blocking state
[ 72.995673] br-lan: port 1(eth0.1) entered forwarding state
[ 73.725183] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 84.353065] phy0-sta0: authenticate with 78:a3:51:4a:48:a1
[ 84.425564] phy0-sta0: send auth to 78:a3:51:4a:48:a1 (try 1/3)
[ 84.442665] phy0-sta0: authenticated
[ 84.524787] phy0-sta0: associate with 78:a3:51:4a:48:a1 (try 1/3)
[ 84.584721] phy0-sta0: RX AssocResp from 78:a3:51:4a:48:a1 (capab=0x431 status=0 aid=2)
[ 84.601322] phy0-sta0: associated
[ 86.009529] IPv6: ADDRCONF(NETDEV_CHANGE): phy0-sta0: link becomes ready
