D-Link DAP-X1860 installation

mfilip · March 3, 2024, 4:09pm

Hi, newbee here
I have bought DAP-X1860 as an excellent choice for dumb AP role but I am struggling with installation process for multiple days. I try to search and read everything that can be found here and there but no luck.

Installation itself is straightforward. Recovery mode, chromium browser, go to 192.168.0.50, upload factory image (my first confusion: Why 'factory' and not 'recovery' in the name of image?), reboot Openwrt is running and everything is great...

...unitl first reboot. Then device is in some kind of boot loop. Red LED is on for 15s and off for 1s and I can see that network connection is cycling on my adapter but I can't connect in with my browser.

I have tried multiple browsers on Mac and Linux (Chrome, Edge, Chromium, ...) and result was the same every time.

I’ve also tried to use older factory image and then immediately run sysupgrade from Luci. Again the boot loop.

I have decrypted the original FW and it CAN be installed this way and work flawlessly even after reboot.

Please, what I am doing wrong?

RolandoMagico · March 3, 2024, 4:28pm

I also would expect to ist the recovery image in the recovery web interface.
The factory should only be used when flashing via OEM web interface.
Did you try to use the recovery image in the recovery web interface?
And which version did you use? I can try to reproduce it with my device

Ok, just saw that there is only a factory image in the firmware selector…

mfilip · March 3, 2024, 4:39pm

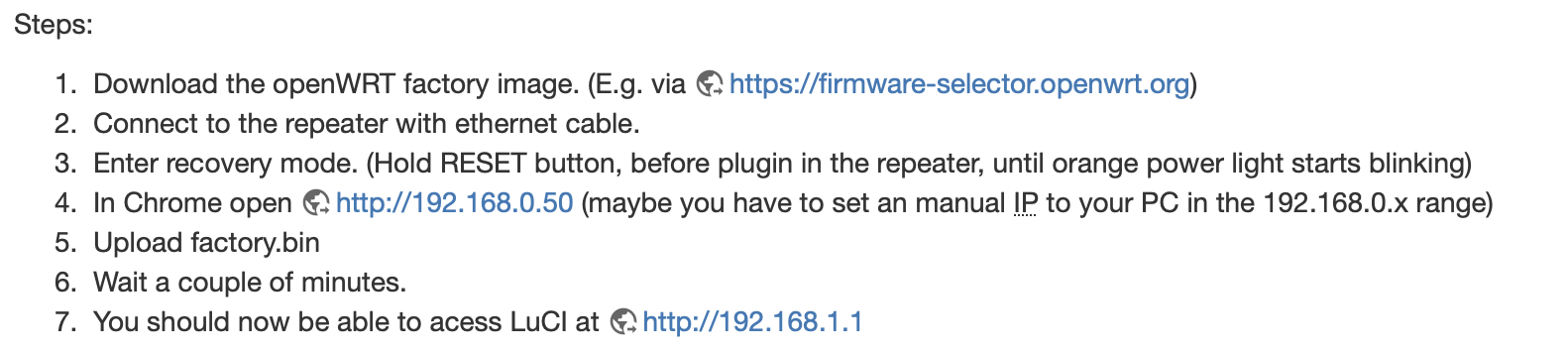

I just tried to follow manual on the device page:

There is mentioned factory image for flashing from recovery mode
And the recovery image is not even present on device download page.

I have also tried to use factory image via D-Link web UI and encrypt factory image and then use in web UI. Nothing works

RolandoMagico · March 3, 2024, 4:57pm

Sorry for the confusion regarding the images, I also tried the factory image in the recovery web interface (Version 23.05.2 (r23630-842932a63d)):

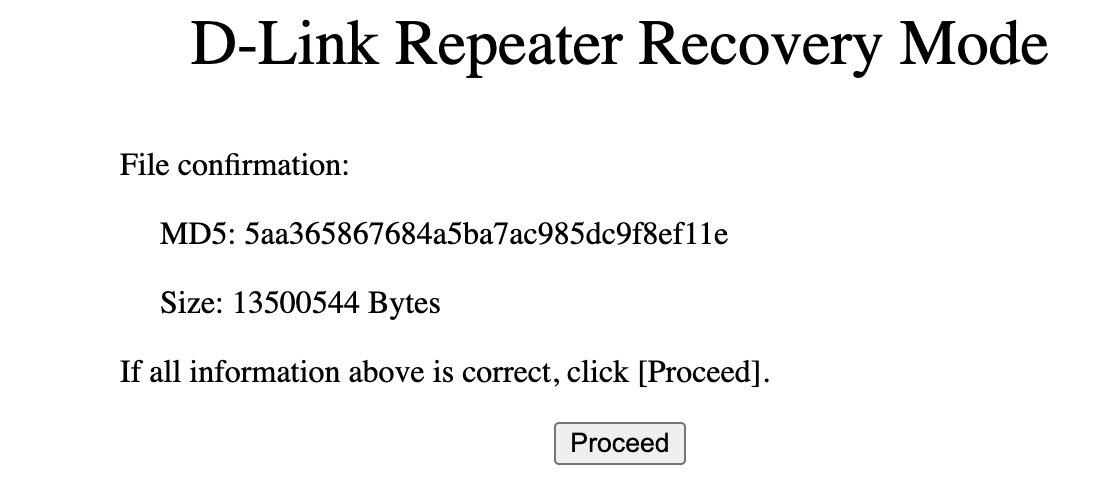

grafik

Reboot afterwards works here as well. Sysupgrade too.
Questions:

Which version do you use?
Do you apply specific settings before reboot or sysupgrade?

mfilip · March 3, 2024, 5:10pm

Looks correct. I have the same MD5 hash on my screen.

...and again. Luci works until first reboot. Then boot loop with slow red flashing

Version obviously the same as you used.
No special setting at all. Just setting root password and then reboot.

RolandoMagico · March 3, 2024, 5:41pm

Ok, strange. Also tried to change settings and reboot, no problems so far. Can you post the system log after first boot?
@s_2 : Any idea what can go wrong here?

mfilip · March 3, 2024, 5:59pm

Part 1

Tue Nov 14 13:38:18 2023 kern.notice kernel: [    0.000000] Linux version 5.15.137 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r23630-842932a63d) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Tue Nov 14 13:38:11 2023
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] printk: bootconsole [early0] enabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] MIPS: machine is D-Link DAP-X1860 A1
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Initrd not found or empty - disabling initrd
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] VPE topology {2,2} total 4
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Tue Nov 14 13:38:18 2023 kern.warn kernel: [    0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Zone ranges:
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000]   Normal   [mem 0x0000000000000000-0x000000000fffffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Movable zone start for each node
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Early memory node ranges
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000]   node   0: [mem 0x0000000000000000-0x000000000fffffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] percpu: Embedded 11 pages/cpu s14736 r8192 d22128 u45056
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    0.000000] pcpu-alloc: s14736 r8192 d22128 u45056 alloc=11*4096
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 64960
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    0.000000] Kernel command line: console=ttyS0,115200 rootfstype=squashfs,jffs2
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Writing ErrCtl register=00010000
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Readback ErrCtl register=00010000
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] Memory: 249108K/262144K available (7300K kernel code, 624K rwdata, 880K rodata, 1232K init, 226K bss, 13036K reserved, 0K cma-reserved)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] rcu: Hierarchical RCU implementation.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] 	Tracing variant of Tasks RCU enabled.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] NR_IRQS: 256
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.000004] sched_clock: 64 bits at 880MHz, resolution 1ns, wraps every 4398046511103ns
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.008071] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.066214] pid_max: default: 32768 minimum: 301
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.071636] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.078853] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.090663] rcu: Hierarchical SRCU implementation.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.096197] smp: Bringing up secondary CPUs ...
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.101661] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.101691] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Tue Nov 14 13:38:18 2023 kern.warn kernel: [    0.101705] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.101753] CPU1 revision is: 0001992f (MIPS 1004Kc)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.160972] Synchronize counters for CPU 1: done.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.193187] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.193214] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Tue Nov 14 13:38:18 2023 kern.warn kernel: [    0.193227] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.193259] CPU2 revision is: 0001992f (MIPS 1004Kc)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.252378] Synchronize counters for CPU 2: done.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.283160] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.283189] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Tue Nov 14 13:38:18 2023 kern.warn kernel: [    0.283201] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.283237] CPU3 revision is: 0001992f (MIPS 1004Kc)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.337599] Synchronize counters for CPU 3: done.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.367483] smp: Brought up 1 node, 4 CPUs
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.376934] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.386743] futex hash table entries: 1024 (order: 3, 32768 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.393829] pinctrl core: initialized pinctrl subsystem
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.400822] NET: Registered PF_NETLINK/PF_ROUTE protocol family
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.407529] thermal_sys: Registered thermal governor 'step_wise'
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    0.413975] FPU Affinity set after 11720 emulations
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.434208] clocksource: Switched to clocksource GIC
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.440851] NET: Registered PF_INET protocol family
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.445936] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.454326] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.462622] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.470344] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.477990] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.485094] TCP: Hash tables configured (established 2048 bind 2048)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.491547] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.498054] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.505391] NET: Registered PF_UNIX/PF_LOCAL protocol family
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.511042] PCI: CLS 0 bytes, default 32
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.518890] workingset: timestamp_bits=14 max_order=16 bucket_order=2
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.530856] squashfs: version 4.0 (2009/01/31) Phillip Lougher
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.536687] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.547902] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.559620] mt7621_gpio 1e000600.gpio: registering 32 gpios
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.565636] mt7621_gpio 1e000600.gpio: registering 32 gpios
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.571678] mt7621_gpio 1e000600.gpio: registering 32 gpios
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.577847] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges:
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.584570] mt7621-pci 1e140000.pcie:   No bus range found for /pcie@1e140000, using [bus 00-ff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.593303] mt7621-pci 1e140000.pcie:      MEM 0x0060000000..0x006fffffff -> 0x0060000000
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.601441] mt7621-pci 1e140000.pcie:       IO 0x001e160000..0x001e16ffff -> 0x0000000000
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.964210] mt7621-pci 1e140000.pcie: pcie2 no card, disable it (RST & CLK)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.971105] mt7621-pci 1e140000.pcie: PCIE0 enabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.975995] mt7621-pci 1e140000.pcie: PCIE1 enabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.980801] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.987983] mt7621-pci 1e140000.pcie: PCI host bridge to bus 0000:00
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.994312] pci_bus 0000:00: root bus resource [bus 00-ff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    0.999740] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.006603] pci_bus 0000:00: root bus resource [io  0x0000-0xffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.012749] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.018706] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.024936] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.031177] pci 0000:00:00.0: supports D1
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.035116] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.041849] pci 0000:00:01.0: [0e8d:0801] type 01 class 0x060400
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.047889] pci 0000:00:01.0: reg 0x10: [mem 0x00000000-0x7fffffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.054098] pci 0000:00:01.0: reg 0x14: [mem 0x00000000-0x0000ffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.060426] pci 0000:00:01.0: supports D1
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.064383] pci 0000:00:01.0: PME# supported from D0 D1 D3hot
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.072092] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.080075] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.088298] pci 0000:01:00.0: [14c3:7916] type 00 class 0x000280
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.094324] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.101489] pci 0000:01:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.108691] pci 0000:01:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.115971] pci 0000:01:00.0: supports D1 D2
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.120152] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.126794] pci 0000:01:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:00.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.142985] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.148220] pci 0000:00:00.0:   bridge window [io  0x0000-0x0fff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.154261] pci 0000:00:00.0:   bridge window [mem 0x00000000-0x000fffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.160965] pci 0000:00:00.0:   bridge window [mem 0x00000000-0x000fffff pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.168191] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.175026] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.180987] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.188192] pci 0000:02:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.195370] pci 0000:02:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.202623] pci 0000:02:00.0: supports D1 D2
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.206847] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.213404] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:01.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.229642] pci 0000:00:01.0: PCI bridge to [bus 02-ff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.234868] pci 0000:00:01.0:   bridge window [io  0x0000-0x0fff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.240875] pci 0000:00:01.0:   bridge window [mem 0x00000000-0x000fffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.247645] pci 0000:00:01.0:   bridge window [mem 0x00000000-0x000fffff pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.254831] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.261464] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.268025] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.274931] pci 0000:00:01.0: BAR 0: no space for [mem size 0x80000000]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.281456] pci 0000:00:01.0: BAR 0: failed to assign [mem size 0x80000000]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.288401] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.295157] pci 0000:00:00.0: BAR 9: assigned [mem 0x60100000-0x602fffff pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.302281] pci 0000:00:01.0: BAR 8: assigned [mem 0x60300000-0x603fffff]

mfilip · March 3, 2024, 5:59pm

Part 2

Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.309052] pci 0000:00:01.0: BAR 9: assigned [mem 0x60400000-0x605fffff pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.316229] pci 0000:00:00.0: BAR 1: assigned [mem 0x60600000-0x6060ffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.322936] pci 0000:00:01.0: BAR 1: assigned [mem 0x60610000-0x6061ffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.329714] pci 0000:00:00.0: BAR 7: assigned [io  0x0000-0x0fff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.335754] pci 0000:00:01.0: BAR 7: assigned [io  0x1000-0x1fff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.341778] pci 0000:01:00.0: BAR 0: assigned [mem 0x60100000-0x601fffff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.349502] pci 0000:01:00.0: BAR 2: assigned [mem 0x60200000-0x60203fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.357196] pci 0000:01:00.0: BAR 4: assigned [mem 0x60204000-0x60204fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.364880] pci 0000:00:00.0: PCI bridge to [bus 01]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.369764] pci 0000:00:00.0:   bridge window [io  0x0000-0x0fff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.375847] pci 0000:00:00.0:   bridge window [mem 0x60000000-0x600fffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.382550] pci 0000:00:00.0:   bridge window [mem 0x60100000-0x602fffff pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.389769] pci 0000:02:00.0: BAR 0: assigned [mem 0x60400000-0x604fffff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.397461] pci 0000:02:00.0: BAR 2: assigned [mem 0x60500000-0x60503fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.405146] pci 0000:02:00.0: BAR 4: assigned [mem 0x60504000-0x60504fff 64bit pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.412805] pci 0000:00:01.0: PCI bridge to [bus 02]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.417753] pci 0000:00:01.0:   bridge window [io  0x1000-0x1fff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.423767] pci 0000:00:01.0:   bridge window [mem 0x60300000-0x603fffff]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.430533] pci 0000:00:01.0:   bridge window [mem 0x60400000-0x605fffff pref]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.440777] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.453141] printk: console [ttyS0] disabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.457536] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 19, base_baud = 3125000) is a 16550A
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.466569] printk: console [ttyS0] enabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.474857] printk: bootconsole [early0] disabled
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.488624] nand: device found, Manufacturer ID: 0xc2, Chip ID: 0xf1
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.495046] nand: Macronix MX30LF1G18AC
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.498873] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.506465] mt7621-nand 1e003000.nand: ECC strength adjusted to 4 bits
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.515054] Signature found at block 1023 [0x07fe0000]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.520189] NMBM management region starts at block 960 [0x07800000]
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.530358] First info table with writecount 0 found in block 960
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.547926] Second info table with writecount 0 found in block 963
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.554222] NMBM has been successfully attached
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.558864] 8 fixed-partitions partitions found on MTD device mt7621-nand
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.566281] Creating 8 MTD partitions on "mt7621-nand":
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.571544] 0x000000000000-0x000000080000 : "bootloader"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.583330] 0x000000080000-0x000000100000 : "config"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.594508] 0x000000100000-0x000000180000 : "factory"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.606027] 0x000000180000-0x000000980000 : "kernel"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    1.692661] 0x000000980000-0x000003580000 : "fwconcat0"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.142158] 0x000003580000-0x000003980000 : "manufacture"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.189509] 0x000003980000-0x000004000000 : "storage"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.261366] 0x000004000000-0x000007800000 : "fwconcat1"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.838112] Concatenating MTD devices:
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.841914] (0): "fwconcat0"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.844876] (1): "fwconcat1"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.847776] into device "virtual_flash"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.851642] 1 fixed-partitions partitions found on MTD device virtual_flash
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.858600] Creating 1 MTD partitions on "virtual_flash":
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    2.863991] 0x000000000000-0x000006400000 : "ubi"
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.008002] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.021241] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 21
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.031847] i2c_dev: i2c /dev entries driver
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.039988] NET: Registered PF_INET6 protocol family
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.047779] Segment Routing with IPv6
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.051526] In-situ OAM (IOAM) with IPv6
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.055631] NET: Registered PF_PACKET protocol family
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.060794] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.074590] 8021q: 802.1Q VLAN Support v1.8
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.085094] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.109798] mt7530-mdio mdio-bus:1f: configuring for fixed/rgmii link mode
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.117598] mt7530-mdio mdio-bus:1f: Link is Up - 1Gbps/Full - flow control rx/tx
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.125074] mt7530-mdio mdio-bus:1f lan (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7530 PHY] (irq=23)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    4.129424] DSA: tree 0 setup
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    4.141601] UBI: auto-attach mtd8
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    4.145041] ubi0: attaching mtd8
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    4.235998] UBI: EOF marker found, PEBs from 34 will be erased
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.203891] ubi0: scanning is finished
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.250728] ubi0: volume 1 ("rootfs_data") re-sized from 9 to 748 LEBs
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.258579] ubi0: attached mtd8 (name "ubi", size 100 MiB)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.264096] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.271023] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.277830] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.284799] ubi0: good PEBs: 800, bad PEBs: 0, corrupted PEBs: 0
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.290788] ubi0: user volume: 2, internal volumes: 1, max. volumes count: 128
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.298000] ubi0: max/mean erase counter: 1/0, WL threshold: 4096, image sequence number: 1699969091
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.307128] ubi0: available PEBs: 0, total reserved PEBs: 800, PEBs reserved for bad PEB handling: 16
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.316384] ubi0: background thread "ubi_bgt0d" started, PID 290
Tue Nov 14 13:38:18 2023 kern.info kernel: [    5.319017] block ubiblock0_0: created from ubi0:0(rootfs)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.328052] ubiblock: device ubiblock0_0 (rootfs) set to be root filesystem
Tue Nov 14 13:38:18 2023 kern.info kernel: [    5.370992] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    5.383854] Freeing unused kernel image (initmem) memory: 1232K
Tue Nov 14 13:38:18 2023 kern.warn kernel: [    5.389979] This architecture does not have kernel memory protection.
Tue Nov 14 13:38:18 2023 kern.info kernel: [    5.396502] Run /sbin/init as init process
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    5.400600]   with arguments:
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    5.400610]     /sbin/init
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    5.400619]   with environment:
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    5.400627]     HOME=/
Tue Nov 14 13:38:18 2023 kern.debug kernel: [    5.400636]     TERM=linux
Tue Nov 14 13:38:18 2023 user.info kernel: [    6.009592] init: Console is alive
Tue Nov 14 13:38:18 2023 user.info kernel: [    6.013545] init: - watchdog -
Tue Nov 14 13:38:18 2023 user.info kernel: [    6.886749] kmodloader: loading kernel modules from /etc/modules-boot.d/*
Tue Nov 14 13:38:18 2023 user.info kernel: [    6.954743] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
Tue Nov 14 13:38:18 2023 user.info kernel: [    6.964049] init: - preinit -
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    8.005661] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    8.142686] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    8.202731] random: jshn: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:18 2023 kern.info kernel: [    8.618477] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode
Tue Nov 14 13:38:18 2023 kern.info kernel: [    8.631315] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
Tue Nov 14 13:38:18 2023 kern.info kernel: [    8.634606] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode
Tue Nov 14 13:38:18 2023 kern.info kernel: [    8.647206] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   10.859000] UBIFS (ubi0:1): default file-system created
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   10.865623] UBIFS (ubi0:1): Mounting in unauthenticated mode
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   10.871662] UBIFS (ubi0:1): background thread "ubifs_bgt0_1" started, PID 413
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   10.996609] UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name "rootfs_data"
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.004523] UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.014486] UBIFS (ubi0:1): FS size: 93581312 bytes (89 MiB, 737 LEBs), max 748 LEBs, journal size 4698112 bytes (4 MiB, 37 LEBs)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.026136] UBIFS (ubi0:1): reserved for root: 4420076 bytes (4316 KiB)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.032738] UBIFS (ubi0:1): media format: w5/r0 (latest is w5/r0), UUID 73E1B3D5-2563-4E97-82EB-D502A8151192, small LPT model
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.047741] mount_root: overlay filesystem has not been fully initialized yet
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.055929] mount_root: switching to ubifs overlay
Tue Nov 14 13:38:18 2023 user.warn kernel: [   11.069191] urandom-seed: Seed file not found (/etc/urandom.seed)
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.173634] procd: - early -
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.176937] procd: - watchdog -
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.801611] procd: - watchdog -
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.805566] procd: - ubus -
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.862930] random: ubusd: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.872057] random: ubusd: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   11.883619] random: ubusd: uninitialized urandom read (4 bytes read)
Tue Nov 14 13:38:18 2023 user.info kernel: [   11.896139] procd: - init -
Tue Nov 14 13:38:18 2023 user.info kernel: [   12.479350] kmodloader: loading kernel modules from /etc/modules.d/*
Tue Nov 14 13:38:18 2023 kern.info kernel: [   12.713308] Loading modules backported from Linux version v6.1.24-0-g0102425ac76b
Tue Nov 14 13:38:18 2023 kern.info kernel: [   12.720848] Backport generated by backports.git v5.15.92-1-44-gd6ea70fafd36
Tue Nov 14 13:38:18 2023 kern.info kernel: [   12.909173] pci 0000:00:00.0: enabling device (0000 -> 0003)
Tue Nov 14 13:38:18 2023 kern.info kernel: [   12.914985] mt7915e_hif 0000:01:00.0: enabling device (0000 -> 0002)
Tue Nov 14 13:38:18 2023 kern.info kernel: [   12.921941] pci 0000:00:01.0: enabling device (0000 -> 0003)
Tue Nov 14 13:38:18 2023 kern.info kernel: [   12.927734] mt7915e 0000:02:00.0: enabling device (0000 -> 0002)
Tue Nov 14 13:38:18 2023 kern.info kernel: [   13.209497] mt7915e 0000:02:00.0: HW/SW Version: 0x8a108a10, Build Time: 20220929104113a
Tue Nov 14 13:38:18 2023 kern.info kernel: [   13.209497]
Tue Nov 14 13:38:18 2023 kern.info kernel: [   13.542762] mt7915e 0000:02:00.0: WM Firmware Version: ____000000, Build Time: 20220929104145
Tue Nov 14 13:38:18 2023 kern.info kernel: [   13.582892] mt7915e 0000:02:00.0: WA Firmware Version: DEV_000000, Build Time: 20220929104205
Tue Nov 14 13:38:18 2023 user.info kernel: [   13.693055] urngd: v1.0.2 started.
Tue Nov 14 13:38:18 2023 kern.info kernel: [   13.832404] PPP generic driver version 2.4.2
Tue Nov 14 13:38:18 2023 kern.info kernel: [   13.840400] NET: Registered PF_PPPOX protocol family
Tue Nov 14 13:38:18 2023 user.info kernel: [   13.857914] kmodloader: done loading kernel modules from /etc/modules.d/*
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   14.719553] random: crng init done
Tue Nov 14 13:38:18 2023 kern.notice kernel: [   14.722993] random: 31 urandom warning(s) missed due to ratelimiting
Tue Nov 14 13:38:18 2023 kern.warn kernel: [   15.140050] mtdblock: MTD device 'factory' is NAND, please consider using UBI block devices instead.
Tue Nov 14 13:38:18 2023 kern.warn kernel: [   16.299793] mtdblock: MTD device 'factory' is NAND, please consider using UBI block devices instead.
Tue Nov 14 13:38:19 2023 user.notice dnsmasq: DNS rebinding protection is active, will discard upstream RFC1918 responses!
Tue Nov 14 13:38:19 2023 user.notice dnsmasq: Allowing 127.0.0.0/8 responses
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: started, version 2.89 cachesize 1000
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: DNS service limited to local subnets
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: compile time options: IPv6 GNU-getopt no-DBus UBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua TFTP no-conntrack no-ipset no-nftset no-auth no-cryptohash no-DNSSEC no-ID loop-detect inotify dumpfile
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: UBus support enabled: connected to system bus
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for test
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for onion
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for localhost
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for local
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for invalid
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for bind
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: using only locally-known addresses for lan
Tue Nov 14 13:38:19 2023 daemon.warn dnsmasq[1]: no servers found in /tmp/resolv.conf.d/resolv.conf.auto, will retry
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: read /etc/hosts - 12 names
Tue Nov 14 13:38:19 2023 daemon.info dnsmasq[1]: read /tmp/hosts/dhcp.cfg01411c - 0 names
Tue Nov 14 13:38:32 2023 authpriv.info dropbear[1429]: Not backgrounding
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: bonding
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: 8021ad
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: 8021q
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: macvlan
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: veth
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: bridge
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: Network device
Tue Nov 14 13:38:34 2023 user.notice : Added device handler type: tunnel
Tue Nov 14 13:38:34 2023 daemon.notice wpa_supplicant[1537]: Successfully initialized wpa_supplicant
Tue Nov 14 13:38:34 2023 daemon.notice procd: /etc/rc.d/S25packet_steering: sh: write error: No such file or directory
Tue Nov 14 13:38:34 2023 daemon.notice procd: /etc/rc.d/S25packet_steering: sh: write error: No such file or directory
Tue Nov 14 13:38:35 2023 user.notice ucitrack: Setting up /etc/config/dhcp reload dependency on /etc/config/network
Tue Nov 14 13:38:35 2023 user.notice ucitrack: Setting up /etc/config/network reload dependency on /etc/config/wireless
Tue Nov 14 13:38:35 2023 user.notice ucitrack: Setting up /etc/config/luci-splash reload dependency on /etc/config/firewall
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up /etc/config/qos reload dependency on /etc/config/firewall
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up /etc/config/miniupnpd reload dependency on /etc/config/firewall
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up /etc/config/odhcpd reload dependency on /etc/config/dhcp
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up non-init /etc/config/fstab reload handler: /sbin/block mount
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up /etc/config/system reload trigger for non-procd /etc/init.d/led
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up /etc/config/luci_statistics reload dependency on /etc/config/system
Tue Nov 14 13:38:36 2023 user.notice ucitrack: Setting up /etc/config/dhcp reload dependency on /etc/config/system
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.157573] mtk_soc_eth 1e100000.ethernet eth0: Link is Down
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.193067] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.201556] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.211345] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.221283] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.230719] br-lan: port 1(lan) entered blocking state
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.236087] br-lan: port 1(lan) entered disabled state
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.245438] device lan entered promiscuous mode
Tue Nov 14 13:38:37 2023 kern.info kernel: [   38.250072] device eth0 entered promiscuous mode
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'lan' is enabled
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'lan' is setting up now
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'lan' is now up
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'loopback' is enabled
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'loopback' is setting up now
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'loopback' is now up
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Network device 'eth0' link is up
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Network device 'lo' link is up
Tue Nov 14 13:38:37 2023 daemon.notice netifd: Interface 'loopback' has link connectivity
Tue Nov 14 13:38:37 2023 user.notice led-trigger: LED trigger rssi is handled by /etc/init.d/rssileds
Tue Nov 14 13:38:37 2023 user.notice led-trigger: LED trigger rssi is handled by /etc/init.d/rssileds
Tue Nov 14 13:38:37 2023 user.notice led-trigger: LED trigger rssi is handled by /etc/init.d/rssileds
Tue Nov 14 13:38:37 2023 user.notice led-trigger: LED trigger rssi is handled by /etc/init.d/rssileds
Tue Nov 14 13:38:37 2023 daemon.info rssileds[2250]: monitoring wlan1, refresh rate 200000, threshold 1
Tue Nov 14 13:38:37 2023 daemon.info rssileds[2250]:  /sys/class/leds/orange:rssilow/brightness r: 1..25, o: 0, f: 1
Tue Nov 14 13:38:37 2023 daemon.info rssileds[2250]:  /sys/class/leds/green:rssilow/brightness r: 26..100, o: 0, f: 1
Tue Nov 14 13:38:37 2023 daemon.info rssileds[2250]:  /sys/class/leds/green:rssimedium/brightness r: 51..100, o: 0, f: 1
Tue Nov 14 13:38:37 2023 daemon.info rssileds[2250]:  /sys/class/leds/green:rssihigh/brightness r: 76..100, o: 0, f: 1
Tue Nov 14 13:38:37 2023 user.notice firewall: Reloading firewall due to ifup of lan (br-lan)
Tue Nov 14 13:38:38 2023 daemon.info procd: - init complete -
Tue Nov 14 13:38:38 2023 daemon.info urandom_seed[2350]: Seed saved (/etc/urandom.seed)
Tue Nov 14 13:38:39 2023 kern.info kernel: [   40.955524] mt7530-mdio mdio-bus:1f lan: Link is Up - 1Gbps/Full - flow control rx/tx
Tue Nov 14 13:38:39 2023 kern.info kernel: [   40.963411] br-lan: port 1(lan) entered blocking state
Tue Nov 14 13:38:39 2023 kern.info kernel: [   40.968625] br-lan: port 1(lan) entered forwarding state
Tue Nov 14 13:38:39 2023 daemon.notice netifd: Network device 'lan' link is up
Tue Nov 14 13:38:39 2023 daemon.notice netifd: bridge 'br-lan' link is up
Tue Nov 14 13:38:39 2023 daemon.notice netifd: Interface 'lan' has link connectivity
Tue Nov 14 13:38:39 2023 kern.info kernel: [   40.974851] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
Tue Nov 14 13:38:42 2023 daemon.info dnsmasq[1]: exiting on receipt of SIGTERM
Tue Nov 14 13:38:42 2023 kern.info kernel: [   43.587971] do_page_fault(): sending SIGSEGV to ujail for invalid read access from 00000036
Tue Nov 14 13:38:42 2023 kern.info kernel: [   43.596451] epc = 77d70d0b in libubox.so.20230523[77d6d000+1f000]
Tue Nov 14 13:38:42 2023 kern.info kernel: [   43.602650] ra  = 555e482b in ujail[555e0000+14000]
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: started, version 2.89 cachesize 1000
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: DNS service limited to local subnets
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: compile time options: IPv6 GNU-getopt no-DBus UBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua TFTP no-conntrack no-ipset no-nftset no-auth no-cryptohash no-DNSSEC no-ID loop-detect inotify dumpfile
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: UBus support enabled: connected to system bus
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq-dhcp[1]: DHCP, IP range 192.168.1.100 -- 192.168.1.249, lease time 12h
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for test
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for onion
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for localhost
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for local
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for invalid
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for bind
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: using only locally-known addresses for lan
Tue Nov 14 13:38:44 2023 daemon.warn dnsmasq[1]: no servers found in /tmp/resolv.conf.d/resolv.conf.auto, will retry
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: read /etc/hosts - 12 names
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq[1]: read /tmp/hosts/dhcp.cfg01411c - 2 names
Tue Nov 14 13:38:44 2023 daemon.info dnsmasq-dhcp[1]: read /etc/ethers - 0 addresses
Tue Nov 14 13:38:44 2023 daemon.warn odhcpd[1772]: No default route present, overriding ra_lifetime!
Tue Nov 14 13:38:48 2023 daemon.warn odhcpd[1772]: No default route present, overriding ra_lifetime!
Tue Nov 14 13:38:56 2023 daemon.warn odhcpd[1772]: No default route present, overriding ra_lifetime!
Tue Nov 14 13:39:56 2023 daemon.err uhttpd[894]: [info] luci: accepted login on / for root from 192.168.1.2

s_2 · March 3, 2024, 7:37pm

When this device was added, the factory image encryption was fully reverse engineered already, but we did not have the RSA private key to sign the images, so there is no encrypted image, thus the (only) image was named factory.
Later D-Link published the GPL code which leaked the RSA key that allows making "real" factory images (flashable via OEM web interface), but currently this is documented only in the wiki... (would probably just make it more confusing to replace factory with something that can no longer be flashed via recovery)

In general, the bad block management seems to be a bit weird with this device - even with OEM firmware, though OpenWrt usually works better (since it will use an additional layer of UBI on top of the quirky Mediatek bad block management, which was replaced with bmt,v2 with later devices, but this one still uses nmbm).
So, the kernel partition is not protected against corruption in the same way as the rest, though this is usually updated very rarely and should not cause issues, especially when overwriting.
I've seen (very) few devices being confused when attaching ubi if there were remainders of a previous file system in the flash, not sure if this is relevant here.

Since all else failed, you could still try the following:

flash initramfs image via recovery
ssh into it, run
mtd erase kernel
mtd erase fwconcat0
mtd erase fwconcat1
reboot into recovery again, flash OpenWrt factory again

mfilip · March 3, 2024, 8:17pm

Sorry for stupid question but where is the initramfs file for this device?

s_2 · March 3, 2024, 8:30pm

it's the first of the 3 images from the list in the downloads section, i.e.
https://downloads.openwrt.org/releases/23.05.2/targets/ramips/mt7621/openwrt-23.05.2-ramips-mt7621-dlink_dap-x1860-a1-initramfs-kernel.bin
this is similar to booting from a USB drive, the image contains a live filesystem that will be in RAM, so you can erase the NAND underneath while the system is still running.

mfilip · March 3, 2024, 9:03pm

I flashed the kernel image

But the device booted back to the recovery mode and recovery page on 192.168.0.50 is active again.
Not possible to connect 192.168.1.1 with SSH
When I power cycle the device longer red light is followed by short red recovery flashing and recovery mode is established without holding reset button.

I can SSH to the Factory image (before the first reboot) if it helps...

RolandoMagico · March 4, 2024, 6:30am

Compared to my system log, I see some differences:
I don't know where this comes from

Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.072092] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
Tue Nov 14 13:38:18 2023 kern.info kernel: [    1.080075] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring

This looks strange for me (but I'm not an expert in this topic):

Tue Nov 14 13:38:18 2023 kern.notice kernel: [    4.235998] UBI: EOF marker found, PEBs from 34 will be erased
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.250728] ubi0: volume 1 ("rootfs_data") re-sized from 9 to 748 LEBs

mfilip · March 4, 2024, 9:22am

I tried to open the case to access serial connection but it's very hard to open it without case destruction...

s_2 · March 4, 2024, 10:30am

I'm sorry, I had not checked the format... The initramfs offered for download is actually for booting via tftp only, but when flashing via recovery, the elx header needs to be added. Sorry, it's been too long ago with this device
I found an old image on my server from January 2023, but it still should be fine:
http://sebastianschaper.net/openwrt/openwrt-ramips-mt7621-dlink_dap-x1860-a1-initramfs-kernel-nandflash.bin
This is an initramfs packed to recovery-flashable format, from that you should be able to erase the mtd partitions for kernel and ubi (fwconcat0 and fwconcat1, hopefully mtd will allow you to erase those, otherwise try mtd erase ubi, one of them should work).

RolandoMagico:

Tue Nov 14 13:38:18 2023 kern.notice kernel: [    4.235998] UBI: EOF marker found, PEBs from 34 will be erased
Tue Nov 14 13:38:18 2023 kern.notice kernel: [    5.250728] ubi0: volume 1 ("rootfs_data") re-sized from 9 to 748 LEBs

This looks like the expected behavior on first flash, when the ubi is expanded to the full size of the flash. But maybe there's still some remainder of previous data there, although that would yield different errors

mfilip · March 4, 2024, 1:46pm

Amazing, it works now! Thanks a lot for your time and support

carload · April 23, 2024, 1:52pm

I would like to ask something about this topic. I am too stupid to get into recovery mode. What am I doing wrong? I hold the reset button when I plug in the device. The LED then flashes, but red. In the browser, I can't access a page via the IP, nothing is displayed.

EDIT: I got it, I am just stupid. I forgot to bring my laptop to, for example, IP 192.168.0.10. It works now, OpenWRT is online now

lbschenkel · October 9, 2024, 6:49pm

I want to confirm that I had exactly the same issue. I followed the instructions as they are described in the wiki:

Rebooted in recovery mode
Uploaded the latest *-factory.bin file from the Firmware Selector
Flash was apparently successful, as the router rebooted in OpenWRT

However, if I did nothing but just rebooted again, the AP would be stuck with an orange light that eventually blinked once every 10s or so. I was going crazy over this, I repeated this process a dozen times, I thought I hard a hardware issue.

And then I found this thread. Thank you so much for this.

At first I tried erasing the flash to get rid of any remnant that was there:

mtd erase kernel
mtd erase fwconcat0
mtd erase fwconcat1

Which worked (as in: no errors), and I repeated steps 1-3. However, this didn't fix the problem. Or, better said, this was not actually the problem.

What actually fixed the problem was downloading the image from above (*-nandflash.bin) and flashing it. So the actual problem is that the *-factory.bin images are not actually working for flashing for the first time, and for some reason they only work on first boot but do not boot afterwards.

I even tried flashing a new one via sysupgrade immediately after booting for the first time, but it looks like the flash continues to be in a "bad" state after the initial flash with the factory image because the router will stick be soft bricked with the orange light any time it boots.

So a word of warning to the next person who gets here with the same problem: the instructions in the wiki are not accurate; the factory images are not suitable for a first flash, the actual image that should be used is the one that was mentioned in this thread.
