Block remote\cloud access for Deco

kyxap · March 15, 2024, 8:13pm

Hi there!

I got Deco device from provider and want to use it as my AC. Everything works fine and just do not want to let ISP connect to the device and have access. Because based on my experience they can see my wifi network, maybe passworkd, all devices, macs, ip, etc...

I was looking the docs and added this config to block in/out by ip. Since i've dhcp static configured for that device

config rule
        option name 'Block Incoming MAC'
        option src 'wan'
        option dest 'lan'
        option target 'DROP'
        list dest_ip '192.168.200.3'
        list proto 'all'

config rule
        option name 'Block Outgoing MAC'
        option src 'lan'
        option dest 'wan'
        option target 'DROP'
        list src_ip '192.168.200.3'
        list proto 'all'

But it does not look like it's working... Because when try to connect to Deco app (no wifi just cellular) I still can connect to my cloud account and see all data such as name, mac, client connected etc.

As side note some how in Deco UI I see different mac in xxxxxxxx-74 vs xxxxxxxxx-75 which is registered in my network and I see request coming back and forth in pi.hole. When I doo arp -n correct IP associated expected mac (75) So cound be some ui bug or its doing something sketchy?

Anyway, looking for any suggestion on options to make sure there no access.

psherman · March 15, 2024, 8:22pm

Are there multiple units, or just one? Also, have you confirmed that the device is indeed using this address and that it is not using IPv6?

Let's see the complete config:

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/dhcp
cat /etc/config/firewall

kyxap · March 15, 2024, 8:29pm

its only 1 unit
yes its using that address (confirmed by entering device UI at the same address)
Also I do not see any other ip on router network
ipv6 is disabled.

root@Router:~# ubus call system board
{
        "kernel": "5.15.137",
        "hostname": "Router",
        "system": "ARMv7 Processor rev 0 (v7l)",
        "model": "Netgear Nighthawk X4S R7800",
        "board_name": "netgear,r7800",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "23.05.2",
                "revision": "r23630-842932a63d",
                "target": "ipq806x/generic",
                "description": "OpenWrt 23.05.2 r23630-842932a63d"
        }
}
root@Router:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option packet_steering '1'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth1.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.200.1'
        option netmask '255.255.255.0'
        option ip6assign '64'
        option defaultroute '0'
        option ip6ifaceid '::200:1'
        option ipv6 'off'
        list dns '208.67.222.222'
        list dns '8.8.8.8'

config interface 'wan'
        option proto 'pppoe'
        option ipv6 'auto'
        option username 'xxxxxxxxxxxx'
        option password 'xxxxxxxxxxxxxxxxx'
        option device 'eth0.40'
        option peerdns '0'

config interface 'wan6'
        option proto 'dhcpv6'
        option reqaddress 'try'
        option reqprefix 'auto'
        option device '@wan'
        option peerdns '0'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option ports '6t 4 3 2 1'
        option vid '1'

config interface 'modem'
        option proto 'static'
        option device '@wan'
        option ipaddr '192.168.100.2'
        option netmask '255.255.255.0'

config switch_vlan
        option device 'switch0'
        option vlan '3'
        option ports '0t 5t'
        option vid '40'
        option description 'fiber'

root@Router:~# cat /etc/config/dhcp

config dnsmasq
        option localise_queries '1'
        option rebind_protection '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option localservice '1'
        option ednspacket_max '1232'
        list server '192.168.200.5'
        list server 'fe80::xxxxxxxxxxxxxx'
        list rebind_domain 'plex.direct'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'
        option ra_slaac '0'
        option force '1'
        list dns 'fe80::xxxxxxxxxxxxxx'
        option ra_default '2'
        list dhcp_option '6,192.168.200.5'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

config domain
        option name 'router'
        option ip '192.168.200.1'

config host
        option name 'pc-xxxxxxx'
        option ip '192.168.200.10'
        option mac 'xxxxxxxxxxxxxxxxxxxx'
        option hostid '10'
        option duid 'xxxxxxxxxxxxxxxx'

config host
        option ip '192.168.200.11'
        option mac 'xxxxxxxxx'
        option name 'pc-xxxxx-wifi'
        option hostid '11'

config host
        option duid 'xxxxxxxxxxxxxxxx'
        option mac 'xxxxxxxxxxxxxxxxxxxxxxxx'
        option name 'pi.hole'
        option ip '192.168.200.5'
        option hostid '05'

config domain
        option name 'modem'
        option ip '192.168.100.1'

config domain
        option name 'pi.hole'
        option ip '192.168.200.5'

config domain
        option name 'pc-xxxxx'
        option ip '192.168.200.10'

config domain
        option name 'sp1'
        option ip '192.168.200.61'

config domain
        option name 'sp2'
        option ip '192.168.200.62'

config host
        option name 'ac1'
        option ip '192.168.200.3'
        option mac 'xxxxxxxxxxxxxxxxxx'

config host
        option name 'printer'
        option ip '192.168.200.4'
        option mac 'xxxxxxxxxxxxxxxxxx'

psherman · March 15, 2024, 8:37pm

If you want to disable IPv6 entirely, remove all IPv6 entires from below:

kyxap:

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.200.1'
        option netmask '255.255.255.0'
        option ip6assign '64'
        option defaultroute '0'
        option ip6ifaceid '::200:1'
        option ipv6 'off'
        list dns '208.67.222.222'
        list dns '8.8.8.8'

And also remove wan6:

And then remove the IPv6 entries in the DHCP server:

kyxap:

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'
        option ra_slaac '0'
        option force '1'
        list dns 'fe80::xxxxxxxxxxxxxx'
        option ra_default '2'
        list dhcp_option '6,192.168.200.5'

Make the above look like this instead:

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option force '1'
        list dhcp_option '6,192.168.200.5'

Try that first. Reboot and test again.
If that doesn't work, let's see the firewall file.

kyxap · March 15, 2024, 8:40pm

im in between ISP change and not sure if this one supports ipv6 so do not want to change entire config back and forth but we do if its actually required.

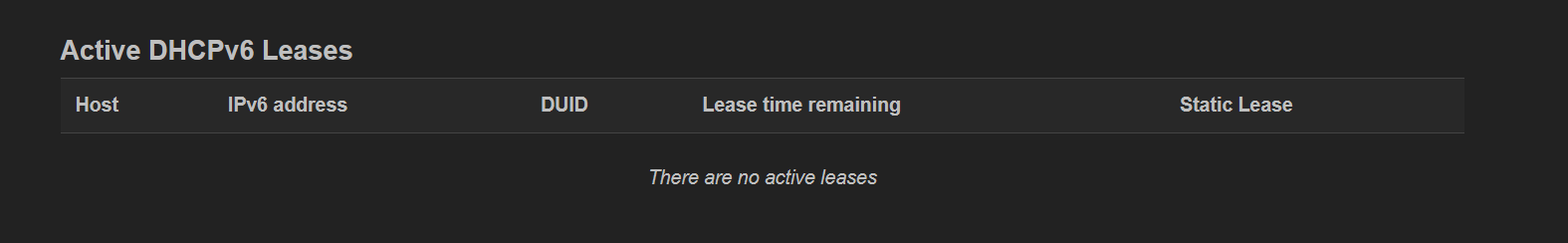

Does not this proove that ipv6 is turned off and there no ipv6 communation between rounter?

psherman · March 15, 2024, 8:44pm

Feel free to make a backup of your current config -- then you can easily restore your current configuration if you want later, but give this a shot.

kyxap · March 15, 2024, 9:40pm

yeah... this did the trick. Now when I look into the app it says "We could not find Deco" (Hope same will get ISP as well :|)
thanks for such fast response.

I'm kinda not sure how does it went through router without noticing it...

I'm assume this is example on how global ipv6 works and can be "dangerous" for not fully configured system and its another reason to turn it off

psherman · March 15, 2024, 10:33pm

In this case, the problem would also exist with IPv4 if you didn't explicitly block the outbound connectivity for the device. IPv6 is no different in that respect, you just have to block the device in question by its IPv6 address.

kyxap · March 15, 2024, 11:19pm

Sorry but that was false positive, I’ve got some issue with pi.hole at the same time and seems like that why I was not able to get the Deco data.

Now pi.hole is running fine I can still pull data on cellular.

psherman · March 15, 2024, 11:20pm

Which specific Deco model is it? What does the label say on the back?

kyxap · March 15, 2024, 11:39pm

[

Deco X50

](https://www.tp-link.com/ca/home-networking/deco/deco-x50/)

psherman · March 15, 2024, 11:50pm

Too bad... that doesn't appear to be supported by OpenWrt. That, IMO, would be the best solution, but it isn't an option.

Try erasing the rules you shared previously and use this one (the difference is really just the reject rule).

config rule
	option name 'blockdeco'
	list proto 'all'
	option src 'lan'
	list src_ip '192.168.200.3'
	option dest 'wan'
	option target 'REJECT'

You haven't shared your complete firewall file... if this doesn't fix the problem, please share that.

psherman · March 16, 2024, 12:24am

Another few thoughts:

It is key that you reboot the router after making some of these changes. Although the blocking rule will prevent new connections, the firewall may continue to allow existing connections. Rebooting should clear this.
You have a modem network defined -- presumably to be able to connect to your modem for administration/statistics -- I haven't seen your firewall yet, but it's possible that this is causing a path for the leak.
Does the Deco have bluetooth? If so, is it possible that the app is actually connecting via BT to your AP and gathering the data that way?
If you physically disconnect the AP (ethernet and/or power) so that it cannot physically connect to the internet, does the app reflect the lost contact? It is possible that the app or cloud is showing historical or cached data, but not reflecting the loss of connectivity.

kyxap · March 16, 2024, 6:30pm

after changing from drop to reject again and doing another restart it seems like it's blocking traffic!

to summarize:

I've removed 'modem` since this was from by old isp/setup and it's never worked with new one
reject instead of drop
cleaning up all ipv6 network config
disabled all ipv6 firewall rules just in case

my current firewall config:


config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Block Incoming Deco'
        option src 'wan'
        option dest 'lan'
        option target 'REJECT'
        list dest_ip '192.168.200.3'
        list proto 'all'

config rule
        option name 'Block Outgoing Deco'
        option src 'lan'
        option dest 'wan'
        option target 'REJECT'
        list src_ip '192.168.200.3'
        list proto 'all'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'


config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'
        option family 'ipv4'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'xx'
        option src 'wan'
        option src_dport 'xxxxx'
        option dest_ip '192.168.200.5'
        option dest_port 'xxxxx'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'xx'
        option src 'wan'
        option dest_ip '192.168.200.10'
        option family 'ipv4'
        option src_dport 'xxxx'
        option dest_port 'xxxx'
        list proto 'tcp'
        list proto 'udp'
        list proto 'icmp'
        option enabled '0'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'dns'
        option src 'wan'
        option src_dport '6xxxx'
        option dest_ip '192.168.200.5'
        option dest_port 'xx'
        option enabled '0'

it still has some ipv6 in it... I think it's make sense to just turn it off and do another restart...
upd: i've disabled all ipv6 related rules just in case and did another reboot

system · March 26, 2024, 6:30pm

This topic was automatically closed 10 days after the last reply. New replies are no longer allowed.
