Ok I took your hint and realized my banip.feeds file was old. Copied the new raw version from git and re-created it; now everything is working in luci.
Sorry for not keeping my feeds file updated!
1 Like
That's the old format ... you have to use the new format. Did you "protect" this file from updates!? This is the root cause of your LuCI problem.
Just to confirm, yes for some reason I had previously added the /etc/banip directory to my protected upgrade list... in hindsight, this was stupid and has now been reverted.
Sorry for all the noise and thanks for helping me fix it so quickly!
No problem, glad that 1.5.x works for you now ...
Thanks. I do have one other semi-related question. While I love OpenWRT and it has been my main edge router for a few years now, I do also dabble with Alpine and a few other trim/slim distros for routing...
Is there any possibility of a "general purpose" version of banIP that will run on straight-up linux, e.g. Alpine? I imagine you've got some bits that rely on owrt's netif/ubus/procd systems, though.
Thanks again for banIP, it's great.
Nope, sorry. I have a tempting full time job (not related to OpenWrt
) and no time/interest in doing something like that.
haha ok yes no worries; I figured it couldn't hurt to ask
It's quite easy to setup an x86 flavour of openwrt.
Or you may have a look at csf: https://configserver.com/configserver-security-and-firewall/

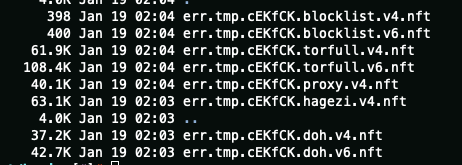

Hi @dibdot .. i'm trying the latest version 1.5.0-r1 and I'm seeing some "can't load initial file error", and I can see files in the error folder
What does those error exactly mean? Below is just one of the feeds ('doh') that generated those errors.
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_etag ::: feed: doh.v6, suffix: -, http_code: 200, etag_id: 8f1ce76f987b3034902a3341c3b65d8a8344043ee214ce06425cc4a4ef9675ad
, etag_rc: 0, rc: 2
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_etag ::: feed: doh.v4, suffix: -, http_code: 200, etag_id: 48ff4ff4ddabd6aedd2825f6f805a7d91067e4cd1fdef73744e71b23cba6cc33
, etag_rc: 0, rc: 2
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_backup ::: feed: doh.v6, file: banIP.doh.v6.gz, rc: 0
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_backup ::: feed: doh.v4, file: banIP.doh.v4.gz, rc: 0
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_mkdir ::: directory: /mnt/sdb1/openwrt/banip/errors
Sun Jan 19 02:03:40 2025 user.info banIP-1.5.0-r1[19662]: can't load initial file to nfset 'doh.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.cEKfCK.doh.v6.nft)
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_nftload ::: file: tmp.cEKfCK.doh.v6.nft, cnt: 5, max_cnt: 5
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_down ::: feed: doh.v6, policy: out, complete: -, cnt_dl: 1804, cnt_set: -, split_size: 4096, time: 1, rc: 4
Sun Jan 19 02:03:40 2025 user.info banIP-1.5.0-r1[19662]: can't load initial file to nfset 'doh.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.cEKfCK.doh.v4.nft)
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_nftload ::: file: tmp.cEKfCK.doh.v4.nft, cnt: 5, max_cnt: 5
Sun Jan 19 02:03:40 2025 user.debug banIP-1.5.0-r1[19662]: f_down ::: feed: doh.v4, policy: out, complete: -, cnt_dl: 2508, cnt_set: -, split_size: 4096, time: 1, rc: 4
Also got it for the ff:
- Blocklist - Note: my blocklist is empty
- proxy
- hagezi
Additional Note:
I'm using custom feed, changes where done on the following
doh- removed Flagproxy- changed chain to inbound & outboundtofull- it's a copy of thetorbut using the full nodes list instead of just the exit nodes, and changed chain to "inbount & outbound"
For hagezi I didn't change anything on it.
Hi again @dibdot .. I went back to the default feed (cleared the custom feed).. still getting the same errors
Sun Jan 19 02:23:17 2025 user.info banIP-1.5.0-r1[30157]: can't load initial file to nfset 'doh.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.aPFMLC.doh.v4.nft)
Sun Jan 19 02:23:17 2025 user.info banIP-1.5.0-r1[30157]: can't load initial file to nfset 'doh.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.aPFMLC.doh.v6.nft)
Sun Jan 19 02:23:18 2025 user.info banIP-1.5.0-r1[30157]: can't load initial file to nfset 'hagezi.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.aPFMLC.hagezi.v4.nft)
Sun Jan 19 02:24:05 2025 user.info banIP-1.5.0-r1[30157]: can't load initial file to nfset 'blocklist.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.aPFMLC.blocklist.v4.nft)
Sun Jan 19 02:24:05 2025 user.info banIP-1.5.0-r1[30157]: can't load initial file to nfset 'blocklist.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.aPFMLC.blocklist.v6.nft)

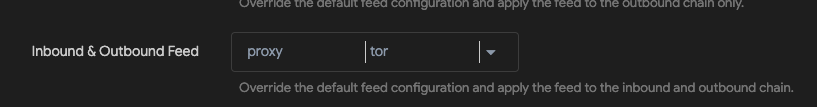

And when switching feeds to "Inbound&Outbound" (see screenshot), it also generates the error
Sun Jan 19 02:34:06 2025 user.info banIP-1.5.0-r1[22685]: can't load initial file to nfset 'proxy.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.dAbjFE.proxy.v4.nft)
Sun Jan 19 02:34:21 2025 user.info banIP-1.5.0-r1[22685]: can't load initial file to nfset 'tor.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.dAbjFE.tor.v4.nft)
Sun Jan 19 02:34:21 2025 user.info banIP-1.5.0-r1[22685]: can't load initial file to nfset 'tor.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.dAbjFE.tor.v6.nft)
please provide your config and the banIP status output.
BanIP Status
::: banIP runtime information
+ status : active (nft: ✔, monitor: ✔)
+ version : 1.5.0-r1
+ element_count : 176038
+ active_feeds : allowlist.v4MAC, allowlist.v6MAC, allowlist.v4, allowlist.v6, binarydefense.v4, becyber.v4, debl.v4, debl.v6, etcompromised.v4, firehol1.v4, greensnow.v4, firehol2.v4, ipblackhole.v4, threat.v4, ipthreat.v4, pallebone.v4, threatview.v4, urlhaus.v4, turris.v4, urlvir.v4, blocklist.v4MAC, blocklist.v6MAC
+ active_devices : wan: eth1 / wan-if: wan, wan6 / vlan-allow: - / vlan-block: -
+ active_uplink : 10.0.0.244/24, 2001:4450:4645:6e40::ff4/128
+ nft_info : ver: 1.1.1-r1, priority: -100, policy: performance, loglevel: warn, expiry: 1h, limit (icmp/syn/udp): 0/0/0
+ run_info : base: /tmp, backup: /mnt/sdb1/openwrt/banip/backup, report: /mnt/sdb1/openwrt/banip/reports, error: /mnt/sdb1/openwrt/banip/errors
+ run_flags : auto: ✔, proto (4/6): ✔/✔, log (pre/in/out): ✔/✔/✔, count: ✔, dedup: ✔, split: ✔, custom feed: ✘, allowed only: ✘
+ last_run : mode: restart, period: 1m 42s, memory: 641 MB available, 1664 KB max. used, cores: 4, log: logread, fetch: curl
+ system_info : 2025-01-19 02:44:26, Parallels International GmbH. Parallels Virtual Platform, x86/64, OpenWrt SNAPSHOT r28599-dac8021297
/etc/config/banip
config banip 'global'
option ban_enabled '1'
option ban_debug '1'
option ban_autodetect '1'
list ban_logterm 'Exit before auth from'
list ban_logterm 'luci: failed login'
option ban_triggerdelay '30'
option ban_fetchretry '5'
option ban_nicelimit '0'
option ban_filelimit '4096'
option ban_cores '4'
option ban_splitsize '4096'
option ban_backupdir '/mnt/sdb1/openwrt/banip/backup'
option ban_reportdir '/mnt/sdb1/openwrt/banip/reports'
option ban_errordir '/mnt/sdb1/openwrt/banip/errors'
option ban_deduplicate '1'
option ban_nftpriority '-100'
option ban_icmplimit '0'
option ban_synlimit '0'
option ban_udplimit '0'
option ban_nftpolicy 'performance'
option ban_nftretry '5'
option ban_nftcount '1'
option ban_blockpolicy 'drop'
option ban_nftloglevel 'warn'
option ban_logprerouting '1'
option ban_loginbound '1'
option ban_logoutbound '1'
option ban_loglimit '1000'
option ban_logcount '3'
option ban_autoallowlist '1'
option ban_autoallowuplink 'subnet'
option ban_autoblocklist '1'
option ban_nftexpiry '1h'
option ban_allowlistonly '0'
option ban_fetchcmd 'curl'
option ban_protov4 '1'
list ban_ifv4 'wan'
option ban_protov6 '1'
list ban_ifv6 'wan6'
list ban_dev 'eth1'
list ban_feed 'becyber'
list ban_feed 'binarydefense'
list ban_feed 'debl'
list ban_feed 'doh'
list ban_feed 'etcompromised'
list ban_feed 'firehol1'
list ban_feed 'firehol2'
list ban_feed 'greensnow'
list ban_feed 'hagezi'
list ban_feed 'ipblackhole'
list ban_feed 'ipthreat'
list ban_feed 'pallebone'
list ban_feed 'proxy'
list ban_feed 'threat'
list ban_feed 'threatview'
list ban_feed 'tor'
list ban_feed 'turris'
list ban_feed 'urlhaus'
list ban_feed 'urlvir'
list ban_feedinout 'proxy'
list ban_feedinout 'tor'
disable the nft counter option ... and see if it helps. (Restart banIP!)
still the same errors
Sun Jan 19 02:49:35 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'doh.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.doh.v6.nft)
Sun Jan 19 02:49:35 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'doh.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.doh.v4.nft)
Sun Jan 19 02:49:36 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'hagezi.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.hagezi.v4.nft)
Sun Jan 19 02:49:36 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'proxy.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.proxy.v4.nft)
Sun Jan 19 02:49:59 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'tor.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.tor.v4.nft)
Sun Jan 19 02:49:59 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'tor.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.tor.v6.nft)
Sun Jan 19 02:50:01 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'blocklist.v4' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.blocklist.v4.nft)
Sun Jan 19 02:50:01 2025 user.info banIP-1.5.0-r1[12033]: can't load initial file to nfset 'blocklist.v6' (/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.blocklist.v6.nft)
try if you could load such error file manually, e.g.:
nft -f /mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.doh.v4.nft
This is the error
/mnt/sdb1/openwrt/banip/errors/err.tmp.enfhDF.doh.v4.nft:4:146-152: Error: syntax error, unexpected counter
add rule inet banIP _outbound meta l4proto { tcp } th dport { 80, 443 } ip daddr @doh.v4 tlog level warn prefix "banIP/outbound/reject/doh.v4: " counter goto _reject
^^^^^^^
Please send me one of your error files and your banIP config to my maintainers address and I will take a look tomorrow - thanks.
1 Like
Ok sure.. i'll send them.. thanks
Looks like a recent typo that inserts tlog level instead of log level.
4 Likes
Yup.. can confirm.. it is a typo after editing the /usr/lib/banip-functions.sh and removing the extra "l", no more errors.
Thanks a bunch!
@dibdot it was just a typo in banip-functions.sh so no need to test my config and just disregard the email. Thanks!
