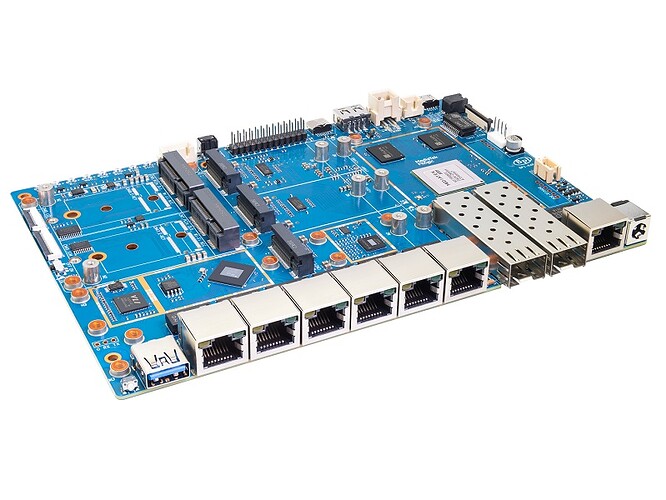

Banana Pi BPI-R4 Pro Wifi7 Router board with Mediatek MT7988A, 8G RAM 8G eMMC, 4x2.5G and 2x10G network port

Banana Pi BPI-R4 Pro Wifi7 Router board with Mediatek MT7988A, 8G RAM 8G eMMC, 4x2.5G and 2x10G network port. support 4G/5G function.

Key Features

  • MediaTek MT7988A Quad-core Arm Corex-A73,1.8GHz processor
  • 8GB DDR4
  • 8GB eMMC flash
  • 256MB SPI-NAND Flash
  • Micro SD card slot
  • 1x 10G SFP WAN
  • 1x 10G RJ45 WAN(combo with 10G SFP WAN)
  • 1x 10G SFP LAN
  • 1x 10G RJ45 LAN(combo with 10G SFP LAN)
  • 4x 2.5G RJ45 LAN
  • 1x 1G RJ45 LAN
  • 1x 1G LAN(FPC Connector)
  • 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
  • 2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe can switch to M.2 B-KEY slot)
  • 3x M.2 B-KEY slots with USB3.2 for 5G Module
  • 1x USB3.2 slot
  • 1x USB2.0 slot
  • 1x USB TypeC Debug Console
  • 2x13 PIN Header for expanding application

Hardware interface:

what project are you want to do?

2 Likes

Pricing on this?

1 Like

kidney + lung bundle

6 Likes

This is quite a monster, but my number one concern is availability, pricing, and performance of the WiFi modules. Will there be a factory bundle with board, WiFi card(s), and case? What's the EMI/RFI situation given that there's no indication of any shielding like you'd see in almost any OTS device?

2 Likes

When can we expect it to be released?
