Good morning @RafalB82 and @titoum, correct? The image I'm currently using is the latest @RafalB82 6.6.86 in emmc, although I believe that patch was already applied by him in 6.6.79.
By the way @RafalB82, great work done on April 26, 2025, with your latest version on 6.6.86.
Thanks for the
Applying /opt/openwrt/bpi-r4-openwrt-builder/openwrt/target/linux/mediatek/patches-6.6/mt7988a-bananapi-bpi-r4.dtsi using plaintext:
patch: **** Only garbage was found in the patch input.
am i missing something? build was done then i tried to add those extra patch you provided through mediafire.
edit: ok need to copy at other location: openwrt/target/linux/mediatek/dts/
building on the way
ok dtsi is going ok but the additionnal patch doesnt work:
Patch failed! Please fix /opt/openwrt/bpi-r4-openwrt-builder/openwrt/target/linux/mediatek/patches-6.6/790-SFP-GE-T-ignore-TX_FAULT.patch!
make[4]: *** [Makefile:27: /opt/openwrt/bpi-r4-openwrt-builder/openwrt/build_dir/target-aarch64_cortex-a53_musl/linux-mediatek_filogic/linux-6.6.86/.prepared_8d5b559b67cfc23e5d82ade84f68cd88] Error 1
make[4]: Leaving directory '/opt/openwrt/bpi-r4-openwrt-builder/openwrt/target/linux/mediatek'
make[3]: *** [Makefile:12: compile] Error 2
make[3]: Leaving directory '/opt/openwrt/bpi-r4-openwrt-builder/openwrt/target/linux'
time: target/linux/compile#6.58#10.39#13.24
ERROR: target/linux failed to build.
will carry on with the rest and see
Why did you copy this patch? Do you have SPF+ Xgspon from luleey?
once fiber will be available at my place, i plan to connect directly to the banana.
i saw sfp and i use already an optic one...i included it
It is better to remove this pach, it causes a conflict with another patch from MTK. Later, I will post an update to the patch from MTK that makes fixes for luleey and zaram sfp+
ok i was in happy mood today
mainly based on woziwrt and then i took some liberty.
i made also a cp to move the sd card build at the root folder with date-hours tagging: openwrt-bananapi_bpi-r4-sdcard_2025_04_30_03_59_PM.img.gz
Ditto, got the same thing here with a snapshot built from Woziwrt's github script:
Also, for those looking to replace existing devices with BPI-R4, I unfortunately have to report that this aint it yet folks. WiFi signal is way worse that what you'd expect from something that reports 27dbm TxPower.
RSSI reported by a 2.4Ghz Iot device, it was consistently above 80% on my trusty WRT1900ACS and fell down to mid-30-es on BPI-R4 using the same exact channel and channel width,with the router is sitting in the same exact place. I'm using the txpower patch with BPI-R4 reporting 500mw TxPower on 2.4Ghz:
root@OpenWrt:~# iw dev | grep txpower
txpower 27.00 dBm
txpower 25.00 dBm
txpower 27.00 dBm
"I solved it by manually editing my /etc/board.json and /etc/config/network . Then I ran service network reload"
I solved it by neatly packing everything into its original box and opening a return request lol. The WiFi performance is absolutely abysmal, I can't believe it's not talked about more.
My noise floor is -90dBm on the ancient Linksys I use and goes up to -70dBm on the BE14. Simultaneously my signal strength takes a nosedive. There is no way on earth this card is actually transmitting at advertised 25dBm.
Is anybody else getting build errors for uboot, every build i try and make I get stuck on emmc errors, which causes the entire build to fail, this is true for snapshot builds too,
Go back and look at the radio repots for the WiFi module...
25 dBm is likely only for 11b performance on 2.4 - the rest is sub-20 dBm - it's basically a client card for most purposes...
Here are some bandwidth tests of RC1
topology:
BPI-R4_A (SFP) <----------------------------> (SFP)BPI-R4_B

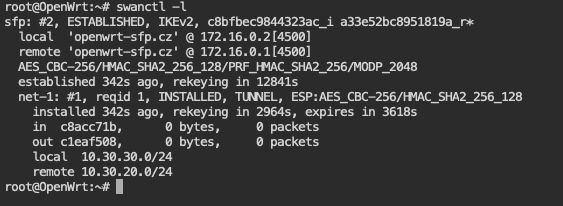

IKEv2/IPsec <---------------------------------> IKEv2/IPsec
iperf3 <----------------------------------------------> iperf3

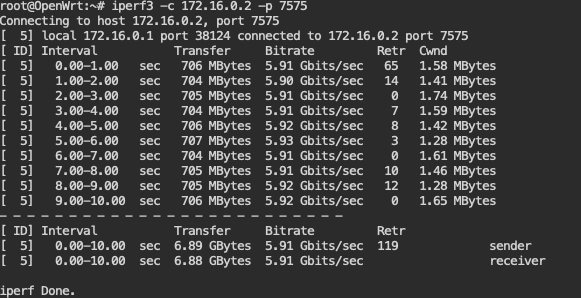

one TCP stream - basic sfp connection:

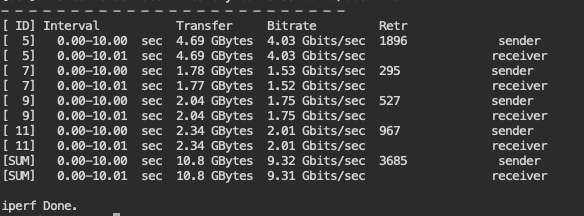

four TCP streams - basic sfp connection:

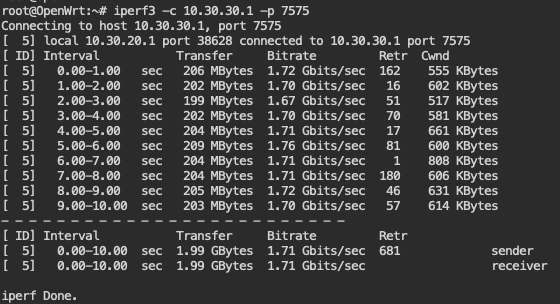

IKEv2/IPsec over sfp <--> sfp:

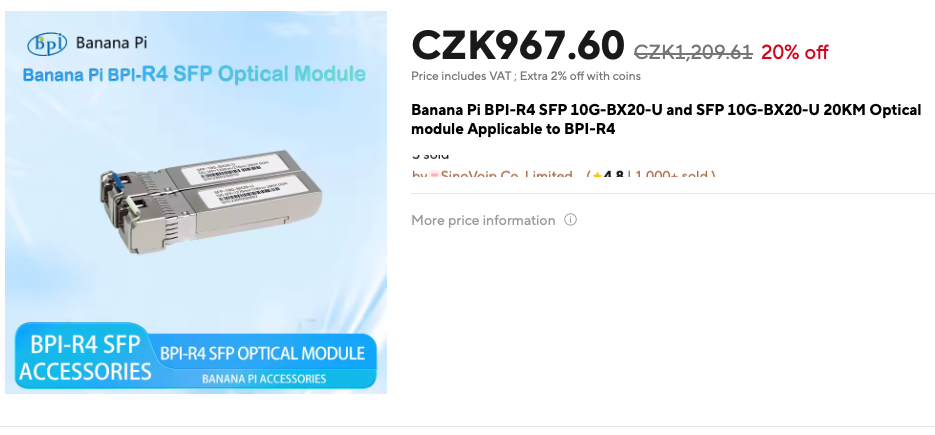

Tested with these sfp modules from Sinovoip:
The previous post showed the achievable maximums (hence so many retries) With the bandwidth limitation it looks like this

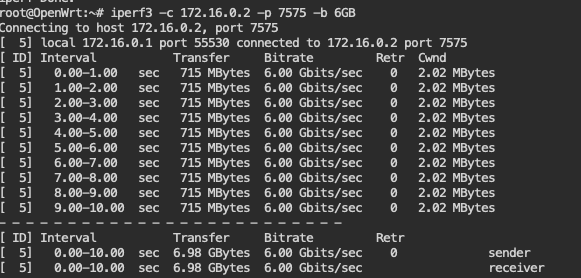

sfp <---> sfp

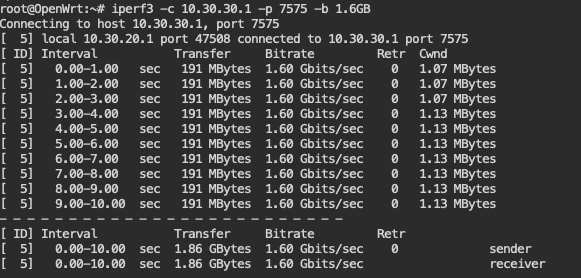

IKEv2/IPsec over sfp<-->sfp
EDIT:
These results are for the MTU 1500. For larger MTU (e.g. 9000) they could be a bit better but unfortunately @rmadrad
patch is not currently compatible with RC1 version due to many MTK patches of mtk_eth_soc.h and mtk_eth_soc.c.
Some benchmark from my setup, now I only have my Windows 11 PC connected
BusyBox v1.36.1 (2025-04-13 16:38:32 UTC) built-in shell (ash)
_______ ________ __
| |.-----.-----.-----.| | | |.----.| |_
| - || _ | -__| || | | || _|| _|
|_______|| __|_____|__|__||________||__| |____|
|__| W I R E L E S S F R E E D O M
-----------------------------------------------------
OpenWrt 24.10.1, r28597-0425664679
-----------------------------------------------------
_______ root@OpenWrt
| |.-----.-----.-----. ------------
| - || _ | -__| | OS: OpenWrt 24.10.1 aarch64
|_______|| __|_____|__|__| Host: Bananapi BPI-R4
|__| Kernel: Linux 6.6.86
________ __ Uptime: 3 days, 21 hours, 40 mins
| | | |.----.| |_ Packages: 595 (opkg)
| | | || _|| _| Shell: ash 1.36.1
|________||__| |____| Terminal: dropbear
**CPU: mt7988a (4) @ 2.10 GHz**
Memory: 547.86 MiB / 3.84 GiB (14%)
Swap: Disabled
Disk (/): 184.90 MiB / 7.02 GiB (3%) - overlay
Disk (/mnt/nvme): 130.56 GiB / 915.82 GiB (14%) - ext4
Disk (/overlay): 184.90 MiB / 7.02 GiB (3%) - f2fs [Read-only]
root@OpenWrt:~# mhz
count=839725 us50=20003 us250=100015 diff=80012 cpu_MHz=2098.998
Bpi r4 Local iperf3
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 51728 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.00 GBytes 17.2 Gbits/sec 0 1023 KBytes
[ 5] 1.00-2.00 sec 2.03 GBytes 17.4 Gbits/sec 0 1023 KBytes
[ 5] 2.00-3.00 sec 2.04 GBytes 17.5 Gbits/sec 0 1023 KBytes
[ 5] 3.00-4.00 sec 2.03 GBytes 17.4 Gbits/sec 0 1023 KBytes
[ 5] 4.00-5.00 sec 1.99 GBytes 17.1 Gbits/sec 0 1023 KBytes
[ 5] 5.00-6.00 sec 2.05 GBytes 17.6 Gbits/sec 0 2.31 MBytes
[ 5] 6.00-7.00 sec 2.06 GBytes 17.7 Gbits/sec 0 2.31 MBytes
[ 5] 7.00-8.00 sec 2.07 GBytes 17.7 Gbits/sec 0 2.31 MBytes
[ 5] 8.00-9.00 sec 2.05 GBytes 17.6 Gbits/sec 0 2.31 MBytes
[ 5] 9.00-10.00 sec 2.05 GBytes 17.6 Gbits/sec 0 2.31 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 20.4 GBytes 17.5 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 20.4 GBytes 17.5 Gbits/sec receiver
iperf Done.
Bpi-r4 <-> My PC 4 streams bidirectional
iperf3.exe -c 192.168.100.4 -P4 -bidir
Connecting to host 192.168.100.4, port 5201
[ 5] local 192.168.100.126 port 63952 connected to 192.168.100.4 port 5201
[ 7] local 192.168.100.126 port 63953 connected to 192.168.100.4 port 5201
[ 9] local 192.168.100.126 port 63954 connected to 192.168.100.4 port 5201
[ 11] local 192.168.100.126 port 63955 connected to 192.168.100.4 port 5201
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 385 MBytes 3.23 Gbits/sec
[ 7] 0.00-1.00 sec 284 MBytes 2.38 Gbits/sec
[ 9] 0.00-1.00 sec 155 MBytes 1.30 Gbits/sec
[ 11] 0.00-1.00 sec 238 MBytes 1.99 Gbits/sec
[SUM] 0.00-1.00 sec 1.04 GBytes 8.90 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 1.00-2.01 sec 247 MBytes 2.05 Gbits/sec
[ 7] 1.00-2.01 sec 284 MBytes 2.36 Gbits/sec
[ 9] 1.00-2.01 sec 306 MBytes 2.54 Gbits/sec
[ 11] 1.00-2.01 sec 265 MBytes 2.20 Gbits/sec
[SUM] 1.00-2.01 sec 1.08 GBytes 9.16 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 2.01-3.00 sec 233 MBytes 1.97 Gbits/sec
[ 7] 2.01-3.00 sec 292 MBytes 2.47 Gbits/sec
[ 9] 2.01-3.00 sec 310 MBytes 2.62 Gbits/sec
[ 11] 2.01-3.00 sec 264 MBytes 2.23 Gbits/sec
[SUM] 2.01-3.00 sec 1.07 GBytes 9.29 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 3.00-4.01 sec 252 MBytes 2.09 Gbits/sec
[ 7] 3.00-4.01 sec 355 MBytes 2.95 Gbits/sec
[ 9] 3.00-4.01 sec 286 MBytes 2.37 Gbits/sec
[ 11] 3.00-4.01 sec 200 MBytes 1.67 Gbits/sec
[SUM] 3.00-4.01 sec 1.07 GBytes 9.08 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 4.01-5.01 sec 170 MBytes 1.44 Gbits/sec
[ 7] 4.01-5.01 sec 252 MBytes 2.12 Gbits/sec
[ 9] 4.01-5.01 sec 386 MBytes 3.26 Gbits/sec
[ 11] 4.01-5.01 sec 283 MBytes 2.39 Gbits/sec
[SUM] 4.01-5.01 sec 1.07 GBytes 9.21 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 5.01-6.00 sec 271 MBytes 2.28 Gbits/sec
[ 7] 5.01-6.00 sec 239 MBytes 2.02 Gbits/sec
[ 9] 5.01-6.00 sec 308 MBytes 2.60 Gbits/sec
[ 11] 5.01-6.00 sec 262 MBytes 2.21 Gbits/sec
[SUM] 5.01-6.00 sec 1.05 GBytes 9.11 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 6.00-7.00 sec 356 MBytes 2.99 Gbits/sec
[ 7] 6.00-7.00 sec 218 MBytes 1.84 Gbits/sec
[ 9] 6.00-7.00 sec 241 MBytes 2.03 Gbits/sec
[ 11] 6.00-7.00 sec 268 MBytes 2.25 Gbits/sec
[SUM] 6.00-7.00 sec 1.06 GBytes 9.11 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 7.00-8.01 sec 304 MBytes 2.53 Gbits/sec
[ 7] 7.00-8.01 sec 222 MBytes 1.85 Gbits/sec
[ 9] 7.00-8.01 sec 248 MBytes 2.07 Gbits/sec
[ 11] 7.00-8.01 sec 328 MBytes 2.73 Gbits/sec
[SUM] 7.00-8.01 sec 1.08 GBytes 9.17 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 8.01-9.01 sec 273 MBytes 2.30 Gbits/sec
[ 7] 8.01-9.01 sec 281 MBytes 2.37 Gbits/sec
[ 9] 8.01-9.01 sec 277 MBytes 2.33 Gbits/sec
[ 11] 8.01-9.01 sec 261 MBytes 2.19 Gbits/sec
[SUM] 8.01-9.01 sec 1.07 GBytes 9.19 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 9.01-10.01 sec 204 MBytes 1.70 Gbits/sec
[ 7] 9.01-10.01 sec 371 MBytes 3.09 Gbits/sec
[ 9] 9.01-10.01 sec 350 MBytes 2.91 Gbits/sec
[ 11] 9.01-10.01 sec 188 MBytes 1.57 Gbits/sec
[SUM] 9.01-10.01 sec 1.09 GBytes 9.28 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.01 sec 2.63 GBytes 2.26 Gbits/sec sender
[ 5] 0.00-10.01 sec 2.63 GBytes 2.26 Gbits/sec receiver
[ 7] 0.00-10.01 sec 2.73 GBytes 2.35 Gbits/sec sender
[ 7] 0.00-10.01 sec 2.73 GBytes 2.34 Gbits/sec receiver
[ 9] 0.00-10.01 sec 2.80 GBytes 2.40 Gbits/sec sender
[ 9] 0.00-10.01 sec 2.80 GBytes 2.40 Gbits/sec receiver
[ 11] 0.00-10.01 sec 2.50 GBytes 2.14 Gbits/sec sender
[ 11] 0.00-10.01 sec 2.50 GBytes 2.14 Gbits/sec receiver
[SUM] 0.00-10.01 sec 10.7 GBytes 9.15 Gbits/sec sender
[SUM] 0.00-10.01 sec 10.7 GBytes 9.14 Gbits/sec receiver
iperf Done.
Bpi-r4 <-> My PC Single
iperf3.exe -c 192.168.100.4
Connecting to host 192.168.100.4, port 5201
[ 5] local 192.168.100.126 port 63918 connected to 192.168.100.4 port 5201
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.02 sec 821 MBytes 6.78 Gbits/sec
[ 5] 1.02-2.01 sec 801 MBytes 6.75 Gbits/sec
[ 5] 2.01-3.01 sec 810 MBytes 6.83 Gbits/sec
[ 5] 3.01-4.00 sec 810 MBytes 6.83 Gbits/sec
[ 5] 4.00-5.01 sec 790 MBytes 6.57 Gbits/sec
[ 5] 5.01-6.00 sec 808 MBytes 6.82 Gbits/sec
[ 5] 6.00-7.01 sec 817 MBytes 6.79 Gbits/sec
[ 5] 7.01-8.01 sec 808 MBytes 6.83 Gbits/sec
[ 5] 8.01-9.02 sec 808 MBytes 6.72 Gbits/sec
[ 5] 9.02-10.01 sec 801 MBytes 6.79 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.01 sec 7.89 GBytes 6.77 Gbits/sec sender
[ 5] 0.00-10.01 sec 7.88 GBytes 6.77 Gbits/sec receiver
iperf Done.
Bonus - file transfer speed from from app "NAS prerformance tester" via SMB and NVME on bpi-r4
Running warmup...
Running a 1000MB file write on X: once...
-----------------------------
Average (W): 427,05 MB/sec
-----------------------------
Running a 1000MB file read on X: once...
-----------------------------
Average (R): 685,10 MB/sec
-----------------------------
Can you elaborate on what you're implying from this PDF?
I see the power figures jump higher under 5Ghz and 6Ghz iperf tests compared to 2.4Ghz. The difference is there likely due to higher traffic and corresponding higher CPU load.
I'm not sure how you interpret this data to draw any conclusions about wireless transmit power.
The PDF I linked to is the actual RF info based on specific modes for that specific Wireless card - not hypothetical, but this part of their regulatory testing and verification.
You probably pasted wrong link, the doc covers power consumption of the board. There's nothing related to RF info in there.
Yeah - chrome does that sometimes, eh?
Let me dig up the link for the board data - apologies in advance...
Does this link work?
And that's for the WiFi7 combo card...
Thanks, appreciate it!
Not sure how to read this data to be honest, the "Standard, without FEM" column seems to be the "set" TX power and the other rows are actual measured power levels. I can see the trend where the wider the channel width, the lower the tx power.
I still don't know if the set TX power is implied to be the max tx power of the board. If that's case then you're right, iw dev software-reported tx power figures are completely overblown.
As an example, 6GHz reports 25dBm power in OpenWrt while the highest figure in this datasheet for 6GHz radio is 18dBm in 11A 54M mode(no one will be using this) and goes all the way down to 10.5dBm in the mode that everyone wants to operate the 6GHz radio - 11BE 5G MCS13 320M
To me this is very disappointing.
