No idea.

Maybe all that's needed it to remove the two extra ubi partitions.

But rest of the ubi partitions will have different size and will stay on one mtd. Maybe mtd level is a problematic.

Hi . I performed some tests on the stock software and I confirm that this router is MUMIMO 3x3:2. I performed all tests with disabled 2.4GHz, on the 36 channel 160MHz wide. 3 meters away from router.

WIFI client 1 (ax210) -> WIFI client 2 (ax210)

iperf3 -c 192.168.10.41  -i 1 -t 60 -P 2
.....
[  5]  55.00-56.00  sec  43.8 MBytes   367 Mbits/sec    0   1.31 MBytes
[  7]  55.00-56.00  sec  37.5 MBytes   315 Mbits/sec    0   1.19 MBytes
[SUM]  55.00-56.00  sec  81.2 MBytes   682 Mbits/sec    0
- - - - - - - - - - - - - - - - - - - - - - - - -
[  5]  56.00-57.00  sec  46.2 MBytes   388 Mbits/sec    0   1.33 MBytes
[  7]  56.00-57.00  sec  33.8 MBytes   283 Mbits/sec    0   1.26 MBytes
[SUM]  56.00-57.00  sec  80.0 MBytes   671 Mbits/sec    0
- - - - - - - - - - - - - - - - - - - - - - - - -
[  5]  57.00-58.00  sec  41.2 MBytes   346 Mbits/sec    0   1.36 MBytes
[  7]  57.00-58.00  sec  40.0 MBytes   336 Mbits/sec    0   1.31 MBytes
[SUM]  57.00-58.00  sec  81.2 MBytes   682 Mbits/sec    0
- - - - - - - - - - - - - - - - - - - - - - - - -
[  5]  58.00-59.00  sec  35.0 MBytes   294 Mbits/sec  364    737 KBytes
[  7]  58.00-59.00  sec  43.8 MBytes   367 Mbits/sec    0   1.34 MBytes
[SUM]  58.00-59.00  sec  78.8 MBytes   661 Mbits/sec  364

WIFI client 1 (ax210) <- WIFI client 2 (ax210)


iperf3 -c 192.168.10.41  -i 1 -t 60 -P 2 -R
....
  5]  56.00-57.00  sec  71.9 MBytes   603 Mbits/sec
[  7]  56.00-57.00  sec  2.92 MBytes  24.5 Mbits/sec
[SUM]  56.00-57.00  sec  74.8 MBytes   627 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[  5]  57.00-58.00  sec  73.3 MBytes   615 Mbits/sec
[  7]  57.00-58.00  sec  3.07 MBytes  25.8 Mbits/sec
[SUM]  57.00-58.00  sec  76.4 MBytes   641 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[  5]  58.00-59.00  sec  73.0 MBytes   612 Mbits/sec
[  7]  58.00-59.00  sec  1.86 MBytes  15.6 Mbits/sec
[SUM]  58.00-59.00  sec  74.8 MBytes   628 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[  5]  59.00-60.00  sec  74.4 MBytes   624 Mbits/sec
[  7]  59.00-60.00  sec  1.11 MBytes  9.35 Mbits/sec
[SUM]  59.00-60.00  sec  75.6 MBytes   634 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-60.02  sec  4.27 GBytes   611 Mbits/sec  948             sender
[  5]   0.00-60.00  sec  4.27 GBytes   611 Mbits/sec                  receiver
[  7]   0.00-60.02  sec   102 MBytes  14.2 Mbits/sec  2433             sender
[  7]   0.00-60.00  sec  99.1 MBytes  13.9 Mbits/sec                  receiver
[SUM]   0.00-60.02  sec  4.37 GBytes   625 Mbits/sec  3381             sender
[SUM]   0.00-60.00  sec  4.36 GBytes   624 Mbits/sec                  receiver

WIFI client 1 (ax210) -> WAN

iperf3 -c 192.168.10.31  -i 1 -t 60
....
[  5]  52.00-53.00  sec   111 MBytes   933 Mbits/sec    0   1.16 MBytes
[  5]  53.00-54.00  sec   112 MBytes   944 Mbits/sec    0   1.23 MBytes
[  5]  54.00-55.00  sec   111 MBytes   933 Mbits/sec    1    950 KBytes
[  5]  55.00-56.00  sec   111 MBytes   933 Mbits/sec    1    751 KBytes
[  5]  56.00-57.00  sec   111 MBytes   933 Mbits/sec    0    858 KBytes
[  5]  57.00-58.00  sec   108 MBytes   902 Mbits/sec    1    659 KBytes
[  5]  58.00-59.00  sec   108 MBytes   902 Mbits/sec    0    738 KBytes
[  5]  59.00-60.00  sec   108 MBytes   902 Mbits/sec    0    793 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-60.00  sec  6.30 GBytes   902 Mbits/sec  670             sender
[  5]   0.00-60.04  sec  6.30 GBytes   901 Mbits/sec                  receiver

WIFI client 1 (ax210) <- WAN

iperf3 -c 192.168.10.31  -i 1 -t 60 -R
....
[  5]  50.00-51.00  sec   110 MBytes   923 Mbits/sec
[  5]  51.00-52.00  sec   111 MBytes   929 Mbits/sec
[  5]  52.00-53.00  sec   112 MBytes   938 Mbits/sec
[  5]  53.00-54.00  sec   112 MBytes   942 Mbits/sec
[  5]  54.00-55.00  sec   112 MBytes   937 Mbits/sec
[  5]  55.00-56.00  sec   112 MBytes   937 Mbits/sec
[  5]  56.00-57.00  sec   112 MBytes   937 Mbits/sec
[  5]  57.00-58.00  sec   112 MBytes   938 Mbits/sec
[  5]  58.00-59.00  sec   112 MBytes   939 Mbits/sec
[  5]  59.00-60.00  sec   112 MBytes   939 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-60.04  sec  6.54 GBytes   936 Mbits/sec  616             sender
[  5]   0.00-60.00  sec  6.54 GBytes   937 Mbits/sec                  receiver

WIFI client 3 (AC8265) with MIMO -> WAN

around 70 MBytes - 600 Mbits/sec

WIFI client 3 (AC8265) with MIMO <-> WIFI client 2 (ax210)

around 45MBytes

Vendor software based on the AsusWRT. When you enable ssh via web page you can login as a root user. So all processess in the system also work in the root context (UID 0).

@Gingernut Could you perform tests on the OpenWRT and/or verify that that we can revert to the stock software when we delete partitions?

best regards,

1 Like

Hello:
Is someone knows how to recover to asuswrt firmware from openwrt firmware.
I have a TUF-AX4200 and update to openwrt firmware,
Now i want to recover to asuswrt firmware but failed. It seems that the volume size is small.
Thank you.

how was it done ?

I know that @Gingernut tried revert to the stock firmware without success. We compared mtd devices and UBI partitionos. You could try delete last two partitions but probably you will need to restore whole mtd and ubi devices structure.
@frollic have you reverted router to the stock software with success?
@LLY cloud you confirm that OpenWRT supports 160MHz channels or not on the RX and TX ?

I dont want to flash openWRT before any working solution to restore stock software. I can still send router back to the shop without any reason. :slight_smile:

best regards.
Patryk

I've drafted how NVMEM from UBI volumes could look like and it works already on top of linux-next:

Review would be very welcome :wink:

2 Likes

Maybe we should change the openwrt partitions layout for this router like for https://github.com/openwrt/openwrt/blob/openwrt-23.05/target/linux/ramips/dts/mt7621_dlink_dir-xx60-a1.dtsi

currently dts file contains only:

partitions: partitions {
			compatible = "fixed-partitions";
			#address-cells = <1>;
			#size-cells = <1>;

			partition@0 {
				label = "bootloader";
				reg = <0x0 0x400000>;
				read-only;
			};

			partition@400000 {
				label = "UBI_DEV";
				reg = <0x400000 0xfc00000>;
			};
		};

for factory partition we can see also:

&factory {
	compatible = "nvmem-cells";
	#address-cells = <1>;
	#size-cells = <1>;

	macaddr_factory_e000: macaddr@e000 {
		reg = <0xe000 0x6>;
	};

	macaddr_factory_e006: macaddr@e006 {
		reg = <0xe006 0x6>;
	};
};

btw. lets try to create pull request to the github repo with your driver.

@blocktrron Could you confirm or deny that we have to change partitions layout in the dts file and add factory ?

best regards,

Thank you all for the unseful info.
I've installed day before via Raspberry PI, using it's UART serial console to the AX4200. Works beutifully well.
A few issues I noticed, wanted to share:

  1. set 5Ghz channel 149 (or above), AX + 160Mhz: the displayed frequency than 6.xxx Ghz (on luci), and no channel, the 160Mhz does not work on lower channels (36-40) as well, it says set, but externally I can't see anything on 5Ghz, radio seems does not work.
  2. router get frozen, need to reset after switched on: Firewall -> SW offloading + HW offloading.
  3. is that possible to switch off LEDs completely, these are very bright and annoying nighttime.

Question: in original Asus FW, I've seen two parameters to adjust:

  • 1024QAM
  • beamforming
    wheter these ones are automatically ON, or inaccessible from owrt, or just missing from it's settings.

Thanks,
minato

Hi,

"he 160Mhz does not work on lower channels (36-40) as well, it says set, but externally I can't see anything on 5Ghz, radio seems does not work."

do you have AX intel client? Please confirm your reg on the client. You could try restart client system and check again with channel set 36. You can also test channel 100. Other options shouldn't work.

router get frozen, need to reset after switched on: Firewall -> SW offloading + HW offloading.

Probably doesn't support HW offloading on the firewall.

is that possible to switch off LEDs completely, these are very bright and annoying nighttime.

Only one option which I know is the dts modification.

1024QAM

Please supply link values like MCS or NSS. You can compare it also with MCS tables and inform us

You can also confirm coding type for QAM.

beamforming

Please paste output from command:

grep vht_capab /var/run/hostapd*.conf

best regards,

I have a mobile phone, checked with Asus original firmware, the 160Mhz option worked on lower and upper 5Ghz channels as well. With OpenWRT, it does not. Checked the channel 100/160Mhz option, it's working! Thanks.

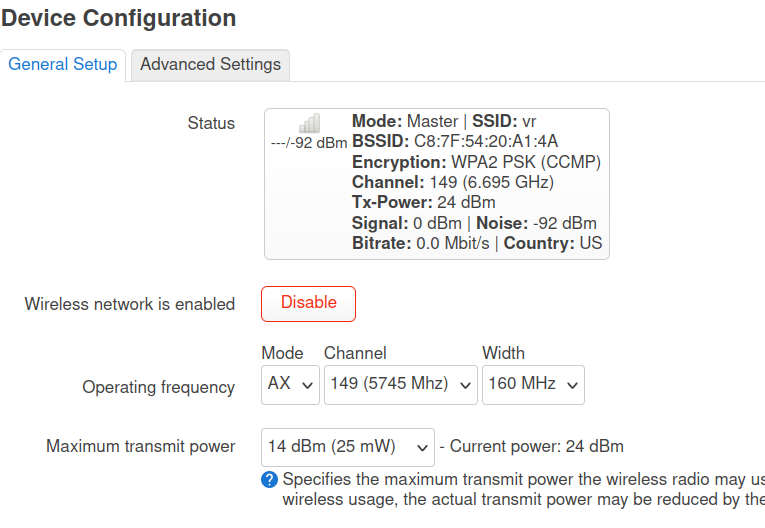

Phone does see the 2x80Mhz channel, BUT on upper 5Ghz channels, I can see this:

Channel 149 6.695Ghz

root@OpenWrt:~# grep vht_capab /var/run/hostapd*.conf

vht_capab=[RXLDPC][SHORT-GI-80][SHORT-GI-160][TX-STBC-2BY1][SU-BEAMFORMER][SU-BEAMFORMEE][MU-BEAMFORMER][MU-BEAMFORMEE][RX-ANTENNA-PATTERN][TX-ANTENNA-PATTERN][RX-STBC-1][SOUNDING-DIMENSION-3][BF-ANTENNA-3][VHT160][MAX-MPDU-11454][MAX-A-MPDU-LEN-EXP7]

The 160 MHz channel and SU-BEAMFORMEE are supported by kernel drivers. Please confirm frequency on the client site and show the screen with connected client to the AP ( wifi tab of luci) when you transfer data.

best regards,

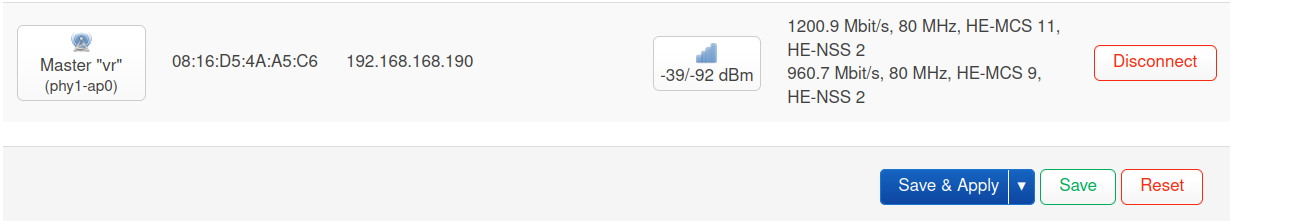

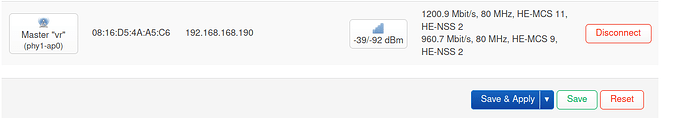

Here is it (seems that the connected VR headset uses 80Mhz only, despite 160Mhz enabled):

@minato Have you installed 23.05-rc1 or snapshot build ? I have similar problem with older devices and MT76.

latest, snapshot

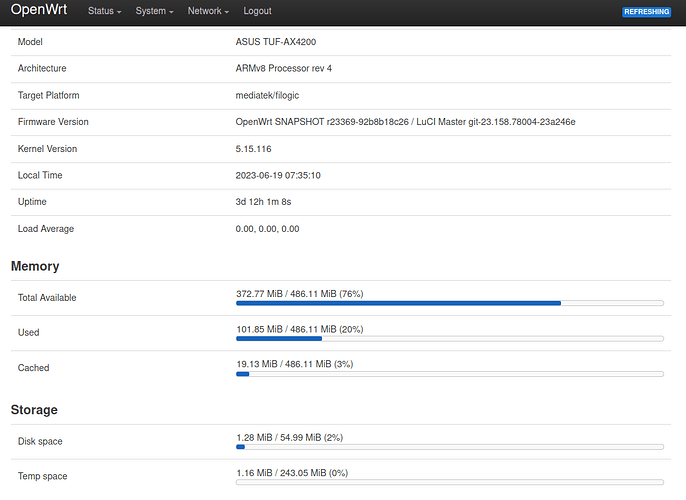

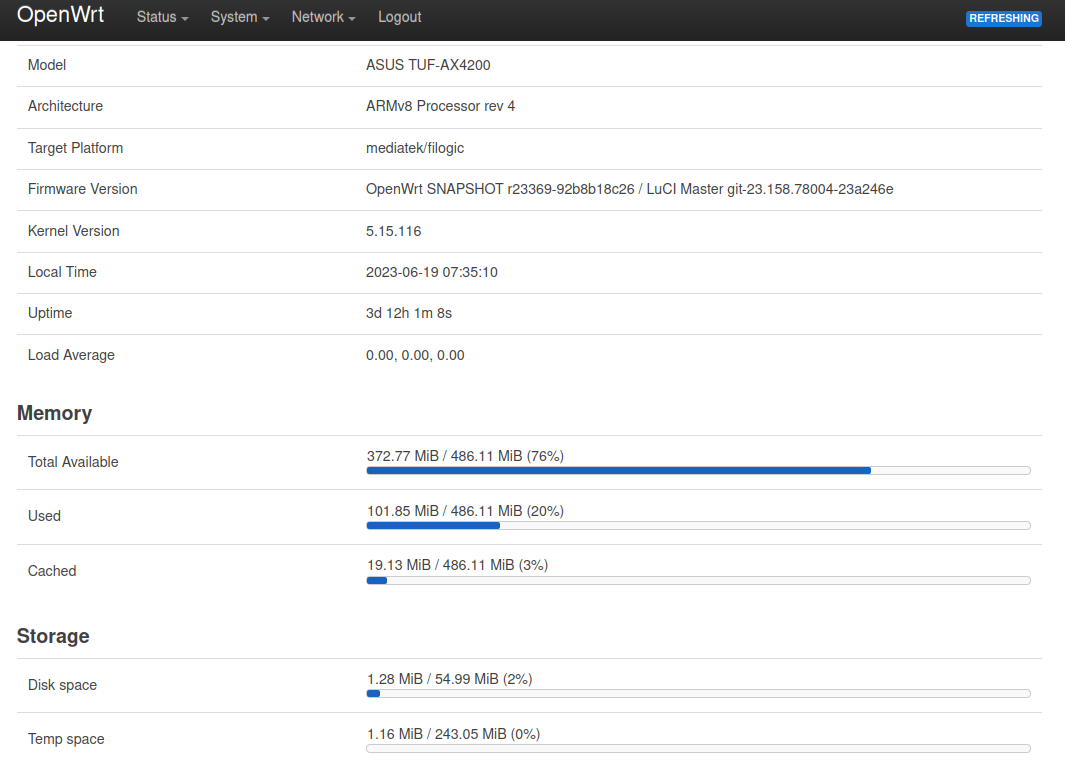

@patrykk Here is it:

An another question:
It looks the Disk space / Temp space has some disproportion, should be reversed. not? The temp would be better to keep small and the "normal" Dosk space a bit higher. Anyways, thois does not affect me, because I use very minimal installed opkg extra packages...

'Temp space' refers to the tmpfs mounted on /tmp/, which defaults to half of your RAM - looks o.k. to me.

2 Likes

I have another one router with mediatek MT7615E. It looks like we have here that same driver and will have that same problems with 160MHz on linux kernel 5.15.x. I prefer to stay with vendor software because I prefer more stable wifi than LACP and 802.11r/v support.

Is still serial connection required for installation on this device? Thank you :slight_smile:

Unfortunately yes
