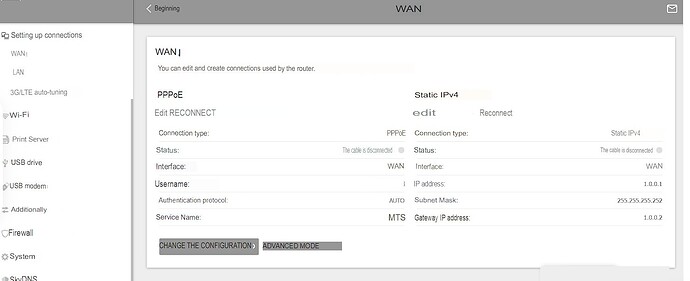

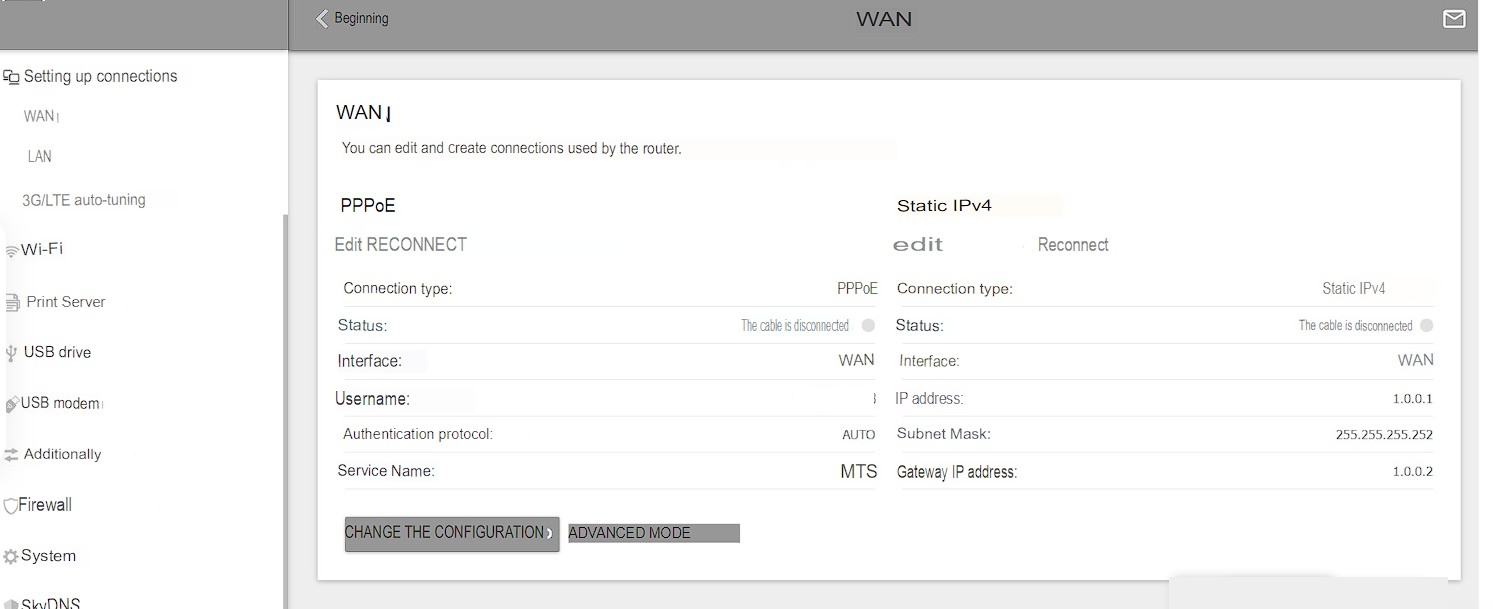

I became the owner of a new Xiaomi AX3000T router. Installed owrt 23.05.3 240325. There is a problem with setting up a PPPoE connection, as required by my provider. The settings are missing the items that are in the screenshot of my old router. Is it possible to add such items in this firmware?
Whois 1.0.0.0 says:
[...]
inetnum: 1.0.0.0 - 1.0.0.255
netname: APNIC-LABS
descr: APNIC and Cloudflare DNS Resolver project
descr: Routed globally by AS13335/Cloudflare
descr: Research prefix for APNIC Labs
country: AU
[...]
So, this looks a bit odd unless you truly get your internet from the APNIC Labs... (if true I am sure they can help you).
Which parameter are you missing, as far as I understand all of these should be filled automatically as part of the PPPoE handshake/negotiation.
The address 1.0.0.1 is used by cloudflare as a secondary to 1.1.1.1 nameserver.
Apart from that, you are not supposed to fill in such details in PPPoE, the provider will assign them to your device upon successful connection.
1 Like
Without these parameters, TV channels on Android TV-box do not work

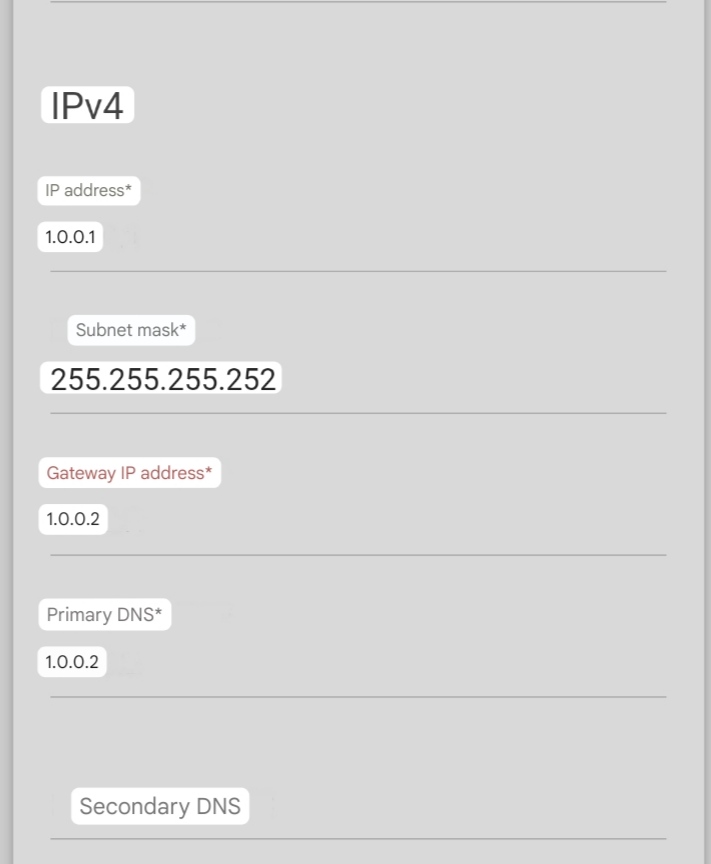

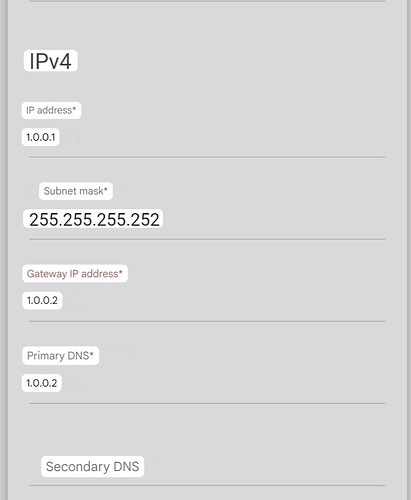

I need all the parameters as shown in the screenshot
If you just plug in the username and password for PPPoE on the wan link and enable pppoe debugging (edfit /etc/ppp/options and replace 'debug with just debug, that is remove the #and restart the router) and post the output of:
logread | grep -e ppp
ATTENTION make sure to redact any sensitive information before posting, and use the following instruction to copy and paste from the terminal in which you ran the command to the forum:
Please use the "Preformatted text </>" button for logs, scripts, configs and general console output.
Please edit your post accordingly. Thank you!
or
Just make sure you "sandwich" your text between two rows of backtick characters ` (which themselves will be invisible in the preview) looking in something like this in the editor:
```
Your Pasted Text as preformatted text with fixed width font
1
1111 (note with fixed-width fonts the numbers are right-aligned)
```
but looking like this in the rendered forum:
Your Pasted Text as preformatted text with fixed width font
1
1111 (note with fixed-width fonts the numbers are right-aligned)
Try this:
uci set network.wan.pppd_options=1.0.0.1:1.0.0.2
uci commit network
ifup wan
1 Like
did not help, the Internet disappeared
Wed May 15 15:10:52 2024 kern.info kernel: [ 9.214480] l2tp_ppp: PPPoL2TP kernel driver, V2.0
Wed May 15 15:11:00 2024 daemon.info pppd[4420]: Plugin pppoe.so loaded.
Wed May 15 15:11:00 2024 daemon.info pppd[4420]: PPPoE plugin from pppd 2.4.9
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: pppd 2.4.9 started by root, uid 0
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Send PPPOE Discovery V1T1 PADI session 0x0 length 12
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: dst ff:ff:ff:ff:ff:ff src cc:d8:43:17:cd:84
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: [service-name] [host-uniq 44 11 00 00]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Recv PPPOE Discovery V1T1 PADO session 0x0 length 37
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: dst cc:d8:43:17:cd:84 src 28:31:52:57:58:12
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: [service-name] [host-uniq 44 11 00 00] [AC-name BRAS_72_00244_2-BRAS4]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Send PPPOE Discovery V1T1 PADR session 0x0 length 12
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: dst 28:31:52:57:58:12 src cc:d8:43:17:cd:84
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: [service-name] [host-uniq 44 11 00 00]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Recv PPPOE Discovery V1T1 PADS session 0x6677 length 12
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: dst cc:d8:43:17:cd:84 src 28:31:52:57:58:12
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: [service-name] [host-uniq 44 11 00 00]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: PADS: Service-Name: ''
Wed May 15 15:11:00 2024 daemon.info pppd[4420]: PPP session is 26231
Wed May 15 15:11:00 2024 daemon.warn pppd[4420]: Connected to 28:31:52:57:58:12 via interface wan
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: using channel 1
Wed May 15 15:11:00 2024 kern.info kernel: [ 18.203418] pppoe-wan: renamed from ppp0
Wed May 15 15:11:00 2024 daemon.info pppd[4420]: Renamed interface ppp0 to pppoe-wan
Wed May 15 15:11:00 2024 daemon.info pppd[4420]: Using interface pppoe-wan
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: Connect: pppoe-wan <--> wan
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [LCP ConfReq id=0x1 <mru 1492> <magic 0x3fca4981>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [LCP ConfReq id=0x2 <mru 1452> <auth pap> <magic 0x584de34>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [LCP ConfAck id=0x2 <mru 1452> <auth pap> <magic 0x584de34>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [LCP ConfAck id=0x1 <mru 1492> <magic 0x3fca4981>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [LCP EchoReq id=0x0 magic=0x3fca4981]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [PAP AuthReq id=0x1 user="TYM_016453" password=<hidden>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [LCP EchoRep id=0x0 magic=0x584de34]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [PAP AuthAck id=0x1 "Authentication success,Welcome!"]
Wed May 15 15:11:00 2024 daemon.info pppd[4420]: Remote message: Authentication success,Welcome!
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: PAP authentication succeeded
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: peer from calling number 28:31:52:57:58:12 authorized
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [IPCP ConfReq id=0x1 <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-dns2 0.0.0.0>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [IPV6CP ConfReq id=0x1 <addr fe80::149e:facc:dc0a:6fbf>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [IPCP ConfReq id=0x1 <addr 100.74.0.1>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [IPCP ConfAck id=0x1 <addr 100.74.0.1>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [IPCP ConfNak id=0x1 <addr 100.74.176.175> <ms-dns1 213.87.74.21> <ms-dns2 213.87.74.5>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: sent [IPCP ConfReq id=0x2 <addr 100.74.176.175> <ms-dns1 213.87.74.21> <ms-dns2 213.87.74.5>]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [LCP ProtRej id=0x3 80 57]
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Protocol-Reject for 'IPv6 Control Protocol' (0x8057) received
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: rcvd [IPCP ConfAck id=0x2 <addr 100.74.176.175> <ms-dns1 213.87.74.21> <ms-dns2 213.87.74.5>]
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: local IP address 100.74.176.175
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: remote IP address 100.74.0.1
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: primary DNS address 213.87.74.21
Wed May 15 15:11:00 2024 daemon.notice pppd[4420]: secondary DNS address 213.87.74.5
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Script /lib/netifd/ppp-up started (pid 4527)
Wed May 15 15:11:00 2024 daemon.notice netifd: Network device 'pppoe-wan' link is up
Wed May 15 15:11:00 2024 daemon.debug pppd[4420]: Script /lib/netifd/ppp-up finished (pid 4527), status = 0x1
Wed May 15 15:11:00 2024 user.notice firewall: Reloading firewall due to ifup of wan (pppoe-wan)
Wed May 15 15:11:01 2024 user.notice nlbwmon: Reloading nlbwmon due to ifup of wan (pppoe-wan)
Are you sure that with the old router you were not using some sort of VPN?
The PPPoE connection seems OK, just onto a non-public address in the 100. address space.
yes, I'm sure I set it up myself
When I installed a new router, a technician came from the provider who said that this model did not have such settings and was not suitable, so I flashed it on owrt in the hope of finding them there
What model was the old router then?
Mmmh that seems like you had both a pppoe ans a static IPv4 configuration on the same interface. That in theory should be configurable within OpenWrt as well.
where can I find such settings?
You would likely need to add a new interface (on the same port as pppoe-wan) and manually configure that statically.
Why have you wiped out the authentication name on the screenshot?
Which carrier are you using, I'm behind a line authentication carrier that allows absolute gibberish in the pppoe settings and still connects.
