Adding OpenWrt support for D-Link Dir 2150 R1

For Developers
82

Exactly what buttons? You mean reset and wps?

83

yes some have a radio on/off as well

84

Not this one, so as it boots i should hold it or just click at specific time?

85

on the US/AU firmware just pressing it
when in the OEM firmware said something like
input XX pressed

86

ok give me a sec, i already assembled it back

87

another day then

88

what are the LED colors ?
green/red
white/red
blue/red

89

White/red for power and wan, and white for wlan

1 Like
90

As for button presses, nothing on reset button in log, only as you hold it as router boots
line "reset pressed" and counting until 10 and entering failsafe
For wps gives thise, so nothing about button as well

PpeCleanupMod: release netdev eth2
PpeCleanupMod: release netdev eth3
PpeCleanupMod: release netdev ra0
PpeCleanupMod: release netdev ra1
PpeCleanupMod: release netdev apcli0
PpeCleanupMod: release netdev rai0
enum_acl_netdev: got 3 ifaces (1 LAN, 2 WAN)
enum_acl_netdev: need 7 patterns instead of 9
***PpeFoeBase = a0e00000
***PpeVirtFoeBase_tmp = a0e00000
init PpeFoeBase = a0e00000
eth2 ifindex =2
eth3 ifindex =8
WanInf name is eth3!
Device Instance
        WDEV 00:
                Name:ra0
                Wdev(list) Idx:0
                 Idx:11
PpeDevRegHandler : ineterface ra0 register (11)
        WDEV 01:
                Name:ra1
                Wdev(list) Idx:1
                 Idx:12
PpeDevRegHandler : ineterface ra1 register (12)
        WDEV 02:
                Name:apcli0
                Wdev(list) Idx:2
                 Idx:13
PpeDevRegHandler : ineterface apcli0 register (13)
        WDEV 03:
        WDEV 04:
        WDEV 05:
        WDEV 06:
        WDEV 07:
        WDEV 08:
        WDEV 09:
        WDEV 10:
        WDEV 11:
        WDEV 12:
        WDEV 13:
        WDEV 14:
        WDEV 15:
        WDEV 16:
Device Instance
        WDEV 00:, Name:rai0, Wdev(list) Idx:0
                 Idx:14
PpeDevRegHandler : ineterface rai0 register (14)
1 Like
91

it's weird they have USB ports on this model but didn't load the USB LED

92

1st rough compile
but that's to for now have stuff to do
http://luckys.onmypc.net/openwrt/DIR-2150-R1/openwrt-ramips-mt7621-dlink_dir-2150-r1-initramfs-kernel.bin

3 Likes
93

I'll test it as I'll be home

94

that image header was wrong fixing now
updated now same address new file
http://luckys.onmypc.net/openwrt/DIR-2150-R1/openwrt-ramips-mt7621-dlink_dir-2150-r1-initramfs-kernel.bin

current git

2 Likes
95

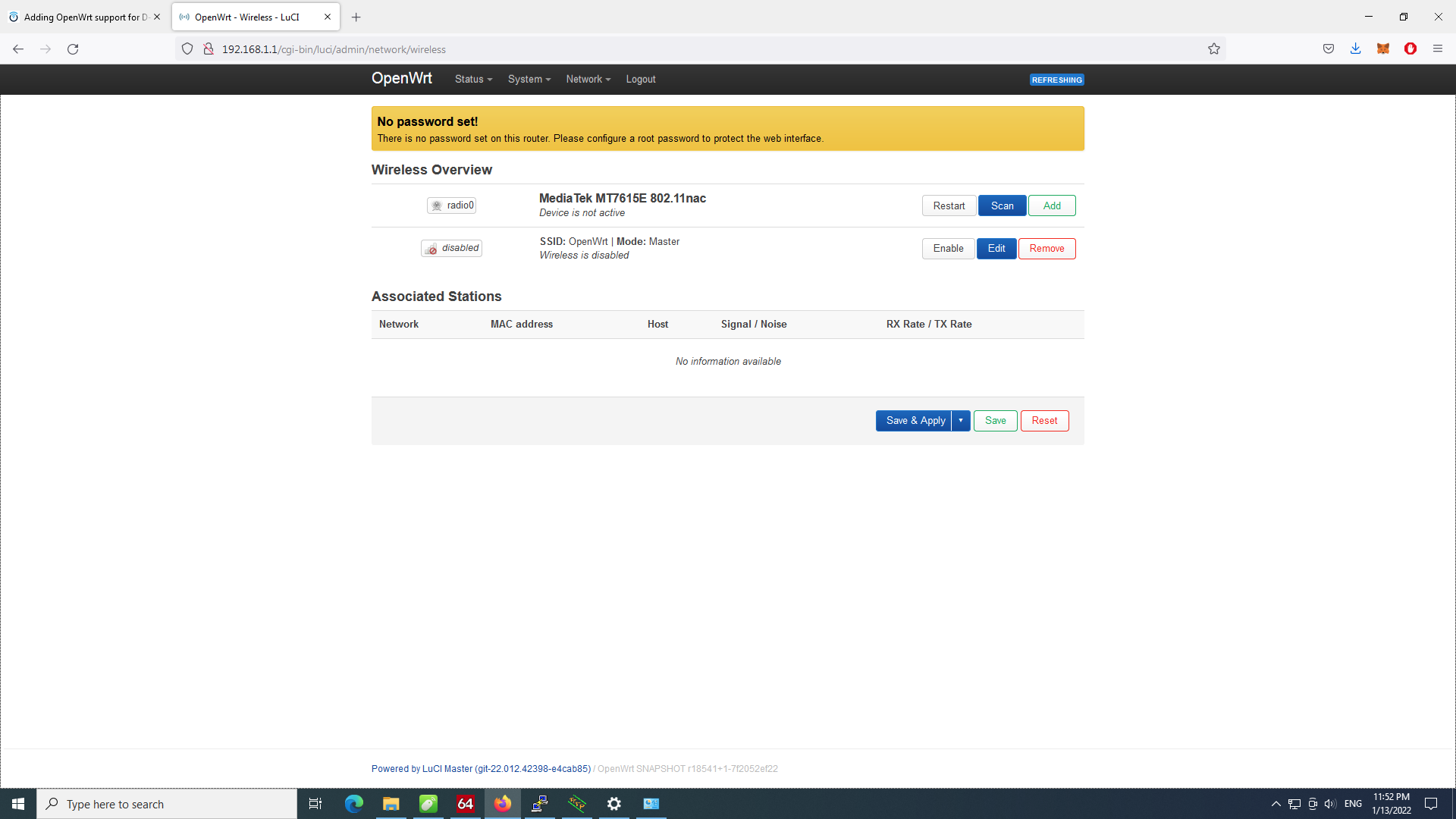

Well either wlan still isn't up, or i guess i actually bricked my radio

ΠΈΠ·ΠΎΠ±Ρ€Π°ΠΆΠ΅Π½ΠΈΠ΅
ΠΈΠ·ΠΎΠ±Ρ€Π°ΠΆΠ΅Π½ΠΈΠ΅1920Γ—1080 159 KB

96

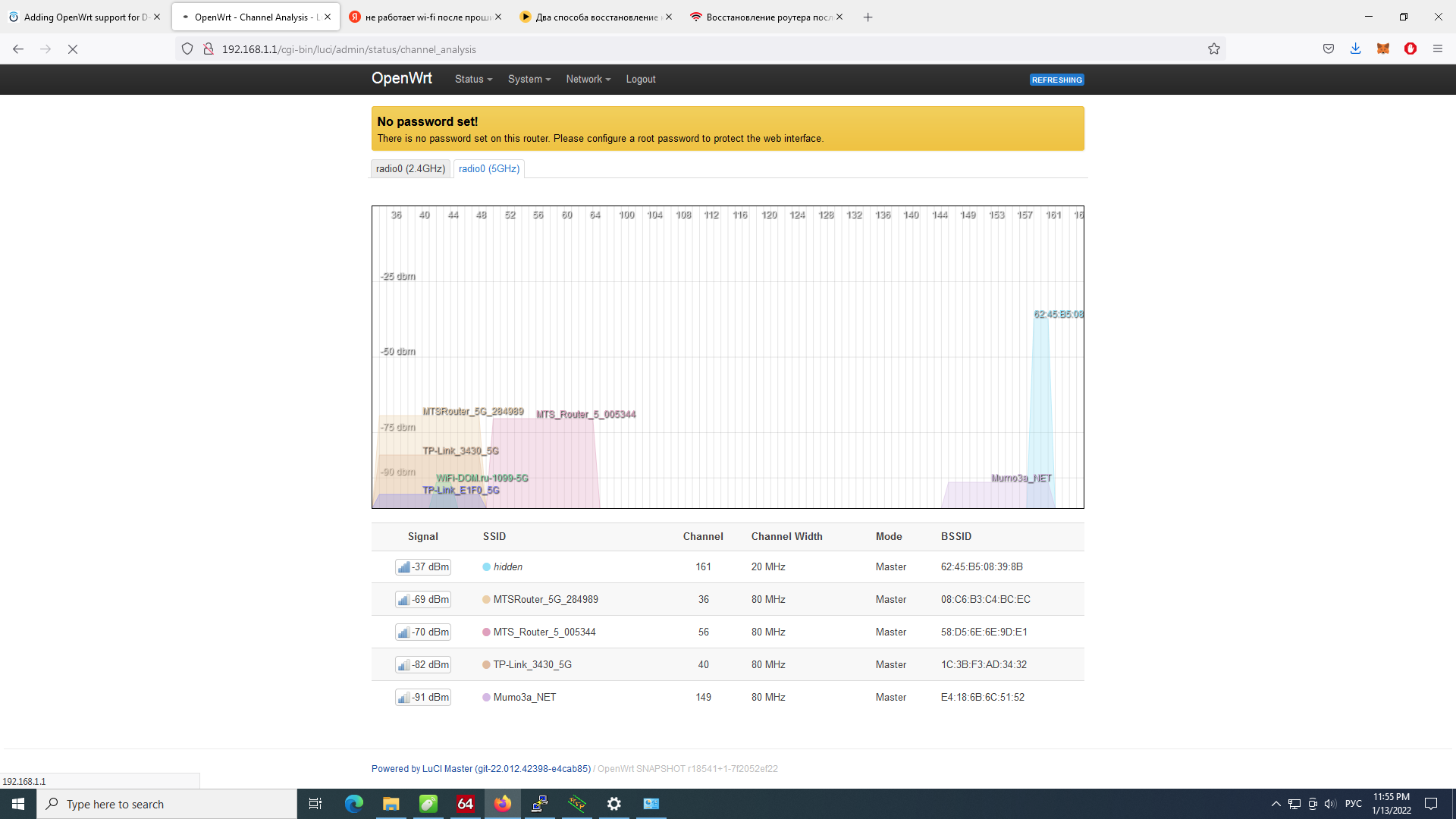

Other networks are visible though

ΠΈΠ·ΠΎΠ±Ρ€Π°ΠΆΠ΅Π½ΠΈΠ΅
ΠΈΠ·ΠΎΠ±Ρ€Π°ΠΆΠ΅Π½ΠΈΠ΅1920Γ—1080 240 KB

98

Bootlog?

And for the interface that is detected what happens when you click β€˜enable’?

99

Wireless isn't a problem atm, it does start and works normally, but i can't connect with pppoe, it gives Unknown error (User request), in.logs only one line

pppoe-PPPoE: renamed from ppp0
100

Ok found problem, my isp requests for ipv6 relay mode

1 Like
101

There should also be a 2.4ghz wireless interface, Lucky will need a bootlog to see why it’s wasn’t activated.
Could be a missing kernel module for the radio1 / MT7603E or incorrect reference in the dts

102

Ok so some bugs i found related to wireless, I only could create one band network, if i Create or edit any networks to 2.4 all switch to 2.4 and if i configure any to be 5ghz all switch to same mode
