Add Openwrt support for JD Cloud ER1 Wired Router

Hardware Questions and Recommendations
1

Sale on JD. RMB 229. It is RMB15X before.
https://item.jd.com/100140891038.html

Someone has tried to flashed immortalwrt on it
https://www.bilibili.com/opus/1002171485424451593
https://www.right.com.cn/forum/thread-8406434-1-1.html

CPU : Qualcomm IPQ6010 4 Cores 1.8Ghz A53
RAM: 2GB DDR4 + 8GB emmc
1 WAN + 3 LAN (all 1 gbps)
1 USB-A 3.0

2

immortalwrt <> openwrt

and currently unsupported here.

3

yep I know.

Will share any information after the delivery. Hope to get it supported soon.

1 Like
4

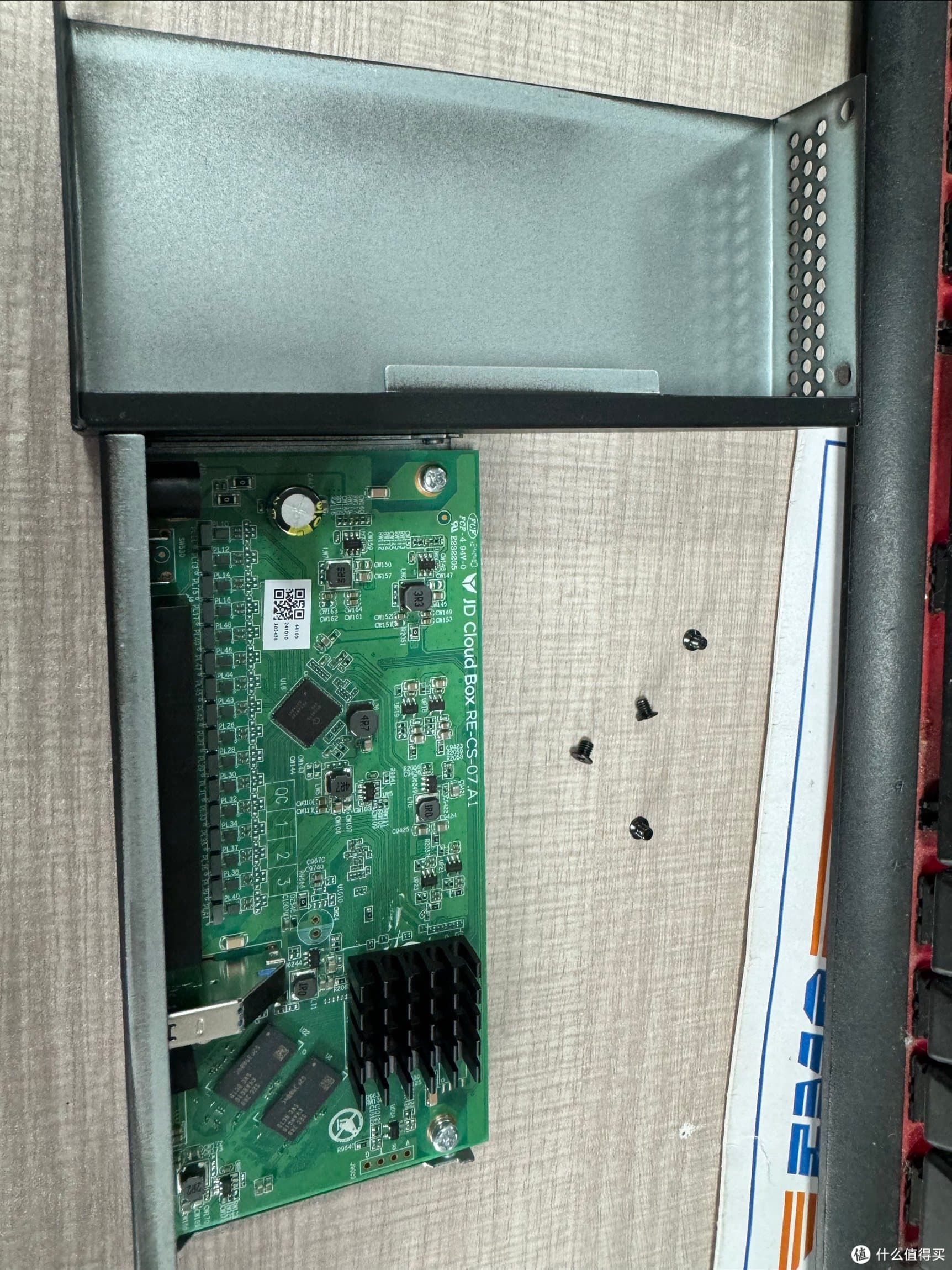

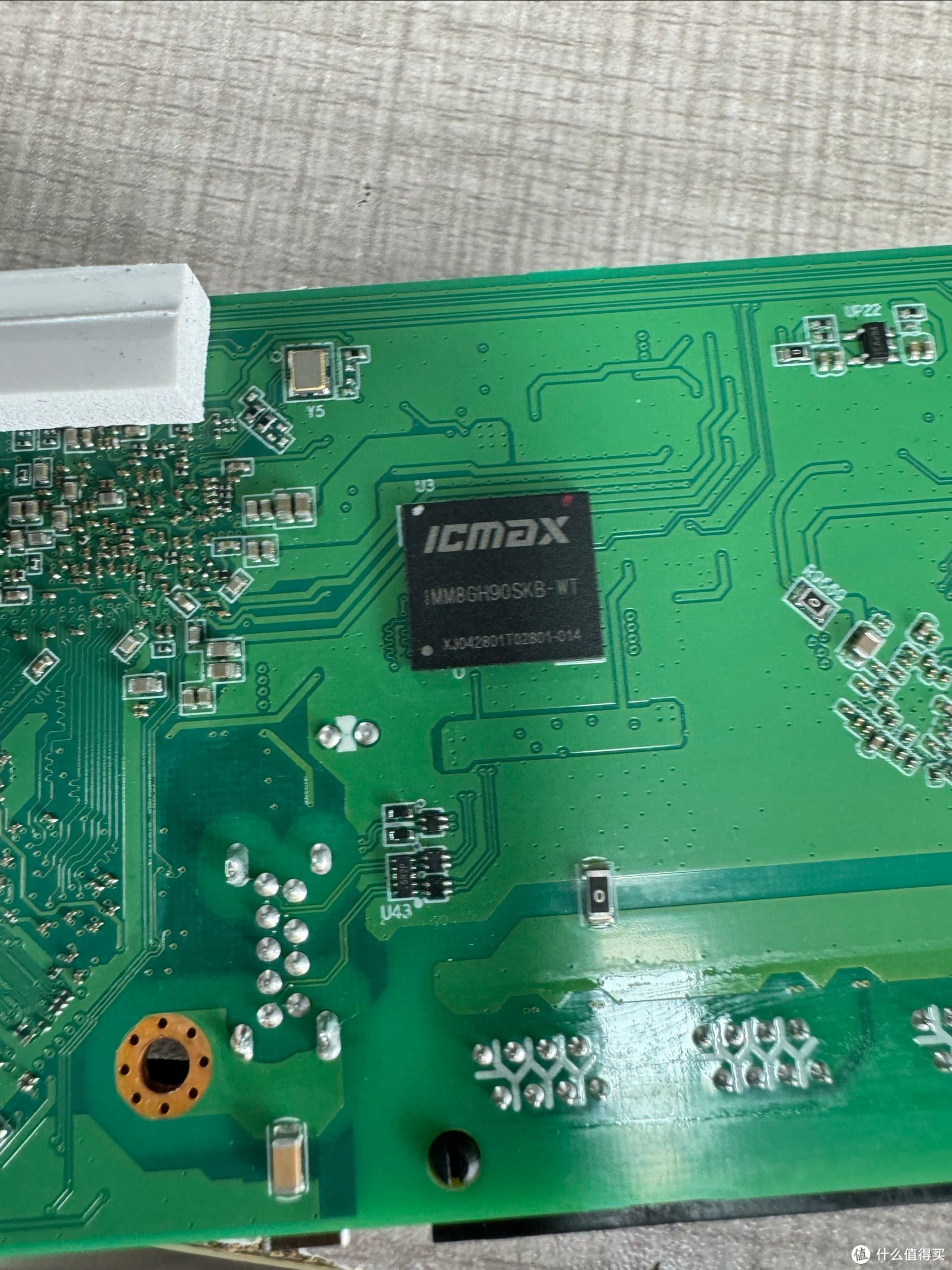

found a post. case removed.
https://post.smzdm.com/p/aovq27vm/

6721d73e6f1ed1355.jpg_orig
6721d73e6f1ed1355.jpg_orig1724×2299 502 KB

6721d73ff94ea9308.jpg_orig
6721d73ff94ea9308.jpg_orig1724×2299 385 KB

6721d743df1972457.jpg_orig
6721d743df1972457.jpg_orig1724×2299 283 KB

6721d7404d7158030
6721d7404d71580301724×2299 456 KB

6721d741083439644
6721d7410834396441724×2299 525 KB

5

at least serial's clearly marked on the PCB :slight_smile:

1 Like
