Accidentally flashed wrong bin to tp-link archer c7 v5

Hardware Questions and Recommendations
1

Hi! OK i'm in serious trouble. I inadvertently flashed the wrong openwrt firmware on my Tp-Link Archer C7 V5 and now it doesn't work. I tried using tftpd64 to restore it to the original software but now tftpd64 keeps telling me:

Blockquote Connection received from 192.168.0.86 on port 3688 [05/03 15:20:10.091]
Read request for file <ArcherC7v5_tp_recovery.bin>. Mode octet [05/03 15:20:10.091]
File <ArcherC7v5_tp_recovery.bin> : error 2 in system call CreateFile The system cannot find the file specified. [05/03 15:20:10.107]

PLEASE tell me this is fixable!!

2

How are you providing this file?

1 Like
3

You have to serve OEM bin as that filename
Errno 2 means file not found.

1 Like
4

Please bare with me guys i'm totally new tot his. Ok so i downloaded the tp-link archer c7 v5 firmware and renamed it to ArcherC7v5_tp_recovery.bin. Then i used the tftpd64 by jounin to upload it. I changed the ip v4 setttings to 192.168.0.66 in the network properties and i pressed the reset button followed by the power button for 5 seconds.

5

Hi... Check the configuration at the tftp program.
Maybe you leave the file in a wrong directory.. as Brada4 wrote.

Can you share the config of tftp32/64?
Current directory? c:/temp?
You create this directory at your c: ?
Do you leave the file .bin there?
The tcp/ip address of your computer?
You disable the firewall of your computer, just for this tftp transfer?

6

Ok. the config file is tftpd32 and it's empty. There is no tftpd64 config file. The folder is located in C:\Program Files\Tftpd64. I'm connected directly to the router, and i set the IPV4 settings to 192.168.0.66 and the subnet to 255.255.255.0.

7

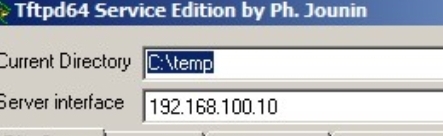

Screenshot_20250305_203550_Firefox Focus
Screenshot_20250305_203550_Firefox Focus443×136 33.1 KB

Did you place the file in the folder listed in your program?

:+1:

8

Oh dear; you have to unzip the file and serve the bin file found inside.

2 Likes
9

HI guys. Brada4 I unzipped the archive so i have a file called c7v5-up-ver1-1-4-P1[20211022-rel59103]_2021-10-22_16.38.32.bin which I've renamed to ArcherC7v5_tp_recovery.bin. When i press the power button reset button for 4 or 5 seconds. I get the power light and what i think is the wps light.

Under server interfaces i have these:

Blockquote ::1, 127.0.0.1, 169.254.38.218, 192.168.0,66 and fe80::c3c:bbaa:41e4:26da%3.

10

OK I tried placing the bin file in the C:\temp folder. It began to flash but it timed out with this error:

Blockquote Connection received from 192.168.0.86 on port 3334 [06/03 09:44:47.282]
Read request for file <ArcherC7v5_tp_recovery.bin>. Mode octet [06/03 09:44:47.282]
OACK: <timeout=5,> [06/03 09:44:47.282]
Using local port 58535 [06/03 09:44:47.298]
TIMEOUT waiting for Ack block #17287 [06/03 09:45:17.313]

11

Disable all other connections - shut off laptop wifi, disconnect router wan, connect with cable directly.

12

Woohoo! I got it sorted! I uninstalled the version of Tftpd64 i had installed, then re-downloaded teh Tp-link bin file. After that i downloaded the newest version of tftpd from https://bitbucket.org/phjounin/tftpd64/downloads/ Finally i copied the recovery.bin file to C:\Temp. Ran the app and I'm finally up and running!

Thanks for all the help guys.
