ACCESSGO R4G4A-01B 4G support

For Developers
1

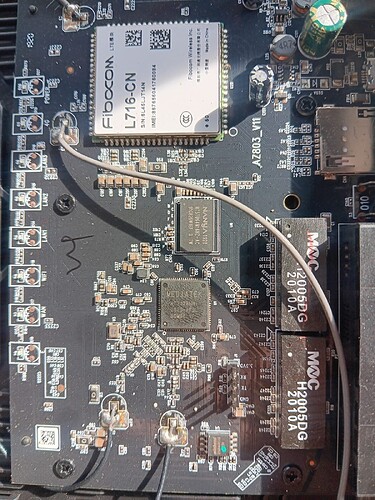

image1200×1600 308 KB

2

S[05000C09][05000C08]
DDR Calibration DQS reg = 00008888


U-Boot 1.1.3 (Nov  8 2019 - 15:31:07)

Board: Ralink APSoC DRAM:  128 MB
relocate_code Pointer at: 87fa0000
flash manufacture id: ef, device id 40 17
find flash: W25Q64BV
*** Warning - bad CRC, using default environment

============================================
Ralink UBoot Version: 5.0.0.0
--------------------------------------------
ASIC 7628_MP (Port5<->None)
DRAM component: 1024 Mbits DDR, width 16
DRAM bus: 16 bit
Total memory: 128 MBytes
Flash component: SPI Flash
Date:Nov  8 2019  Time:15:31:07
============================================
icache: sets:512, ways:4, linesz:32 ,total:65536
dcache: sets:256, ways:4, linesz:32 ,total:32768

 ##### The CPU freq = 580 MHZ ####
 estimate memory size =128 Mbytes
RESET MT7628 PHY!!!!!!
Please choose the operation:
   1: Load system code to SDRAM via TFTP.
   2: Load system code then write to Flash via TFTP.
   3: Boot system code via Flash (default).
   4: Entr boot command line interface.
   7: Load Boot Loader code then write to Flash via Serial.
   9: Load Boot Loader code then write to Flash via TFTP.
default: 3

You choosed 3
                                                                              0

3: System Boot system code via Flash.
## Booting image at bc050000 ...
   Image Name:   Linux Kernel Image
   Image Type:   MIPS Linux Kernel Image (lzma compressed)
   Data Size:    4446647 Bytes =  4.2 MB
   Load Address: 80000000
   Entry Point:  803e8760
   Verifying Checksum ... OK
   Uncompressing Kernel Image ... OK
No initrd
## Transferring control to Linux (at address 803e8760) ...
## Giving linux memsize in MB, 128

Starting kernel ...


LINUX started...

 THIS IS ASIC

SDK 5.0.S.0
Linux version 3.10.14 (root@ubuntu) (gcc version 4.6.3 (Buildroot 2012.11.1) ) #                                                                                        23 Fri Sep 25 14:00:47 CST 2020

 The CPU feqenuce set to 575 MHz
CPU0 revision is: 00019655 (MIPS 24KEc)
Software DMA cache coherency
Determined physical RAM map:
 memory: 08000000 @ 00000000 (usable)
Initrd not found or empty - disabling initrd
Zone ranges:
  Normal   [mem 0x00000000-0x07ffffff]
Movable zone start for each node
Early memory node ranges
  node   0: [mem 0x00000000-0x07ffffff]
Primary instruction cache 64kB, 4-way, VIPT, linesize 32 bytes.
Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 32512
Kernel command line: console=ttyS1,57600n8 root=/dev/ram0 rootfstype=squashfs,jf                                                                                        fs2
PID hash table entries: 512 (order: -1, 2048 bytes)
Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
Writing ErrCtl register=00012fd1
Readback ErrCtl register=00012fd1
Memory: 121828k/131072k available (4033k kernel code, 9244k reserved, 901k data,                                                                                         2872k init, 0k highmem)
NR_IRQS:128
console [ttyS1] enabled
Calibrating delay loop... 382.46 BogoMIPS (lpj=764928)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
NET: Registered protocol family 16
RALINK_GPIOMODE = 54150444
RALINK_GPIOMODE = 54140444
***** Xtal 40MHz *****
start PCIe register access
RALINK_RSTCTRL = 2400000
RALINK_CLKCFG1 = fdbfffc0

*************** MT7628 PCIe RC mode *************
PCIE0 no card, disable it(RST&CLK)
bio: create slab <bio-0> at 0
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
Switching to clocksource MIPS
NET: Registered protocol family 2
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP: reno registered
UDP hash table entries: 256 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
NET: Registered protocol family 1
MTK EHCI/OHCI init.
fuse init (API version 7.22)
msgmni has been set to 237
io scheduler noop registered (default)
Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x10000d00 (irq = 21) is a 16550A
serial8250: ttyS1 at MMIO 0x10000c00 (irq = 20) is a 16550A
Ralink gpio driver initialized
brd: module loaded
flash manufacture id: ef, device id 40 17
W25Q64BV(ef 40170000) (8192 Kbytes)
mtd .name = raspi, .size = 0x00800000 (8M) .erasesize = 0x00010000 (64K) .numera                                                                                        seregions = 0
Creating 5 MTD partitions on "raspi":
0x000000000000-0x000000800000 : "ALL"
0x000000000000-0x000000030000 : "Bootloader"
0x000000030000-0x000000040000 : "Config"
0x000000040000-0x000000050000 : "Factory"
0x000000050000-0x000001000000 : "Kernel"
mtd: partition "Kernel" extends beyond the end of device "raspi" -- size truncat                                                                                        ed to 0x7b0000
IMQ driver loaded successfully. (numdevs = 16, numqueues = 1)
        Hooking IMQ after NAT on PREROUTING.
        Hooking IMQ before NAT on POSTROUTING.
PPP generic driver version 2.4.2
PPP MPPE Compression module registered
NET: Registered protocol family 24
PPTP driver version 0.8.5


=== pAd = c0041000, size = 1469200 ===

<-- RTMPAllocTxRxRingMemory, Status=0, ErrorValue=0x
<-- RTMPAllocAdapterBlock, Status=0
RtmpChipOpsHook(492): Not support for HIF_MT yet!
mt7628_init()-->
mt7628_init(FW(8a00), HW(8a01), CHIPID(7628))
e2.bin mt7628_init(1135)::(2), pChipCap->fw_len(63888)
mt_bcn_buf_init(218): Not support for HIF_MT yet!
<--mt7628_init()
rdm_major = 253
GMAC1_MAC_ADRH -- : 0x00005cc7
GMAC1_MAC_ADRL -- : 0xd70ea1ab
Ralink APSoC Ethernet Driver Initilization. v3.1  512 rx/tx descriptors allocate                                                                                        d, mtu = 1500!
GMAC1_MAC_ADRH -- : 0x00005cc7
GMAC1_MAC_ADRL -- : 0xd70ea1ab
PROC INIT OK!
usbcore: registered new interface driver asix
usbcore: registered new interface driver ax88179_178a
usbcore: registered new interface driver cdc_ether
usbcore: registered new interface driver net1080
usbcore: registered new interface driver rndis_host
usbcore: registered new interface driver cdc_subset
usbcore: registered new interface driver zaurus
usbcore: registered new interface driver cdc_ncm
usbcore: registered new interface driver qmi_wwan
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
ehci-pci: EHCI PCI platform driver
ehci-platform: EHCI generic platform driver
******MT7628 mtk phy
*****run project phy.
FM_OUT value: u4FmOut = 0(0x00000000)
FM_OUT value: u4FmOut = 147(0x00000093)
FM detection done! loop = 1
SR calibration value u1SrCalVal = 6
*********Execute mt7628_phy_init!!
ehci-platform ehci-platform: EHCI Host Controller
ehci-platform ehci-platform: new USB bus registered, assigned bus number 1
ehci-platform ehci-platform: irq 18, io mem 0x101c0000
ehci-platform ehci-platform: USB 2.0 started, EHCI 1.00
usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb1: Product: EHCI Host Controller
usb usb1: Manufacturer: Linux 3.10.14 ehci_hcd
usb usb1: SerialNumber: ehci-platform
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
*********Execute mt7628_phy_init!!
ohci-platform ohci-platform: Generic Platform OHCI Controller
ohci-platform ohci-platform: new USB bus registered, assigned bus number 2
ohci-platform ohci-platform: irq 18, io mem 0x101c1000
usb usb2: New USB device found, idVendor=1d6b, idProduct=0001
usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb2: Product: Generic Platform OHCI Controller
usb usb2: Manufacturer: Linux 3.10.14 ohci_hcd
usb usb2: SerialNumber: ohci-platform
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
uhci_hcd: USB Universal Host Controller Interface driver
usbcore: registered new interface driver cdc_acm
cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
usbcore: registered new interface driver cdc_wdm
usbcore: registered new interface driver usbserial
usbcore: registered new interface driver option
usbserial: USB Serial support registered for GSM modem (1-port)
usbcore: registered new interface driver ssu100
usbserial: USB Serial support registered for Quatech SSU-100 USB to Serial Drive                                                                                        r
GACT probability on
Mirror/redirect action on
Failed to load ipt action
Simple TC action Loaded
netem: version 1.3
u32 classifier
    Performance counters on
    input device check on
    Actions configured
Netfilter messages via NETLINK v0.30.
nfnl_acct: registering with nfnetlink.
nf_conntrack version 0.5.0 (1903 buckets, 7612 max)
ctnetlink v0.93: registering with nfnetlink.
usb 1-1: new high-speed USB device number 2 using ehci-platform
xt_time: kernel timezone is -0000
gre: GRE over IPv4 demultiplexor driver
ip_tables: (C) 2000-2006 Netfilter Core Team
Type=Restricted Cone
ipt_CLUSTERIP: ClusterIP Version 0.8 loaded successfully
arp_tables: (C) 2002 David S. Miller
TCP: cubic registered
Initializing XFRM netlink socket
NET: Registered protocol family 17
NET: Registered protocol family 15
l2tp_core: L2TP core driver, V2.0
l2tp_ppp: PPPoL2TP kernel driver, V2.0
8021q: 802.1Q VLAN Support v1.8
registered taskstats version 1
Warning: unable to open an initial console.
Freeing unused kernel memory: 2872K (804d2000 - 807a0000)
Algorithmics/MIPS FPU Emulator v1.5
usb 1-1: New USB device found, idVendor=2cb7, idProduct=0001
usb 1-1: New USB device strings: Mfr=2, Product=4, SerialNumber=5
usb 1-1: Product: Fibocom Mobile Boardband
usb 1-1: Manufacturer: Fibocom,Incorporated
usb 1-1: SerialNumber: 1234567890ABCDEF
cdc_ether 1-1:1.0 eth0: register 'cdc_ether' at usb-ehci-platform-1, CDC Etherne                                                                                        t Device, 00:a0:c6:00:00:00
option 1-1:1.2: GSM modem (1-port) converter detected
usb 1-1: GSM modem (1-port) converter now attached to ttyUSB0
option 1-1:1.3: GSM modem (1-port) converter detected
usb 1-1: GSM modem (1-port) converter now attached to ttyUSB1
option 1-1:1.4: GSM modem (1-port) converter detected
usb 1-1: GSM modem (1-port) converter now attached to ttyUSB2
option 1-1:1.5: GSM modem (1-port) converter detected
usb 1-1: GSM modem (1-port) converter now attached to ttyUSB3
option 1-1:1.6: GSM modem (1-port) converter detected
usb 1-1: GSM modem (1-port) converter now attached to ttyUSB4
3

What was the question again ?

4

Is there any openwrt for my router ACCESSGO R4G4A-01B 4G (case of original firmware being deleted) now I am using openwrt for tplink mr6400 because it can run on my router but it can't be detected for the internal modem FIBOCOM LTE L617-cn,

5

The boot log you've posted isn't from Openwrt.

Read LTE Modem Doesn't Work - #43 by Notsheesh.

6

Yes, I also read it, but I was wondering which firmware he was using, because he managed to detect his fibocom L7615, while I was still confused and couldn't detect it, it didn't appear as he showed, I tried several firmwares too, currently I'm trying the TP-Link TL-MR3420 v5 ROOTER for my router, but it's still the same, it can't be detected.

7

yes that is the botlog from my default router before using openwrt

8

Define "detect" ?

9
root@ROOter:~# dmesg | grep cdc[   15.688901] usbcore: registered new interface driver cdc_acm[   15.694722] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters[   15.748844] usbcore: registered new interface driver cdc_wdm[   16.211699] usbcore: registered new interface driver cdc_ether[   16.227328] usbcore: registered new interface driver cdc_ncm[   16.385592] usbcore: registered new interface driver huawei_cdc_ncm[   17.974000] usbcore: registered new interface driver cdc_mbimroot@ROOter:~#

I don't see fibocom

10

sorry I'm not good at language

11

I noticed in "LTE Modem Doesn't Work" that the internal modem is detected as FIBOCOM while mine is not detected at all.

12

Then the image you're using isn't 100% compatible with your router.

13

yes . is there an image for mine

do you have any suggestions

14

Nope.

15

mt7628 is not exactly anything to choose in 2025 (slow, not-great wireless) - and 8 MB flash pretty much puts the final nail into the coffin (already tight as it is, formally not meeting minimum system specs going forward, little to no headroom for 4g specific packages).

16

Absolutely, I agree with you, but it bothers me that I haven't finished it yet. I just want you to be able to be normal again. Do you have a solution for my router to work again?

17

Install stock firmware again ?

18

Why are you posting device logs to a bug tracker?

Do you have a place you download OEM firmware?

Do you get shell acces via serial, at least cat /proc/mtd and ubinfo -a ?

19

Even if you had gotten the submission right (but you didn't), it'll still never happen, insufficient flash, as @slh pointed out.

20

It can hapen , but in all likehood 24.10 will be first and last release supporting the device at the cost of you rushing through 2 ports.
