802.11ax Routers

Mushoz · March 25, 2022, 6:13pm

The mt7622 platform is currently one of the fastests platforms available. It can even shape SQM at linerate (1 Gbit/s). Old MIPS models may be slow, but this one definitely is not. Just focus on actual benchmarks instead of the architecture. If it performs well enough for your requirements, then just use it instead of dismissing it merely due to its architecture.

Edit: disregard, mt7622 is actually ARM and not MIPS. Both use a family of the RISC instruction set.

Lynx · March 25, 2022, 9:10pm

Not with CAKE though right?

Mushoz · March 25, 2022, 9:15pm

No, only fq_codel

adrian_dsl · April 20, 2022, 10:48pm

It looks like it's part of Networking Pro 1610 Platform

robimarko · April 20, 2022, 10:59pm

Now that is a beast, IPQ8078A with two QCN9074-s, and finally, somebody put a SFP+ slot on one of the 10G ports(Even heatsinked for GPON-s).

I am afraid to even see what the price is

adrian_dsl · April 20, 2022, 11:28pm

Supposedly there's an even better model coming
d43c-kmkptxc4470052

rmandrad · April 21, 2022, 7:40am

outrageously expensive about $900 !

slh · April 21, 2022, 8:03am

Really interesting specs, but the thermal- and rf design probably won't win (m)any prices, somehow I don't think that's a good approach to it.

robimarko · April 21, 2022, 8:34am

Well, we are talking about TP-Link, I am sure that the urge to skimp was strong despite the price.

Thermal design looks decent to me, everything is heatsinked, cant really speak about RF design

Lynx · April 21, 2022, 11:32am

Does the appearance of the antenna design have a technical grounding or is it just aesthetics? It does look quite funky:

Reminds me of one of those Dyson fans:

rmandrad · April 21, 2022, 2:36pm

there is also the XTR7890

frollic · May 12, 2022, 9:28am

Anyone know if there's a German counterpart to FCC ?

This looks quite interesting, but the chipset's unknown, and I can't find any firmware (German is my 4th language, so I pretty much suck at it ...).

price often drops to ~65€ according to Idealo.

Could be used as an AP, but since there're only two 1gbit ports, you'll never exceed 1gbit, per client, but you could at least use link aggregation.

robimarko · May 12, 2022, 9:38am

Nope, there are not requirements for pictures in EU, they only need to provide the DoC.
Its a DT semi-custom device most likely, so most likely Broadcom.

https://www.telekom.de/hilfe/geraete-zubehoer/heimnetzwerk-powerline-wlan/speed-home-wlan/firmware-speedhome-wlan

frollic · May 12, 2022, 10:02am

bummer, looks to be encrypted too ...

[frollic@atlantis ~]$ binwalk firmware-speed-home-wlan-010143-2-0-002-2.bin

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
9814392       0x95C178        MySQL ISAM index file Version 3

[frollic@atlantis ~]$ strings -5 firmware-speed-home-wlan-010143-2-0-002-2.bin
MODEL:DT-SHWL,SW_VERSION:010143.2.0.002.2,SECURE_BOOT:SECURE

and then just garbage, nothing readable at all.

robimarko · May 12, 2022, 10:04am

I would be shocked if they didn't encrypt it, enable secure boot etc.
Generally, HW for big ISP-s here is not worth even trying cause it was always Broadcom or Huawei based with every possible option to prevent anybody from being able to do anything except for bare minimum WEB UI probided

matlab22 · June 14, 2022, 9:32am

Does anybody tested a Yuncore AX820 access point?

github.com/openwrt/openwrt

[22.03] ramips: add support for YunCore AX820/HWAP-AX820

openwrt:openwrt-22.03 ← oe1rfc:openwrt-22.03-backport-yuncore-ax820

opened 10:45PM - 24 Apr 22 UTC

oe1rfc

+164 -1

``` There are two versions which are identical apart from the enclosure: Yun…Core AX820: indoor ceiling mount AP with integrated antennas YunCore HWAP-AX820: outdoor enclosure with external (N) connectors Hardware specs: SoC: MediaTek MT7621DAT Flash: 16 MiB SPI NOR RAM: 128MiB (DDR3, integrated) WiFi: MT7905DAN+MT7975DN 2.4/5GHz 2T2R 802.11ax Ethernet: 10/100/1000 Mbps x2 (WAN/PoE+LAN) LED: Status (green) Button: Reset Power: 802.11af/at PoE; DC 12V,1A Antennas: AX820(indoor): 4dBi internal; HWAP-AX820(outdoor): external Flash instructions: The "OpenWRT support" version of the AX820 comes with a LEDE-based firmware with proprietary MTK drivers and a luci webinterface and ssh accessible under 192.168.1.1 on LAN; user root, no password. The sysupgrade.bin can be flashed using luci or sysupgrade via ssh, you will have to force the upgrade due to a different factory name. Remember: Do *not* preserve factory configuration! MAC addresses as used by OEM firmware: use address source 2g 44:D1:FA:*:0b Factory 0x0004 (label) 5g 46:D1:FA:*:0b LAA of 2g lan 44:D1:FA:*:0c Factory 0xe000 wan 44:D1:FA:*:0d Factory 0xe000 + 1 The wan MAC can also be found in 0xe006 but is not used by OEM dtb. Due to different MAC handling in mt76 the LAA derived from lan is used for 2g to prevent duplicate MACs when creating multiple interfaces. Signed-off-by: Clemens Hopfer <openwrt@wireloss.net> (cherry picked from commit 4891b865380e2b7f32acf0893df9c1ca9db8d4ea) ``` this is a direct cherry-pick backport of https://github.com/openwrt/openwrt/pull/4390, no adaptations were necessary.

adrian_dsl · June 16, 2022, 9:53am

It looks like 802.11be chipsets are coming.

IPQ9574 Cortex A73 based with 4 x 2.5 GE + 5 GE + 10 GE switched ports (I assume a separate 10 GE WAN port).

IPQ9554

Found a product based on these chips: https://www.h3c.com/en/Products_Technology/Enterprise_Products/IntelligentTerminalProducts/Magic/BE18000/

edwrap · June 29, 2022, 12:39pm

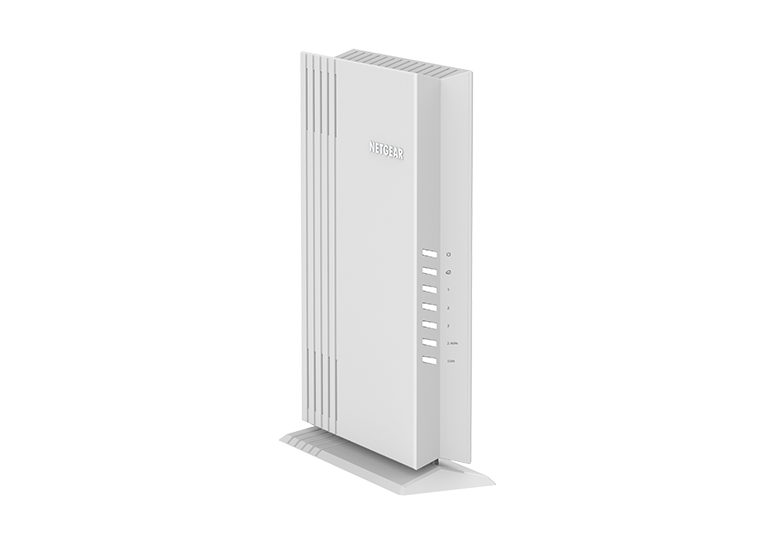

Netgear WAX202 AX1800:

SoC: MT7621A
Wi-Fi: MT7915D (AX on both 2.4/5ghz)

Searched this topic, didn’t see anything. There seem to be a few of these cheap AX1800 devices in the US market now (Belkin RT1800 is another).

There’s actually already a pull request to add support for the WAX202, but it still needs a few reviewers:

github.com/openwrt/openwrt

ramips: add support for Netgear WAX202

openwrt:master ← looi:wax202

opened 09:19PM - 09 Apr 22 UTC

looi

+389 -0

Netgear WAX202 is an 802.11ax (Wi-Fi 6) router. Specifications: * SoC: MT762…1A * RAM: 512 MiB NT5CC256M16ER-EK * Flash: NAND 128 MiB F59L1G81MB-25T * Wi-Fi: * MT7915D: 2.4/5 GHz (DBDC) * Ethernet: 4x 1GbE * Switch: SoC built-in * USB: None * UART: 115200 baud (labeled on board) Load addresses (same as ipTIME AX2004M): * stock * 0x80010000: FIT image * 0x81001000: kernel image -> entry * OpenWrt * 0x80010000: FIT image * 0x82000000: uncompressed kernel+relocate image * 0x80001000: relocated kernel image -> entry Installation: * Flash the factory image through the stock web interface, or TFTP to the bootloader. NMRP can be used to TFTP without opening the case. * Note that the bootloader accepts both encrypted and unencrypted images, while the stock web interface only accepts encrypted ones. Revert to stock firmware: * Flash the stock firmware to the bootloader using TFTP/NMRP. References in WAX202 GPL source: https://www.downloads.netgear.com/files/GPL/WAX202_V1.0.5.1_Source.rar * openwrt/target/linux/ramips/dts/mt7621-ax-nand-wax202.dts DTS file for this device. * openwrt/bootloader/u-boot-mt7621-2018.09-gitb178829-20200526/board/ralink/common/dual_image.c Bootloader code that verifies the presence of a squashfs4 image, thus a dummy image is added here. * openwrt/tools/imgencoder/src/gj_enc.c Contains code that generates the encrypted image. There is support for adding an RSA signature, but it does not look like the signature is verified by the stock firmware or bootloader. * openwrt/tools/imgencoder/src/imagekey.h Contains the encryption key and IV. It appears the same key/IV is used for other Netgear devices including WAX206 and EX6400v3. <details><summary>Stock boot log</summary> ``` =================================================================== MT7621 stage1 code Dec 16 2019 17:45:55 (ASIC) CPU=500000000 HZ BUS=166666666 HZ ================================================================== Change MPLL source from XTAL to CR... do MEMPLL setting.. MEMPLL Config : 0x11000000 3PLL mode + External loopback === XTAL-40Mhz === DDR-1200Mhz === PLL4 FB_DL: 0x15, 1/0 = 596/428 55000000 PLL2 FB_DL: 0x16, 1/0 = 515/509 59000000 PLL3 FB_DL: 0x17, 1/0 = 581/443 5D000000 DDR patch working do DDR setting..[01F40000] Apply DDR3 Setting...(use default AC) 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 -------------------------------------------------------------------------------- 0000:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0001:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0002:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0003:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0004:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0005:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0006:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0007:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0008:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0009:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 000E:| 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 000F:| 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0010:| 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0011:| 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0012:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0013:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0014:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0015:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0016:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0017:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0018:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0019:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001F:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 DRAMC_DQSCTL1[0e0]=13000000 DRAMC_DQSGCTL[124]=80000033 rank 0 coarse = 15 rank 0 fine = 72 B:| 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 opt_dle value:8 DRAMC_DDR2CTL[07c]=C287220D DRAMC_PADCTL4[0e4]=000022B3 DRAMC_DQIDLY1[210]=0B0B0A0A DRAMC_DQIDLY2[214]=070A070A DRAMC_DQIDLY3[218]=0D0C0909 DRAMC_DQIDLY4[21c]=0C0A0C0A DRAMC_R0DELDLY[018]=00002120 ================================================================== RX DQS perbit delay software calibration ================================================================== 1.0-15 bit dq delay value ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 8 9 9 11 10 7 9 7 7 7 10 | 9 10 10 9 10 10 -------------------------------------- ================================================================== 2.dqs window x=pass dqs delay value (min~max)center y=0-7bit DQ of every group input delay:DQS0 =32 DQS1 = 33 ================================================================== bit DQS0 bit DQS1 0 (1~60)30 8 (1~62)31 1 (1~61)31 9 (1~61)31 2 (1~60)30 10 (1~60)30 3 (1~64)32 11 (0~61)30 4 (1~63)32 12 (1~66)33 5 (1~64)32 13 (1~60)30 6 (1~62)31 14 (1~65)33 7 (1~64)32 15 (1~62)31 ================================================================== 3.dq delay value last ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 10 10 11 11 10 7 10 7 9 9 10 | 12 13 10 12 10 12 ================================================================== ================================================================== TX perbyte calibration ================================================================== DQS loop = 15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqsdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqsdly_pass[1]=15, finish count=2 DQ loop=15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqdly_pass[1]=15, finish count=2 byte:0, (DQS,DQ)=(8,8) byte:1, (DQS,DQ)=(8,8) DRAMC_DQODLY1[200]=88888888 DRAMC_DQODLY2[204]=88888888 20,data:88 [EMI] DRAMC calibration passed =================================================================== MT7621 stage1 code done CPU=500000000 HZ BUS=166666666 HZ =================================================================== U-Boot SPL 2018.09 (Jun 11 2021 - 15:25:38 +0800) Trying to boot from NAND U-Boot 2018.09 (Jun 11 2021 - 15:25:38 +0800) CPU: MediaTek MT7621AT ver 1, eco 3 Clocks: CPU: 880MHz, DDR: 600MHz, Bus: 220MHz, XTAL: 40MHz Model: MediaTek MT7621 reference board (NAND) DRAM: 448 MiB NAND: 128 MiB Loading Environment from NAND... OK In: uartlite0@1e000c00 Out: uartlite0@1e000c00 Err: uartlite0@1e000c00 Net: eth0: eth@1e100000 nmrp activated nmrp listen timeout. nmrp Nmrp_cleanup. Hit any key to stop autoboot: 0 *** U-Boot Boot Menu *** Press UP/DOWN to move, ENTER to select 1. Startup system (Default) 2. Upgrade firmware 3. Upgrade bootloader 4. Upgrade bootloader (advanced mode) 5. Load image 0. U-Boot console Hit any key to stop autoboot: 1 0 Starting dual image checking ... NAND read: device 0 offset 0x180000, size 0x20000 131072 bytes read: OK image tag: MTD_IMAGEA_TAG get size : 0x16a0000 NAND read: device 0 offset 0x180000, size 0x16c0000 23855104 bytes read: OK image tag: MTD_IMAGEA_TAG image size: 0x16a0000 checksum: 0x1606f03f image crc: 0x1606f03f Verifying main image at 0x1a0000 size 0x25e0000... ## Checking hash(es) for FIT Image at 80010000 ... Hash(es) for Image 0 (kernel@1): crc32+ sha1+ Hash(es) for Image 1 (fdt@1): crc32+ sha1+ NAND read: device 0 offset 0x2780000, size 0x20000 131072 bytes read: OK image tag: MTD_IMAGEA_TAG get size : 0x16a0000 NAND read: device 0 offset 0x2780000, size 0x16c0000 23855104 bytes read: OK image tag: MTD_IMAGEA_TAG image size: 0x16a0000 checksum: 0x1606f03f image crc: 0x1606f03f Verifying backup image at 0x27a0000 size 0x25e0000... ## Checking hash(es) for FIT Image at 80010000 ... Hash(es) for Image 0 (kernel@1): crc32+ sha1+ Hash(es) for Image 1 (fdt@1): crc32+ sha1+ Passed Loading from nand0, offset 0x180000 ** Unknown image type no partition number specified Loading from nand0, offset 0x1a0000 Fit image detected... FIT description: MIPS OpenWrt FIT (Flattened Image Tree) Image 0 (kernel@1) Description: MIPS OpenWrt Linux-4.4.198 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 3548387 Bytes = 3.4 MiB Architecture: MIPS OS: Linux Load Address: 0x81001000 Entry Point: 0x81001000 Hash algo: crc32 Hash value: f9121699 Hash algo: sha1 Hash value: 2bef473c4f3a567f5cb4c3ba22a80e741fd7bfcd Image 1 (fdt@1) Description: MIPS OpenWrt mt7621-ax-nand-wax202 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x8037270c Data Size: 12909 Bytes = 12.6 KiB Architecture: MIPS Hash algo: crc32 Hash value: b4a82fcf Hash algo: sha1 Hash value: e624bf494011f0ed2cddf8d92188508cd58105b0 Default Configuration: 'config@1' Configuration 0 (config@1) Description: OpenWrt Kernel: kernel@1 FDT: fdt@1 Automatic boot of image at addr 0x80010000 ... ## Loading kernel from FIT Image at 80010000 ... Using 'config@1' configuration Trying 'kernel@1' kernel subimage Description: MIPS OpenWrt Linux-4.4.198 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 3548387 Bytes = 3.4 MiB Architecture: MIPS OS: Linux Load Address: 0x81001000 Entry Point: 0x81001000 Hash algo: crc32 Hash value: f9121699 Hash algo: sha1 Hash value: 2bef473c4f3a567f5cb4c3ba22a80e741fd7bfcd Verifying Hash Integrity ... crc32+ sha1+ OK ## Loading fdt from FIT Image at 80010000 ... Using 'config@1' configuration Trying 'fdt@1' fdt subimage Description: MIPS OpenWrt mt7621-ax-nand-wax202 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x8037270c Data Size: 12909 Bytes = 12.6 KiB Architecture: MIPS Hash algo: crc32 Hash value: b4a82fcf Hash algo: sha1 Hash value: e624bf494011f0ed2cddf8d92188508cd58105b0 Verifying Hash Integrity ... crc32+ sha1+ OK Booting using the fdt blob at 0x8037270c Uncompressing Kernel Image ... OK Loading Device Tree to 9be76000, end 9be7c26c ... OK [ 0.000000] Linux version 4.4.198 (build@Ubuntu18-BuildServer) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r0-c9bc004e7) ) #0 SMP Mon Jun 21 13:26:27 UTC 2021 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is MediaTek MT7621 WAX202 (802.11ax,NAND) [ 0.000000] Determined physical RAM map: [ 0.000000] memory: 1c000000 @ 00000000 (usable) [ 0.000000] memory: 04000000 @ 20000000 (usable) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000000000000-0x0000000000ffffff] [ 0.000000] Normal [mem 0x0000000001000000-0x000000000fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] On node 0 totalpages: 65536 [ 0.000000] free_area_init_node: node 0, pgdat 818db580, node_mem_map 81d36000 [ 0.000000] DMA zone: 32 pages used for memmap [ 0.000000] DMA zone: 0 pages reserved [ 0.000000] DMA zone: 4096 pages, LIFO batch:0 [ 0.000000] Normal zone: 480 pages used for memmap [ 0.000000] Normal zone: 61440 pages, LIFO batch:15 [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] PERCPU: Embedded 10 pages/cpu @81f48000 s8544 r8192 d24224 u40960 [ 0.000000] pcpu-alloc: s8544 r8192 d24224 u40960 alloc=10*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 65024 [ 0.000000] Kernel command line: console=ttyS0,115200 slub_debug=- loglevel=8 mtdoops.mtddev=LOG mtdoops.record_size=16384 rootfstype=squashfs,jffs2 [ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes) [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes) [ 0.000000] Writing ErrCtl register=0001441d [ 0.000000] Readback ErrCtl register=0001441d [ 0.000000] Memory: 246120K/262144K available (7282K kernel code, 4042K rwdata, 1708K rodata, 204K init, 270K bss, 16024K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS:256 [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 4343773742 ns [ 0.000009] sched_clock: 32 bits at 440MHz, resolution 2ns, wraps every 4880645118ns [ 0.007776] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.070401] pid_max: default: 32768 minimum: 301 [ 0.075098] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes) [ 0.081621] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes) [ 6.150098] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 6.150108] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 6.150118] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 6.150264] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.177424] Synchronize counters for CPU 1: done. [ 5.910333] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 5.910340] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 5.910346] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 5.910416] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.267762] Synchronize counters for CPU 2: done. [ 6.000434] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 6.000440] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 6.000446] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 6.000529] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.352936] Synchronize counters for CPU 3: done. [ 0.357672] Brought up 4 CPUs [ 0.365839] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.375640] futex hash table entries: 1024 (order: 3, 32768 bytes) [ 0.381945] pinctrl core: initialized pinctrl subsystem [ 0.388591] NET: Registered protocol family 16 [ 0.401472] FPU Affinity set after 11720 emulations [ 0.427461] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.433134] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.438745] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.444913] mt7621-pci 1e140000.pcie: Failed to get gpio for PCIe1 [ 0.451025] mt7621-pci 1e140000.pcie: Failed to get gpio for PCIe2 [ 0.657504] PCIe port 2 link down [ 0.660737] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 0.700265] mtkmips-pinmux pinctrl: pin io3 already requested by pinctrl; cannot claim for 1e000000.palmbus:i2c@0 [ 0.710469] mtkmips-pinmux pinctrl: pin-3 (1e000000.palmbus:i2c@0) status -22 [ 0.717497] mtkmips-pinmux pinctrl: could not request pin 3 (io3) from group i2c on device rt2880-pinmux [ 0.727019] i2c-gpio 1e000000.palmbus:i2c@0: Error applying setting, reverse things back [ 0.735267] i2c-gpio 1e000000.palmbus:i2c@0: using pins 3 (SDA) and 4 (SCL) [ 0.742698] PCI host bridge to bus 0000:00 [ 0.746730] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 0.753567] pci_bus 0000:00: root bus resource [io 0x1e160000-0x1e16ffff] [ 0.760375] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0] [ 0.767121] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 0.775012] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400 [ 0.780989] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff] [ 0.787203] pci 0000:00:00.0: supports D1 [ 0.791141] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 0.797057] pci 0000:00:01.0: [0e8d:0801] type 01 class 0x060400 [ 0.803012] pci 0000:00:01.0: reg 0x14: [mem 0x00000000-0x0000ffff] [ 0.809225] pci 0000:00:01.0: supports D1 [ 0.813169] pci 0000:00:01.0: PME# supported from D0 D1 D3hot [ 0.819110] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 0.827030] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 0.835144] pci 0000:01:00.0: [14c3:7916] type 00 class 0x000280 [ 0.841136] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 0.848273] pci 0000:01:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 0.855455] pci 0000:01:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 0.862692] pci 0000:01:00.0: supports D1 D2 [ 0.866882] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 0.873632] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 0.880344] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280 [ 0.886311] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 0.893468] pci 0000:02:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 0.900620] pci 0000:02:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 0.907878] pci 0000:02:00.0: supports D1 D2 [ 0.912052] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 0.918843] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 0.925358] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 02 [ 0.931998] pci 0000:00:00.0: BAR 9: assigned [mem 0x60000000-0x601fffff pref] [ 0.939119] pci 0000:00:01.0: BAR 9: assigned [mem 0x60200000-0x603fffff pref] [ 0.946301] pci 0000:00:00.0: BAR 1: assigned [mem 0x60400000-0x6040ffff] [ 0.953032] pci 0000:00:01.0: BAR 1: assigned [mem 0x60410000-0x6041ffff] [ 0.959794] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff 64bit pref] [ 0.967467] pci 0000:01:00.0: BAR 2: assigned [mem 0x60100000-0x60103fff 64bit pref] [ 0.975179] pci 0000:01:00.0: BAR 4: assigned [mem 0x60104000-0x60104fff 64bit pref] [ 0.982851] pci 0000:00:00.0: PCI bridge to [bus 01] [ 0.987776] pci 0000:00:00.0: bridge window [mem 0x60000000-0x601fffff pref] [ 0.994940] pci 0000:02:00.0: BAR 0: assigned [mem 0x60200000-0x602fffff 64bit pref] [ 1.002655] pci 0000:02:00.0: BAR 2: assigned [mem 0x60300000-0x60303fff 64bit pref] [ 1.010329] pci 0000:02:00.0: BAR 4: assigned [mem 0x60304000-0x60304fff 64bit pref] [ 1.018027] pci 0000:00:01.0: PCI bridge to [bus 02] [ 1.022927] pci 0000:00:01.0: bridge window [mem 0x60200000-0x603fffff pref] [ 1.031778] clocksource: Switched to clocksource GIC [ 1.038526] NET: Registered protocol family 2 [ 1.043545] TCP established hash table entries: 2048 (order: 1, 8192 bytes) [ 1.050428] TCP bind hash table entries: 2048 (order: 2, 16384 bytes) [ 1.056869] TCP: Hash tables configured (established 2048 bind 2048) [ 1.063219] UDP hash table entries: 256 (order: 1, 8192 bytes) [ 1.068968] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) [ 1.075486] NET: Registered protocol family 1 [ 1.079849] PCI: CLS 80 bytes, default 32 [ 1.098208] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 1.104062] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 1.116709] io scheduler noop registered [ 1.120549] io scheduler deadline registered (default) [ 1.127340] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled [ 1.134757] console [ttyS0] disabled [ 1.138285] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 33, base_baud = 3125000) is a 16550A \DB R&)\D3Ӧ&LW\90\AC\CBk׋\AB\D2+W\AF*LW\90Y\B7X\B1\B6ed [ 1.147310] console [ttyS0] enabled [ 1.154219] bootconsole [early0] disabled [ 1.154219] bootconsole [early0] disabled [ 1.162661] 1e000d00.uartfull: ttyS1 at MMIO 0x1e000d00 (irq = 34, base_baud = 3125000) is a 16550A [ 1.172170] 1e000e00.uartfull: ttyS2 at MMIO 0x1e000e00 (irq = 35, base_baud = 3125000) is a 16550A [ 1.184172] libphy: Fixed MDIO Bus: probed [ 1.222037] libphy: mdio: probed [ 1.225798] mtk_soc_eth 1e100000.ethernet: generated random MAC address ba:c6:04:7a:e7:e1 [ 1.234551] mtk_soc_eth 1e100000.ethernet: connected mac 0 to PHY at fixed-0:00 [uid=00000000, driver=Generic PHY] [ 1.245793] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 10 [ 1.254259] mtk_soc_eth 1e100000.ethernet: generated random MAC address be:50:b7:d3:88:93 [ 1.263014] mtk_soc_eth 1e100000.ethernet: connected mac 1 to PHY at fixed-0:01 [uid=00000000, driver=Generic PHY] [ 1.274206] mtk_soc_eth 1e100000.ethernet eth1: mediatek frame engine at 0xbe100000, irq 10 [ 1.282869] register mt_drv [ 1.285858] <--mt7916_hif_init() [ 1.289612] Rx[0] Ring: total 24576 bytes allocated [ 1.299174] Rx[1] Ring: total 16384 bytes allocated [ 1.304189] <-- pci_alloc_tx_rx_ring_mem, Status=0 [ 1.343003] [ 1.343003] [ 1.343003] === pAd = c0301000, size = 13590592 === [ 1.343003] [ 1.354169] <-- RTMPAllocAdapterBlock, Status=0 [ 1.358715] PCI CSRBaseAddress =0xc0200000, csr_addr=0xc0200000! [ 1.364765] RTMPInitPCIeDevice():device_id=0x7915 [ 1.369473] mt7915_init()--> [ 1.372364] Use the default iPAiLNA bin image! [ 1.376882] <--mt7915_init() [ 1.380035] RtmpOSFileOpen(): Error 2 opening /etc/wireless/l1profile.dat [ 1.387920] wdev_init(caller:RTMP_COM_IoctlHandle+0x36c/0x18c0), wdev(0) [ 1.395565] Rx[0] Ring: total 24576 bytes allocated [ 1.400629] Rx[1] Ring: total 24576 bytes allocated [ 1.408047] Rx[2] Ring: total 8192 bytes allocated [ 1.417411] Rx[3] Ring: total 16384 bytes allocated [ 1.424800] Rx[4] Ring: total 8192 bytes allocated [ 1.429651] <-- pci_alloc_tx_rx_ring_mem, Status=0 [ 1.435876] i2c /dev entries driver [ 1.440078] mt7621_wdt 1e000100.wdt: Initialized [ 1.445158] pkt_redirect_init complete [ 1.450189] NET: Registered protocol family 10 [ 1.456218] NET: Registered protocol family 17 [ 1.460736] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this. [ 1.473466] 8021q: 802.1Q VLAN Support v1.8 [ 1.480157] mtkmips-pinmux pinctrl: spi is already enabled [ 1.485733] mtk-nand 1e003000.nand: Error applying setting, reverse things back [ 1.493579] nand: device found, Manufacturer ID: 0xc8, Chip ID: 0xd1 [ 1.499930] nand: GD/ESMT PSU1GA30DT [ 1.503519] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 1.511643] Scanning device for bad blocks [ 2.358465] 16 ofpart partitions found on MTD device mtk-nand [ 2.364236] Creating 16 MTD partitions on "mtk-nand": [ 2.369294] 0x000000000000-0x000000080000 : "Bootloader" [ 2.375991] 0x000000080000-0x000000100000 : "Config" [ 2.382195] 0x000000100000-0x000000180000 : "Factory" [ 2.388389] 0x000000180000-0x000002780000 : "ImageA" [ 2.394856] 0x0000001a0000-0x000002780000 : "firmware" [ 2.653517] 2 fit-fw partitions found on MTD device firmware [ 2.659194] 0x0000001a0000-0x000000520000 : "kernel" [ 2.665509] 0x000000520000-0x000002780000 : "rootfs" [ 2.672091] mtd: device 6 (rootfs) set to be root filesystem [ 2.678060] 1 squashfs-split partitions found on MTD device rootfs [ 2.684268] 0x000001840000-0x000002780000 : "rootfs_var" [ 2.691017] 0x000002780000-0x000004d80000 : "firmware_backup" [ 2.698380] 0x000004d80000-0x000005580000 : "CFG" [ 2.704406] 0x000005580000-0x000005980000 : "RAE" [ 2.710258] 0x000005980000-0x000005a80000 : "POT" [ 2.716203] 0x000005a80000-0x000005e80000 : "Language" [ 2.722595] 0x000005e80000-0x000006080000 : "Traffic" [ 2.728813] 0x000006080000-0x000006180000 : "Cert" [ 2.734811] 0x000006180000-0x000006280000 : "NTGRcryptK" [ 2.741250] 0x000006280000-0x000006780000 : "NTGRcryptD" [ 2.747785] 0x000006780000-0x000006880000 : "LOG" [ 2.805692] mtdoops: ready 0, 1 (no erase) [ 2.809792] mtdoops: Attached to MTD device 17 [ 2.815130] 0x000006880000-0x000006ec0000 : "User_data" [ 2.861846] mt753x gsw: Switch is MediaTek MT7530 rev 1 [ 2.888550] libphy: mt753x_mdio: probed [ 2.898467] hctosys: unable to open rtc device (rtc0) [ 2.914682] VFS: Mounted root (squashfs filesystem) readonly on device 31:6. [ 2.922255] Freeing unused kernel memory: 204K [ 2.926706] This architecture does not have kernel memory protection. [ 3.651406] init: Console is alive [ 3.655069] init: - watchdog - [ 4.676014] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 4.758154] usbcore: registered new interface driver usbfs [ 4.763809] usbcore: registered new interface driver hub [ 4.769322] usbcore: registered new device driver usb [ 4.805048] SCSI subsystem initialized [ 4.824374] usbcore: registered new interface driver usb-storage [ 4.832793] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 4.852004] init: - preinit - [ 7.080067] jffs2: notice: (520) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found. [ 7.947160] jffs2: notice: (542) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found. uci: Invalid argument 7530 need fix 100base reg! Set 0 port Set 1 port Set 2 port Set 3 port Set 4 port Check 0 port Phy read reg=0x1, value=0x1c0 Phy read reg=0x7, value=0x3c0 Phy read reg=0x4, value=0x209 Phy read reg=0xa, value=0xc Check 1 port Phy read reg=0x1, value=0x1c0 Phy read reg=0x7, value=0x3c0 Phy read reg=0x4, value=0x209 Phy read reg=0xa, value=0xc Check 2 port Phy read reg=0x1, value=0x1c0 Phy read reg=0x7, value=0x3c0 Phy read reg=0x4, value=0x209 Phy read reg=0xa, value=0xc Check 3 port Phy read reg=0x1, value=0x1c0 Phy read reg=0x7, value=0x3c0 Phy read reg=0x4, value=0x209 Phy read reg=0xa, value=0xc Check 4 port Phy read reg=0x1, value=0x1c0 Phy read reg=0x7, value=0x3c0 Phy read reg=0x4, value=0x209 Phy read reg=0xa, value=0xc Green on when link with 1000M! 7530 need modify collision reg! Write reg=30e0, value=200b model is WAX202 [ 9.605401] random: jshn: uninitialized urandom read (4 bytes read, 70 bits of entropy available) [ 9.753983] random: jshn: uninitialized urandom read (4 bytes read, 70 bits of entropy available) [ 9.827942] random: jshn: uninitialized urandom read (4 bytes read, 73 bits of entropy available) [ 9.899301] random: jshn: uninitialized urandom read (4 bytes read, 75 bits of entropy available) [ 9.946383] random: jshn: uninitialized urandom read (4 bytes read, 75 bits of entropy available) Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [truncated] ``` </details> <details><summary>OpenWrt boot log</summary> ``` =================================================================== MT7621 stage1 code Dec 16 2019 17:45:55 (ASIC) CPU=500000000 HZ BUS=166666666 HZ ================================================================== Change MPLL source from XTAL to CR... do MEMPLL setting.. MEMPLL Config : 0x11000000 3PLL mode + External loopback === XTAL-40Mhz === DDR-1200Mhz === PLL4 FB_DL: 0x14, 1/0 = 603/421 51000000 PLL2 FB_DL: 0x15, 1/0 = 585/439 55000000 PLL3 FB_DL: 0x16, 1/0 = 659/365 59000000 DDR patch working do DDR setting..[01F40000] Apply DDR3 Setting...(use default AC) 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 -------------------------------------------------------------------------------- 0000:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0001:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0002:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0003:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0004:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0005:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0006:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0007:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0008:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0009:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 000E:| 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 000F:| 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0010:| 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0011:| 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0012:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0013:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0014:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0015:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0016:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0017:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0018:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0019:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001F:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 DRAMC_DQSCTL1[0e0]=13000000 DRAMC_DQSGCTL[124]=80000033 rank 0 coarse = 15 rank 0 fine = 72 B:| 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 opt_dle value:8 DRAMC_DDR2CTL[07c]=C287220D DRAMC_PADCTL4[0e4]=000022B3 DRAMC_DQIDLY1[210]=0C0B0B0B DRAMC_DQIDLY2[214]=080A080B DRAMC_DQIDLY3[218]=0C0C0908 DRAMC_DQIDLY4[21c]=0A0A0B09 DRAMC_R0DELDLY[018]=00001F1F ================================================================== RX DQS perbit delay software calibration ================================================================== 1.0-15 bit dq delay value ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 9 9 9 11 10 8 9 8 8 7 10 | 9 11 9 9 10 10 -------------------------------------- ================================================================== 2.dqs window x=pass dqs delay value (min~max)center y=0-7bit DQ of every group input delay:DQS0 =31 DQS1 = 31 ================================================================== bit DQS0 bit DQS1 0 (1~58)29 8 (1~61)31 1 (1~58)29 9 (1~58)29 2 (1~57)29 10 (1~56)28 3 (1~60)30 11 (1~60)30 4 (1~59)30 12 (0~62)31 5 (1~61)31 13 (1~58)29 6 (1~60)30 14 (1~62)31 7 (1~61)31 15 (1~61)31 ================================================================== 3.dq delay value last ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 11 11 11 12 11 8 10 8 8 9 10 | 12 12 9 11 10 10 ================================================================== ================================================================== TX perbyte calibration ================================================================== DQS loop = 15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqsdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqsdly_pass[1]=15, finish count=2 DQ loop=15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqdly_pass[1]=15, finish count=2 byte:0, (DQS,DQ)=(8,8) byte:1, (DQS,DQ)=(8,8) DRAMC_DQODLY1[200]=88888888 DRAMC_DQODLY2[204]=88888888 20,data:88 [EMI] DRAMC calibration passed =================================================================== MT7621 stage1 code done CPU=500000000 HZ BUS=166666666 HZ =================================================================== U-Boot SPL 2018.09 (Jun 11 2021 - 15:25:38 +0800) Trying to boot from NAND U-Boot 2018.09 (Jun 11 2021 - 15:25:38 +0800) CPU: MediaTek MT7621AT ver 1, eco 3 Clocks: CPU: 880MHz, DDR: 600MHz, Bus: 220MHz, XTAL: 40MHz Model: MediaTek MT7621 reference board (NAND) DRAM: 448 MiB NAND: 128 MiB Loading Environment from NAND... OK In: uartlite0@1e000c00 Out: uartlite0@1e000c00 Err: uartlite0@1e000c00 Net: eth0: eth@1e100000 nmrp activated nmrp listen timeout. nmrp Nmrp_cleanup. Hit any key to stop autoboot: 0 *** U-Boot Boot Menu *** Press UP/DOWN to move, ENTER to select 1. Startup system (Default) 2. Upgrade firmware 3. Upgrade bootloader 4. Upgrade bootloader (advanced mode) 5. Load image 0. U-Boot console Hit any key to stop autoboot: 1 0 Starting dual image checking ... NAND read: device 0 offset 0x180000, size 0x20000 131072 bytes read: OK tag error!try no tag mode... Verifying main image at 0x180000 size 0x2600000... ## Checking hash(es) for FIT Image at 80010000 ... Hash(es) for Image 0 (kernel-1): crc32+ sha1+ Hash(es) for Image 1 (fdt-1): crc32+ sha1+ NAND read: device 0 offset 0x2780000, size 0x20000 131072 bytes read: OK image tag: MTD_IMAGEA_TAG get size : 0x16a0000 NAND read: device 0 offset 0x2780000, size 0x16c0000 23855104 bytes read: OK image tag: MTD_IMAGEA_TAG image size: 0x16a0000 checksum: 0x1606f03f image crc: 0x1606f03f Verifying backup image at 0x27a0000 size 0x25e0000... ## Checking hash(es) for FIT Image at 80010000 ... Hash(es) for Image 0 (kernel@1): crc32+ sha1+ Hash(es) for Image 1 (fdt@1): crc32+ sha1+ Passed Loading from nand0, offset 0x180000 Fit image detected... FIT description: MIPS OpenWrt FIT (Flattened Image Tree) Image 0 (kernel-1) Description: MIPS OpenWrt Linux-5.10.109 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 2734593 Bytes = 2.6 MiB Architecture: MIPS OS: Linux Load Address: 0x82000000 Entry Point: 0x82000000 Hash algo: crc32 Hash value: 43e17d42 Hash algo: sha1 Hash value: ff30f52fa3ac1be5f17cfcaa854e87d65c0a227f Image 1 (fdt-1) Description: MIPS OpenWrt netgear_wax202 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x802abc28 Data Size: 11703 Bytes = 11.4 KiB Architecture: MIPS Hash algo: crc32 Hash value: 7d015a28 Hash algo: sha1 Hash value: 5060bc2d2bb306a2fe9ce725cbe6e99672dce613 Default Configuration: 'config-1' Configuration 0 (config-1) Description: OpenWrt netgear_wax202 Kernel: kernel-1 FDT: fdt-1 Automatic boot of image at addr 0x80010000 ... ## Loading kernel from FIT Image at 80010000 ... Using 'config-1' configuration Trying 'kernel-1' kernel subimage Description: MIPS OpenWrt Linux-5.10.109 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 2734593 Bytes = 2.6 MiB Architecture: MIPS OS: Linux Load Address: 0x82000000 Entry Point: 0x82000000 Hash algo: crc32 Hash value: 43e17d42 Hash algo: sha1 Hash value: ff30f52fa3ac1be5f17cfcaa854e87d65c0a227f Verifying Hash Integrity ... crc32+ sha1+ OK ## Loading fdt from FIT Image at 80010000 ... Using 'config-1' configuration Trying 'fdt-1' fdt subimage Description: MIPS OpenWrt netgear_wax202 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x802abc28 Data Size: 11703 Bytes = 11.4 KiB Architecture: MIPS Hash algo: crc32 Hash value: 7d015a28 Hash algo: sha1 Hash value: 5060bc2d2bb306a2fe9ce725cbe6e99672dce613 Verifying Hash Integrity ... crc32+ sha1+ OK Booting using the fdt blob at 0x802abc28 Uncompressing Kernel Image ... OK Loading Device Tree to 9be77000, end 9be7cdb6 ... OK [ 0.000000] Linux version 5.10.109 (ubuntu@openwrt) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 11.2.0 r19040-247eaa4416) 11.2.0, GNU ld (GNU Binutils) 2.37) #0 SMP Sat Apr 9 20:54:26 2022 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] printk: bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is Netgear WAX202 [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] HighMem [mem 0x0000000010000000-0x0000000023ffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000001bffffff] [ 0.000000] node 0: [mem 0x0000000020000000-0x0000000023ffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000023ffffff] [ 0.000000] percpu: Embedded 15 pages/cpu s30096 r8192 d23152 u61440 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 130496 [ 0.000000] Kernel command line: console=ttyS0,115200 rootfstype=squashfs,jffs2 [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [ 0.000000] Writing ErrCtl register=00010400 [ 0.000000] Readback ErrCtl register=00010400 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 508372K/524288K available (6733K kernel code, 617K rwdata, 1368K rodata, 1252K init, 235K bss, 15916K reserved, 0K cma-reserved, 262144K highmem) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] NR_IRQS: 256 [ 0.000000] random: get_random_bytes called from start_kernel+0x3cc/0x5e4 with crng_init=0 [ 0.000000] CPU Clock: 880MHz [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000014] sched_clock: 64 bits at 880MHz, resolution 1ns, wraps every 4398046511103ns [ 0.007958] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 4343773742 ns [ 0.016923] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.083088] pid_max: default: 32768 minimum: 301 [ 0.087858] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.095060] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.105536] rcu: Hierarchical SRCU implementation. [ 0.110543] dyndbg: Ignore empty _ddebug table in a CONFIG_DYNAMIC_DEBUG_CORE build [ 0.118609] smp: Bringing up secondary CPUs ... [ 0.123783] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.123796] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.123807] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.123884] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.178433] Synchronize counters for CPU 1: done. [ 0.210469] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.210480] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.210489] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.210544] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.269621] Synchronize counters for CPU 2: done. [ 0.300178] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.300188] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.300197] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.300258] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.354836] Synchronize counters for CPU 3: done. [ 0.384731] smp: Brought up 1 node, 4 CPUs [ 0.393143] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.402984] futex hash table entries: 1024 (order: 3, 32768 bytes, linear) [ 0.410001] pinctrl core: initialized pinctrl subsystem [ 0.417283] NET: Registered protocol family 16 [ 0.422909] thermal_sys: Registered thermal governor 'step_wise' [ 0.423960] cpuidle: using governor teo [ 0.458834] random: fast init done [ 0.479692] clocksource: Switched to clocksource GIC [ 0.487091] NET: Registered protocol family 2 [ 0.491688] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.499821] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear) [ 0.508139] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.515745] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.522828] TCP: Hash tables configured (established 2048 bind 2048) [ 0.529258] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.535755] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.542914] NET: Registered protocol family 1 [ 0.547233] PCI: CLS 0 bytes, default 32 [ 0.554080] workingset: timestamp_bits=14 max_order=17 bucket_order=3 [ 0.564710] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.570495] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.581420] bounce: pool size: 64 pages [ 0.586977] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.593005] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.598930] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.605586] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled [ 0.613934] printk: console [ttyS0] disabled [ 0.618245] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 19, base_baud = 3125000) is a 16550A [ 0.627271] printk: console [ttyS0] enabled [ 0.627271] printk: console [ttyS0] enabled [ 0.635539] printk: bootconsole [early0] disabled [ 0.635539] printk: bootconsole [early0] disabled [ 0.647875] nand: device found, Manufacturer ID: 0xc8, Chip ID: 0xd1 [ 0.654265] nand: ESMT PSU1GA30DT [ 0.657574] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 0.665189] mt7621-nand 1e003000.nand: ECC strength adjusted to 4 bits [ 0.671861] 15 fixed-partitions partitions found on MTD device mt7621-nand [ 0.678707] Creating 15 MTD partitions on "mt7621-nand": [ 0.684022] 0x000000000000-0x000000080000 : "Bootloader" [ 0.698087] 0x000000080000-0x000000100000 : "Config" [ 0.711941] 0x000000100000-0x000000180000 : "Factory" [ 0.725862] 0x000000180000-0x000002780000 : "firmware" [ 1.315107] 2 fixed-partitions partitions found on MTD device firmware [ 1.321692] Creating 2 MTD partitions on "firmware": [ 1.326649] 0x000000000000-0x000000400000 : "kernel" [ 1.394482] 0x000000400000-0x000002600000 : "ubi" [ 1.921570] 0x000002780000-0x000004d80000 : "firmware_backup" [ 2.511011] 0x000004d80000-0x000005580000 : "CFG" [ 2.639715] 0x000005580000-0x000005980000 : "RAE" [ 2.706969] 0x000005980000-0x000005a80000 : "POT" [ 2.728258] 0x000005a80000-0x000005e80000 : "Language" [ 2.796018] 0x000005e80000-0x000006080000 : "Traffic" [ 2.833056] 0x000006080000-0x000006180000 : "Cert" [ 2.854425] 0x000006180000-0x000006280000 : "NTGRcryptK" [ 2.876401] 0x000006280000-0x000006780000 : "NTGRcryptD" [ 2.959768] 0x000006780000-0x000006880000 : "LOG" [ 2.981130] 0x000006880000-0x000006ec0000 : "User_data" [ 3.141115] mt7530 mdio-bus:1f: MT7530 adapts as multi-chip module [ 3.150128] mtk_soc_eth 1e100000.ethernet: generated random MAC address 82:e3:51:f1:f7:f2 [ 3.159245] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 20 [ 3.169148] i2c /dev entries driver [ 3.175585] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges: [ 3.182348] mt7621-pci 1e140000.pcie: No bus range found for /pcie@1e140000, using [bus 00-ff] [ 3.191160] mt7621-pci 1e140000.pcie: MEM 0x0060000000..0x006fffffff -> 0x0000000000 [ 3.199337] mt7621-pci 1e140000.pcie: IO 0x001e160000..0x001e16ffff -> 0x0000000000 [ 3.207600] mt7621-pci 1e140000.pcie: Parsing DT failed [ 3.215315] NET: Registered protocol family 10 [ 3.221482] Segment Routing with IPv6 [ 3.225248] NET: Registered protocol family 17 [ 3.230173] 8021q: 802.1Q VLAN Support v1.8 [ 3.237794] mt7530 mdio-bus:1f: MT7530 adapts as multi-chip module [ 3.263457] mt7530 mdio-bus:1f wan (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7530 PHY] (irq=25) [ 3.275781] mt7530 mdio-bus:1f lan1 (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7530 PHY] (irq=26) [ 3.288121] mt7530 mdio-bus:1f lan2 (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7530 PHY] (irq=27) [ 3.301166] mt7530 mdio-bus:1f lan3 (uninitialized): PHY [mt7530-0:04] driver [MediaTek MT7530 PHY] (irq=28) [ 3.313953] mt7530 mdio-bus:1f: configuring for fixed/rgmii link mode [ 3.324426] DSA: tree 0 setup [ 3.327817] rt2880-pinmux pinctrl: pcie is already enabled [ 3.333408] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges: [ 3.340152] mt7621-pci 1e140000.pcie: No bus range found for /pcie@1e140000, using [bus 00-ff] [ 3.348933] mt7621-pci 1e140000.pcie: MEM 0x0060000000..0x006fffffff -> 0x0000000000 [ 3.357105] mt7621-pci 1e140000.pcie: IO 0x001e160000..0x001e16ffff -> 0x0000000000 [ 3.365399] mt7621-pci-phy 1e149000.pcie-phy: PHY for 0xbe149000 (dual port = 1) [ 3.373243] mt7621-pci 1e140000.pcie: failed to parse bus ranges property: -22 [ 3.480721] mt7621-pci-phy 1e149000.pcie-phy: Xtal is 40MHz [ 3.586525] mt7621-pci 1e140000.pcie: PCIE0 enabled [ 3.591406] mt7621-pci 1e140000.pcie: PCIE1 enabled [ 3.596268] mt7621-pci 1e140000.pcie: PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 3.605772] mt7621-pci 1e140000.pcie: PCI host bridge to bus 0000:00 [ 3.612162] pci_bus 0000:00: root bus resource [io 0x1e160000-0x1e16ffff] [ 3.619019] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 3.625894] pci_bus 0000:00: root bus resource [bus 00-ff] [ 3.631386] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] (bus address [0x00000000-0x0fffffff]) [ 3.641611] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400 [ 3.647611] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 3.653874] pci 0000:00:00.0: reg 0x14: [mem 0x60600000-0x6060ffff] [ 3.660204] pci 0000:00:00.0: supports D1 [ 3.664201] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 3.670454] pci 0000:00:01.0: [0e8d:0801] type 01 class 0x060400 [ 3.676485] pci 0000:00:01.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 3.682768] pci 0000:00:01.0: reg 0x14: [mem 0x60610000-0x6061ffff] [ 3.689093] pci 0000:00:01.0: supports D1 [ 3.693115] pci 0000:00:01.0: PME# supported from D0 D1 D3hot [ 3.700774] pci 0000:01:00.0: [14c3:7916] type 00 class 0x000280 [ 3.706843] pci 0000:01:00.0: reg 0x10: initial BAR value 0x00000000 invalid [ 3.713903] pci 0000:01:00.0: reg 0x10: [mem size 0x00100000 64bit pref] [ 3.720620] pci 0000:01:00.0: reg 0x18: initial BAR value 0x00000000 invalid [ 3.727640] pci 0000:01:00.0: reg 0x18: [mem size 0x00004000 64bit pref] [ 3.734342] pci 0000:01:00.0: reg 0x20: initial BAR value 0x00000000 invalid [ 3.741384] pci 0000:01:00.0: reg 0x20: [mem size 0x00001000 64bit pref] [ 3.748184] pci 0000:01:00.0: supports D1 D2 [ 3.752452] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 3.759082] pci 0000:01:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:00.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link) [ 3.775376] pci 0000:00:00.0: PCI bridge to [bus 01-ff] [ 3.780639] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 3.786713] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 3.793493] pci 0000:00:00.0: bridge window [mem 0x60100000-0x602fffff pref] [ 3.800726] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 3.807622] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280 [ 3.813691] pci 0000:02:00.0: reg 0x10: initial BAR value 0x00000000 invalid [ 3.820760] pci 0000:02:00.0: reg 0x10: [mem size 0x00100000 64bit pref] [ 3.827449] pci 0000:02:00.0: reg 0x18: initial BAR value 0x00000000 invalid [ 3.834489] pci 0000:02:00.0: reg 0x18: [mem size 0x00004000 64bit pref] [ 3.841201] pci 0000:02:00.0: reg 0x20: initial BAR value 0x00000000 invalid [ 3.848220] pci 0000:02:00.0: reg 0x20: [mem size 0x00001000 64bit pref] [ 3.855031] pci 0000:02:00.0: supports D1 D2 [ 3.859286] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 3.865937] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:01.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link) [ 3.882285] pci 0000:00:01.0: PCI bridge to [bus 02-ff] [ 3.887518] pci 0000:00:01.0: bridge window [io 0x0000-0x0fff] [ 3.893626] pci 0000:00:01.0: bridge window [mem 0x60300000-0x603fffff] [ 3.900416] pci 0000:00:01.0: bridge window [mem 0x60400000-0x605fffff pref] [ 3.907617] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 3.914297] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000] [ 3.920914] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000] [ 3.927852] pci 0000:00:01.0: BAR 0: no space for [mem size 0x80000000] [ 3.934454] pci 0000:00:01.0: BAR 0: failed to assign [mem size 0x80000000] [ 3.941424] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff] [ 3.948186] pci 0000:00:00.0: BAR 9: assigned [mem 0x60100000-0x602fffff pref] [ 3.955404] pci 0000:00:01.0: BAR 8: assigned [mem 0x60300000-0x603fffff] [ 3.962192] pci 0000:00:01.0: BAR 9: assigned [mem 0x60400000-0x605fffff pref] [ 3.969386] pci 0000:00:00.0: BAR 1: assigned [mem 0x60600000-0x6060ffff] [ 3.976170] pci 0000:00:01.0: BAR 1: assigned [mem 0x60610000-0x6061ffff] [ 3.982960] pci 0000:00:00.0: BAR 7: assigned [io 0x1e160000-0x1e160fff] [ 3.989742] pci 0000:00:01.0: BAR 7: assigned [io 0x1e161000-0x1e161fff] [ 3.996519] pci 0000:01:00.0: BAR 0: assigned [mem 0x60100000-0x601fffff 64bit pref] [ 4.004267] pci 0000:01:00.0: BAR 2: assigned [mem 0x60200000-0x60203fff 64bit pref] [ 4.012021] pci 0000:01:00.0: BAR 4: assigned [mem 0x60204000-0x60204fff 64bit pref] [ 4.019774] pci 0000:00:00.0: PCI bridge to [bus 01] [ 4.024721] pci 0000:00:00.0: bridge window [io 0x1e160000-0x1e160fff] [ 4.031497] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 4.038256] pci 0000:00:00.0: bridge window [mem 0x60100000-0x602fffff pref] [ 4.045486] pci 0000:02:00.0: BAR 0: assigned [mem 0x60400000-0x604fffff 64bit pref] [ 4.053233] pci 0000:02:00.0: BAR 2: assigned [mem 0x60500000-0x60503fff 64bit pref] [ 4.060995] pci 0000:02:00.0: BAR 4: assigned [mem 0x60504000-0x60504fff 64bit pref] [ 4.068719] pci 0000:00:01.0: PCI bridge to [bus 02] [ 4.073687] pci 0000:00:01.0: bridge window [io 0x1e161000-0x1e161fff] [ 4.080472] pci 0000:00:01.0: bridge window [mem 0x60300000-0x603fffff] [ 4.087233] pci 0000:00:01.0: bridge window [mem 0x60400000-0x605fffff pref] [ 4.099161] UBI: auto-attach mtd5 [ 4.102570] ubi0: attaching mtd5 [ 4.106123] mt7530 mdio-bus:1f: Link is Up - 1Gbps/Full - flow control rx/tx [ 4.980281] ubi0: scanning is finished [ 5.000769] ubi0: attached mtd5 (name "ubi", size 34 MiB) [ 5.006180] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 5.013068] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 5.019868] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 5.026799] ubi0: good PEBs: 272, bad PEBs: 0, corrupted PEBs: 0 [ 5.032794] ubi0: user volume: 2, internal volumes: 1, max. volumes count: 128 [ 5.040010] ubi0: max/mean erase counter: 2/1, WL threshold: 4096, image sequence number: 1649533977 [ 5.049102] ubi0: available PEBs: 0, total reserved PEBs: 272, PEBs reserved for bad PEB handling: 20 [ 5.058340] ubi0: background thread "ubi_bgt0d" started, PID 461 [ 5.061033] block ubiblock0_0: created from ubi0:0(rootfs) [ 5.069867] ubiblock: device ubiblock0_0 (rootfs) set to be root filesystem [ 5.085426] VFS: Mounted root (squashfs filesystem) readonly on device 254:0. [ 5.097109] Freeing unused kernel memory: 1252K [ 5.101675] This architecture does not have kernel memory protection. [ 5.108112] Run /sbin/init as init process [ 5.632681] init: Console is alive [ 5.636557] init: - watchdog - [ 6.447089] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 6.540988] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 6.560159] init: - preinit - [ 7.434472] random: jshn: uninitialized urandom read (4 bytes read) [ 7.513787] random: jshn: uninitialized urandom read (4 bytes read) [ 7.849788] random: jshn: uninitialized urandom read (4 bytes read) [ 8.141493] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode [ 8.149921] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx [ 8.158848] mt7530 mdio-bus:1f lan1: configuring for phy/gmii link mode [ 8.165847] 8021q: adding VLAN 0 to HW filter on device lan1 [ 8.174180] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [ 12.381760] UBIFS (ubi0:1): Mounting in unauthenticated mode [ 12.387740] UBIFS (ubi0:1): background thread "ubifs_bgt0_1" started, PID 593 [ 12.590967] UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name "rootfs_data" [ 12.598792] UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 12.608704] UBIFS (ubi0:1): FS size: 25649152 bytes (24 MiB, 202 LEBs), journal size 1269760 bytes (1 MiB, 10 LEBs) [ 12.619109] UBIFS (ubi0:1): reserved for root: 1211472 bytes (1183 KiB) [ 12.625713] UBIFS (ubi0:1): media format: w5/r0 (latest is w5/r0), UUID FAC86A8A-9B64-46B7-BE80-770E8A7B5CBA, small LPT model [ 12.639559] mount_root: overlay filesystem has not been fully initialized yet [ 12.647911] mount_root: switching to ubifs overlay - config restore - [ 13.234680] urandom-seed: Saving 4096 bits of non-creditable seed for next boot [ 13.271438] procd: - early - [ 13.274613] procd: - watchdog - [ 13.869844] procd: - watchdog - [ 13.873504] procd: - ubus - [ 13.970383] procd: - init - Please press Enter to activate this console. [ 14.781412] kmodloader: loading kernel modules from /etc/modules.d/* [ 14.983982] Loading modules backported from Linux version v5.15.8-0-g43e577d7a2cb [ 14.991536] Backport generated by backports.git v5.15.8-1-0-g83f664bb [ 15.027684] urngd: v1.0.2 started. [ 15.207698] mt7621-pci 1e140000.pcie: bus=1 slot=0 irq=21 [ 15.208824] random: crng init done [ 15.213192] pci 0000:00:00.0: enabling device (0006 -> 0007) [ 15.216570] random: 7 urandom warning(s) missed due to ratelimiting [ 15.222230] mt7915e_hif 0000:01:00.0: enabling device (0000 -> 0002) [ 15.235363] mt7621-pci 1e140000.pcie: bus=2 slot=1 irq=22 [ 15.240855] pci 0000:00:01.0: enabling device (0006 -> 0007) [ 15.246522] mt7915e 0000:02:00.0: enabling device (0000 -> 0002) [ 15.509753] mt7915e 0000:02:00.0: HW/SW Version: 0x8a108a10, Build Time: 20201105222230a [ 15.509753] [ 15.838400] mt7915e 0000:02:00.0: WM Firmware Version: ____000000, Build Time: 20201105222304 [ 15.872542] mt7915e 0000:02:00.0: WA Firmware Version: DEV_000000, Build Time: 20201105222323 [ 16.061292] PPP generic driver version 2.4.2 [ 16.067988] NET: Registered protocol family 24 ``` </details>

martin4 · August 16, 2022, 1:15am

I've contacted H3C (more precisely, I asked someone who can speak Chinese to help me contact them). Release date not before Q4 (so this might as well be a marketing gag to claim being the "first").

I don't think we'll be seeing 802.11be capable APs before 2023.

peca89 · August 29, 2022, 7:14am

Is this something we should organize a big celebration for?

I know QSDK is Openwrt-based, but this specific mention of Openwrt in datasheet makes me smile.
