Hi! I installed OpenWrt 24.10.5 on my ZTE MF287Pro (DreiNeo). Everything seemed to go smoothly, but I can't see the Wi-Fi network. It's not broadcasting. The interface is visible. I'm not very knowledgeable about this. Could someone help me get Wi-Fi working? From what I can see, I don't have the option to revert to the stock firmware? But I have ZTE firmware backup (files ubi0_0 and ubi0_1)

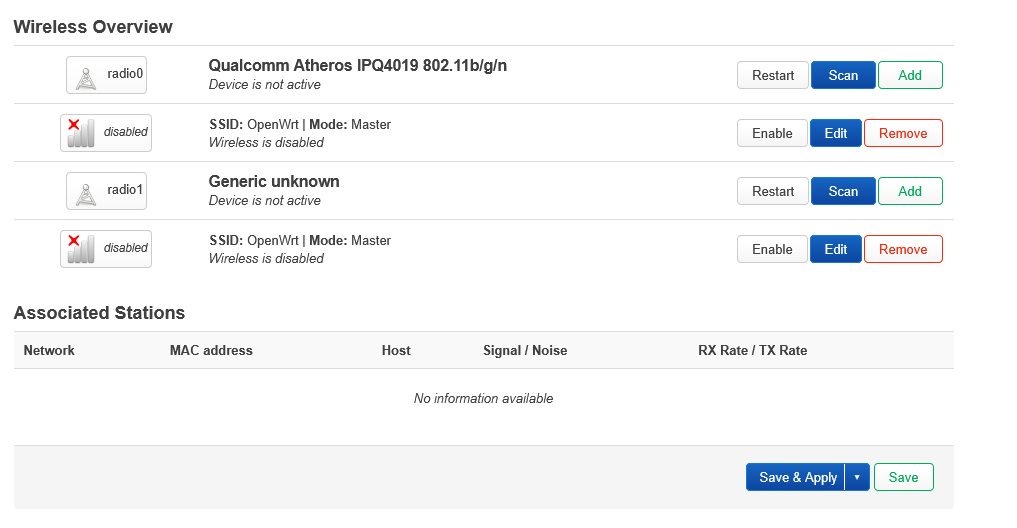

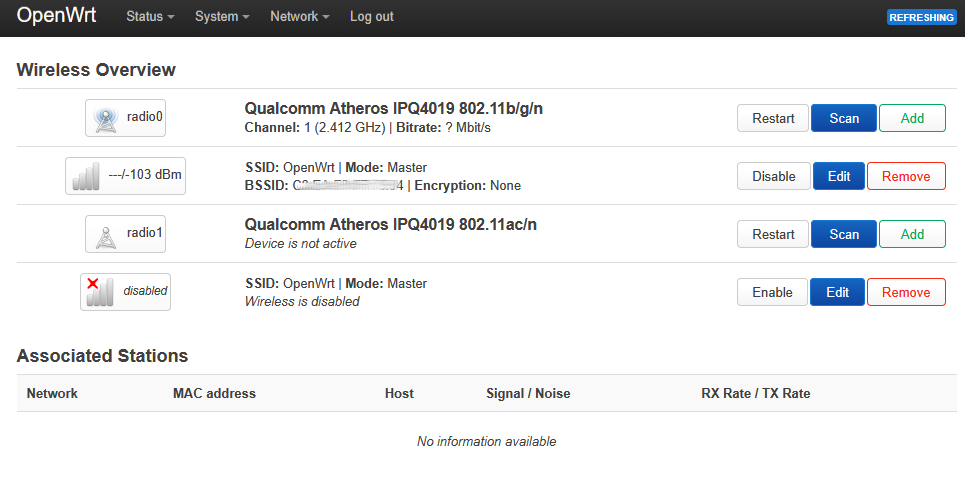

Looks about right from the pictures. 2ghz should pop up immediately (maybe 3-5s client scan cycle away)
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button (red circle; this works best in the 'Markdown' composer view in the blue oval):
Remember to redact passwords, VPN keys, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall
(dont post the pics, they are not searchable)
Ok, below is the data, I hope you can help me
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.119",
"hostname": "OpenWrt",
"system": "ARMv7 Processor rev 5 (v7l)",
"model": "ZTE MF287Pro",
"board_name": "zte,mf287pro",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.5",
"revision": "r29087-d9c5716d1d",
"target": "ipq40xx/generic",
"description": "OpenWrt 24.10.5 r29087-d9c5716d1d",
"builddate": "1766005702"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd0b:effd:c67b::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device '/dev/cdc-wdm0'
option proto 'qmi'
option pdptype 'ipv4'
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/a000000.wifi'
option band '2g'
option channel '1'
option country 'PL'
option cell_density '0'
option htmode 'HT20'
option txpower '20'
option noscan '1'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/a800000.wifi'
option band '5g'
option channel '36'
option htmode 'VHT80'
option noscan '1'
option disabled '1'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
option disabled '1'
config wifi-iface 'wifinet1'
option device 'radio0'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
option network 'lan'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
option piofolder '/tmp/odhcpd-piofolder'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option syn_flood '1'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
config zone
option name 'wan'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
Set 5 GHz country also to 'PL'. Both radios must be set to the same country even if only using one. Remove option noscan from both radios it is not applicable here (only for 2.4 40 MHz).
Remove these 2 lines (they do NOTHING)
Then do service wpad restart and then
logread -e ath10k
logread -e hostap
1 Like
I set PL for both interfaces,
removed the noscan option,
and removed that too
option txpower '20'
option noscan '1'
using
root@OpenWrt:~# uci delete wireless.radio0.txpower root@OpenWrt:~# uci commit wireless
root@OpenWrt:~# wifi reload
but after that, it lost the LAN connection; all the ports went dark.
Only after a reboot did it start responding, but now it's intermittently losing pings from the computer, even though the ports are lighting
later I also did
service wpad restart
logread -e ath10k
logread -e hostap
root@OpenWrt:~# service wpad restart
root@OpenWrt:~# logread -e ath10k
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 17.277484] ath10k_ahb a000000.wifi: qca4019 hw1.0 target 0x01000000 chip_id 0x003b00ff sub 0000:0000
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 17.277555] ath10k_ahb a000000.wifi: kconfig debug 0 debugfs 1 tracing 0 dfs 1 testmode 0
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 17.289449] ath10k_ahb a000000.wifi: firmware ver 10.4b-ct-4019-fW-13-5ae337bb1 api 5 features mfp,peer-flow-ctrl,txstatus-noack,wmi-10.x-CT,ratemask-CT,regdump-CT,txrate-CT,flush-all-CT,pingpong-CT,ch-regs-CT,nop-CT,set-special-CT,tx-rc-CT,cust-stats-CT,txrate2-CT,beacon-cb-CT,wmi-block-ack-CT,wmi-bcn-rc-CT crc32 6b2b5c5b
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 17.349326] ath10k_ahb a000000.wifi: board_file api 2 bmi_id 0:20 crc32 7f073702
Wed Feb 4 18:56:35 2026 kern.warn kernel: [ 18.646446] ath10k_ahb a000000.wifi: 10.4 wmi init: vdevs: 16 peers: 48 tid: 96
Wed Feb 4 18:56:35 2026 kern.warn kernel: [ 18.646521] ath10k_ahb a000000.wifi: msdu-desc: 2500 skid: 32
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 18.694123] ath10k_ahb a000000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186 msdu-desc: 2500 sw-crypt: 0 ct-sta: 0'
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 18.695199] ath10k_ahb a000000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 18.833118] ath10k_ahb a000000.wifi: htt-ver 2.2 wmi-op 6 htt-op 4 cal pre-cal-nvmem max-sta 32 raw 0 hwcrypto 1
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 19.856342] ath10k_ahb a800000.wifi: qca4019 hw1.0 target 0x01000000 chip_id 0x003b00ff sub 0000:0000
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 19.856411] ath10k_ahb a800000.wifi: kconfig debug 0 debugfs 1 tracing 0 dfs 1 testmode 0
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 19.868277] ath10k_ahb a800000.wifi: firmware ver 10.4b-ct-4019-fW-13-5ae337bb1 api 5 features mfp,peer-flow-ctrl,txstatus-noack,wmi-10.x-CT,ratemask-CT,regdump-CT,txrate-CT,flush-all-CT,pingpong-CT,ch-regs-CT,nop-CT,set-special-CT,tx-rc-CT,cust-stats-CT,txrate2-CT,beacon-cb-CT,wmi-block-ack-CT,wmi-bcn-rc-CT crc32 6b2b5c5b
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 19.927612] ath10k_ahb a800000.wifi: board_file api 2 bmi_id 0:21 crc32 7f073702
Wed Feb 4 18:56:35 2026 kern.warn kernel: [ 21.225259] ath10k_ahb a800000.wifi: 10.4 wmi init: vdevs: 16 peers: 48 tid: 96
Wed Feb 4 18:56:35 2026 kern.warn kernel: [ 21.225329] ath10k_ahb a800000.wifi: msdu-desc: 2500 skid: 32
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 21.272527] ath10k_ahb a800000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186 msdu-desc: 2500 sw-crypt: 0 ct-sta: 0'
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 21.273477] ath10k_ahb a800000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Wed Feb 4 18:56:35 2026 kern.info kernel: [ 21.409736] ath10k_ahb a800000.wifi: htt-ver 2.2 wmi-op 6 htt-op 4 cal pre-cal-nvmem max-sta 32 raw 0 hwcrypto 1
Wed Feb 4 18:56:46 2026 kern.warn kernel: [ 34.524899] ath10k_ahb a000000.wifi: 10.4 wmi init: vdevs: 16 peers: 48 tid: 96
Wed Feb 4 18:56:46 2026 kern.warn kernel: [ 34.524977] ath10k_ahb a000000.wifi: msdu-desc: 2500 skid: 32
Wed Feb 4 18:56:46 2026 kern.info kernel: [ 34.572408] ath10k_ahb a000000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186 msdu-desc: 2500 sw-crypt: 0 ct-sta: 0'
Wed Feb 4 18:56:46 2026 kern.info kernel: [ 34.573290] ath10k_ahb a000000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 34.896732] ath10k_ahb a000000.wifi: rts threshold -1
Wed Feb 4 18:56:47 2026 kern.warn kernel: [ 34.897004] ath10k_ahb a000000.wifi: Firmware lacks feature flag indicating a retry limit of > 2 is OK, requested limit: 4
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 34.933112] ath10k_ahb a000000.wifi phy0-ap0: entered allmulticast mode
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 34.938896] ath10k_ahb a000000.wifi phy0-ap0: entered promiscuous mode
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 34.948370] ath10k_ahb a000000.wifi phy0-ap0: left allmulticast mode
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 34.951832] ath10k_ahb a000000.wifi phy0-ap0: left promiscuous mode
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 35.002284] ath10k_ahb a000000.wifi: NOTE: Firmware DBGLOG output disabled in debug_mask: 0x10000000
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 35.015965] ath10k_ahb a000000.wifi phy0-ap0: entered allmulticast mode
Wed Feb 4 18:56:47 2026 kern.info kernel: [ 35.021895] ath10k_ahb a000000.wifi phy0-ap0: entered promiscuous mode
Wed Feb 4 18:56:49 2026 kern.warn kernel: [ 36.895166] ath10k_ahb a800000.wifi: 10.4 wmi init: vdevs: 16 peers: 48 tid: 96
Wed Feb 4 18:56:49 2026 kern.warn kernel: [ 36.895240] ath10k_ahb a800000.wifi: msdu-desc: 2500 skid: 32
Wed Feb 4 18:56:49 2026 kern.info kernel: [ 36.942399] ath10k_ahb a800000.wifi: wmi print 'P 48/48 V 16 K 144 PH 176 T 186 msdu-desc: 2500 sw-crypt: 0 ct-sta: 0'
Wed Feb 4 18:56:49 2026 kern.info kernel: [ 36.943358] ath10k_ahb a800000.wifi: wmi print 'free: 53252 iram: 13432 sram: 35752'
Wed Feb 4 18:56:49 2026 kern.info kernel: [ 37.258590] ath10k_ahb a800000.wifi: rts threshold -1
Wed Feb 4 18:56:49 2026 kern.warn kernel: [ 37.258844] ath10k_ahb a800000.wifi: Firmware lacks feature flag indicating a retry limit of > 2 is OK, requested limit: 4
Wed Feb 4 18:56:49 2026 kern.info kernel: [ 37.279120] ath10k_ahb a800000.wifi phy1-ap0: entered allmulticast mode
Wed Feb 4 18:56:49 2026 kern.info kernel: [ 37.285035] ath10k_ahb a800000.wifi phy1-ap0: entered promiscuous mode
Wed Feb 4 18:57:02 2026 kern.warn kernel: [ 49.785688] ath10k_ahb a800000.wifi: wmi: fixing invalid VHT TX rate code 0xff
Wed Feb 4 19:15:44 2026 kern.info kernel: [ 96.310083] ath10k_ahb a800000.wifi phy1-ap0: left allmulticast mode
Wed Feb 4 19:15:44 2026 kern.info kernel: [ 96.310189] ath10k_ahb a800000.wifi phy1-ap0: left promiscuous mode
Wed Feb 4 19:15:45 2026 kern.warn kernel: [ 96.439451] ath10k_ahb a800000.wifi: peer-unmap-event: unknown peer id 0
Wed Feb 4 19:15:45 2026 kern.info kernel: [ 96.651776] ath10k_ahb a000000.wifi phy0-ap0: left allmulticast mode
Wed Feb 4 19:15:45 2026 kern.info kernel: [ 96.651864] ath10k_ahb a000000.wifi phy0-ap0: left promiscuous mode
Wed Feb 4 19:15:45 2026 kern.warn kernel: [ 96.788865] ath10k_ahb a000000.wifi: peer-unmap-event: unknown peer id 0
root@OpenWrt:~# logread -e hostap
Wed Feb 4 18:56:44 2026 daemon.notice hostapd: Set new config for phy phy1:
Wed Feb 4 18:56:44 2026 daemon.notice hostapd: Set new config for phy phy0:
Wed Feb 4 18:56:45 2026 daemon.notice hostapd: Set new config for phy phy0: /var/run/hostapd-phy0.conf
Wed Feb 4 18:56:45 2026 daemon.notice hostapd: Restart interface for phy phy0
Wed Feb 4 18:56:45 2026 daemon.notice hostapd: Configuration file: <inline> (phy phy0) --> new PHY
Wed Feb 4 18:56:45 2026 daemon.notice hostapd: Configuration file: Reading configuration file '<inline>'
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: phy0-ap0: interface state UNINITIALIZED->COUNTRY_UPDATE
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: phy0-ap0: interface state COUNTRY_UPDATE->ENABLED
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: phy0-ap0: AP-ENABLED
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: Set new config for phy phy1: /var/run/hostapd-phy1.conf
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: Restart interface for phy phy1
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: Configuration file: <inline> (phy phy1) --> new PHY
Wed Feb 4 18:56:47 2026 daemon.notice hostapd: Configuration file: Reading configuration file '<inline>'
Wed Feb 4 18:56:49 2026 daemon.notice hostapd: phy1-ap0: interface state UNINITIALIZED->COUNTRY_UPDATE
Wed Feb 4 18:56:49 2026 daemon.notice hostapd: phy1-ap0: interface state COUNTRY_UPDATE->HT_SCAN
Wed Feb 4 18:56:50 2026 daemon.notice hostapd: phy1-ap0: interface state HT_SCAN->ENABLED
Wed Feb 4 18:56:50 2026 daemon.notice hostapd: phy1-ap0: AP-ENABLED
Wed Feb 4 19:15:44 2026 daemon.notice hostapd: Remove interface 'phy1'
Wed Feb 4 19:15:44 2026 daemon.notice hostapd: phy1-ap0: interface state ENABLED->DISABLED
Wed Feb 4 19:15:44 2026 daemon.notice hostapd: phy1-ap0: AP-DISABLED
Wed Feb 4 19:15:44 2026 daemon.notice hostapd: phy1-ap0: CTRL-EVENT-TERMINATING
Wed Feb 4 19:15:44 2026 daemon.err hostapd: rmdir[ctrl_interface=/var/run/hostapd]: Permission denied
Wed Feb 4 19:15:44 2026 daemon.notice hostapd: nl80211: deinit ifname=phy1-ap0 disabled_11b_rates=0
Wed Feb 4 19:15:45 2026 daemon.notice hostapd: Remove interface 'phy0'
Wed Feb 4 19:15:45 2026 daemon.notice hostapd: phy0-ap0: interface state ENABLED->DISABLED
Wed Feb 4 19:15:45 2026 daemon.notice hostapd: phy0-ap0: AP-DISABLED
Wed Feb 4 19:15:45 2026 daemon.notice hostapd: phy0-ap0: CTRL-EVENT-TERMINATING
Wed Feb 4 19:15:45 2026 daemon.err hostapd: rmdir[ctrl_interface=/var/run/hostapd]: Permission denied
Wed Feb 4 19:15:45 2026 daemon.notice hostapd: nl80211: deinit ifname=phy0-ap0 disabled_11b_rates=0
Wed Feb 4 19:15:45 2026 daemon.err hostapd: rmdir[ctrl_interface=/var/run/hostapd]: Permission denied
and now it looks like this:
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.119",
"hostname": "OpenWrt",
"system": "ARMv7 Processor rev 5 (v7l)",
"model": "ZTE MF287Pro",
"board_name": "zte,mf287pro",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.5",
"revision": "r29087-d9c5716d1d",
"target": "ipq40xx/generic",
"description": "OpenWrt 24.10.5 r29087-d9c5716d1d",
"builddate": "1766005702"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd0b:effd:c67b::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device '/dev/cdc-wdm0'
option proto 'qmi'
option pdptype 'ipv4'
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/a000000.wifi'
option band '2g'
option channel '1'
option country 'PL'
option cell_density '0'
option htmode 'HT20'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/a800000.wifi'
option band '5g'
option channel '36'
option htmode 'VHT80'
option country 'PL'
option cell_density '0'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt5'
option encryption 'none'
config wifi-iface 'wifinet1'
option device 'radio0'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
option network 'lan'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
option piofolder '/tmp/odhcpd-piofolder'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option syn_flood '1'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
config zone
option name 'wan'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
I just don't know what happened that now it's losing ping
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=3ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=6ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=5ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.14: Destination host unreachable.
Request timed out.
Reply from 192.168.1.14: Destination host unreachable.
Request timed out.
Reply from 192.168.1.14: Destination host unreachable.
Reply from 192.168.1.14: Destination host unreachable.
Reply from 192.168.1.14: Destination host unreachable.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.14: Destination host unreachable.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=4ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=6ms TTL=64
Reply from 192.168.1.1: bytes=32 time=3ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=5ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=7ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=6ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=5ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.14: Destination host unreachable.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
and there is still no wifi
I reset it using the button next to the SIM card. It seems to have reset because I had to set a password.
It worked for a while, then the connection disappeared, the GSM LEDs started flashing red, and all the LAN ports went dark.
Please do not perform ANY panic changes.
I recorded 3 videos of how it behaves now:
Please set up using luci. Some parameters dont read right.
Hi,
How do I do this?
Secondly, I can't connect to the router. I turn it off and on several times in a row. Sometimes the ping appears for a few seconds, but then disappears.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=4ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.14: Destination host unreachable.
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Reply from 192.168.1.1: bytes=32 time<1ms TTL=64
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
In the meantime, when the pings were a bit longer, I managed to log in to Luci and flashed the firmware to 25.10.4.
Later, when I managed to log in again, it was already 25.10.4. So, if that's the case, should the factory configurations be correct?
Despite all this, the pings are very short, if they appear at all sometimes.
I used TFTPD to flash from stock.
If it shows that it's debugging LAN on startup, is there any way to use it to flash new firmware? But will it do anything?
How many devices you have on same IP address?
Network misconfig you just introduced does not help at all
Please reset to defaults https://openwrt.org/docs/guide-user/troubleshooting/failsafe_and_factory_reset#entering_failsafe_mode
Anfd focus exclusively on the wifi.
Do you have a SIM card inserted in the device? I've read reports that some models MF287Pro are prone to powercycling when no SIM is detected by the integrated modem. It doesn't matter if the SIM actually works/registers with the mobile network, btw
Somehow, I managed to get into
root@OpenWrt-failsafe:~#
root@OpenWrt-failsafe:~# sysupgrade -n /tmp/openwrt-24.10.5-ipq40xx-generic-zte_mf287pro-squashfs-sysupgrade.bin
The router is back, I can ping it, and I have Luci on 24.10.5.
It looks like clean firmware. Wi-Fi is disabled.
Now I have SIM Insert, and its' ok
Can you help me now? What should I do? Should I try to turn on these Wi-Fi adapters through Luci?
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.119",
"hostname": "OpenWrt",
"system": "ARMv7 Processor rev 5 (v7l)",
"model": "ZTE MF287Pro",
"board_name": "zte,mf287pro",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.5",
"revision": "r29087-d9c5716d1d",
"target": "ipq40xx/generic",
"description": "OpenWrt 24.10.5 r29087-d9c5716d1d",
"builddate": "1766005702"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd1c:9c9b:2150::/48'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device '/dev/cdc-wdm0'
option proto 'qmi'
option pdptype 'ipv4'
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd1c:9c9b:2150::/48'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device '/dev/cdc-wdm0'
option proto 'qmi'
option pdptype 'ipv4'
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/a000000.wifi'
option band '2g'
option channel '1'
option htmode 'VHT20'
option disabled '1'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/a800000.wifi'
option band '5g'
option channel '36'
option htmode 'VHT80'
option disabled '1'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
option piofolder '/tmp/odhcpd-piofolder'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
option piofolder '/tmp/odhcpd-piofolder'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option syn_flood 1
option input REJECT
option output ACCEPT
option forward REJECT
# Uncomment this line to disable ipv6 rules
# option disable_ipv6 1
config zone
option name lan
list network 'lan'
option input ACCEPT
option output ACCEPT
option forward ACCEPT
config zone
option name wan
list network 'wan'
list network 'wan6'
option input REJECT
option output ACCEPT
option forward REJECT
option masq 1
option mtu_fix 1
config forwarding
option src lan
option dest wan
# We need to accept udp packets on port 68,
# see https://dev.openwrt.org/ticket/4108
config rule
option name Allow-DHCP-Renew
option src wan
option proto udp
option dest_port 68
option target ACCEPT
option family ipv4
# Allow IPv4 ping
config rule
option name Allow-Ping
option src wan
option proto icmp
option icmp_type echo-request
option family ipv4
option target ACCEPT
config rule
option name Allow-IGMP
option src wan
option proto igmp
option family ipv4
option target ACCEPT
# Allow DHCPv6 replies
# see https://github.com/openwrt/openwrt/issues/5066
config rule
option name Allow-DHCPv6
option src wan
option proto udp
option dest_port 546
option family ipv6
option target ACCEPT
config rule
option name Allow-MLD
option src wan
option proto icmp
option src_ip fe80::/10
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family ipv6
option target ACCEPT
# Allow essential incoming IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Input
option src wan
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
list icmp_type router-solicitation
list icmp_type neighbour-solicitation
list icmp_type router-advertisement
list icmp_type neighbour-advertisement
option limit 1000/sec
option family ipv6
option target ACCEPT
# Allow essential forwarded IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Forward
option src wan
option dest *
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
option limit 1000/sec
option family ipv6
option target ACCEPT
config rule
option name Allow-IPSec-ESP
option src wan
option dest lan
option proto esp
option target ACCEPT
config rule
option name Allow-ISAKMP
option src wan
option dest lan
option dest_port 500
option proto udp
option target ACCEPT
### EXAMPLE CONFIG SECTIONS
# do not allow a specific ip to access wan
#config rule
# option src lan
# option src_ip 192.168.45.2
# option dest wan
# option proto tcp
# option target REJECT
# block a specific mac on wan
#config rule
# option dest wan
# option src_mac 00:11:22:33:44:66
# option target REJECT
# block incoming ICMP traffic on a zone
#config rule
# option src lan
# option proto ICMP
# option target DROP
# port redirect port coming in on wan to lan
#config redirect
# option src wan
# option src_dport 80
# option dest lan
# option dest_ip 192.168.16.235
# option dest_port 80
# option proto tcp
# port redirect of remapped ssh port (22001) on wan
#config redirect
# option src wan
# option src_dport 22001
# option dest lan
# option dest_port 22
# option proto tcp
### FULL CONFIG SECTIONS
#config rule
# option src lan
# option src_ip 192.168.45.2
# option src_mac 00:11:22:33:44:55
# option src_port 80
# option dest wan
# option dest_ip 194.25.x.xxx #anonimize
# option dest_port 120
# option proto tcp
# option target REJECT
#config redirect
# option src lan
# option src_ip 192.168.45.2
# option src_mac 00:11:22:33:44:55
# option src_port 1024
# option src_dport 80
# option dest_ip 194.25.x.xxx #anonimize
# option dest_port 120
# option proto tcp
root@OpenWrt:~#
Yes. If you click on "Enable", you should get an unsecured network called "OpenWrt". Please only do this for testing purposes.
I set Radio0 SSID to Enable, set the country to PL, but it still doesn't broadcast WiFi.
Why is radio1 now unknown? Yesterday, after the first flash, it said
radio1
Qualcomm Atheros IPQ4019 802.11acn, now it's unknown. You can't set the country on radio1; there's no list like on radio0.
On this page it says:
Supported Current Rel: 24.10.4
I installed 24.10.5, isn't that a problem if the Wi-Fi isn't working?
Although, on the page below, it says 24.10.5 for this model...
I dont like your comic strip approach.
